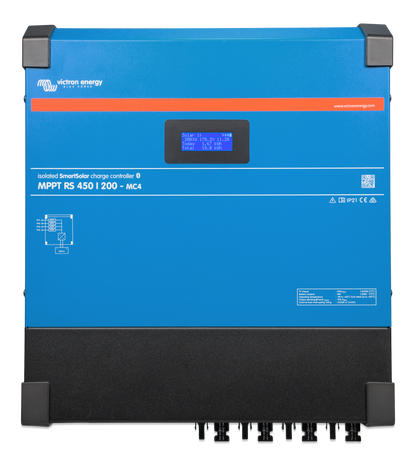

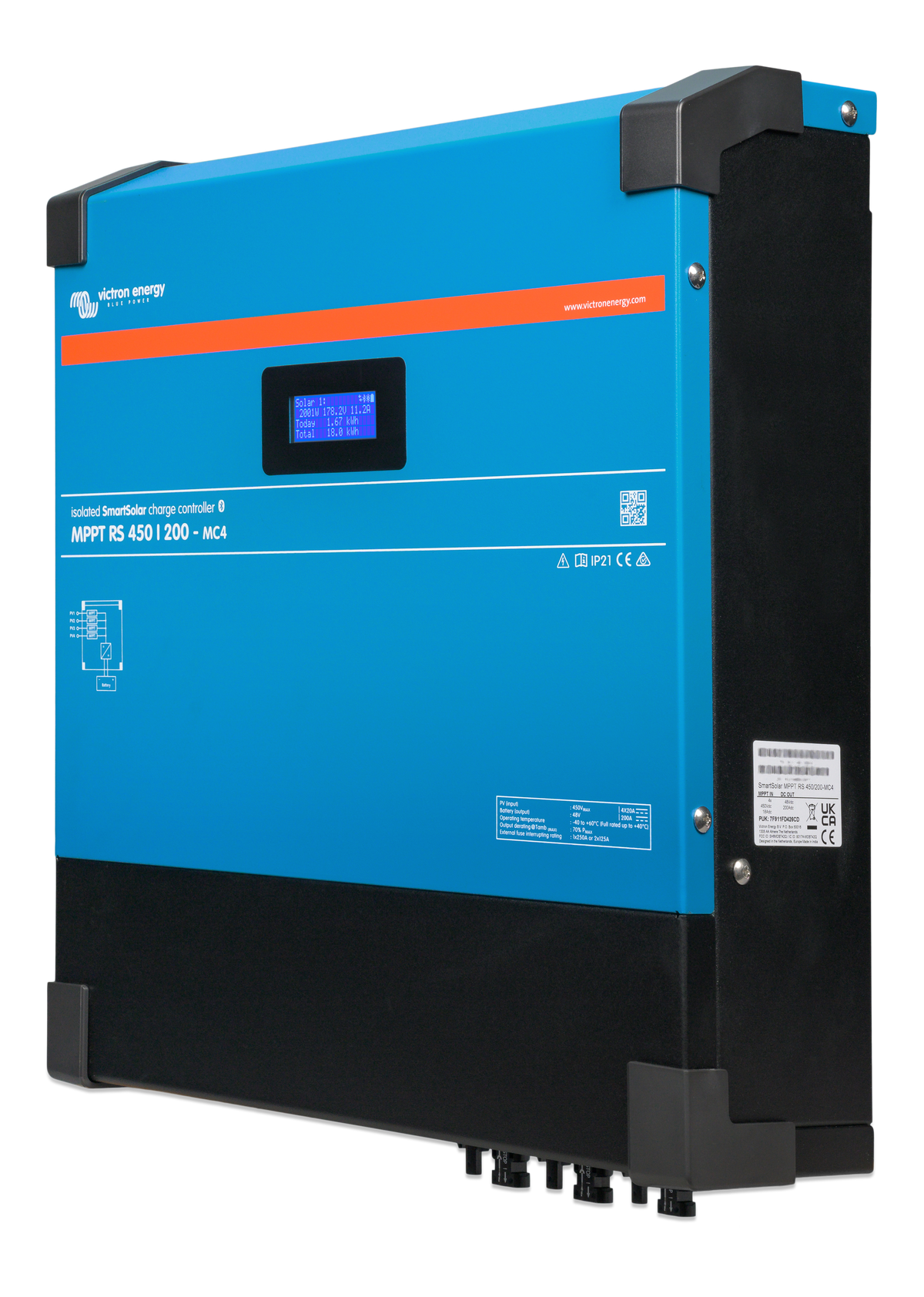

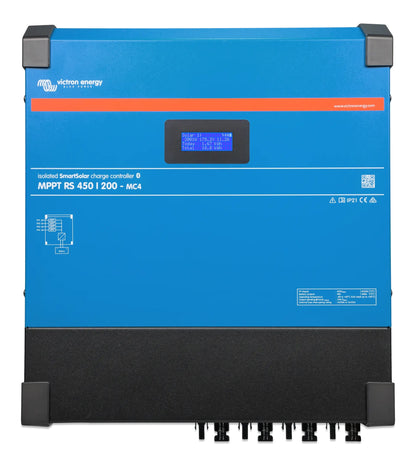

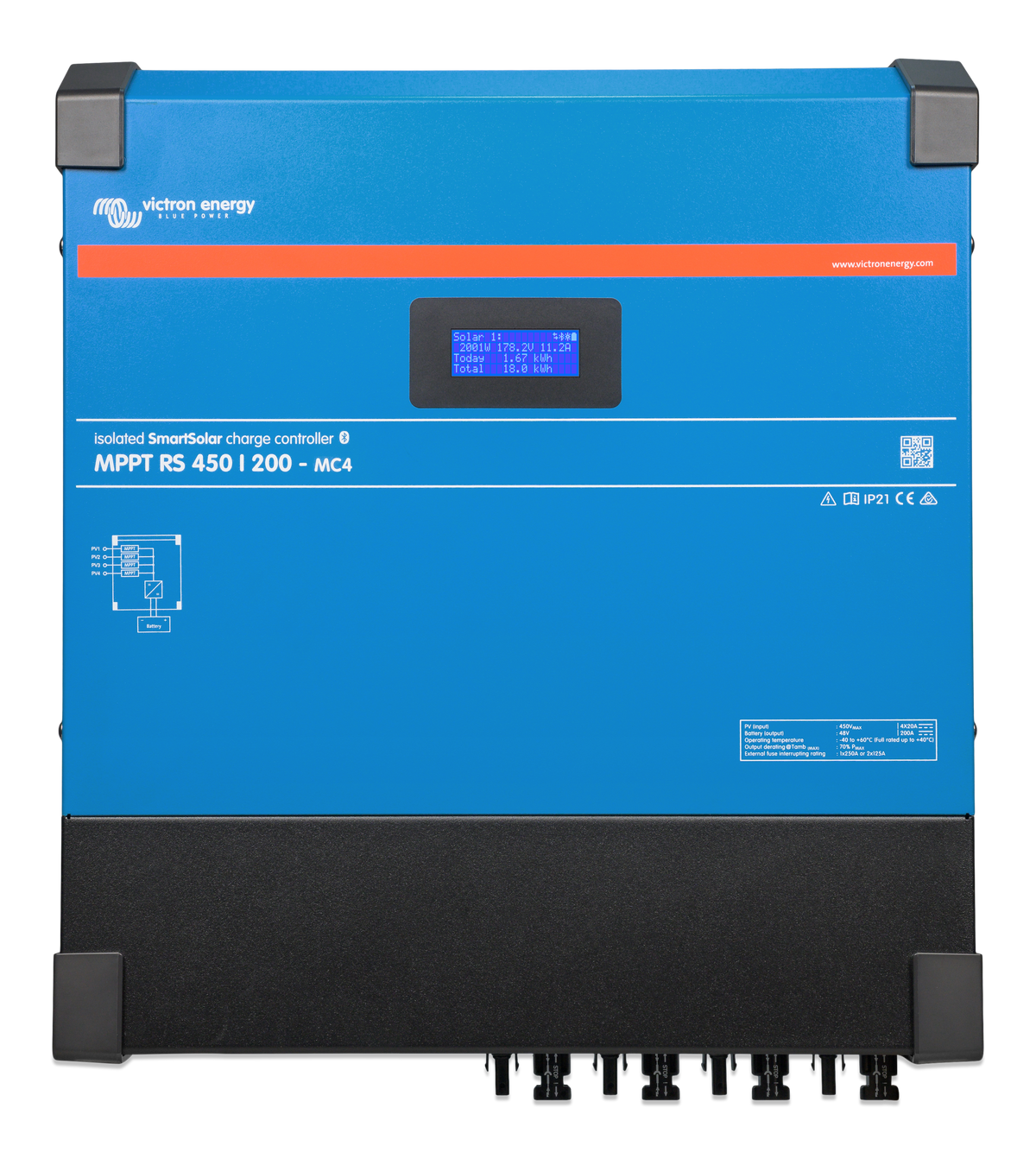

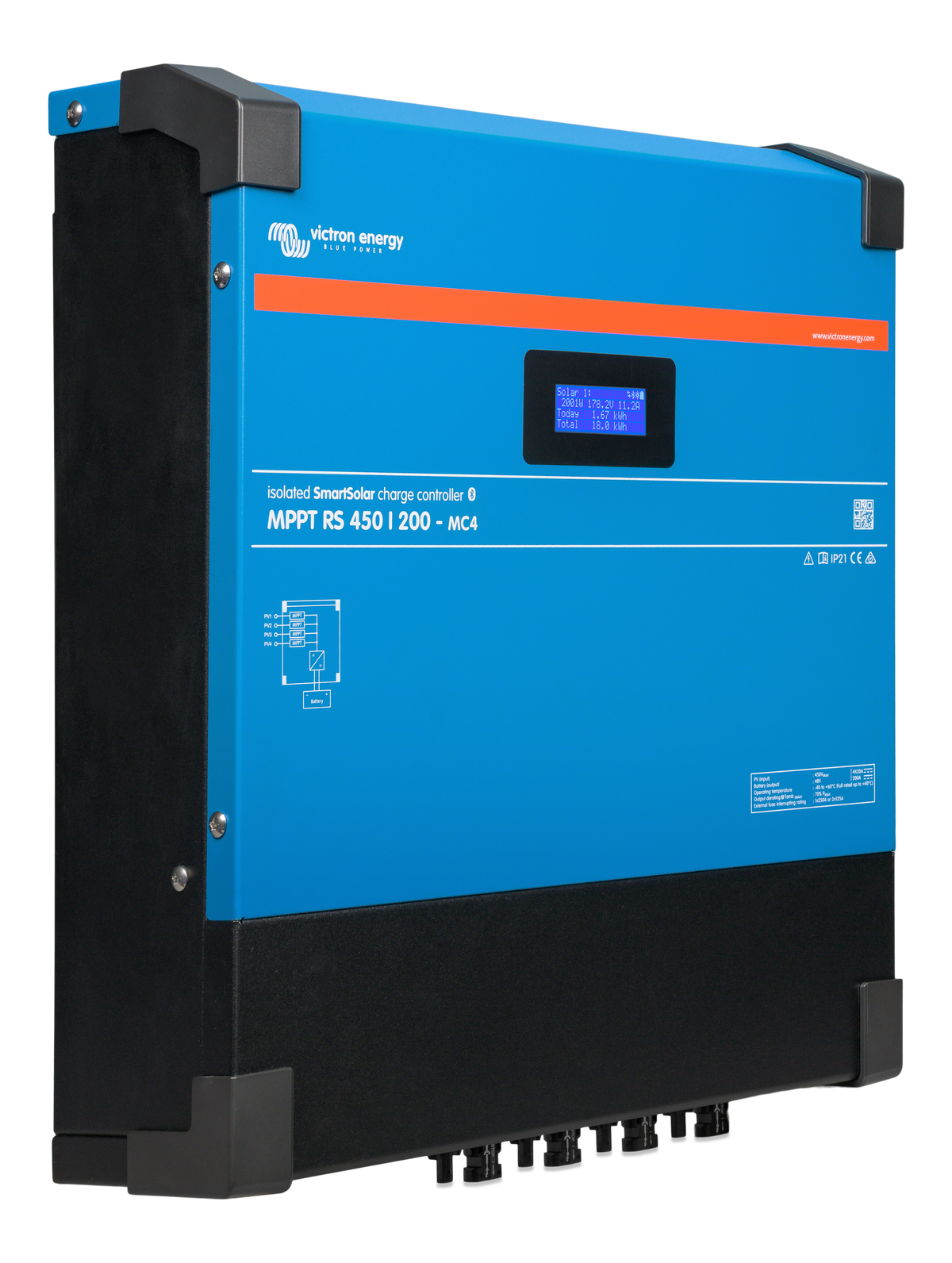

Victron SmartSolar MPPT RS 450/200-MC4 — 200A Dual-MPPT Solar Charge Controller, 450V PV (48V Only)
Victron SmartSolar MPPT RS 450/200-MC4 — 200A Dual-MPPT Solar Charge Controller, 450V PV (48V Only)
Couldn't load pickup availability
The Victron SmartSolar MPPT RS 450/200-MC4 is the flagship solar charge controller in the Victron lineup — a string-inverter-class MPPT designed for large residential and commercial off-grid installations. 200A of charge current, 450V max PV input, and two independent MPPT trackers, allowing you to run two separate panel strings with different orientations or wattages on a single controller. 48V battery only. MC4 PV connectors pre-installed.
This is not a small-system MPPT — it's a serious piece of off-grid infrastructure designed to pair with Victron MultiPlus-II or Quattro inverter/chargers for whole-home or whole-business off-grid systems.
Solar array sizing
| Spec | Per MPPT tracker | Both trackers combined |
|---|---|---|
| Max PV input power | ~5750W | ~11,500W |
| Max PV open-circuit voltage | 450V | 450V (each) |
| Typical setup | 10–12 residential 380W panels in series | 20–24 panels total in 2 separate strings |
Dual MPPT advantage: run two strings with different panel counts, orientations (east/west), or even different panel models on the same controller. Each MPPT tracks independently for maximum harvest.
Why the SmartSolar RS 450/200
- Two independent MPPT trackers — mix-and-match strings without compromise
- 450V max PV — long string-inverter-style configurations with 10–12 residential panels in series
- 200A charge current at 48V — up to 11,500W of solar input
- MC4 connectors pre-installed — plug-and-play with standard residential solar panel leads
- Bluetooth + VictronConnect — phone monitoring out of the box
- VE.Direct AND VE.Can — dual networking ports for system integration with MultiPlus-II / Quattro and Cerbo GX
- 96% efficiency at full load — active fan-cooled
- Built-in DC isolator switch — simplifies code-compliant install
- Anti-islanding & ground fault detection — designed for code compliance in grid-tied hybrid systems
- Wall mountable — large heatsink, designed for mechanical room or solar combiner space
Specifications
| Nominal battery voltage | 48V (only) |
|---|---|
| Rated charge current | 200A |
| MPPT trackers | 2 (independent) |
| Maximum PV open-circuit voltage (per tracker) | 450V |
| Maximum PV input power (per tracker) | 5750W |
| Maximum PV input power (total) | 11,500W |
| Peak efficiency | 96% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| VE.Can port | Yes (for parallel and VE.Bus inverter integration) |
| PV connection style | MC4 (pre-installed) |
| Cooling | Active fan (intelligent) |
| Built-in DC isolator | Yes |
| Ground fault detection | Yes |
| Operating temperature | -20°C to +60°C (full power up to 40°C) |
| Enclosure rating | IP21 |
| Mounting | Wall mount |
| Manufacturer SKU | SCC145120512 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Whole-home off-grid — 48V system pairing with 2× Quattro 48/5000 or larger for full home backup
- Small commercial off-grid — retail location, off-grid warehouse, agricultural operation
- Hybrid backup with grid-tie — home with both grid and battery, pairs with MultiPlus-II
- Large rural homestead — 8–12kW solar array on a 48V battery bank
- Commercial telecom shelters — large remote sites with significant solar capacity
- Microgrid pilot installations — community energy projects
System design recommended
This is not a DIY install. The RS 450/200 is sized for systems with serious wiring, code compliance requirements, and integration with Victron inverter/chargers. We strongly recommend a pre-purchase system design consultation — send us your panel datasheet, intended layout, battery bank specs, and inverter setup to support@jonssontech.net or call 346-574-9652 and we'll design the array string layout and confirm component compatibility before you order.
