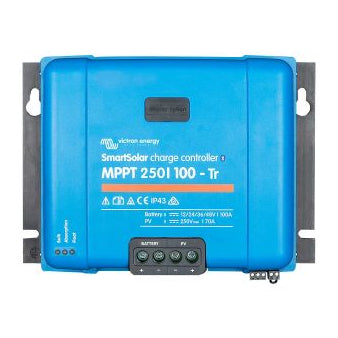

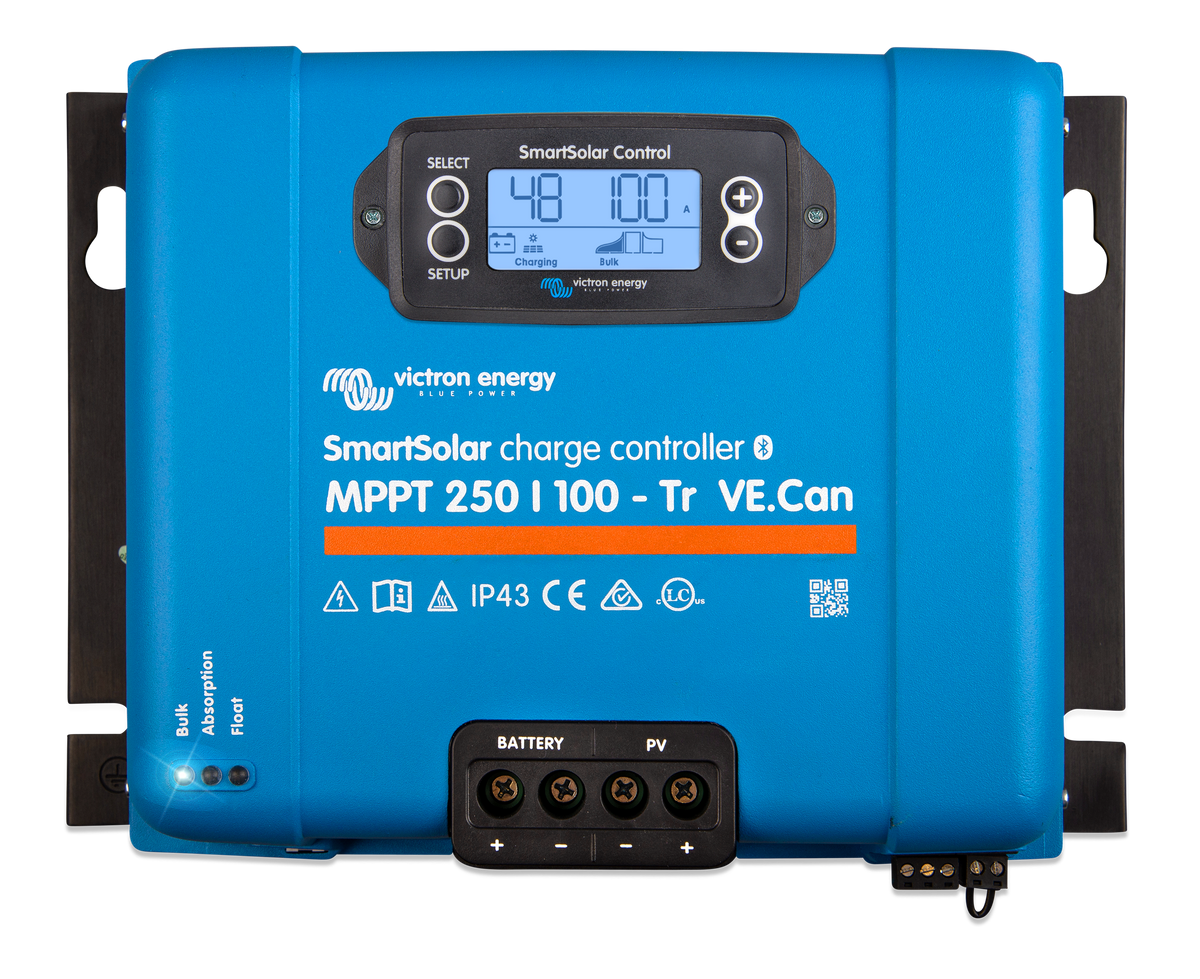

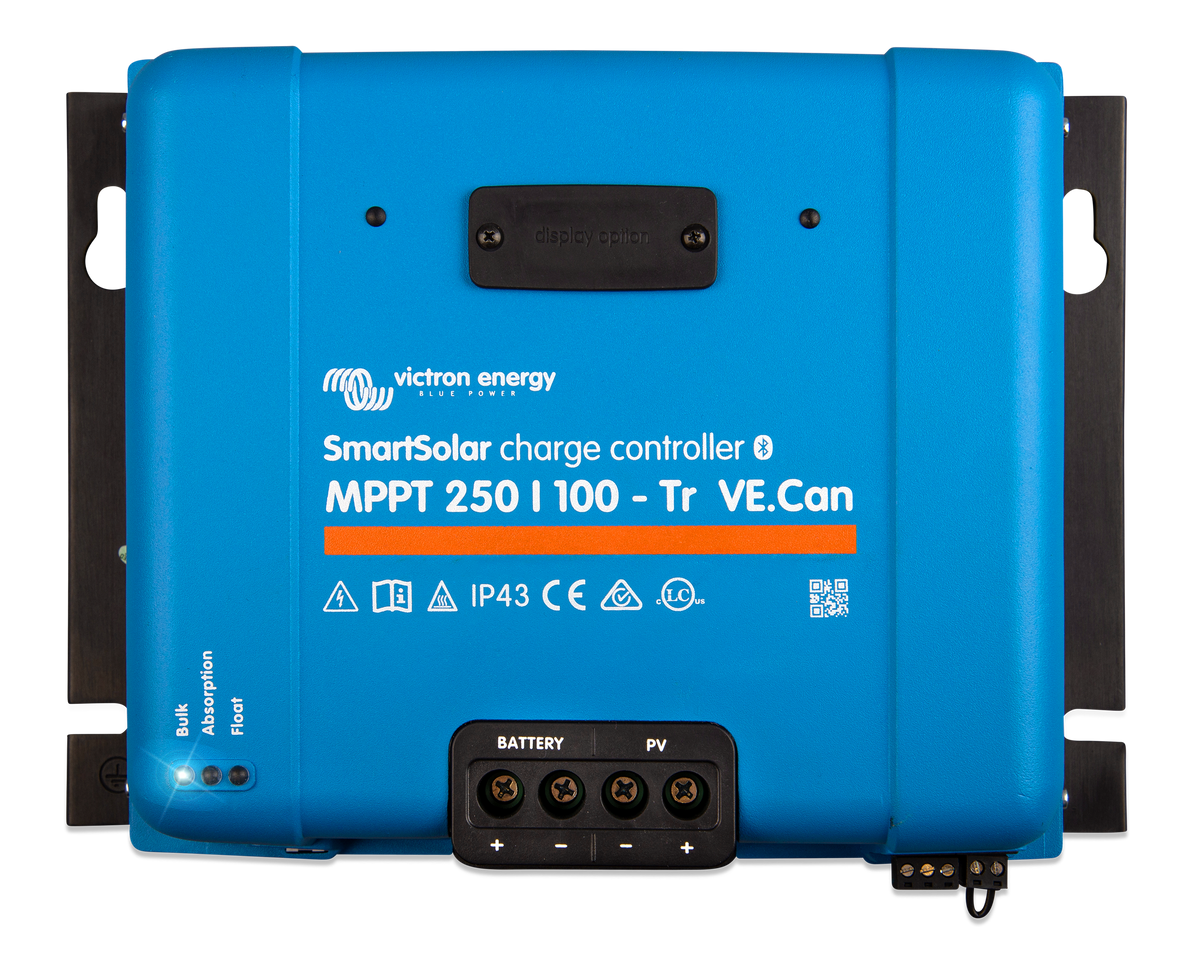

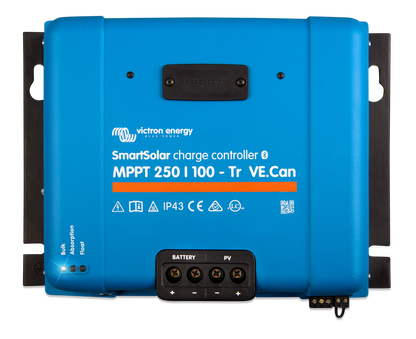

Victron SmartSolar MPPT 250/100-Tr VE.Can — 100A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Victron SmartSolar MPPT 250/100-Tr VE.Can — 100A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 250/100-Tr VE.Can is the largest SmartSolar before stepping into the RS series — 100A of charge current, 250V max PV input, and the VE.Can networking port that enables parallel/synchronized operation of multiple charge controllers in larger systems. Terminal-block ("Tr") connections for direct hard-wiring of heavy gauge cable. Built-in Bluetooth via VictronConnect.
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~1440W | 5× 300W residential panels (uncommon at 12V) |
| 24V | ~2880W | 9× 350W residential panels |
| 48V | ~5760W | 15–18× residential panels in series-parallel strings |
Maximum PV open-circuit voltage: 250V.
What VE.Can adds
This model has both VE.Direct (the standard Victron device port) AND VE.Can (the higher-bandwidth networking port used in larger commercial systems). VE.Can enables:
- Synchronized parallel operation — chain multiple MPPT 250/100 units to handle 10kW+ arrays as a coordinated system
- Direct integration with VE.Bus inverter/chargers — MultiPlus / Quattro systems coordinate charging without needing a Cerbo GX as middleman
- Lower-latency monitoring — real-time data exchange on the VE.Can bus
Why the SmartSolar 250/100-Tr VE.Can
- 100A charge current — the highest-output SmartSolar in the conventional lineup
- 250V max PV — long series strings of residential panels
- VE.Can + VE.Direct — dual networking ports for system integration
- Terminal-block connections — thick cable, combiner-box installs
- Ultra-fast MPPT tracking — millisecond response to changing conditions
- Built-in Bluetooth — VictronConnect app on iPhone or Android
- 98% conversion efficiency — active fan cooling
- Automatic battery voltage detection — 12V, 24V, 36V, 48V
- Built-in protection — reverse polarity, short-circuit, over-temperature, PV over-voltage
Specifications
| Nominal battery voltage | 12V, 24V, 36V, or 48V (auto-detect) |
|---|---|
| Rated charge current | 100A |
| Maximum PV open-circuit voltage | 250V (absolute max) |
| Maximum PV input power, 12V | 1440W |
| Maximum PV input power, 24V | 2880W |
| Maximum PV input power, 48V | 5760W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| VE.Can port | Yes (for parallel operation and direct VE.Bus integration) |
| Connection style | Terminal block (Tr) |
| Cooling | Active fan (intelligent) |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC125110412 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Large 48V off-grid homestead — 4–6kW residential solar array
- Multi-controller parallel installations — 2× = 200A for 10kW+ arrays
- Commercial / telecom installations — remote sites with high-output requirements
- Marine megayacht — catamarans, large motor yachts with extensive solar coverage
- Direct VE.Bus integration — with MultiPlus / Quattro inverter/chargers without needing a Cerbo GX intermediary
