Victron SmartSolar MPPT 150/70-Tr — 70A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Victron SmartSolar MPPT 150/70-Tr — 70A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Couldn't load pickup availability

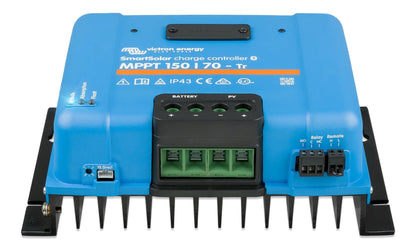

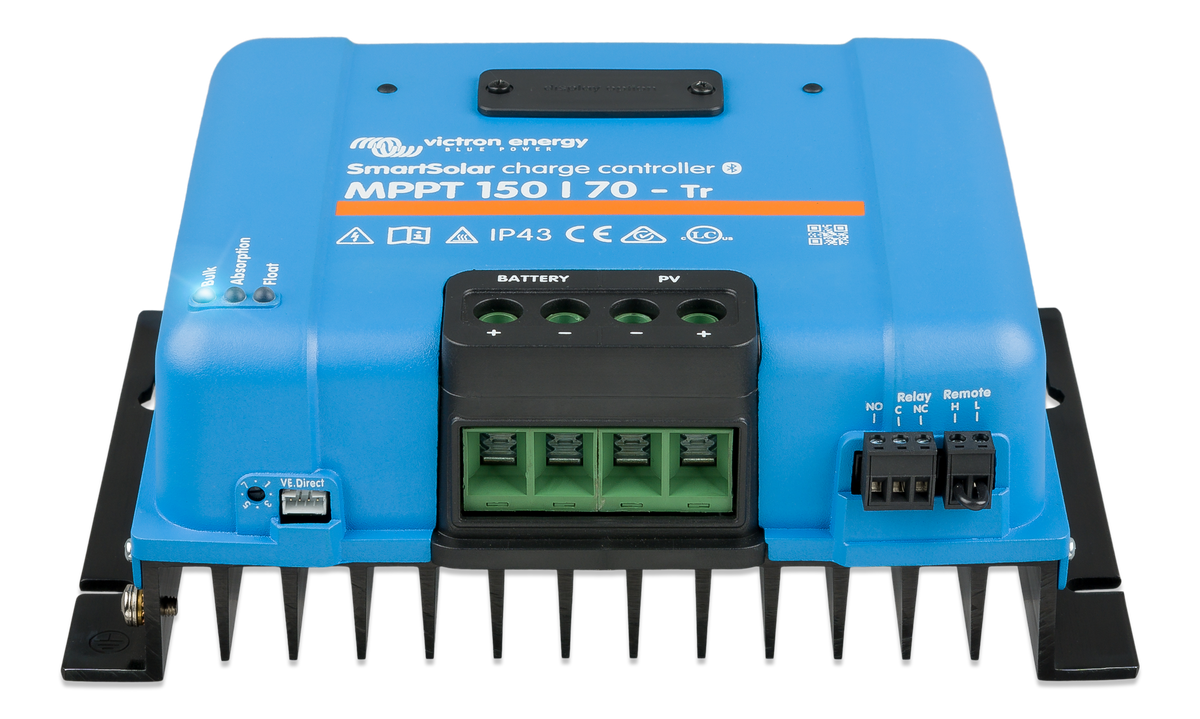

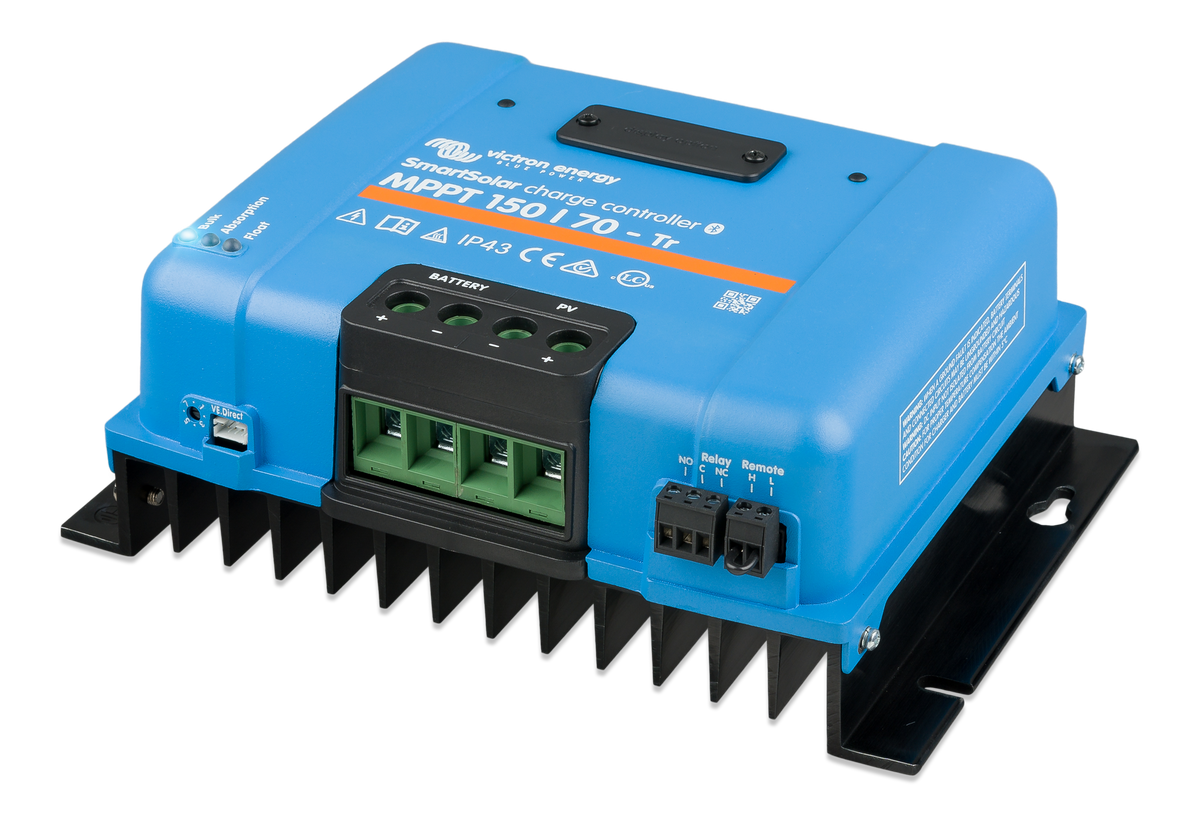

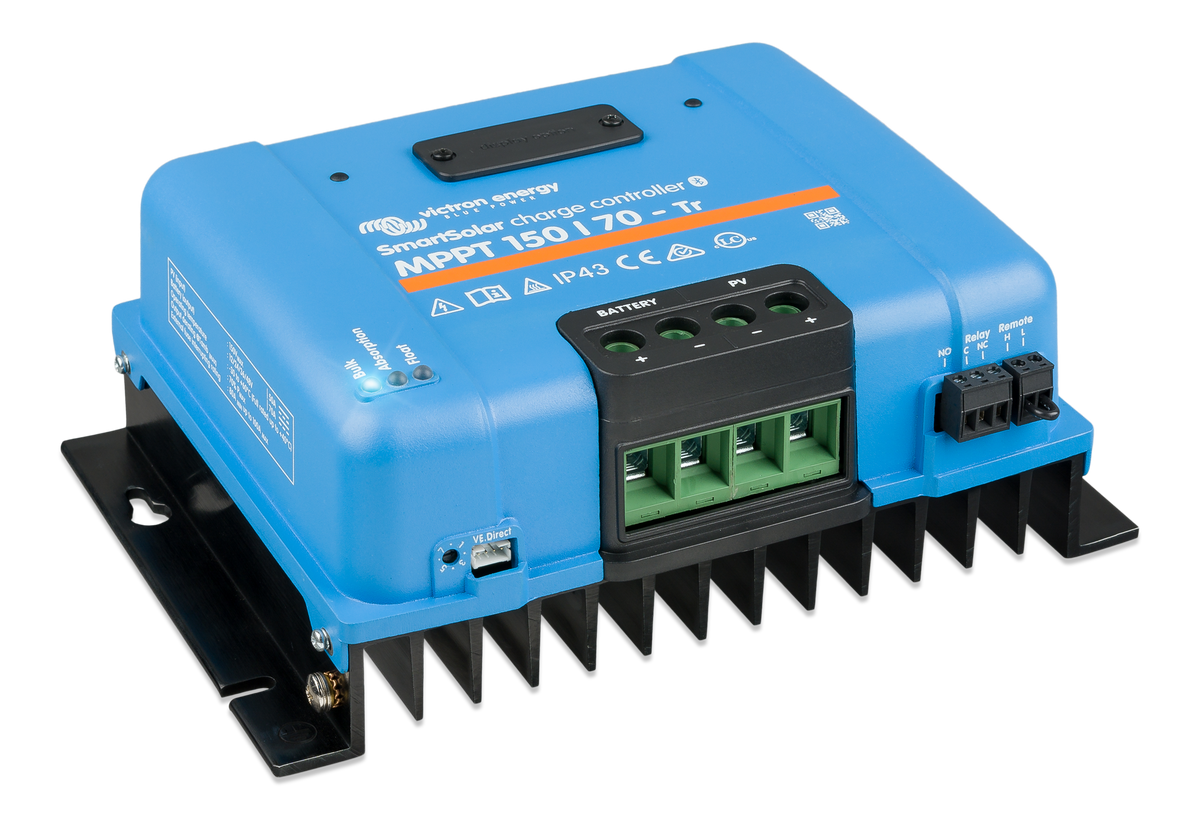

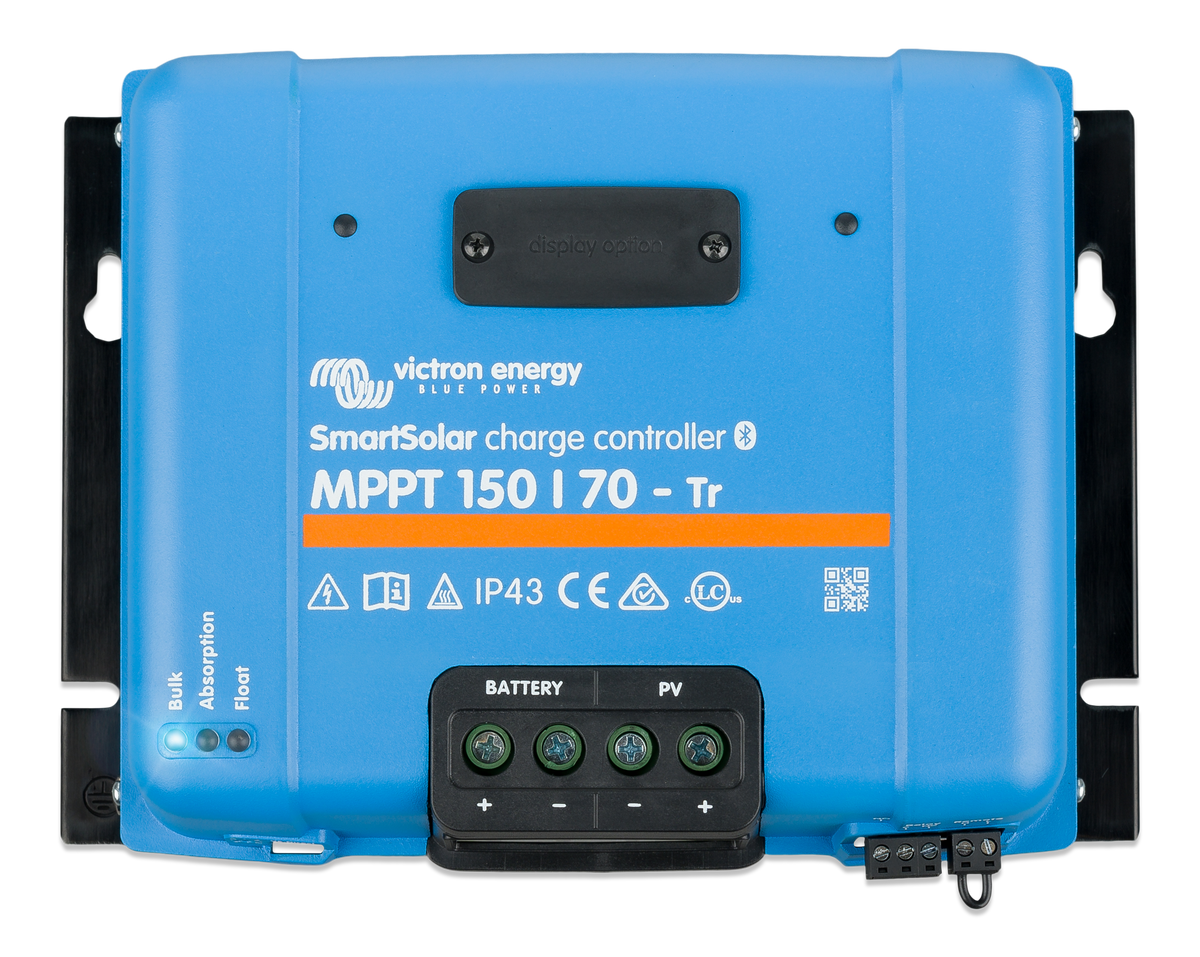

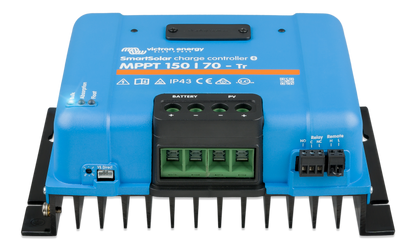

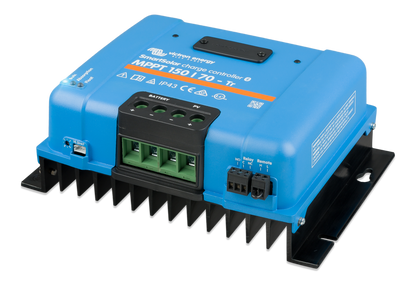

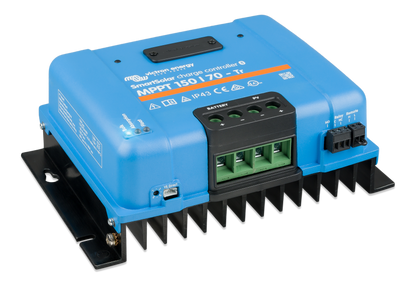

The Victron SmartSolar MPPT 150/70-Tr is the high-output mid-range charge controller — 70A of charge current, 150V max PV input, terminal-block ("Tr") connections. Sized for substantial 24V or 48V off-grid systems, large RV / marine solar arrays, or commercial backup-power installs. Built-in Bluetooth via VictronConnect.
The -Tr suffix indicates terminal-block connections (vs the -MC4 version, which has MC4 connectors pre-installed on the PV side).
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~1000W | 3–4× 300W residential panels (rare config at 12V) |
| 24V | ~2000W | 6× 350W residential panels |
| 48V | ~4000W | 10–12× residential panels in series-parallel strings |
Maximum PV open-circuit voltage: 150V.
Why the SmartSolar 150/70-Tr
- 70A charge current — high-output for substantial battery banks
- 150V max PV — residential panels in series, cold-climate safety

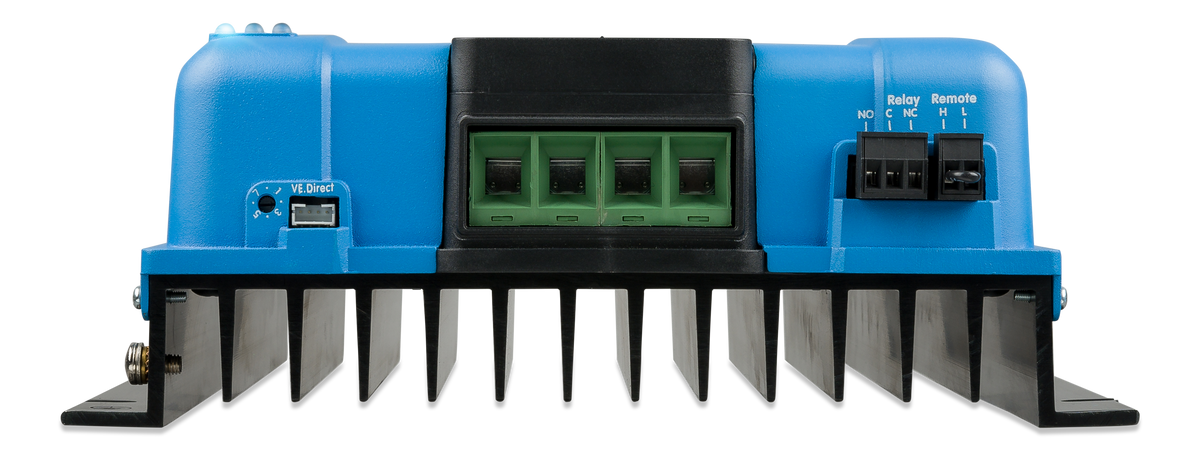

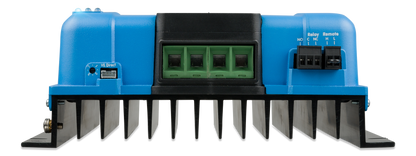

- Terminal-block connections — direct wiring for thick cable; combiner-box installs
- Ultra-fast MPPT tracking — millisecond response to changing conditions
- Built-in Bluetooth — VictronConnect app on iPhone or Android
- 98% conversion efficiency — active fan cooling for high sustained output
- VE.Direct port — Cerbo GX integration, VRM Portal remote monitoring
- Automatic battery voltage detection — 12V, 24V, 36V, 48V
- Optional remote temp sensor — sold separately for battery temperature compensation
Specifications
| Nominal battery voltage | 12V, 24V, 36V, or 48V (auto-detect) |
|---|---|
| Rated charge current | 70A |
| Maximum PV open-circuit voltage | 150V (absolute max) |
| Maximum PV input power, 12V | 1000W |
| Maximum PV input power, 24V | 2000W |
| Maximum PV input power, 48V | 4000W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Connection style | Terminal block (Tr) |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Active fan (intelligent cooling) |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC115070211 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Large off-grid homestead — 48V system with 3–4kW solar array
- Marine catamaran / yacht — large house bank with comprehensive solar
- Commercial backup — telecom shelter, server room solar input
- Mobile commercial — high-end surveillance trailers, mobile work platforms
- Cold-climate solar — high-latitude installs with seasonal Voc variation
