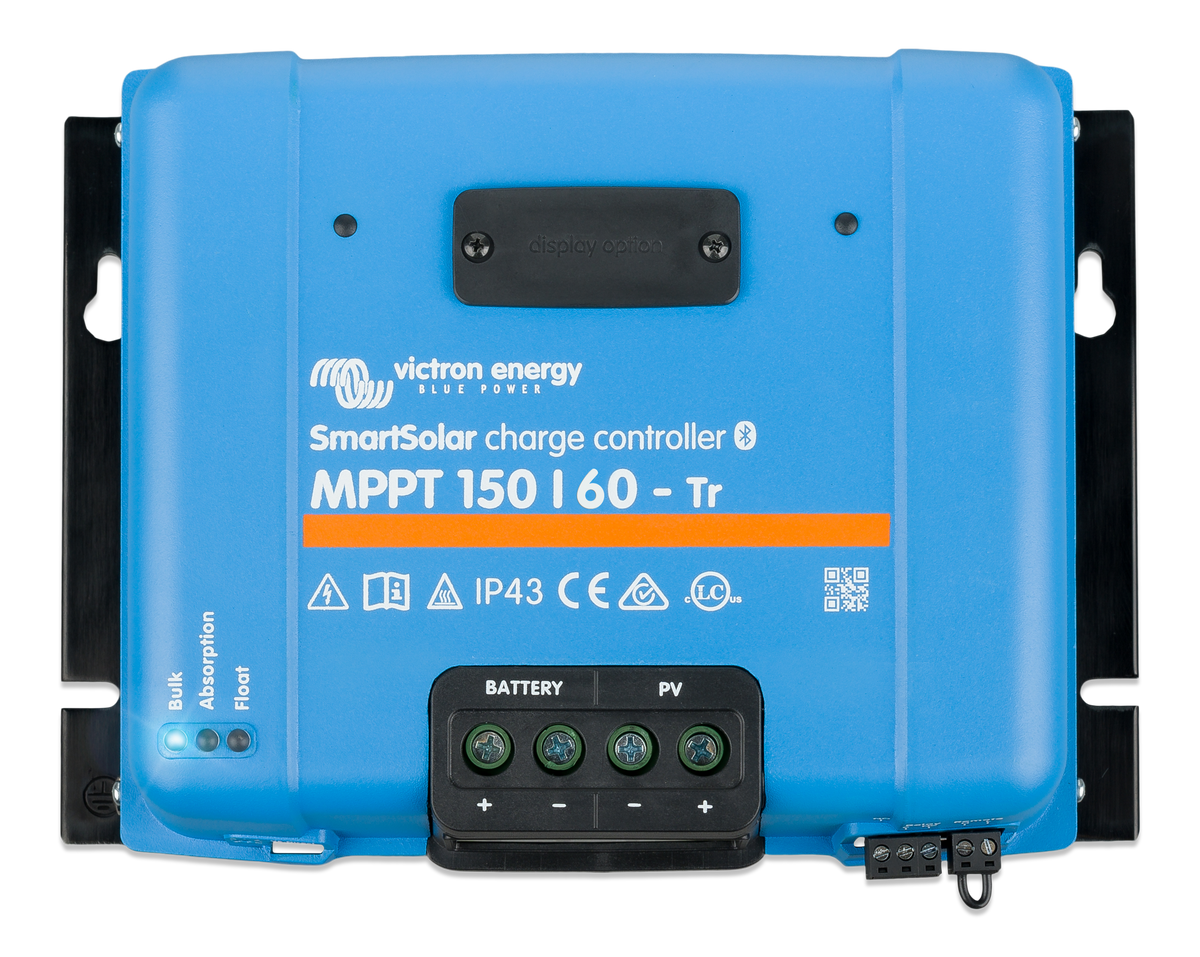

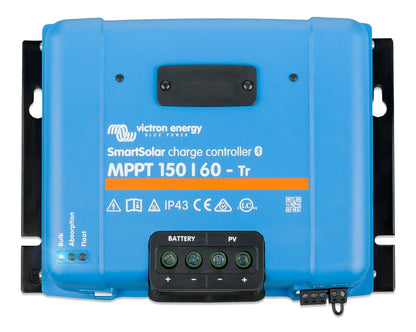

Victron SmartSolar MPPT 150/60-Tr — 60A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Victron SmartSolar MPPT 150/60-Tr — 60A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 150/60-Tr is a workhorse mid-size charge controller — 60A of charge current, 150V max PV input, and terminal-block ("Tr") connections for direct hard-wiring of larger gauge cable. The 150V headroom means you can run residential-grade 60-cell and 72-cell panels in series strings, ideal for cold climates and longer cable runs. Works on 12V, 24V, 36V, or 48V battery banks.
The -Tr suffix indicates terminal-block connections (vs the -MC4 version, which has MC4 connectors pre-installed on the PV side). Choose -Tr if you're hard-wiring panels through a combiner box or running cable through conduit. Choose MC4 if you're connecting standard solar panel leads directly.
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~860W | 3× 300W residential panels in series |
| 24V | ~1720W | 5–6× residential panels (series-parallel) |
| 48V | ~3450W | 8–10× residential panels in series strings |
Maximum PV open-circuit voltage: 150V.
Why the SmartSolar 150/60-Tr
- 60A charge current — sized for substantial 24V or 48V battery banks
- 150V max PV — residential panels in series, cold-climate safety, longer strings
- Terminal-block connections — direct wiring for thicker cable; cleaner for combiner-box installs
- Ultra-fast MPPT tracking — millisecond response to cloud and shading
- Built-in Bluetooth — VictronConnect app on iPhone or Android
- 98% conversion efficiency — natural convection cooling, no fans
- VE.Direct port — Cerbo GX integration; chain with SmartShunt / BMV-712
- Automatic battery voltage detection — 12V, 24V, 36V, 48V
- Optional remote temp sensor — sold separately for battery temperature compensation
Specifications
| Nominal battery voltage | 12V, 24V, 36V, or 48V (auto-detect) |
|---|---|
| Rated charge current | 60A |
| Maximum PV open-circuit voltage | 150V (absolute max) |
| Maximum PV input power, 12V | 860W |
| Maximum PV input power, 24V | 1720W |
| Maximum PV input power, 48V | 3450W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Connection style | Terminal block (Tr) |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Active fan (intelligent cooling) |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC115060211 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Off-grid homestead — 48V system with 2–3kW of residential panels
- Large RV / yacht — with 24V house bank and substantial roof solar
- Cold-climate solar — northern latitudes where panel Voc spikes
- Commercial telecom — remote sites with combiner-box wiring
- Backup power — home or business solar input to 24V/48V battery system
