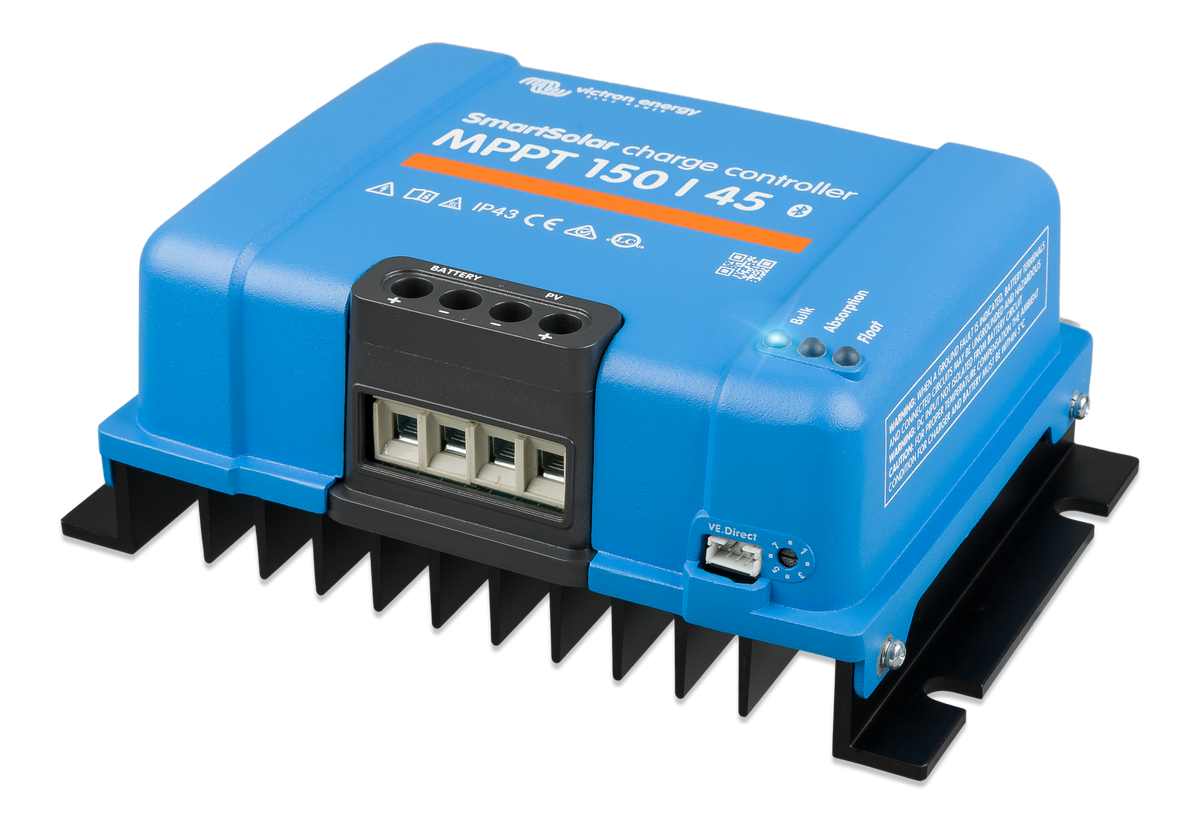

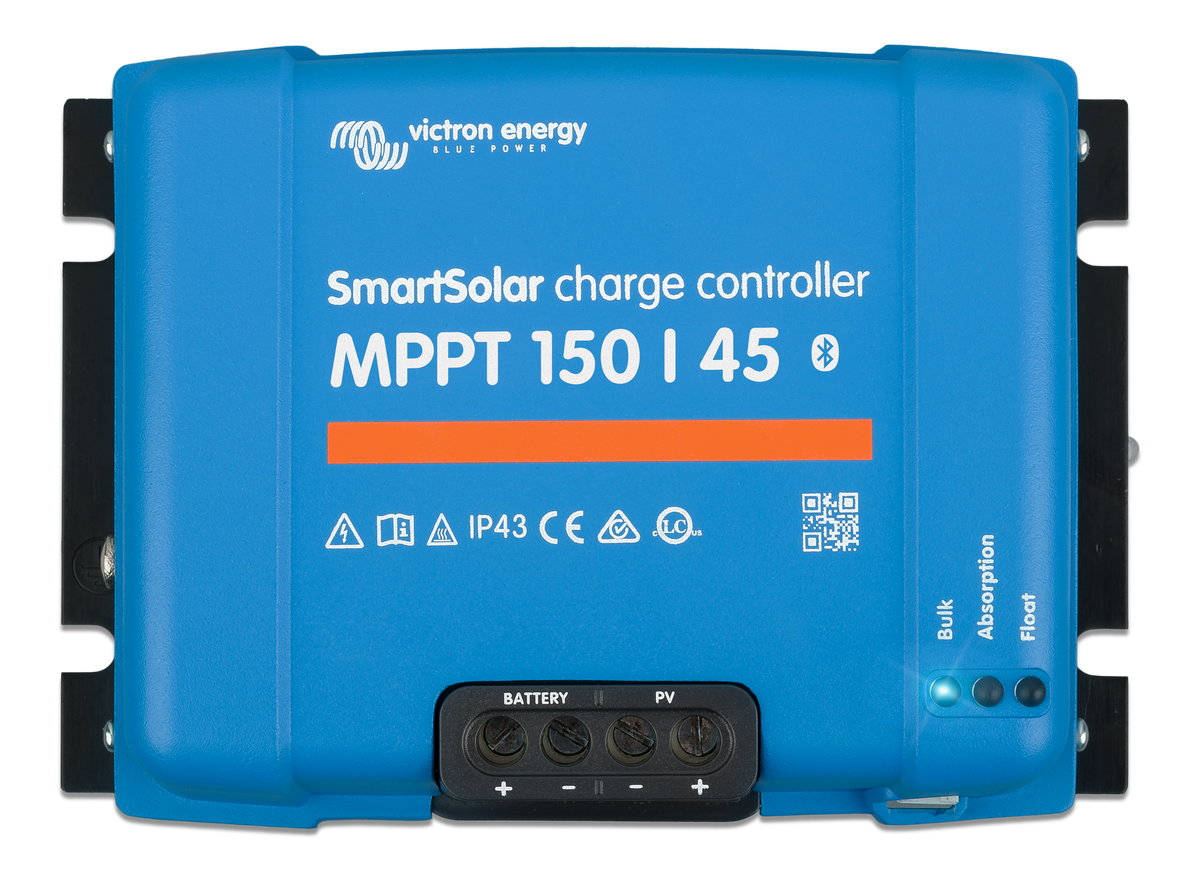

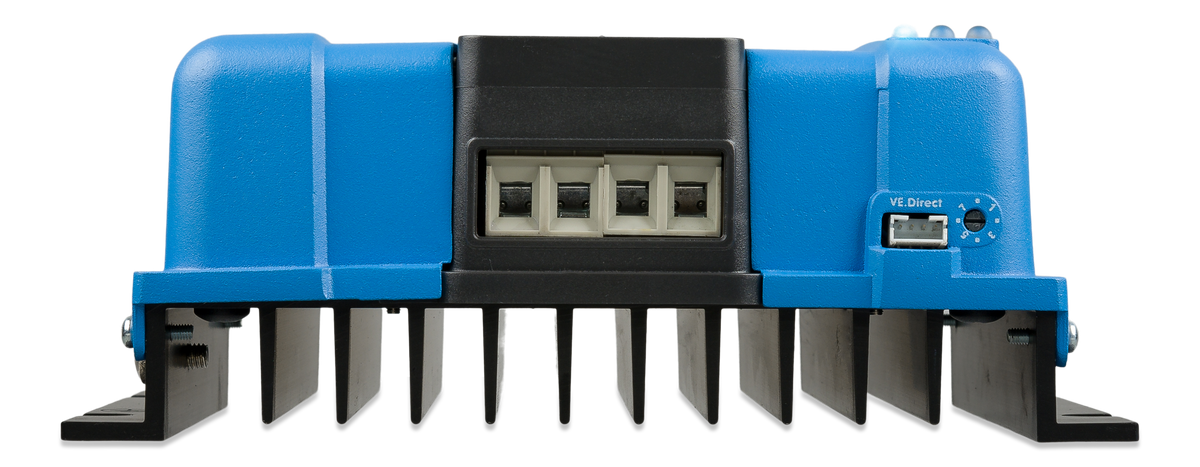

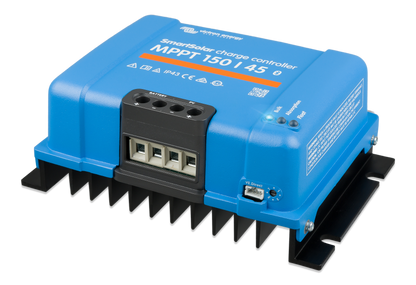

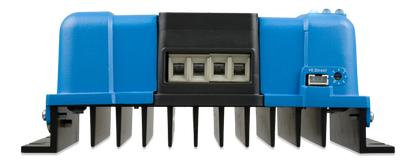

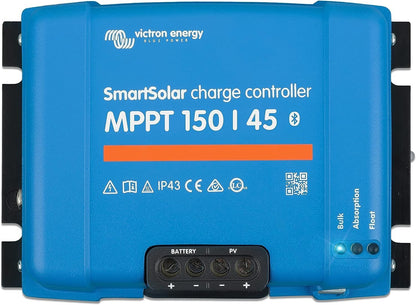

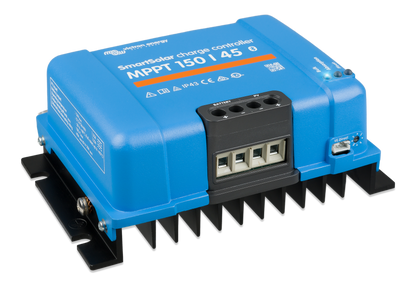

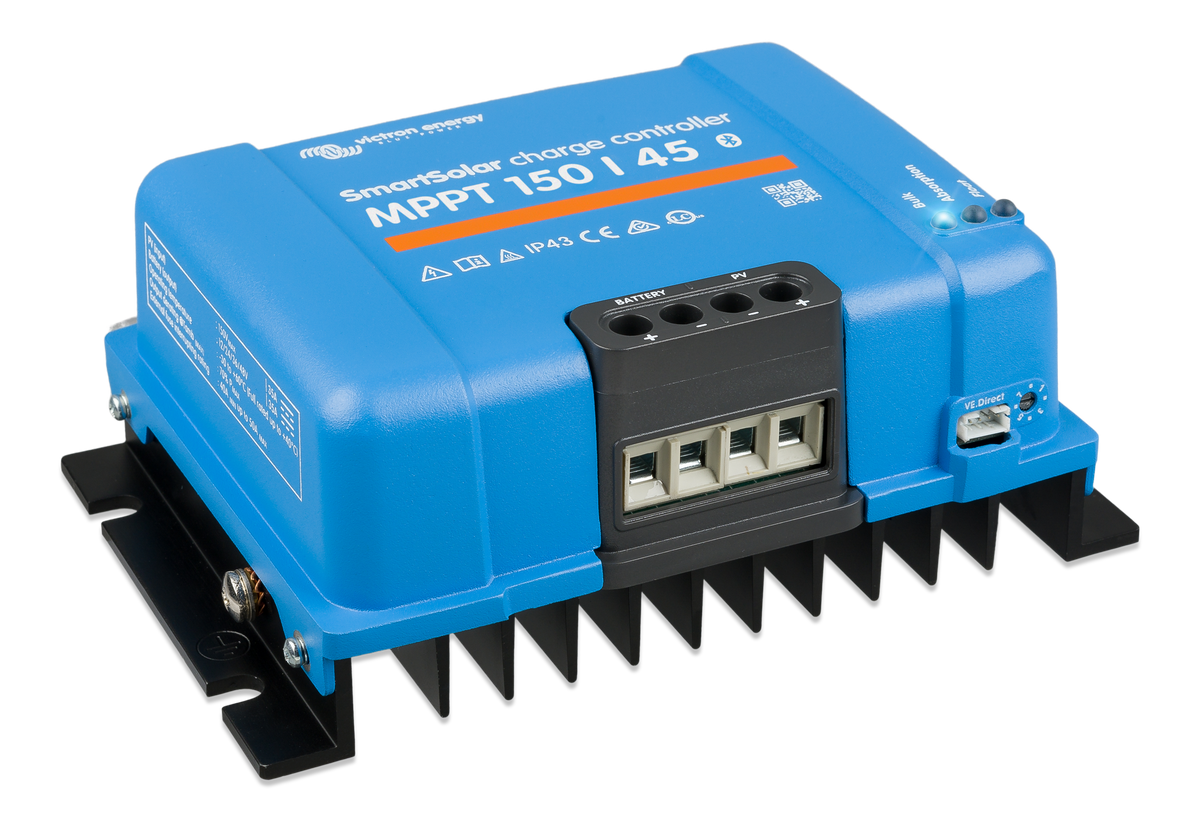

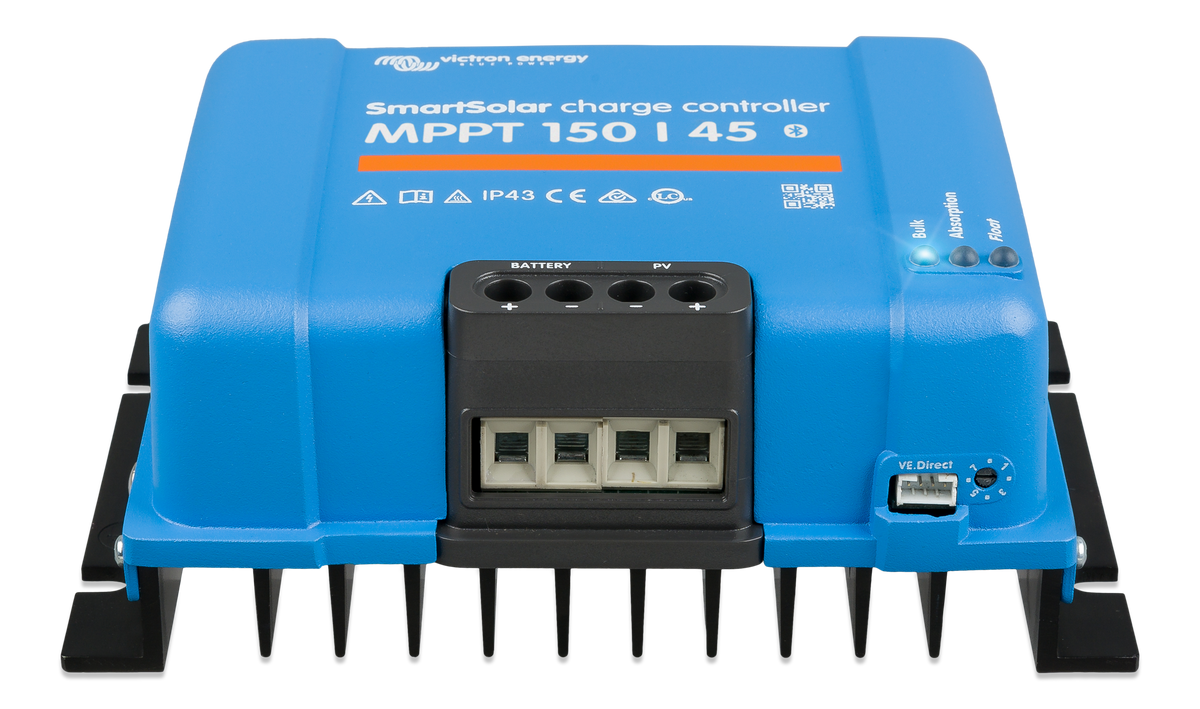

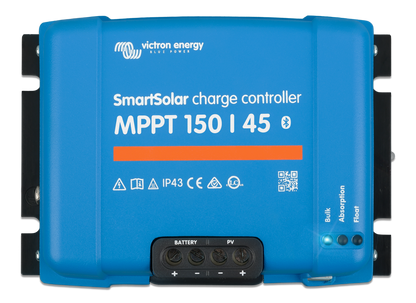

Victron SmartSolar MPPT 150/45 — 45A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Victron SmartSolar MPPT 150/45 — 45A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Regular price
$229.50
Regular price
Sale price
$229.50
Unit price
/
per
Couldn't load pickup availability
The Victron SmartSolar MPPT 150/45 is a popular mid-size charge controller — 45A of charge current, 150V max PV input, and built-in Bluetooth. The 150V headroom supports residential-grade 60-cell and 72-cell panels in series strings, while 45A of charge current sizes well for 24V or 48V battery banks. Works on 12V, 24V, 36V, or 48V banks (auto-detect).
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~650W | 3× 200W panels in series |
| 24V | ~1300W | 4× 350W residential panels |
| 48V | ~2600W | 6–8× residential panels in series strings |
Maximum PV open-circuit voltage: 150V.
Why the SmartSolar 150/45
- 45A charge current — right-sized for mid-range 24V/48V battery banks
- 150V max PV — residential panels in series, cold-climate safety margin
- Ultra-fast MPPT tracking — millisecond response to changing cloud and shading conditions
- Built-in Bluetooth — pair directly with VictronConnect on iPhone or Android
- 98% conversion efficiency — natural convection cooling, no fans
- VE.Direct port — connect to Cerbo GX for VRM Portal, or chain with SmartShunt / BMV-712
- Automatic battery voltage detection — 12V, 24V, 36V, 48V
- Multi-stage adaptive charging — AGM, Gel, Flooded, LiFePO4 preset profiles
- Optional remote temp sensor — sold separately for battery temperature compensation
Specifications
| Nominal battery voltage | 12V, 24V, 36V, or 48V (auto-detect) |
|---|---|
| Rated charge current | 45A |
| Maximum PV open-circuit voltage | 150V (absolute max) |
| Maximum PV input power, 12V | 650W |
| Maximum PV input power, 24V | 1300W |
| Maximum PV input power, 48V | 2600W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Natural convection (no fan) |
| Enclosure rating | IP43 |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC115045212 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Mid-size off-grid cabin — 24V system with 1–1.3kW of residential panels
- RV / Marine with residential panels — series-string panel layout for longer cable runs
- 48V backup power — telecom, server room, residential battery backup
- Cold-climate solar — where panel Voc spikes in winter
- Mobile commercial — high-end surveillance trailers, mobile workshops
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase sizing consultation — call 346-574-9652 or email support@jonssontech.net with your panel specs and battery setup and we'll confirm the right controller before you buy.
