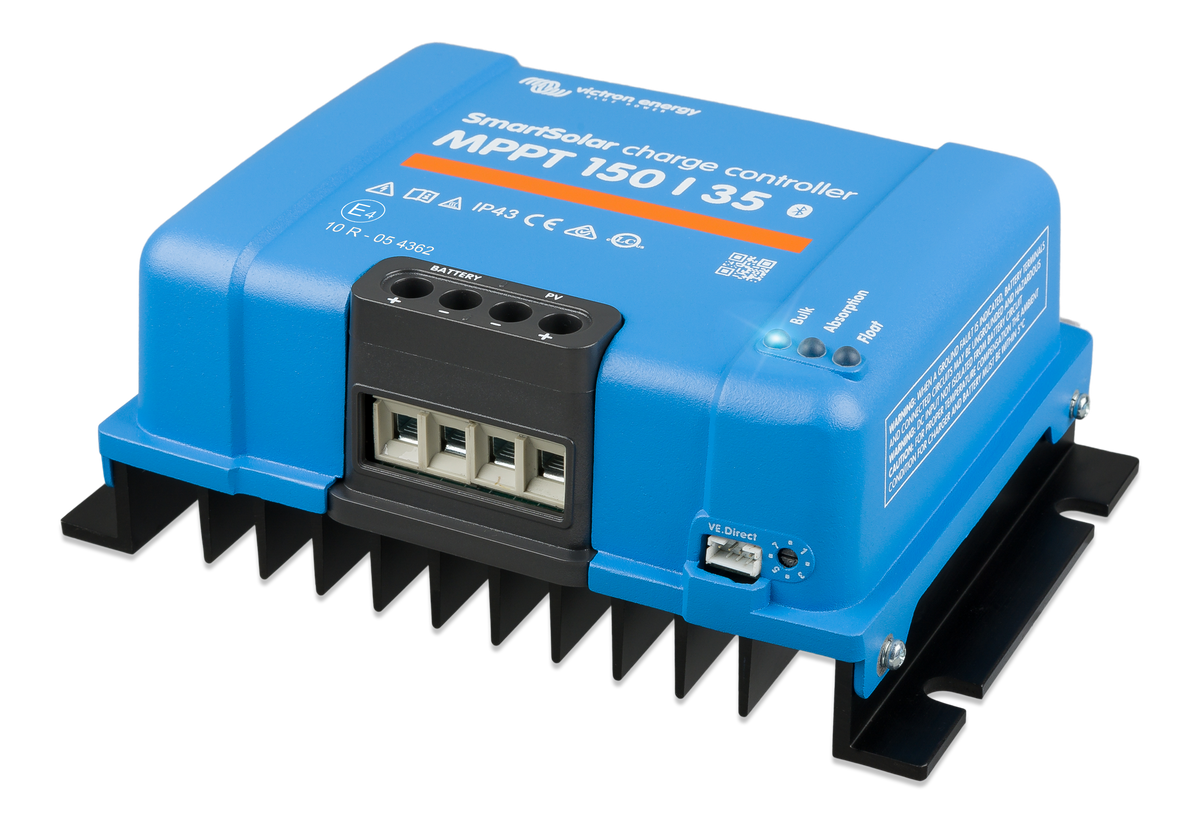

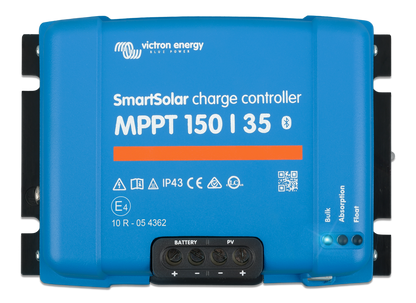

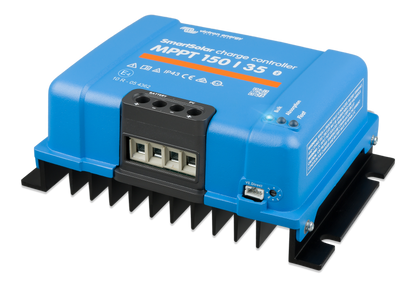

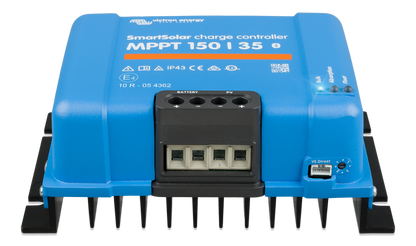

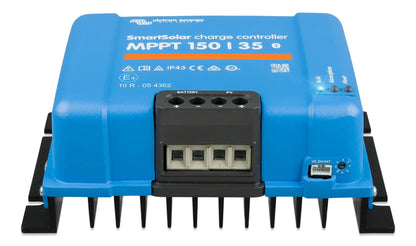

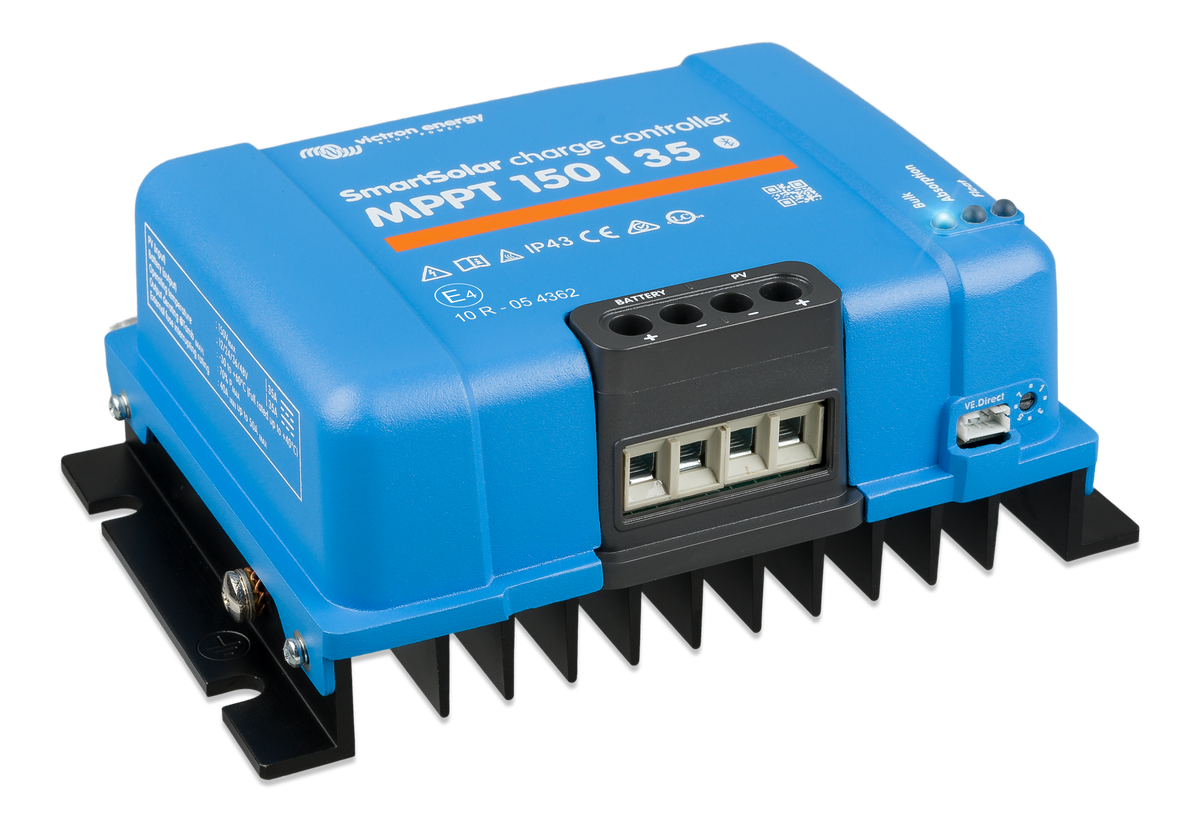

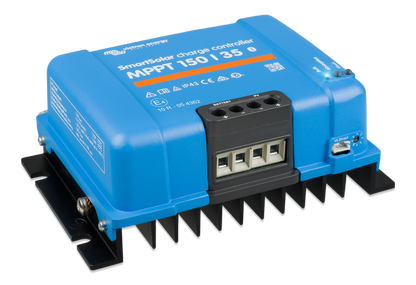

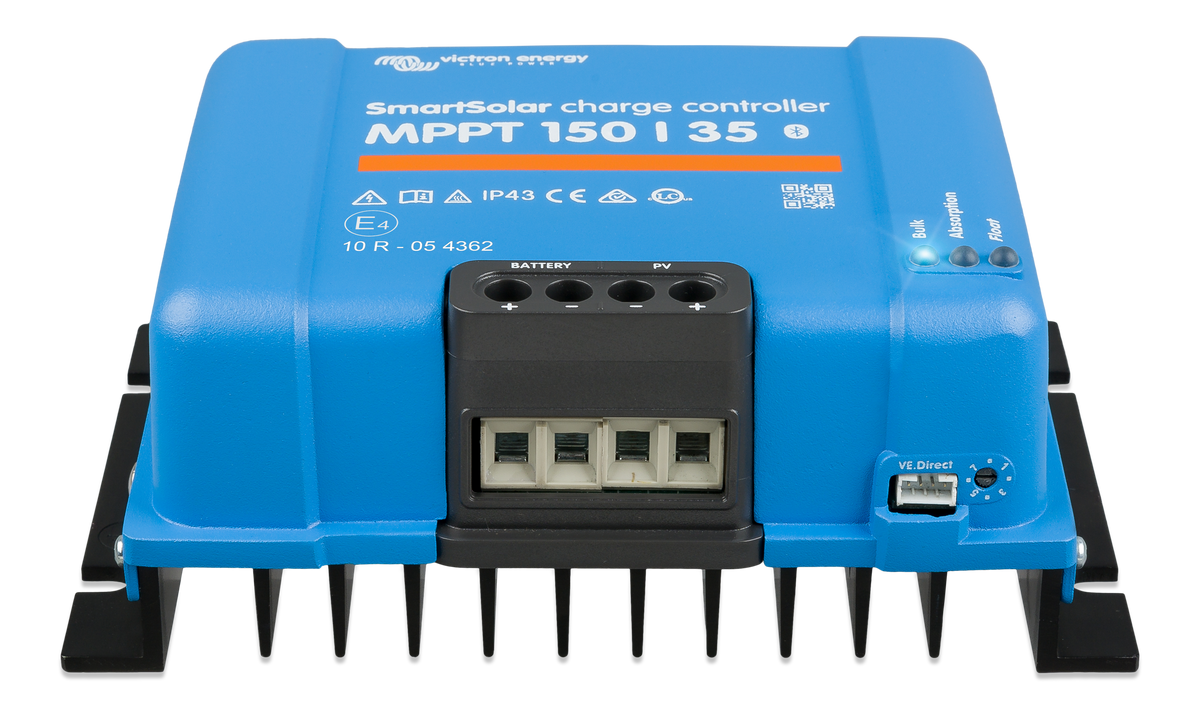

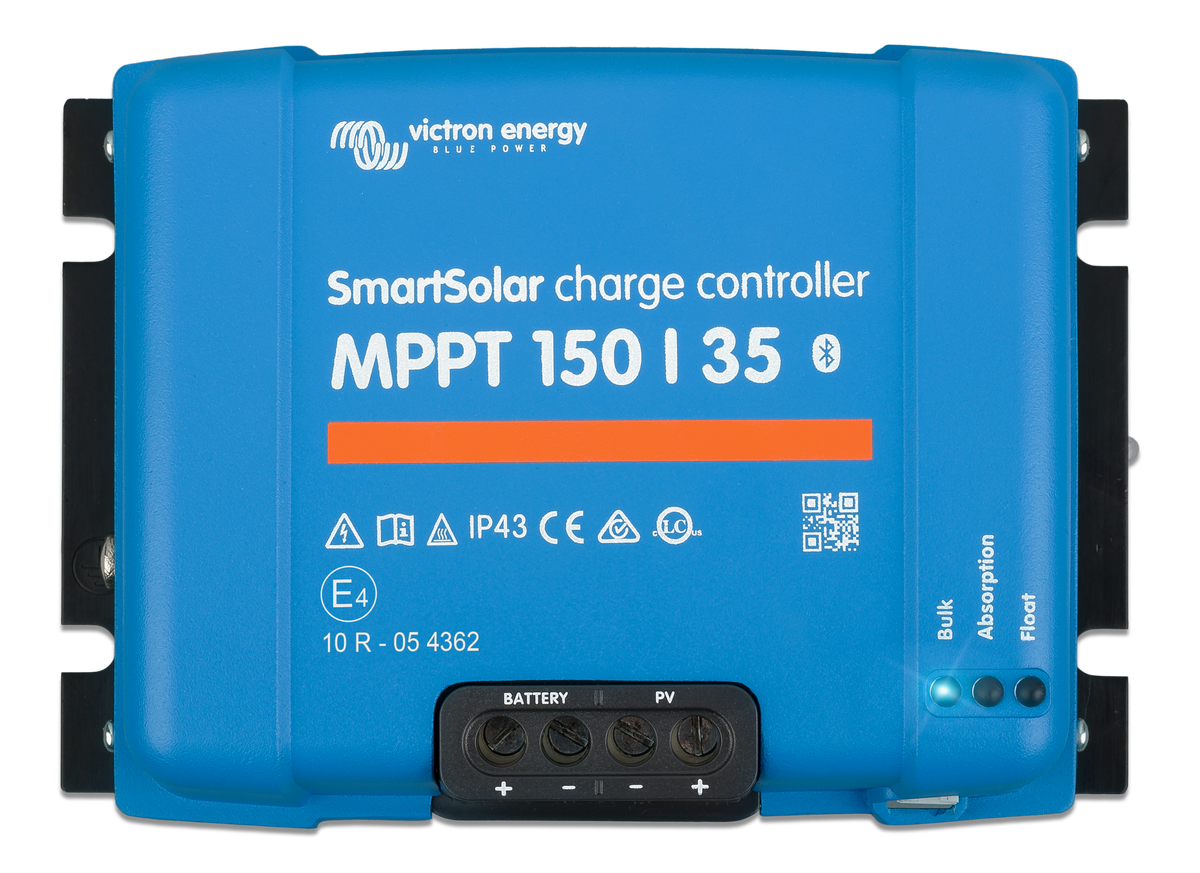

Victron SmartSolar MPPT 150/35 — 35A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Victron SmartSolar MPPT 150/35 — 35A Solar Charge Controller with Bluetooth (12V/24V/36V/48V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 150/35 is the entry to the 150V family — same 35A charge current as a 100/35 would deliver, but with 150V max PV input. That higher voltage headroom is what you need for residential-grade 60-cell or 72-cell panels (which have Voc above 35V each), longer panel strings, and cold-climate installs where Voc spikes. Works on 12V, 24V, 36V, or 48V battery banks.
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~500W | 2× 280W residential panels in series |
| 24V | ~1000W | 3× 330W residential panels (series-parallel) |
| 48V | ~2000W | 4–6× residential panels in series strings |
Maximum PV open-circuit voltage: 150V. This is the threshold that unlocks residential-grade panel use without needing parallel-only wiring.
Why pick a 150V controller?
- Residential panels in series — 60-cell panels have ~40V Voc; two in series is 80V; safe well under 150V even in cold weather.
- Longer cable runs — higher-voltage strings lose less power to wire resistance.
- Cold-climate safety margin — panel Voc spikes 25%+ in sub-freezing weather; the 150V headroom keeps you well clear of damage.
- Lower amps for given watts — higher-voltage strings let you use thinner gauge wire.
Why the SmartSolar 150/35
- Ultra-fast Maximum Power Point Tracking — Victron's algorithm responds in milliseconds to changing cloud and shading conditions.
- Built-in Bluetooth — pair directly with VictronConnect on iPhone or Android.
- 98% conversion efficiency — natural convection cooling, no fans.
- VE.Direct port — connect to Cerbo GX for VRM Portal, or chain with SmartShunt / BMV-712.
- Automatic battery voltage detection — 12V, 24V, 36V, 48V.
- Multi-stage adaptive charging — AGM, Gel, Flooded, LiFePO4 profiles preconfigured.
- Optional remote temp sensor — sold separately for battery temperature compensation.
Specifications
| Nominal battery voltage | 12V, 24V, 36V, or 48V (auto-detect) |
|---|---|
| Rated charge current | 35A |
| Maximum PV open-circuit voltage | 150V (absolute max) |
| Maximum PV input power, 12V | 500W |
| Maximum PV input power, 24V | 1000W |
| Maximum PV input power, 48V | 2000W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Natural convection (no fan) |
| Enclosure rating | IP43 |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC115035210 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Off-grid cabin with residential panels — 24V or 48V system with 2–3 residential 280–400W panels
- RV / Marine with high-Voc panels — longer panel strings, lower amps, thinner cable
- Cold-climate solar — anywhere panel Voc spikes in winter
- 48V backup systems — mid-size battery backup with 1500–2000W of solar
- Commercial telecom — remote tower or cabinet solar
Choosing the right SmartSolar size
| Model | Max array @ 12V | Max array @ 24V | Max array @ 48V | Best for |
|---|---|---|---|---|
| SmartSolar 100/30 | ~440W | ~880W | — | RV-grade panels, 12V or 24V |
| SmartSolar 150/35 | ~500W | ~1000W | ~2000W | Residential panels, cold climates, 48V |
| SmartSolar 150/45 | ~650W | ~1300W | ~2600W | Bigger arrays, residential panels |
| SmartSolar 150/60 | ~860W | ~1720W | ~3440W | Large arrays, 48V off-grid |
| SmartSolar 150/70 | ~1000W | ~2000W | ~4000W | Large off-grid homestead |
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase sizing consultation — call 346-574-9652 or email support@jonssontech.net with your panel model numbers and battery setup and we'll confirm the right controller before you buy.
