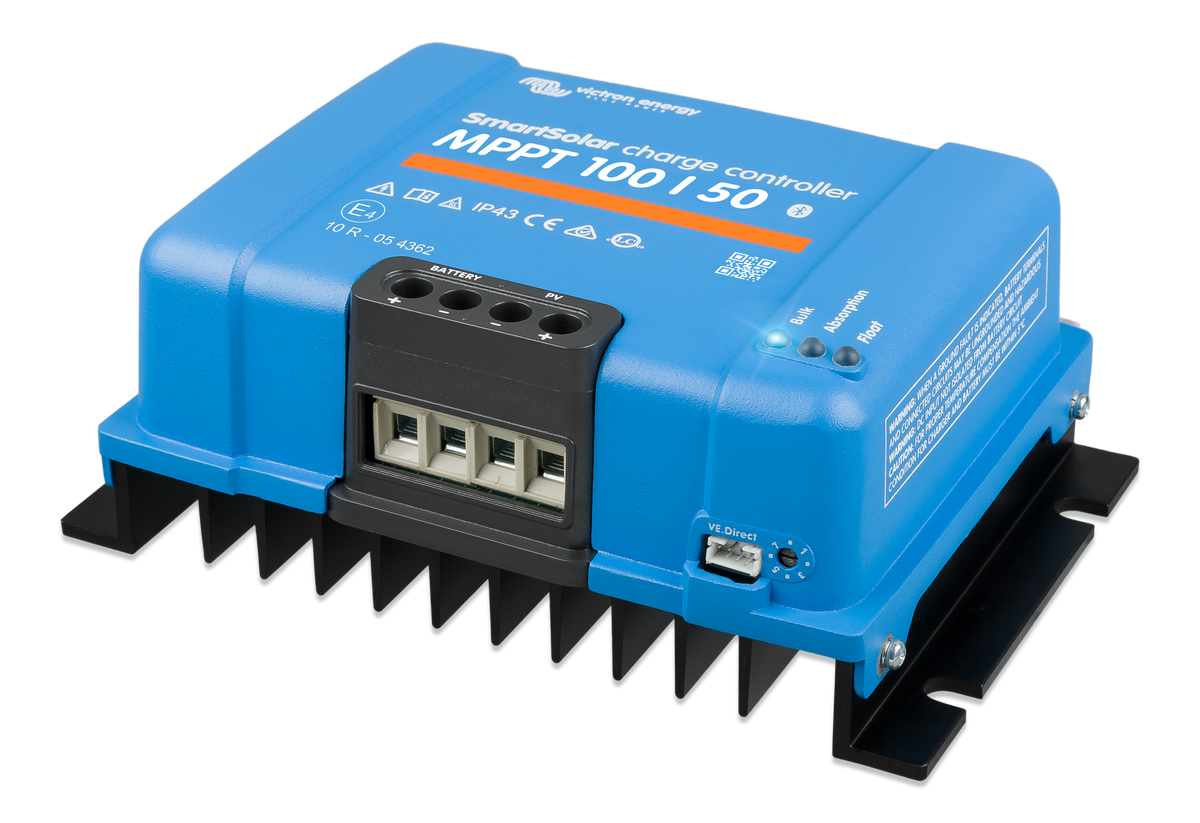

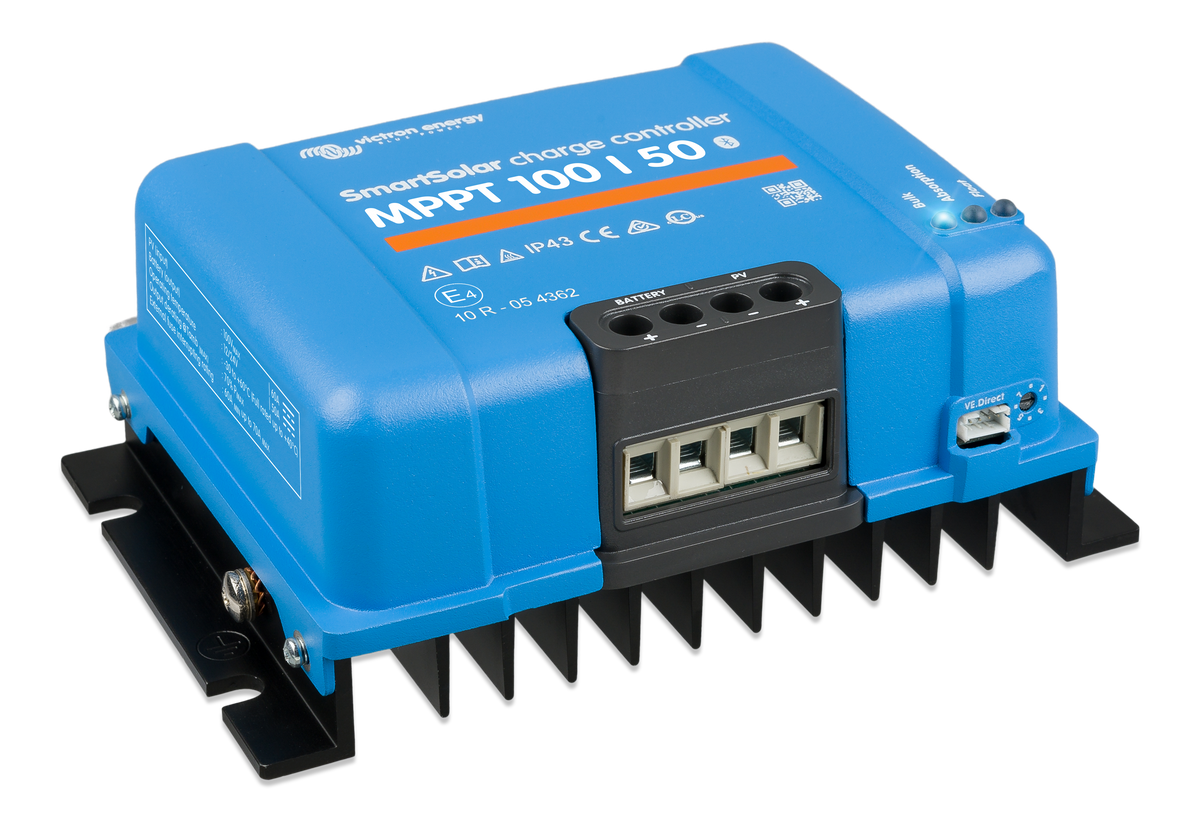

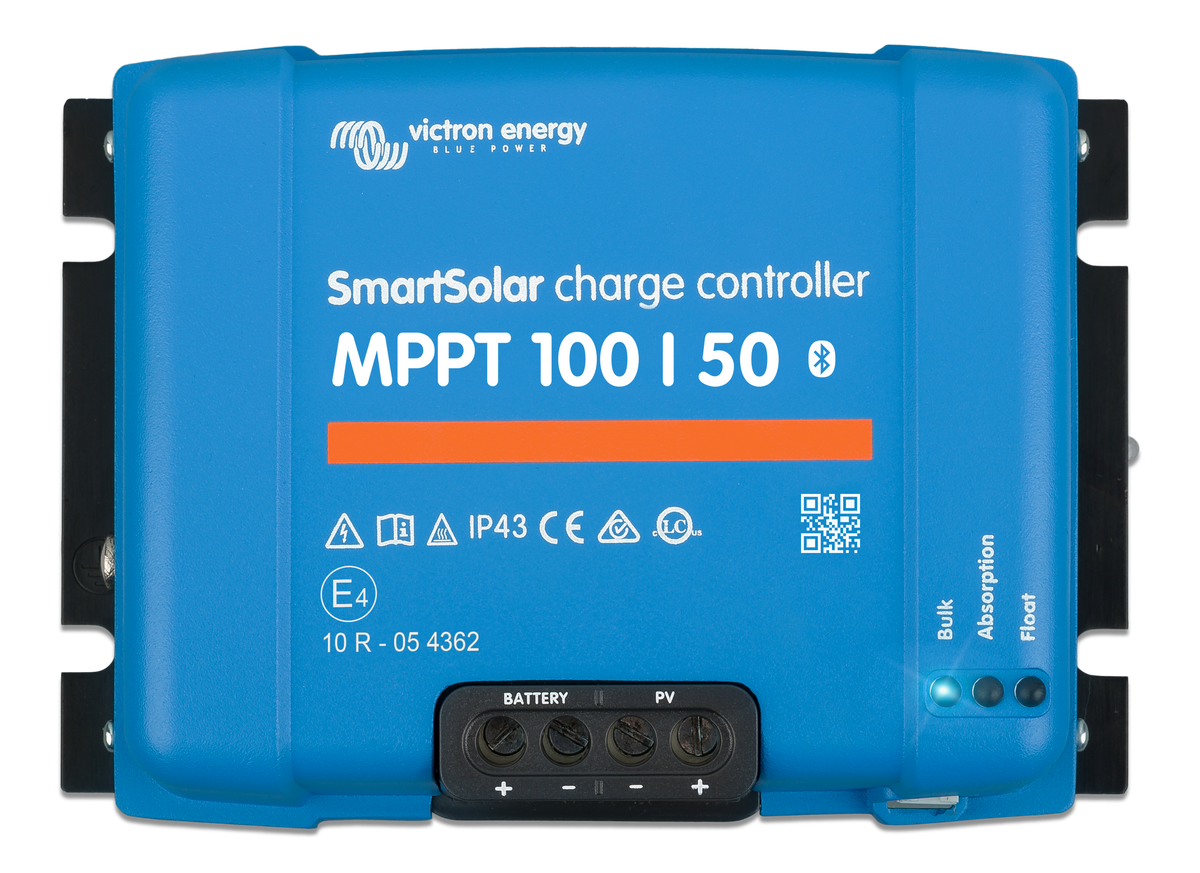

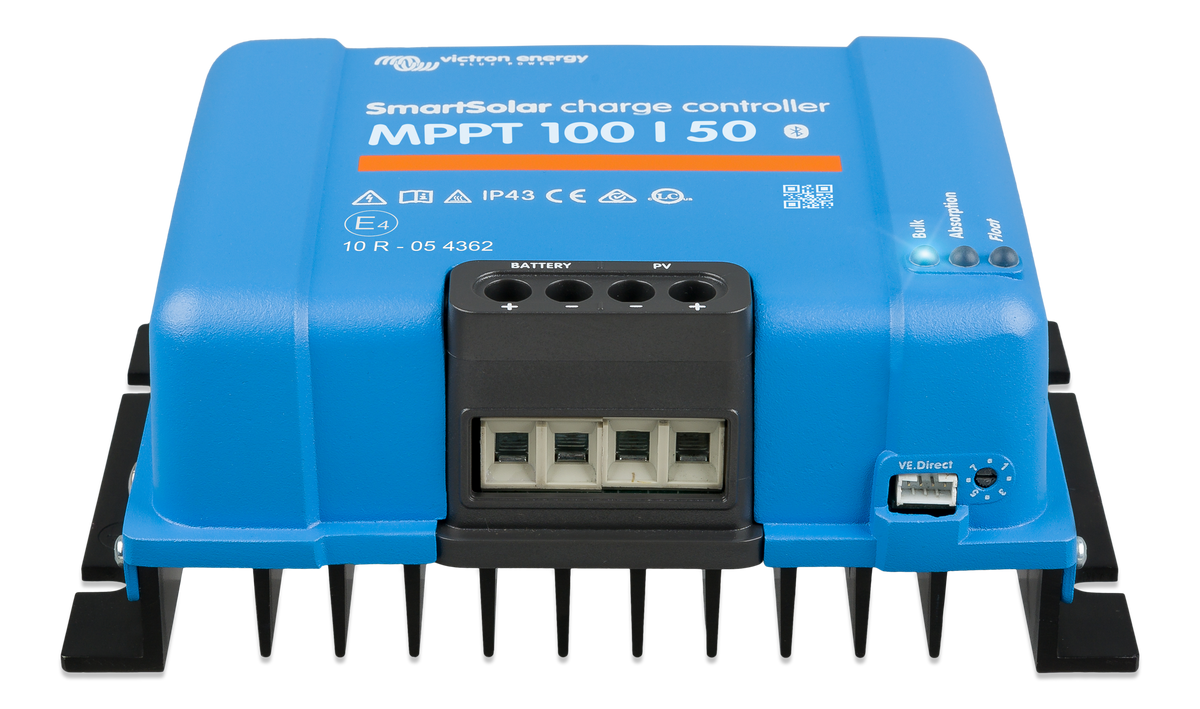

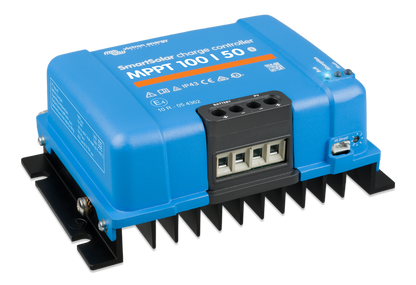

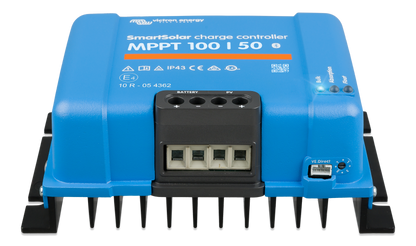

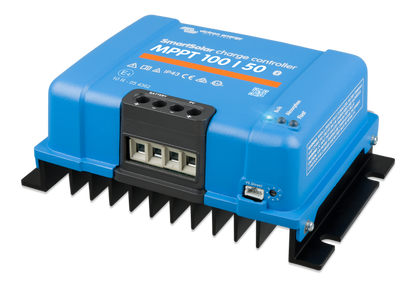

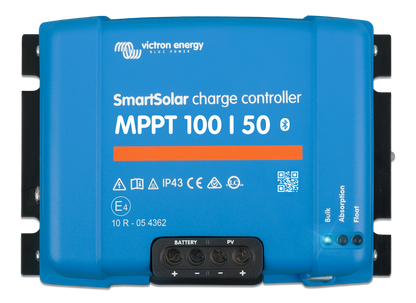

Victron SmartSolar MPPT 100/50 — 50A Solar Charge Controller with Bluetooth (12V/24V)
Victron SmartSolar MPPT 100/50 — 50A Solar Charge Controller with Bluetooth (12V/24V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 100/50 is the biggest 100V controller in the SmartSolar family — 50A of charge current for 12V or 24V battery banks. Designed for mid-size solar arrays using standard RV / marine-grade panels (typically 100–300W panels with Voc under 50V). Built-in Bluetooth, VictronConnect monitoring, and Victron's full charge-management suite.
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~720W | 3–4× 200W panels, or 6–7× 100W panels |
| 24V | ~1440W | 4× 350W panels, or 6× 240W |
Maximum PV open-circuit voltage: 100V. For larger arrays or higher-Voc residential panels in series, step up to the 150V family.
Why the SmartSolar 100/50
- Biggest 100V SmartSolar — maxes out 12V/24V capability before you need 150V for series-string panels.
- Ultra-fast MPPT tracking — Victron's algorithm responds in milliseconds to changing cloud and shading conditions.
- Built-in Bluetooth — VictronConnect app on iPhone or Android.
- 98% conversion efficiency — natural convection cooling, no fans.
- VE.Direct port — Cerbo GX integration and VRM Portal remote monitoring.
- Automatic 12V / 24V detection — installs on either bank without configuration.
- Multi-stage adaptive charging — AGM, Gel, Flooded, LiFePO4 preset profiles.

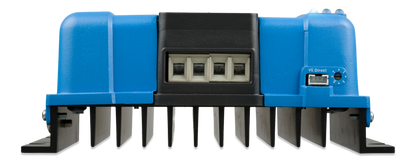

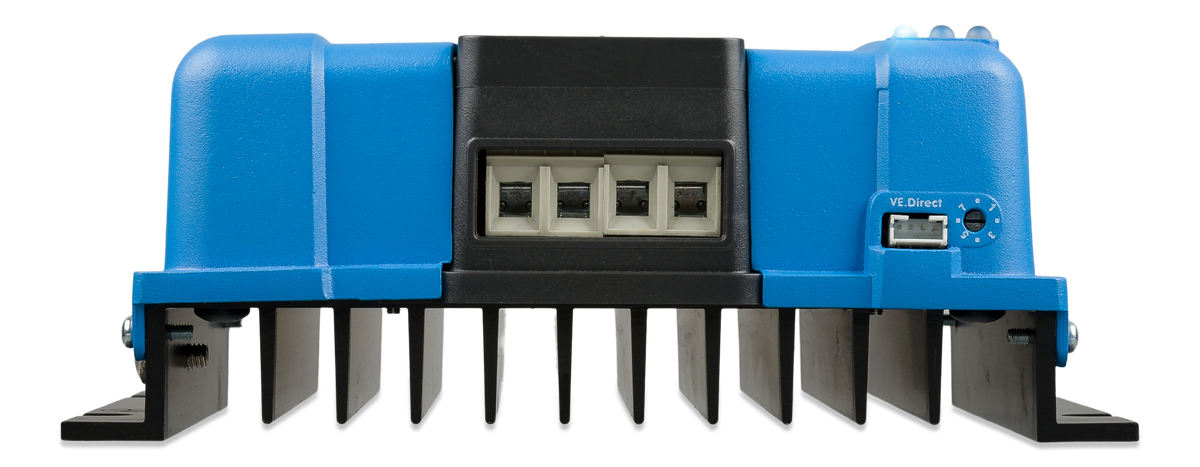

- Heavy-duty connections — sized for the larger panel and battery cables required for 50A.
Specifications
| Nominal battery voltage | 12V or 24V (auto-detect) |
|---|---|
| Rated charge current | 50A |
| Maximum PV open-circuit voltage | 100V (absolute max) |
| Maximum PV input power, 12V | 720W |
| Maximum PV input power, 24V | 1440W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Natural convection (no fan) |
| Enclosure rating | IP43 |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC110050210 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Class A motorhome — 3–4× 200W RV-grade roof panels
- Off-grid cabin (12V or 24V) — mid-size 500–1000W array
- Marine — catamaran or larger trawler with bigger solar setup
- Mobile commercial — surveillance trailers, food trucks with large roof real-estate
- Off-grid shed / barn — 24V mid-size solar with workshop tools
