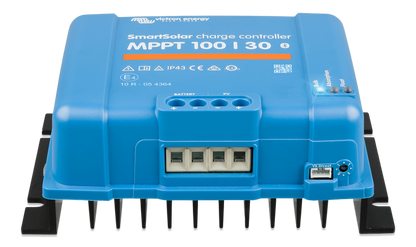

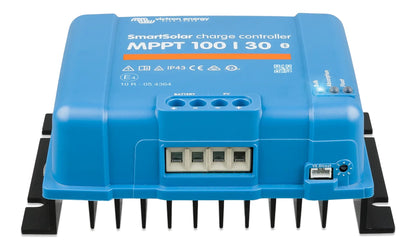

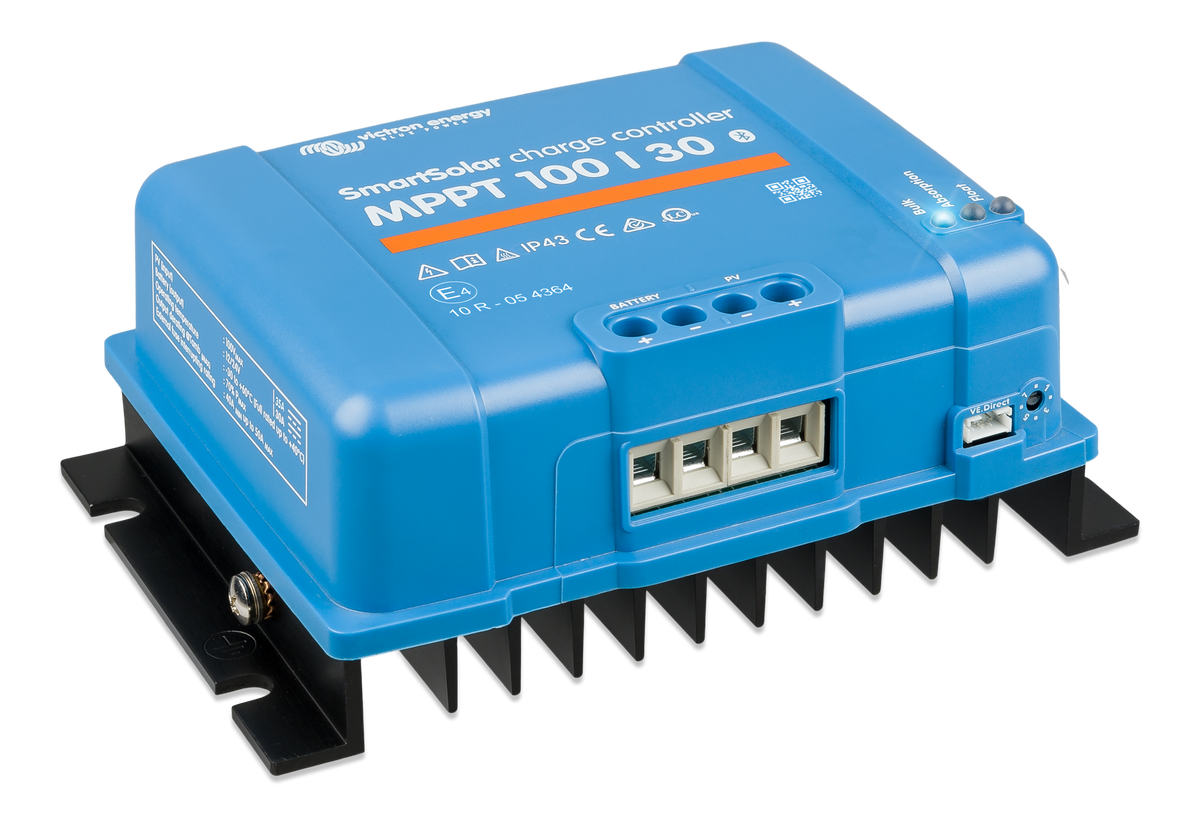

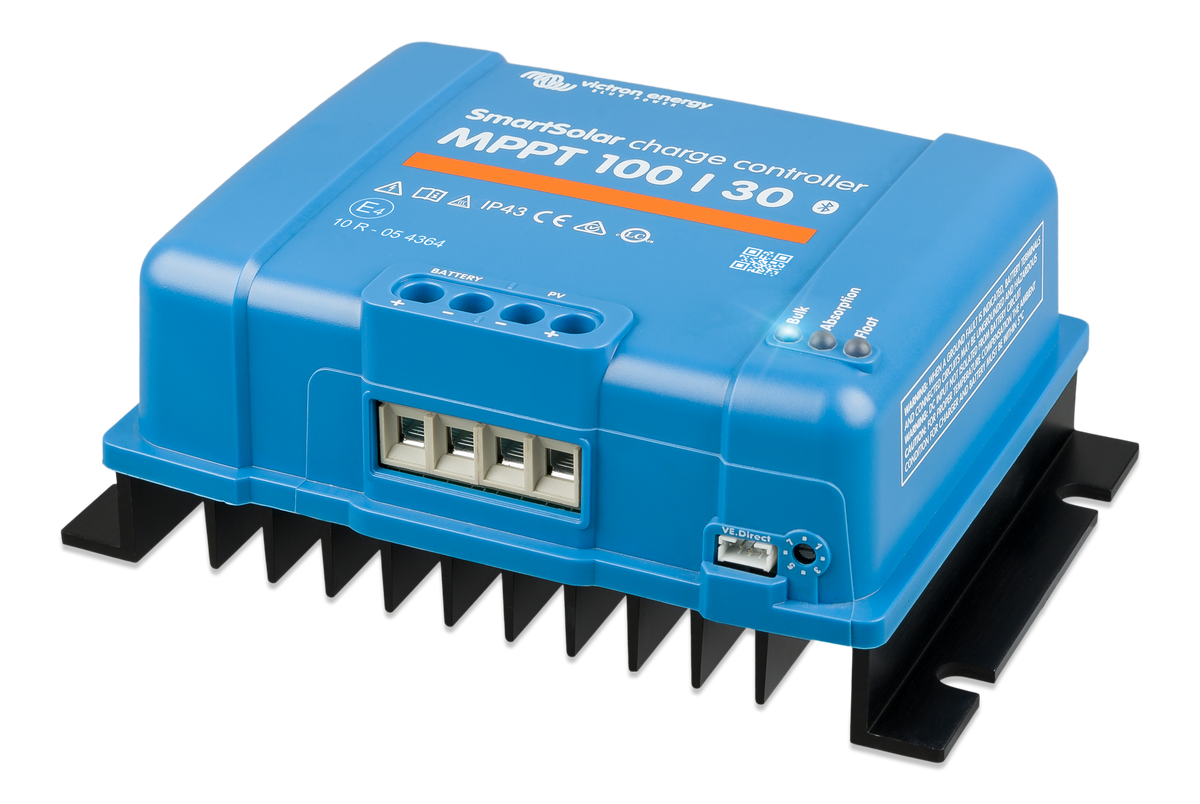

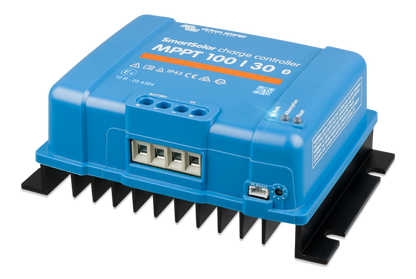

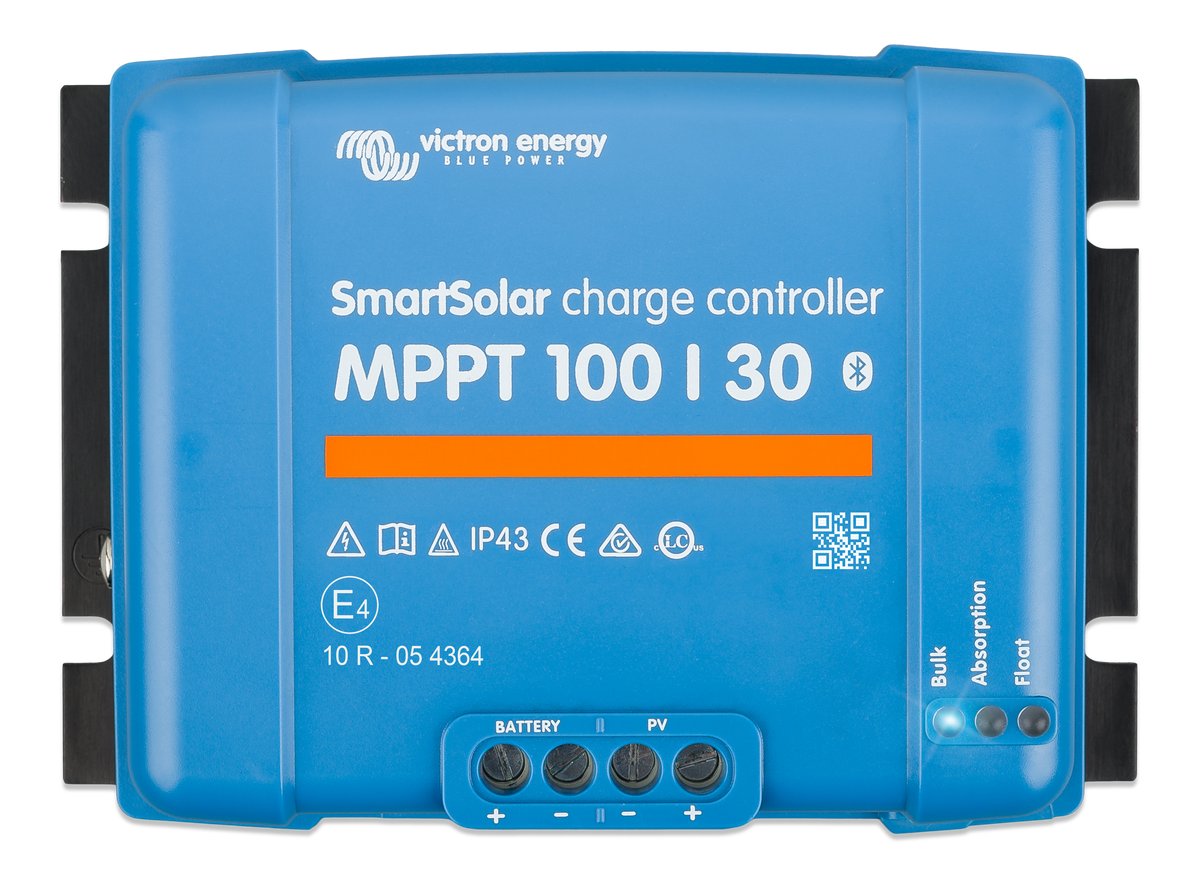

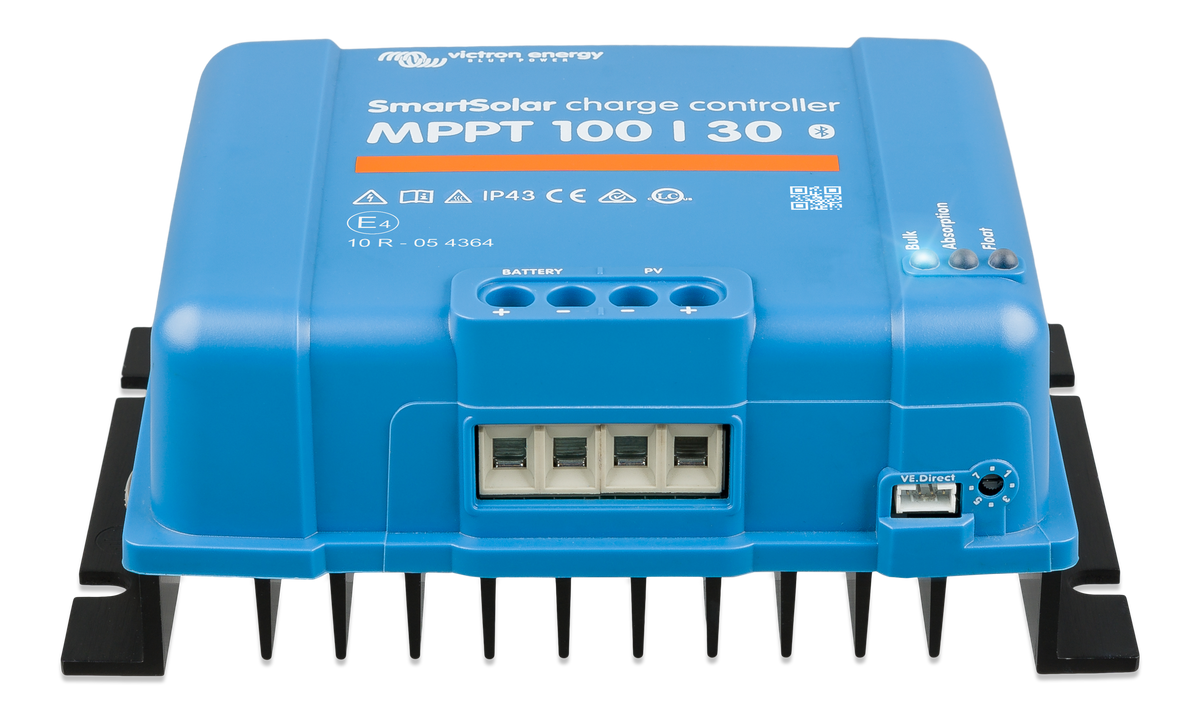

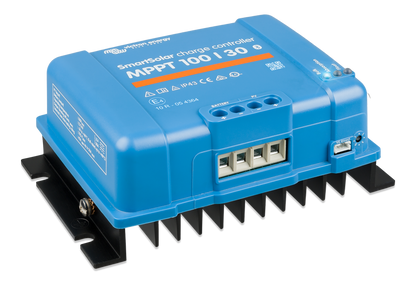

Victron SmartSolar MPPT 100/30 — 30A Solar Charge Controller with Bluetooth (12V/24V)
Victron SmartSolar MPPT 100/30 — 30A Solar Charge Controller with Bluetooth (12V/24V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 100/30 is the right-sized charge controller for most small-to-mid solar setups — 30A of charge current, 100V max PV input, built-in Bluetooth, and Victron's industry-leading ultra-fast MPPT tracking algorithm. Works with 12V or 24V battery banks and auto-detects the bank voltage on startup.
Pairs perfectly with a SmartShunt or BMV-712 monitor and any Victron MultiPlus or Phoenix inverter for a complete off-grid or backup system.
Solar array sizing
How much solar can you connect to this controller?
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~430W | 2× 200W panels in series, or 2× 100W + 2× 100W |
| 24V | ~860W | 4× 200W panels (series-parallel) |
Maximum PV open-circuit voltage: 100V. Always check your panel Voc against this rating with a cold-weather temperature derate (typically 1.25× Voc for sub-freezing climates).
Why the SmartSolar 100/30
- Ultra-fast Maximum Power Point Tracking — Victron's algorithm responds in milliseconds to changing cloud and shading conditions, harvesting up to 30% more energy than slower controllers on partly-cloudy days.
- Built-in Bluetooth — pair directly with VictronConnect on your phone. View live PV voltage, current, output, and 30-day history graphs. No extra dongles needed.
- 98% conversion efficiency — natural convection cooling, no fans to fail.
- VE.Direct port — connect to a Cerbo GX for full system monitoring via VRM Portal, or chain with a BMV-712 / SmartShunt for smart networking.
- Automatic 12V / 24V detection — installs on either bank without configuration; switchable to manual via app.
- Multi-stage adaptive charging — bulk, absorption, float, equalization with full Victron preset profiles for AGM, gel, flooded, and LiFePO4.
- Built-in protection — battery reverse polarity, output short-circuit, over-temperature, PV reverse polarity, PV over-voltage.
What's in the box
- SmartSolar MPPT 100/30 charge controller
- Mounting hardware
- Quick-start manual
Note: temperature sensor and VE.Direct cable sold separately.
Specifications
| Nominal battery voltage | 12V or 24V (auto-detect) |
|---|---|
| Rated charge current | 30A |
| Maximum PV open-circuit voltage | 100V (absolute max) |
| Maximum PV input power, 12V | 440W |
| Maximum PV input power, 24V | 880W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Natural convection (no fan) |
| Enclosure rating | IP43 |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Dimensions (HxWxD) | 100 x 113 x 50 mm (3.9 x 4.4 x 2.0 in) |
| Weight | 0.65 kg (1.4 lb) |
| Manufacturer SKU | SCC110030210 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- RV / Van Life — single 200W or 400W roof array on a 12V house bank
- Marine — supplementary charging for sailboat or trawler house banks
- Off-grid cabin — small to mid-size 24V systems with up to 800W of panels
- Backup power — solar input to a battery backup for grid-tied homes or telecom
- Trailer / mobile — surveillance trailers, work trucks, food carts
Choosing the right SmartSolar size
| Model | Max array @ 12V | Max array @ 24V | Best for |
|---|---|---|---|
| SmartSolar 75/15 | ~220W | ~440W | Single 200W panel |
| SmartSolar 100/20 | ~290W | ~580W | 2× 150W panels |
| SmartSolar 100/30 | ~440W | ~880W | 2× 200W or 4× 100W panels |
| SmartSolar 100/50 | ~700W | ~1400W | 3–4× 200W panels |
| SmartSolar 150/45 | ~700W | ~1300W | Higher-voltage panel strings |
