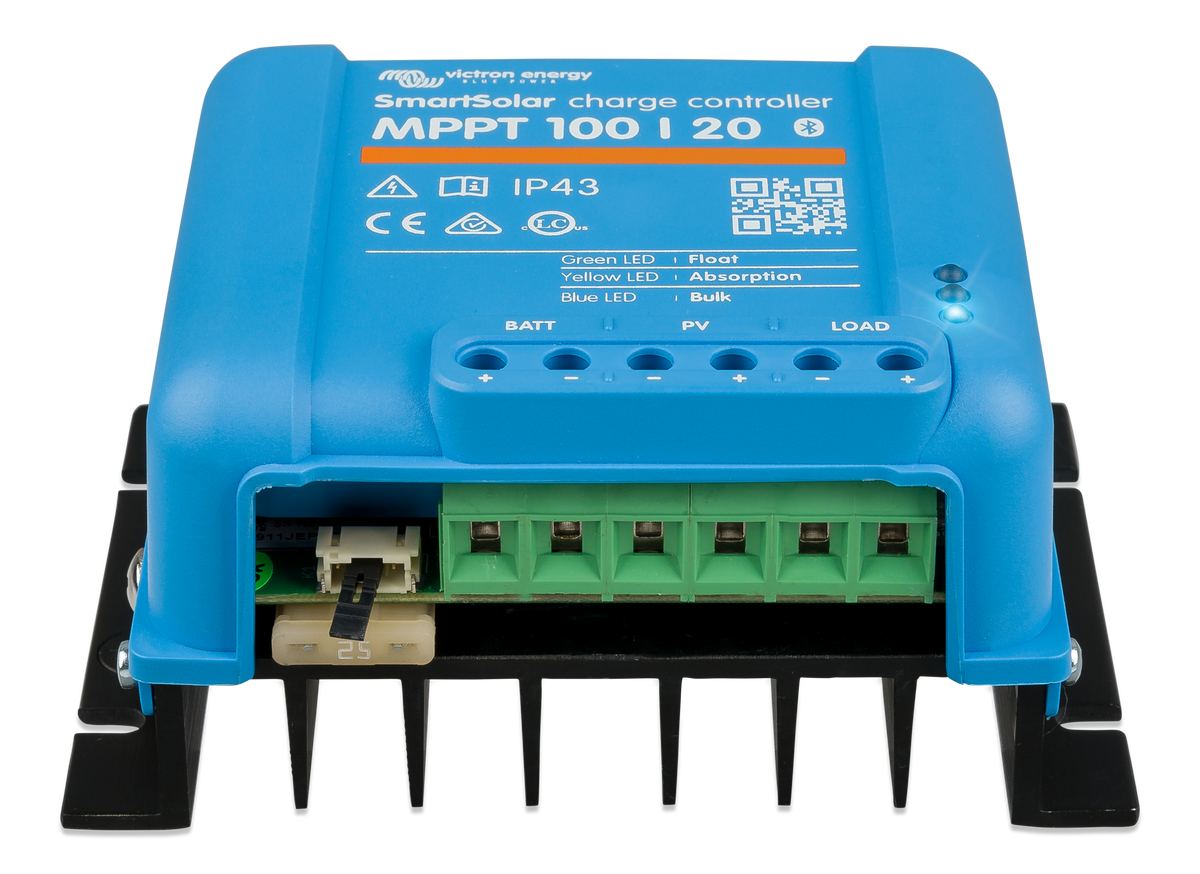

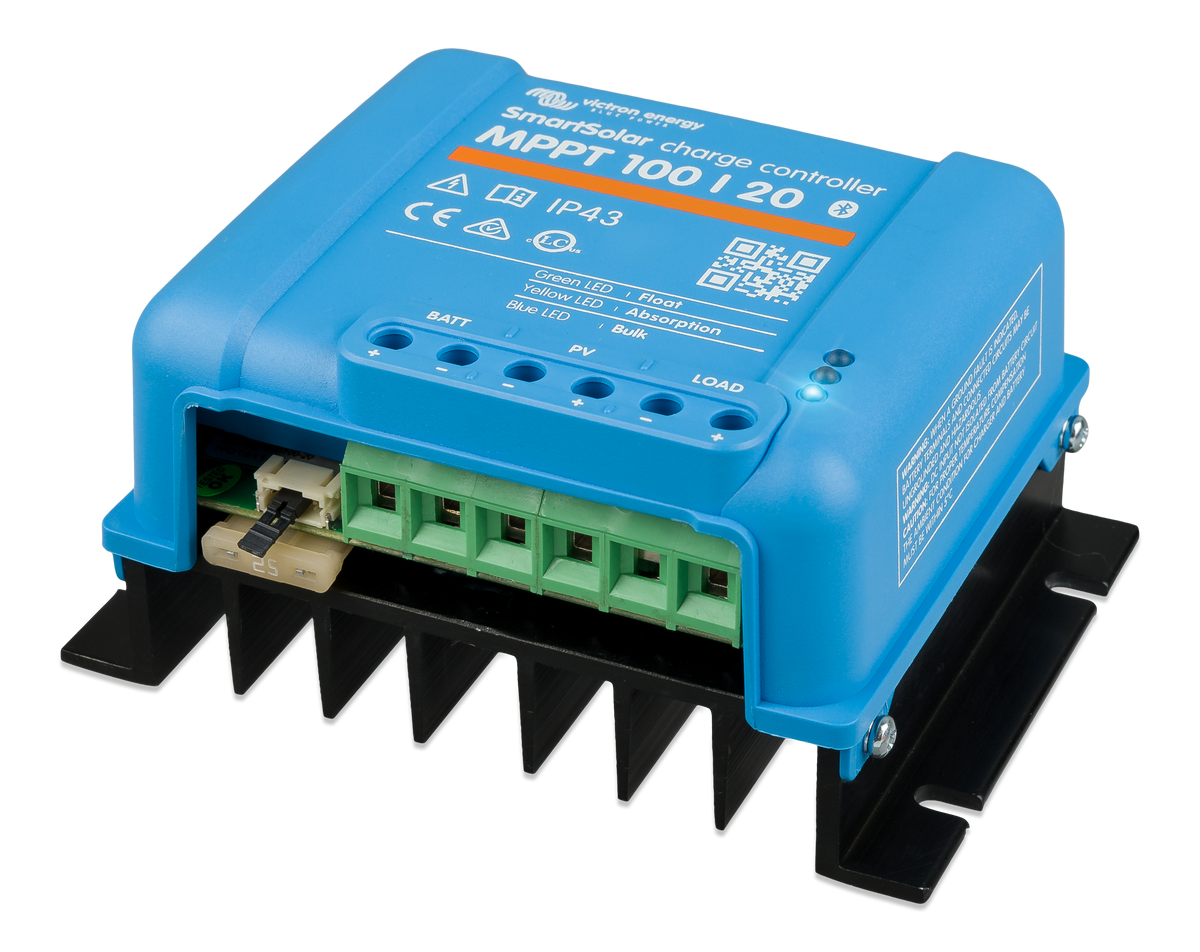

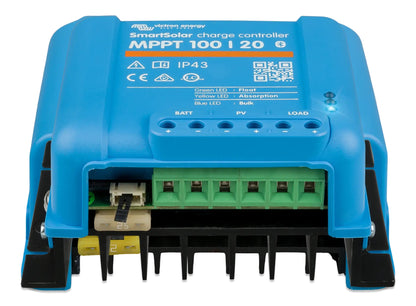

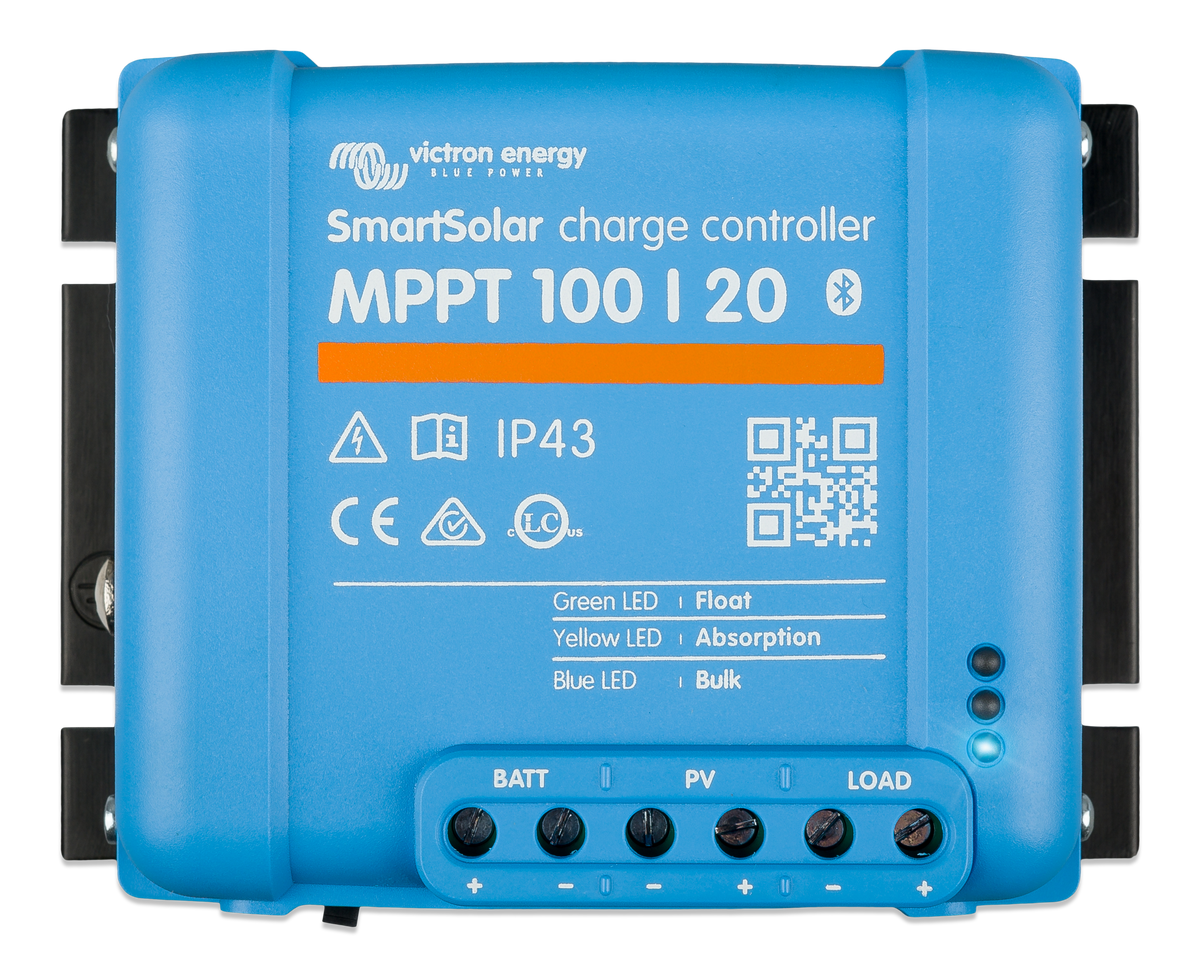

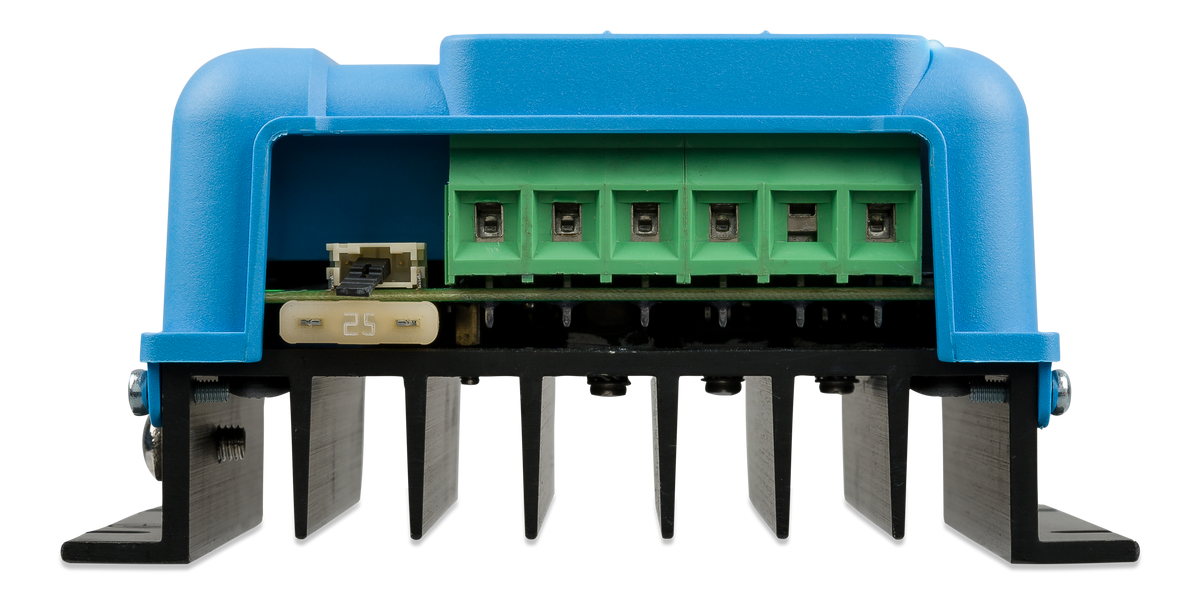

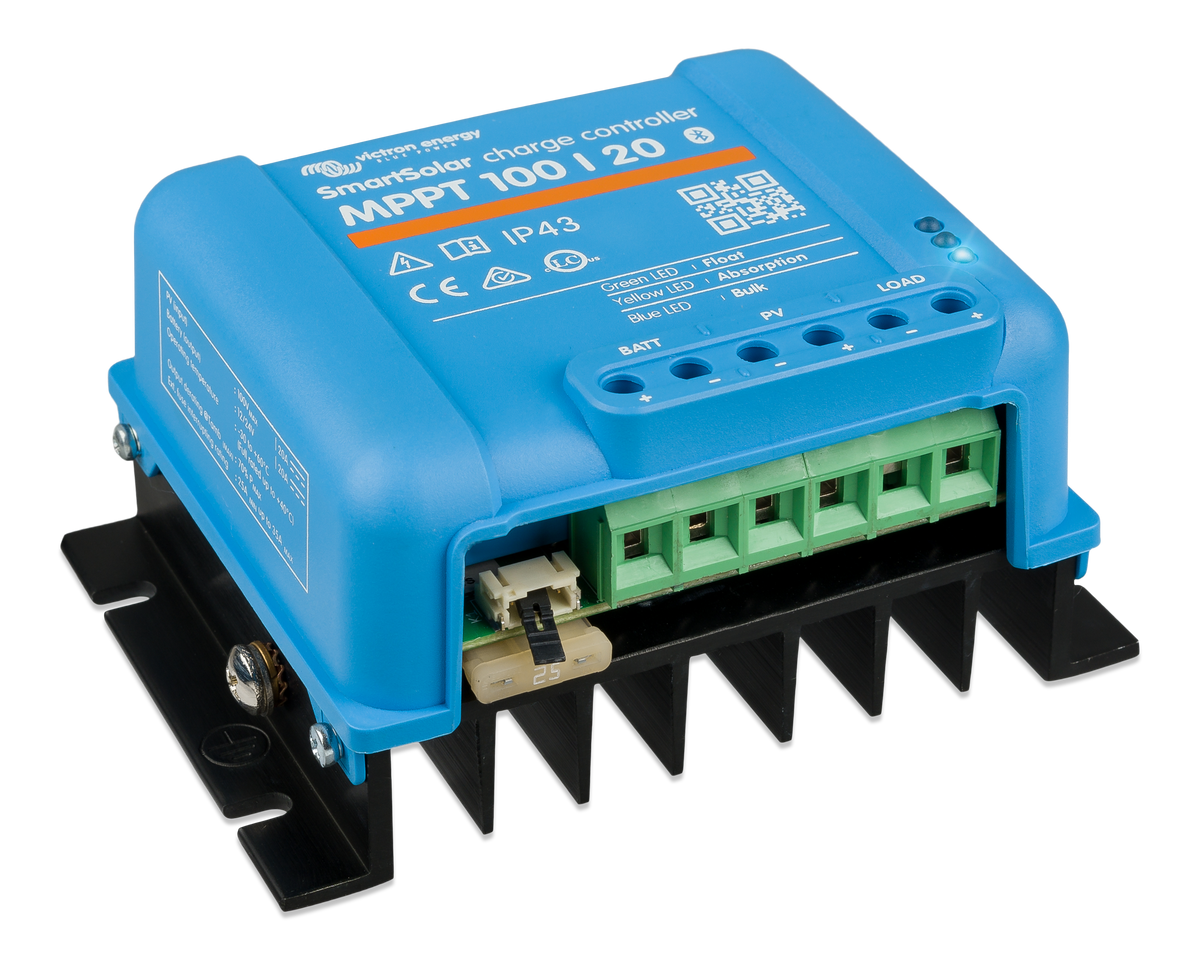

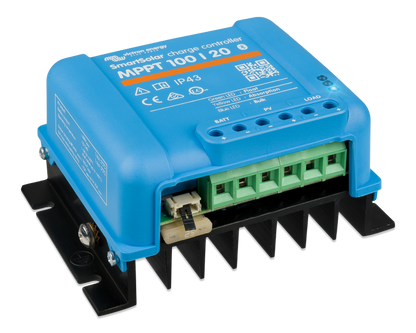

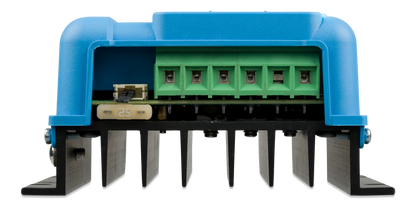

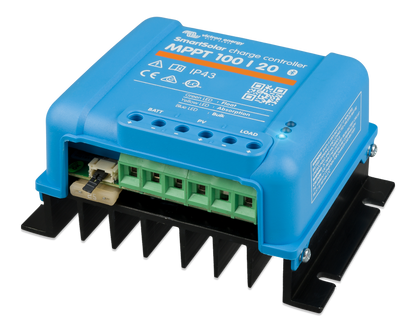

Victron SmartSolar MPPT 100/20 — 20A Solar Charge Controller with Bluetooth (12V/24V/48V)
Victron SmartSolar MPPT 100/20 — 20A Solar Charge Controller with Bluetooth (12V/24V/48V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 100/20 is the smallest 48V-capable controller in the SmartSolar family — also works on 12V and 24V. 20A of charge current, 100V max PV input, built-in Bluetooth. The standout feature versus the other small MPPTs is the 48V battery support, which makes this the budget pick for small 48V off-grid or backup-power experiments.
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~290W | 2× 150W panels in series, or 1× 300W panel |
| 24V | ~580W | 3× 200W panels, or 4× 150W |
| 48V | ~1160W | 3–4× 300W residential panels |
Maximum PV open-circuit voltage: 100V. Note: with a 48V battery, the controller needs at least ~60V from the panel array under load, so plan to wire two panels in series.
The 48V advantage
If you're building a 48V system, this is the most affordable Victron MPPT that supports it. For larger 48V arrays you'll want the SmartSolar 150/35, 150/45, or 150/60. But for proof-of-concept builds, small 48V backup-power setups, or supplementary solar on a 48V telecom site, the 100/20 is the cheapest way in.
Why the SmartSolar 100/20
- Works on 12V, 24V, or 48V — auto-detects, or set manually via app.
- Smallest 48V-capable MPPT — most affordable entry point for 48V systems.
- Ultra-fast Maximum Power Point Tracking — Victron's algorithm responds in milliseconds to changing cloud conditions.
- Built-in Bluetooth — pair directly with VictronConnect on iPhone or Android.
- 98% conversion efficiency — natural convection cooling.
- VE.Direct port — connect to a Cerbo GX for VRM Portal integration, or chain with a SmartShunt / BMV-712.
- Multi-stage adaptive charging — bulk, absorption, float, equalization with Victron preset profiles for AGM, Gel, Flooded, LiFePO4.
- Built-in protection — reverse polarity, short-circuit, over-temperature, PV over-voltage.
Specifications
| Nominal battery voltage | 12V, 24V, or 48V (auto-detect) |
|---|---|
| Rated charge current | 20A |
| Maximum PV open-circuit voltage | 100V (absolute max) |
| Maximum PV input power, 12V | 290W |
| Maximum PV input power, 24V | 580W |
| Maximum PV input power, 48V | 1160W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Natural convection (no fan) |
| Enclosure rating | IP43 |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Manufacturer SKU | SCC110020160R (Retail packaging) |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Small 48V off-grid experiments — cheapest 48V-capable MPPT
- Telecom remote sites — supplementary solar on 48V battery backup
- Van Life / RV (12V or 24V) — 2× 200W or single 300W array
- Marine — sailboat or trawler with mid-size solar
- Off-grid cabin — modest 24V or starter 48V system
Choosing the right SmartSolar size
| Model | Max array @ 12V | Max array @ 24V | 48V capable? | Best for |
|---|---|---|---|---|
| SmartSolar 75/10 | ~145W | ~290W | No | Single 100W panel |
| SmartSolar 75/15 | ~220W | ~440W | No | Single 200W panel |
| SmartSolar 100/15 | ~220W | ~440W | No | Cold climates, series panels |
| SmartSolar 100/20 | ~290W | ~580W | Yes (~1160W) | Cheapest 48V option |
| SmartSolar 100/30 | ~440W | ~880W | No | 2× 200W panels at 12V |
| SmartSolar 100/50 | ~700W | ~1400W | No | 3–4× 200W panels |
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase sizing consultation — call 346-574-9652 or email support@jonssontech.net with your panel specs, battery voltage, and climate and we'll confirm the right controller before you buy.
