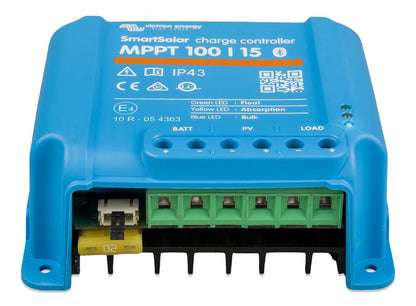

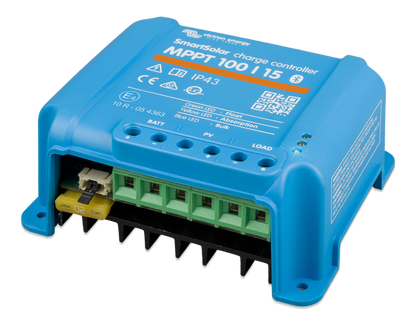

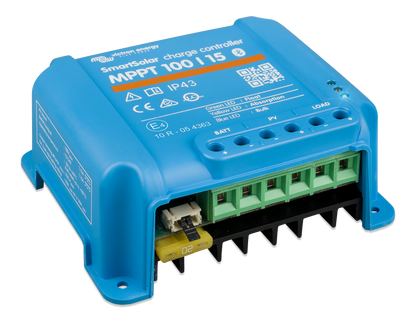

Victron SmartSolar MPPT 100/15 — 15A Solar Charge Controller with Bluetooth (12V/24V)
Victron SmartSolar MPPT 100/15 — 15A Solar Charge Controller with Bluetooth (12V/24V)
Couldn't load pickup availability
The Victron SmartSolar MPPT 100/15 is the higher-voltage sibling of the popular 75/15 controller — same 15A of charge current, but with 100V max PV input instead of 75V. The extra voltage headroom is what you want for cold-climate installs (where panel Voc spikes), longer panel strings, or higher-voltage panels. 12V or 24V battery banks, auto-detected on startup. Built-in Bluetooth via VictronConnect.
Solar array sizing
| Battery bank | Maximum solar array | Typical setup |
|---|---|---|
| 12V | ~215W | 1× 200W panel, or 2× 100W in series |
| 24V | ~430W | 2× 200W panels in series |
Maximum PV open-circuit voltage: 100V. The extra headroom over the 75/15 lets you safely run higher-Voc panels or two panels in series without worrying about cold-weather voltage spike.
75/15 vs 100/15 — which one?
| 100/15 (this model) | 75/15 | |
|---|---|---|
| SKU | SCC110015060R | SCC075015060R |
| Max PV voltage | 100V | 75V |
| Max charge current | 15A | 15A |
| Best for | Cold climates, panels in series, higher-Voc panels (60+ cell residential panels) | Single panel, warmer climates, standard RV-grade panels |
| Price | $82.45 | $70.55 |
Rule of thumb: if you live somewhere that gets below freezing, or you might add a second panel in series later, the 100/15 is worth the extra $12. Otherwise the 75/15 is fine.
When to choose the 100/15
- Cold climate installs — panel Voc rises in cold weather (1.25× for sub-freezing). A 22V Voc panel can hit 28V at -40°F; two in series hits 56V — still safe on the 100/15, marginal on the 75/15.
- Two panels in series — most 36-cell or 60-cell residential panels in series need 100V headroom.
- Higher-Voc residential panels — 60-cell or 72-cell house panels with Voc above 35V.
- Single panel up to 200W on 12V — same array capacity as the 75/15, just with safer headroom.
- 24V systems with up to 430W — 2-panel series strings on a 24V bank.
Why the SmartSolar 100/15
- Ultra-fast Maximum Power Point Tracking — Victron's algorithm responds in milliseconds to changing cloud and shading conditions.
- Built-in Bluetooth — pair directly with VictronConnect on iPhone or Android. View live PV input, output, and 30-day history.
- 98% conversion efficiency — natural convection cooling, no fans.
- VE.Direct port — connect to a Cerbo GX for system monitoring via VRM Portal, or chain with a SmartShunt / BMV-712.
- Automatic 12V / 24V detection — installs on either bank without configuration.
- Multi-stage adaptive charging — bulk, absorption, float, equalization with Victron preset profiles for AGM, gel, flooded, and LiFePO4.
- Built-in protection — battery reverse polarity, output short-circuit, over-temperature, PV reverse polarity, PV over-voltage.
What's in the box
- SmartSolar MPPT 100/15 charge controller
- Mounting hardware
- Quick-start manual
Specifications
| Nominal battery voltage | 12V or 24V (auto-detect) |
|---|---|
| Rated charge current | 15A |
| Maximum PV open-circuit voltage | 100V (absolute max) |
| Maximum PV input power, 12V | 220W |
| Maximum PV input power, 24V | 440W |
| Peak efficiency | 98% |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes |
| Charge algorithm | Multi-stage adaptive with manual preset profiles |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Natural convection (no fan) |
| Enclosure rating | IP43 |
| Operating temperature | -30°C to +60°C (full power up to 40°C) |
| Dimensions (HxWxD) | 100 x 113 x 40 mm (3.9 x 4.4 x 1.6 in) |
| Weight | 0.5 kg (1.1 lb) |
| Manufacturer SKU | SCC110015060R (Retail packaging) |
| Warranty | 5 years (manufacturer) |
Choosing the right SmartSolar size
| Model | Max array @ 12V | Max array @ 24V | Best for |
|---|---|---|---|
| SmartSolar 75/10 | ~145W | ~290W | Single 100W panel, maintenance |
| SmartSolar 75/15 | ~220W | ~440W | Single 200W panel, warm climates |
| SmartSolar 100/15 | ~220W | ~440W | Single 200W panel, cold climates, series panels |
| SmartSolar 100/20 | ~290W | ~580W | 2× 150W panels |
| SmartSolar 100/30 | ~440W | ~880W | 2× 200W or 4× 100W panels |
| SmartSolar 100/50 | ~700W | ~1400W | 3–4× 200W panels |
