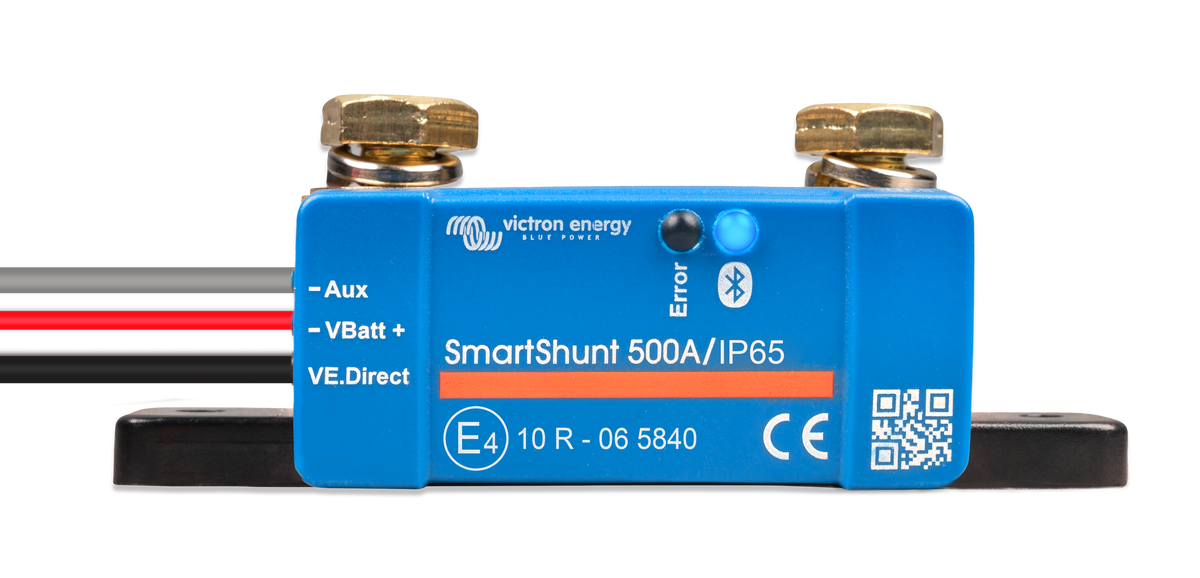

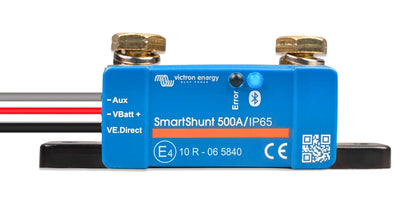

Victron SmartShunt 500A/50mV IP65 Battery Monitor — Waterproof, Bluetooth, 6.5–70V
Victron SmartShunt 500A/50mV IP65 Battery Monitor — Waterproof, Bluetooth, 6.5–70V
Couldn't load pickup availability
The Victron SmartShunt 500A IP65 is the waterproof version of our best-selling shunt-based battery monitor — sealed against dust and rated for water spray, ideal for boat engine rooms, deck-mounted electrical panels, outdoor solar installs, and anywhere standard electronics can't safely live. Same accuracy and same Victron measurement firmware as the standard SmartShunt 500A, in a sealed IP65 enclosure.
No display — your phone is the screen via Bluetooth and the free VictronConnect app. View real-time state-of-charge, voltage, current, power, time-remaining, and 30 days of historical trend data.
IP65 vs standard SmartShunt 500A — which one?
| IP65 (this model) | Standard IP21 | |
|---|---|---|
| SKU | SHU065150050 | SHU050150050 |
| Enclosure rating | IP65 (dust-tight, water spray) | IP21 (indoor / dry mounting) |
| Marine engine room | Yes — recommended | Not recommended |
| Outdoor / unsealed install | Yes | No |
| Indoor / cabin mounting | Works fine but overkill | Recommended |
| Measurement accuracy | ±0.4% | ±0.4% |
| Price | $110.50 | $100.30 |
Rule of thumb: if the shunt is going somewhere a phone wouldn't survive without a case, choose the IP65.
Why the SmartShunt 500A IP65
- IP65 sealed enclosure — dust-tight and rated against low-pressure water spray from any direction. Survives engine room humidity, salt spray, and outdoor weather.
- Same accuracy as the standard 500A — same Victron precision shunt and same firmware, just sealed.
- Bluetooth built-in — pair directly with VictronConnect on iPhone or Android.
- True state-of-charge — counts every amp in and out for fuel-gauge accuracy on lithium, AGM, and lead-acid banks.
- VE.Direct port for Cerbo GX — plug into a Cerbo GX for full system integration and VRM Portal remote monitoring.
- Programmable auxiliary input — temperature, midpoint voltage, or second battery monitoring.
- VE.Smart Networking — shares battery data wirelessly with other Victron devices (SmartSolar MPPT, IP22 chargers) for better-coordinated charging.
What's in the box

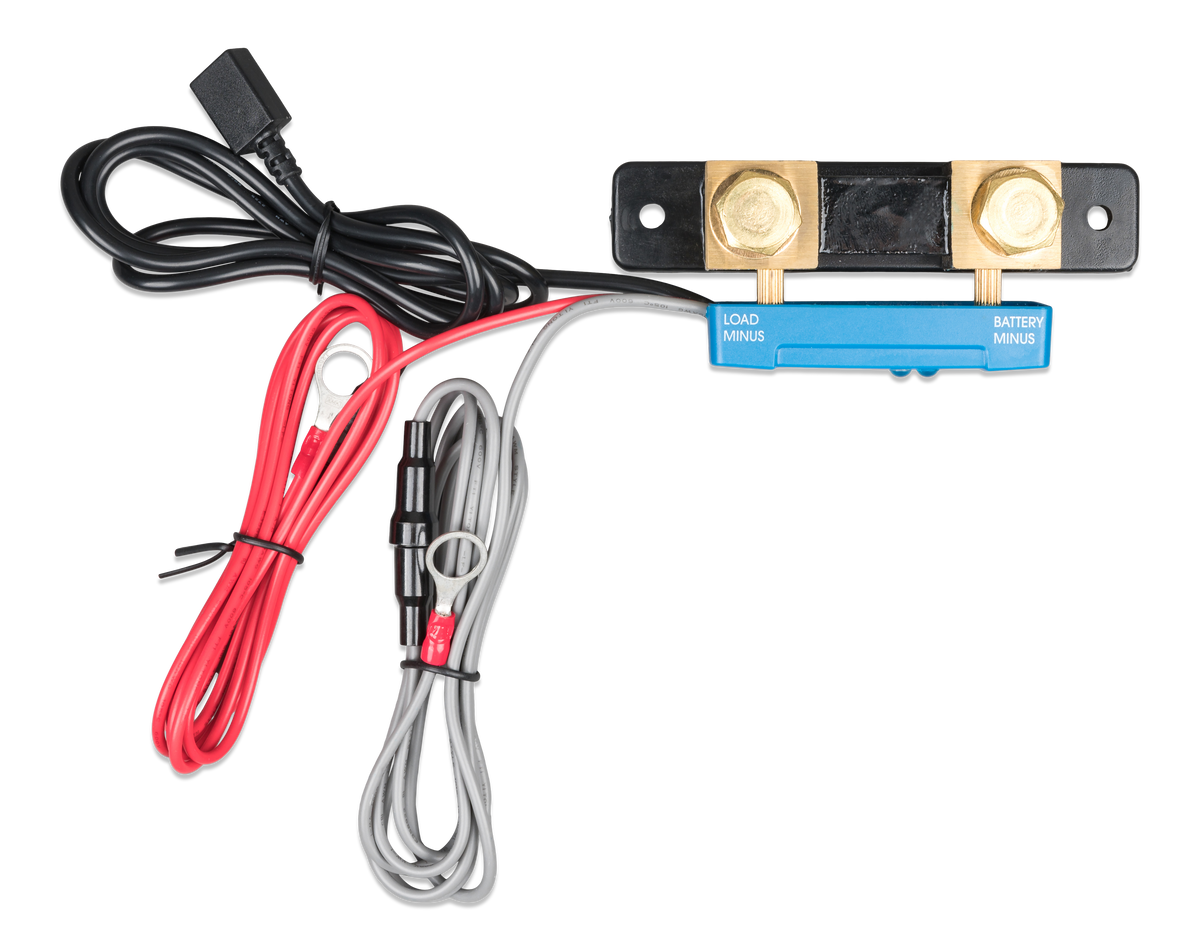

- SmartShunt 500A / 50mV IP65 precision shunt with built-in electronics and Bluetooth

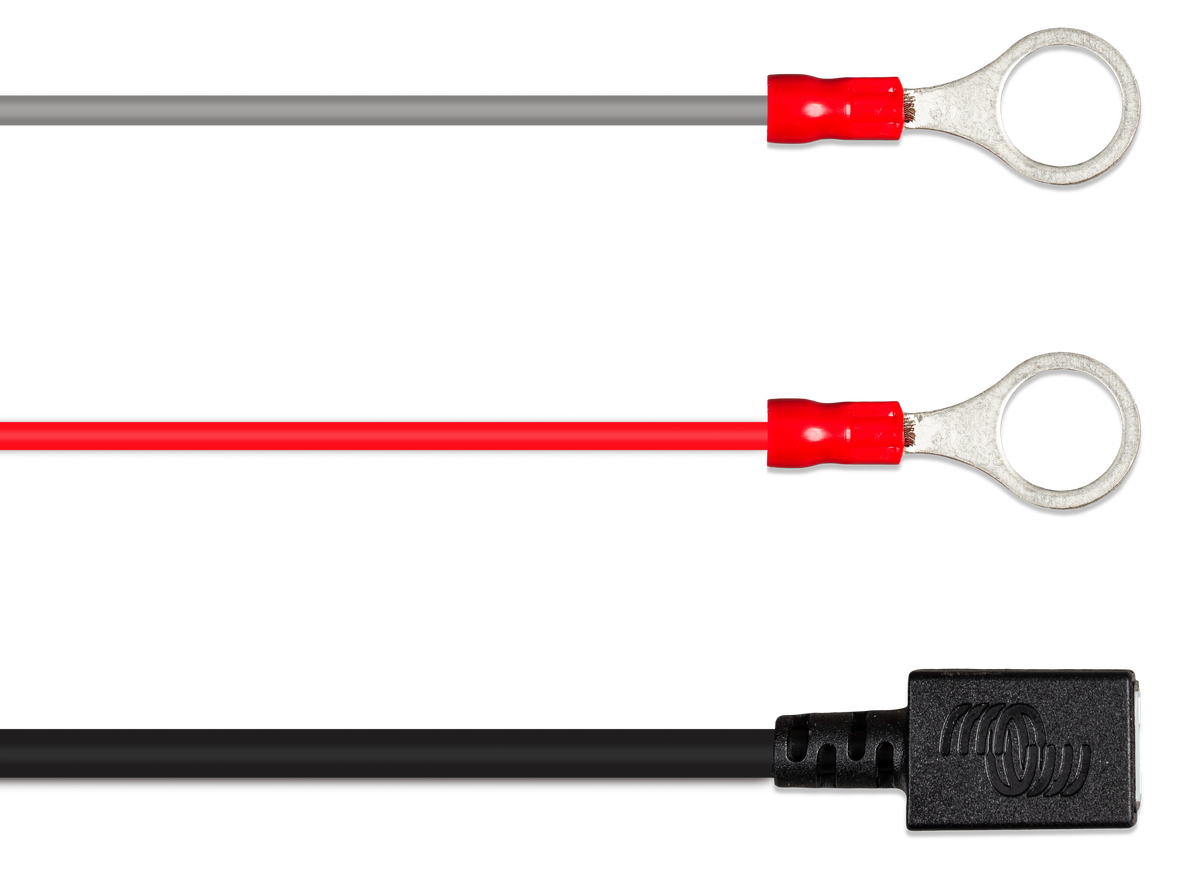

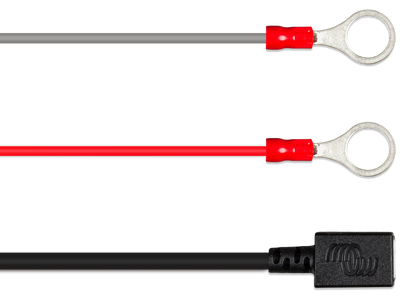

- Battery cable with M10 fuse holder
- UTP cable for auxiliary input
Specifications
| Battery voltage range | 6.5–70 VDC (works on 12V, 24V, 48V systems) |
|---|---|
| Current measurement range | -500 to +500A |
| Shunt rating | 500A / 50mV |
| Accuracy | ±0.4% |
| Resolution | 10 mA / 0.01V |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes (for Cerbo GX integration) |
| VE.Smart Networking | Yes |
| Auxiliary input | Temperature / midpoint / second battery voltage |
| Display | None — uses your phone via Bluetooth |
| Enclosure rating | IP65 (dust-tight, water spray protected) |
| Operating temperature | -40°C to +50°C (-40°F to +122°F) |
| Manufacturer SKU | SHU065150050 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Marine engine rooms — humid, salty, and occasionally wet environments
- Sailboats and powerboats — house bank monitoring near the battery compartment, often in the bilge area
- Outdoor solar installs — ground-mount or pole-mount systems where the shunt is in a weather-exposed combiner box
- Off-grid cabin pump houses — well pumps, irrigation
- Mobile professional — surveillance trailers, food trucks, exterior generator/battery bays
- Industrial telecom — outdoor cabinet installs
