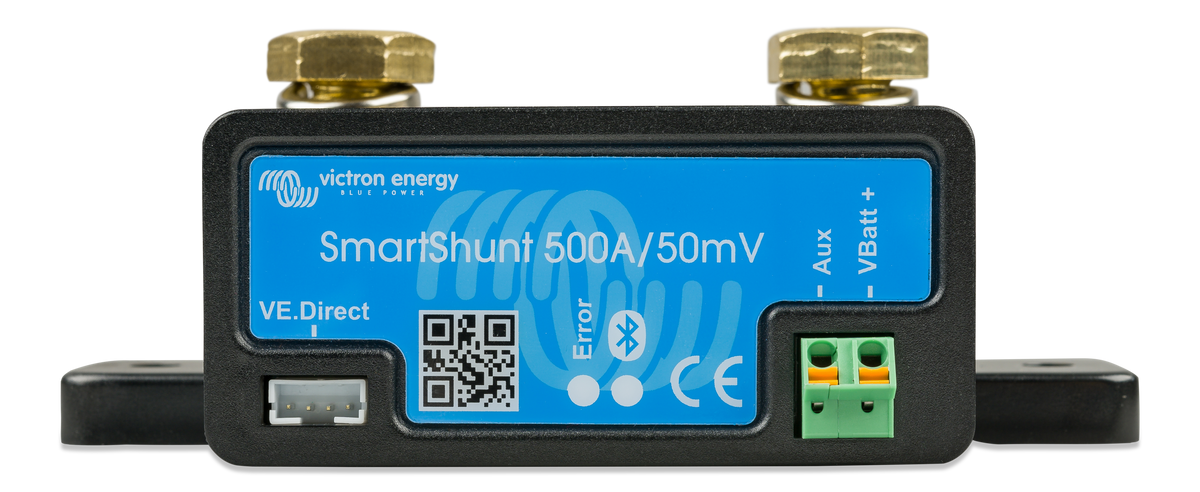

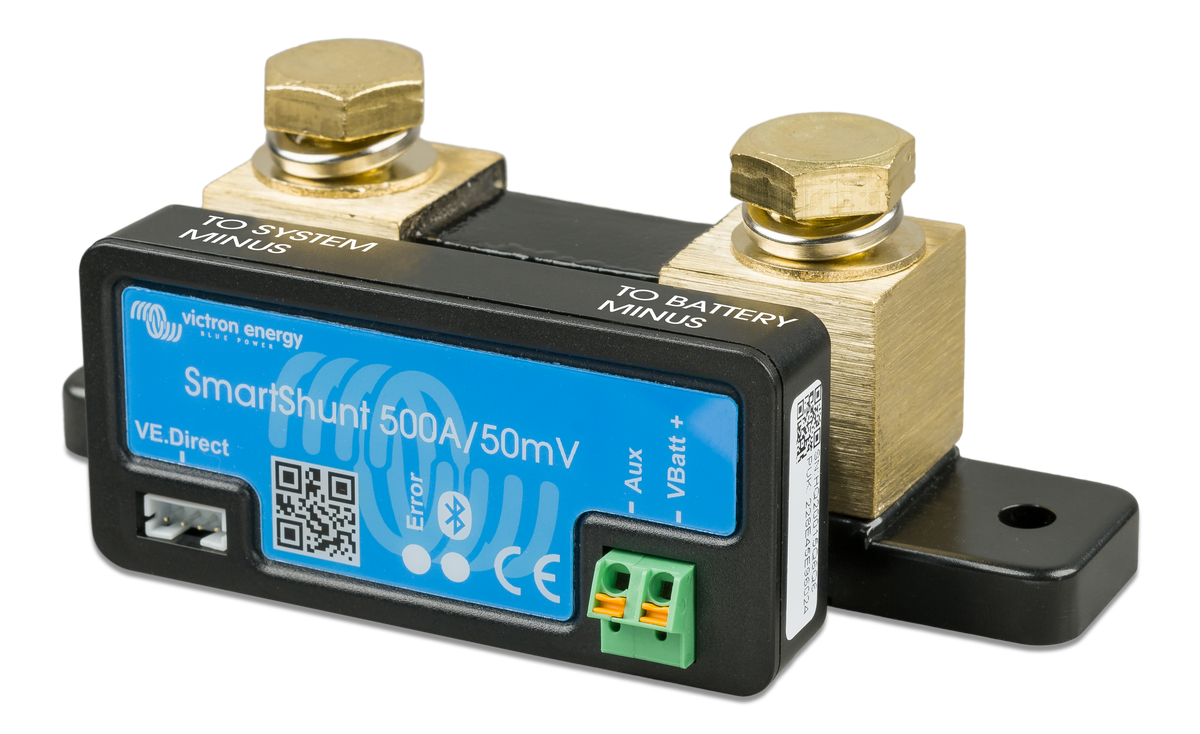

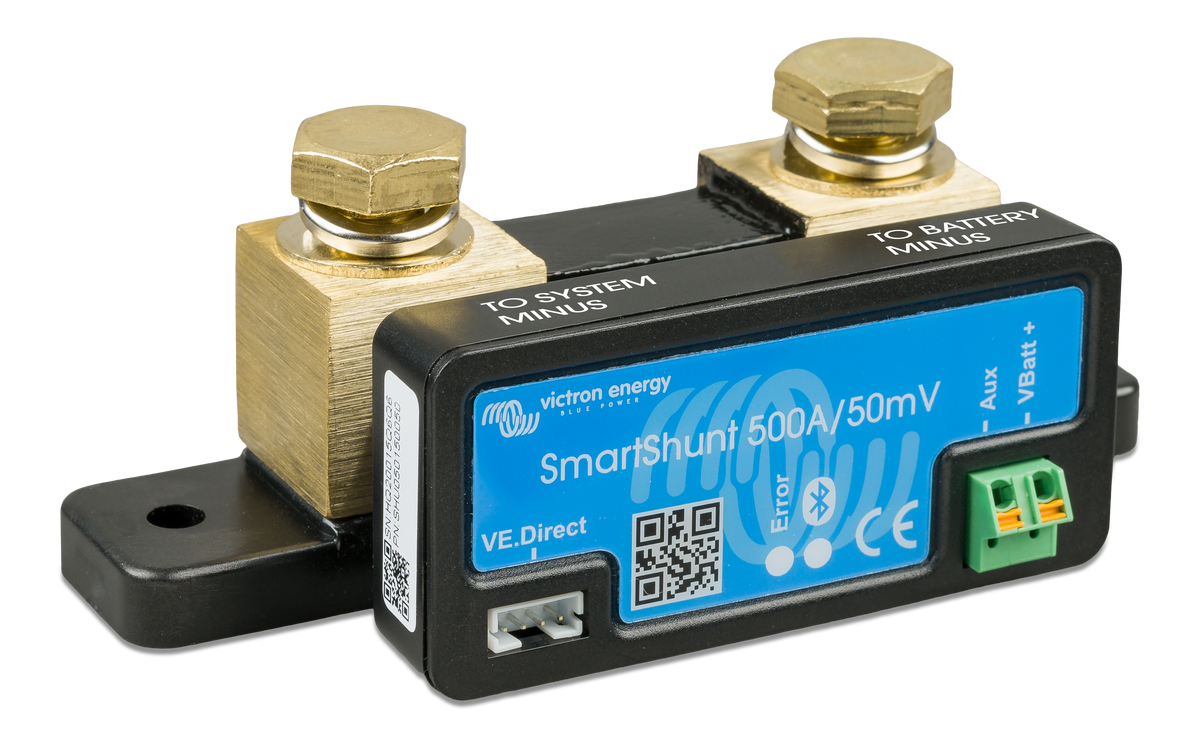

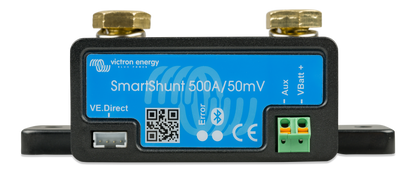

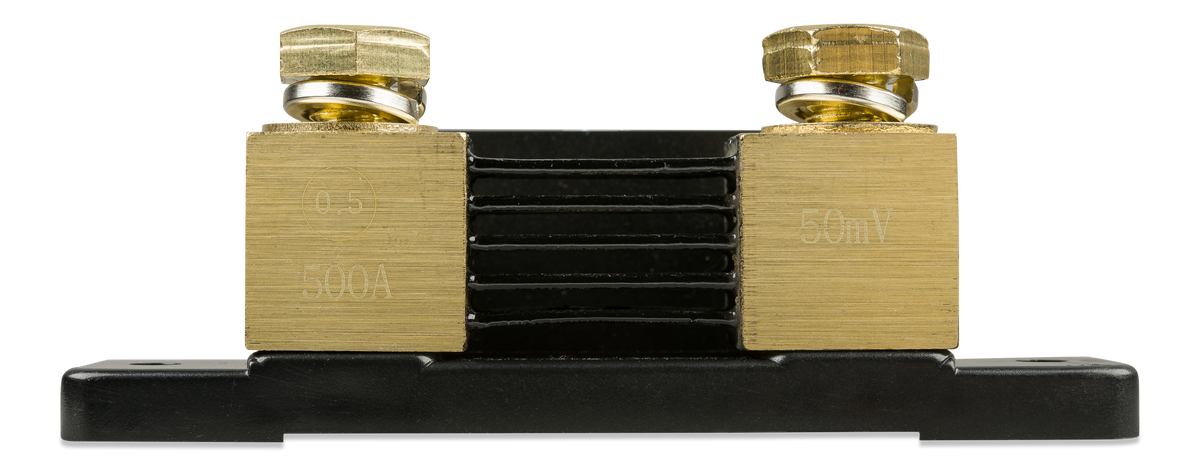

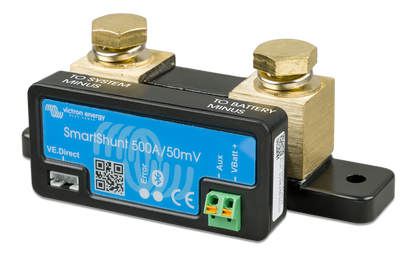

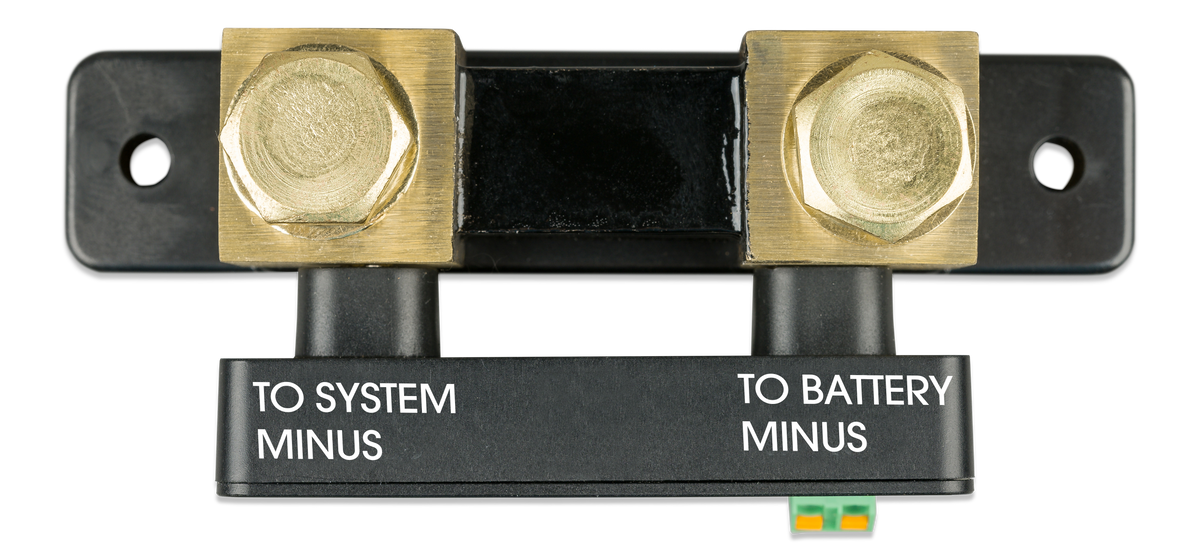

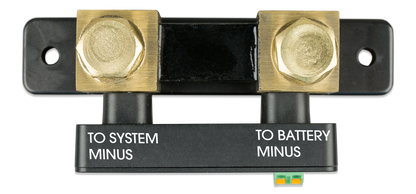

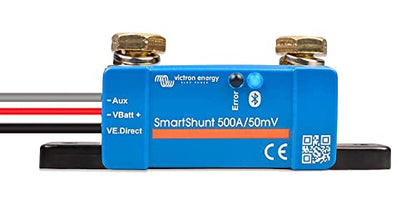

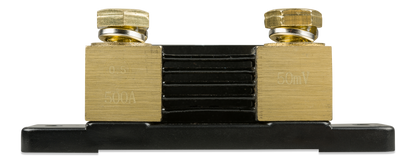

Victron SmartShunt 500A/50mV Battery Monitor — Bluetooth, 6.5–70V (No Display)
Victron SmartShunt 500A/50mV Battery Monitor — Bluetooth, 6.5–70V (No Display)
Couldn't load pickup availability
The Victron SmartShunt 500A is a precision battery monitor without a head unit — your phone is the display. Same accuracy as the BMV-712 in a compact shunt-only package, ideal for installs where you don't need (or want) a panel-mounted screen. Works on any 12V, 24V, or 48V system from 6.5V to 70V.
Connects to your phone or tablet via Bluetooth and the free VictronConnect app — see real-time state-of-charge, voltage, current, power, time-remaining, and 30 days of historical trend data.
Why the SmartShunt 500A
- BMV-712 accuracy at lower cost — same precision shunt and the same Victron measurement firmware, just without the wall-mounted display unit.
- Bluetooth built-in — pair directly with the VictronConnect app on iPhone or Android. No extra dongles needed.
- True state-of-charge, not voltage guessing — counts every amp in and out for fuel-gauge accuracy on lithium, AGM, and lead-acid banks.
- VE.Direct port for Cerbo GX — plug into a Cerbo GX (cable sold separately) for full system integration and remote monitoring via VRM Portal.
- Programmable auxiliary input — measure battery temperature (with optional sensor), midpoint voltage to spot a weak cell in a series bank, or monitor a second 12V starter battery.
- Compact install footprint — no panel cutout required, mount the shunt directly on the battery negative cable.
What's in the box
- SmartShunt 500A / 50mV precision shunt with built-in electronics and Bluetooth
- Battery cable with M10 fuse holder
- UTP cable for auxiliary input
Specifications
| Battery voltage range | 6.5–70 VDC (works on 12V, 24V, 48V systems) |
|---|---|
| Current measurement range | -500 to +500A |
| Shunt rating | 500A / 50mV |
| Accuracy | ±0.4% |
| Resolution | 10 mA / 0.01V |
| Bluetooth | Built-in (works with VictronConnect app) |
| VE.Direct port | Yes (for Cerbo GX integration) |
| Auxiliary input | Temperature / midpoint / second battery voltage |
| Display | None — uses your phone via Bluetooth |
| Enclosure rating | IP21 (indoor / dry mounting) |
| Operating temperature | -40°C to +50°C (-40°F to +122°F) |
| Manufacturer SKU | SHU050150050 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Van Life / RV — house bank monitoring where dashboard space is tight
- Marine — sailboat and powerboat house banks; phone monitoring is natural for boaters
- Off-grid solar — pair with SmartSolar MPPT and Cerbo GX for full VRM integration
- Backup power — telecom, generator backup, surveillance trailers
- EV conversions — auxiliary 12V house battery monitoring
SmartShunt 500A vs BMV-712 — which one?
Choose the SmartShunt 500A if you don't need a wall-mounted display, want to save on panel real-estate, or do all your monitoring from your phone. Choose the BMV-712 if you want a dedicated head unit (good for installs where guests, crew, or family members will also want to see battery status without an app). For outdoor or wet-location installs, see the SmartShunt 500A IP65.
