Victron SmartShunt 300A/50mV IP65 Battery Monitor — Waterproof, Bluetooth, 6.5–70V
Victron SmartShunt 300A/50mV IP65 Battery Monitor — Waterproof, Bluetooth, 6.5–70V
Couldn't load pickup availability
The Victron SmartShunt 300A IP65 is the compact, waterproof battery monitor — sized for smaller 12V systems but built into a sealed enclosure that survives engine rooms, exterior battery compartments, and outdoor solar combiner boxes. Same Victron measurement firmware and same ±0.4% accuracy as the larger shunts, in the smallest, cheapest sealed package Victron makes.
No display — your phone is the screen via Bluetooth and the free VictronConnect app. View real-time state-of-charge, voltage, current, power, time-remaining, and 30 days of historical trend data.
IP65 vs standard SmartShunt 300A — which one?
| IP65 (this model) | Standard IP21 | |
|---|---|---|
| SKU | SHU065130050 | SHU050130050 |
| Enclosure rating | IP65 (dust-tight, water spray) | IP21 (indoor / dry mounting) |
| Marine engine compartment | Yes — recommended | Not recommended |
| Outdoor / unsealed install | Yes | No |
| Indoor / cabin mounting | Works fine but overkill | Recommended |
| Current capacity | ±300A | ±300A |
| Measurement accuracy | ±0.4% | ±0.4% |
| Price | $85.85 | $85.85 |
Victron prices IP65 and IP21 the same on the 300A. If there's any chance the shunt will see moisture, dust, or salt air, choose the IP65 — there's no cost penalty.
Is 300A enough for my system?
The shunt has to handle peak current — usually driven by your inverter on discharge.
| Inverter size (12V) | Peak current | 300A shunt suitable? |
|---|---|---|
| 1000W | ~83A continuous, ~170A surge | Yes — comfortable headroom |
| 1500W | ~125A continuous, ~250A surge | Yes — close to limit, fine for most use |
| 2000W | ~167A continuous, ~330A surge | Borderline — surges can clip; consider 500A IP65 |
| 3000W | ~250A continuous, ~500A surge | No — choose the 500A IP65 or 1000A IP65 |
Why the SmartShunt 300A IP65
- IP65 sealed enclosure — dust-tight and rated against low-pressure water spray from any direction. Survives engine room humidity, salt spray, and outdoor weather.
- Same accuracy as the BMV-712 — ±0.4% precision on lithium, AGM, gel, and flooded batteries.
- Bluetooth built-in — pair directly with VictronConnect on iPhone or Android.
- True state-of-charge — counts every amp in and out for fuel-gauge accuracy, not voltage guessing.
- VE.Direct port for Cerbo GX — plug into a Cerbo GX for full system integration and VRM Portal remote monitoring.
- VE.Smart Networking — shares battery data wirelessly with other Victron devices to coordinate charging.
- Programmable auxiliary input — temperature, midpoint voltage, or second battery monitoring.
- Compact install footprint — smaller physical shunt, easier to fit in tight engine bays and battery compartments.

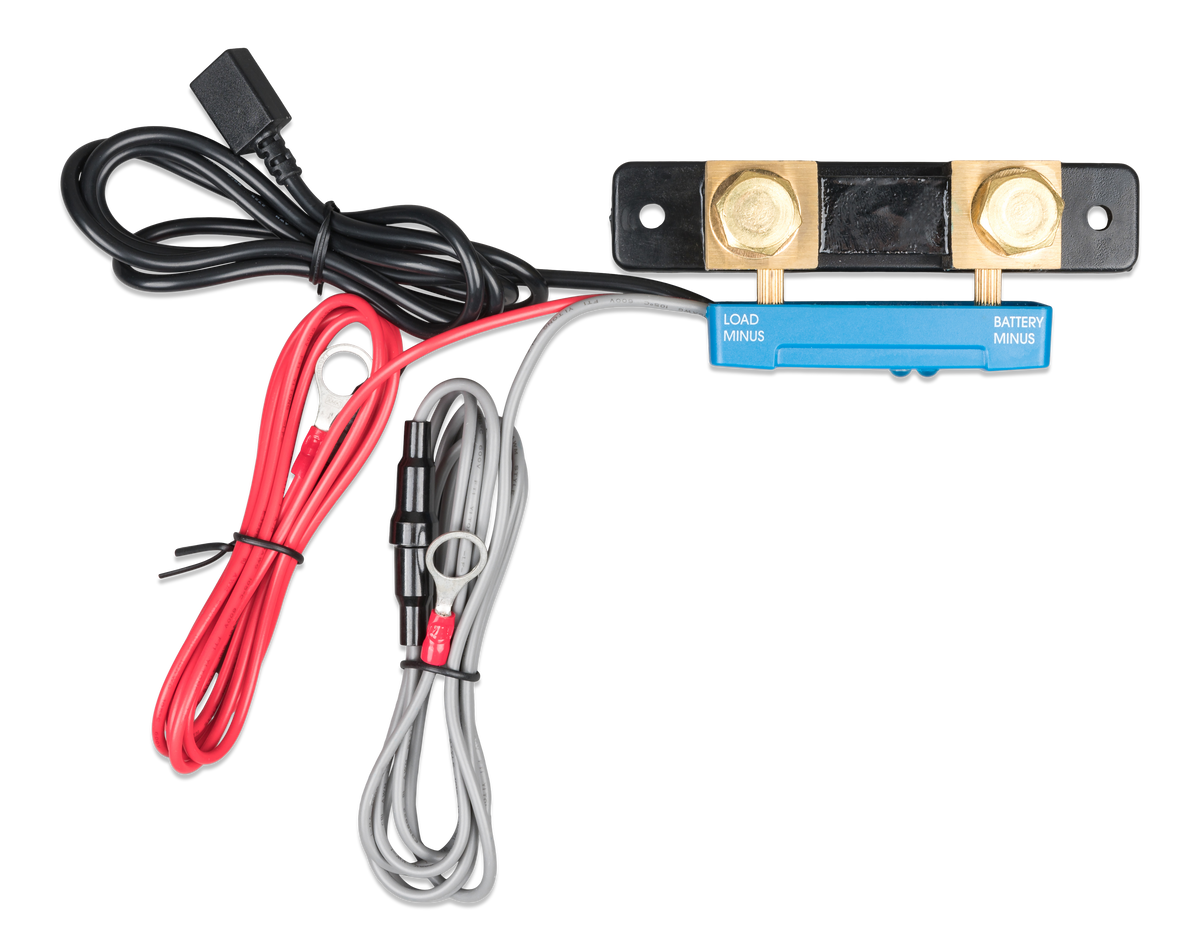

What's in the box
- SmartShunt 300A / 50mV IP65 precision shunt with built-in electronics and Bluetooth
- Battery cable with M10 fuse holder
- UTP cable for auxiliary input
Specifications
| Battery voltage range | 6.5–70 VDC (works on 12V, 24V, 48V systems) |
|---|---|
| Current measurement range | -300 to +300A |
| Shunt rating | 300A / 50mV |
| Accuracy | ±0.4% |
| Resolution | 10 mA / 0.01V |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes (for Cerbo GX integration) |
| VE.Smart Networking | Yes |
| Auxiliary input | Temperature / midpoint / second battery voltage |
| Display | None — uses your phone via Bluetooth |
| Enclosure rating | IP65 (dust-tight, water spray protected) |
| Operating temperature | -40°C to +50°C (-40°F to +122°F) |
| Manufacturer SKU | SHU065130050 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Marine — small sailboats, day-sailers, fishing boats with the shunt mounted near the engine or in the lazarette
- Van life — engine bay or wheel-well mounted, where humidity and road spray are concerns
- Small RV / teardrop trailer — exterior battery compartment installs
- Outdoor solar — small ground-mount or shed-mount systems with weather-exposed combiner
- Trolling motors — bass boats with the shunt mounted in the bow battery box
- Off-grid pump shed — well pumps, irrigation
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase sizing consultation — call 346-574-9652 or email support@jonssontech.net with your inverter and battery specs and we'll confirm the right shunt before you buy.
