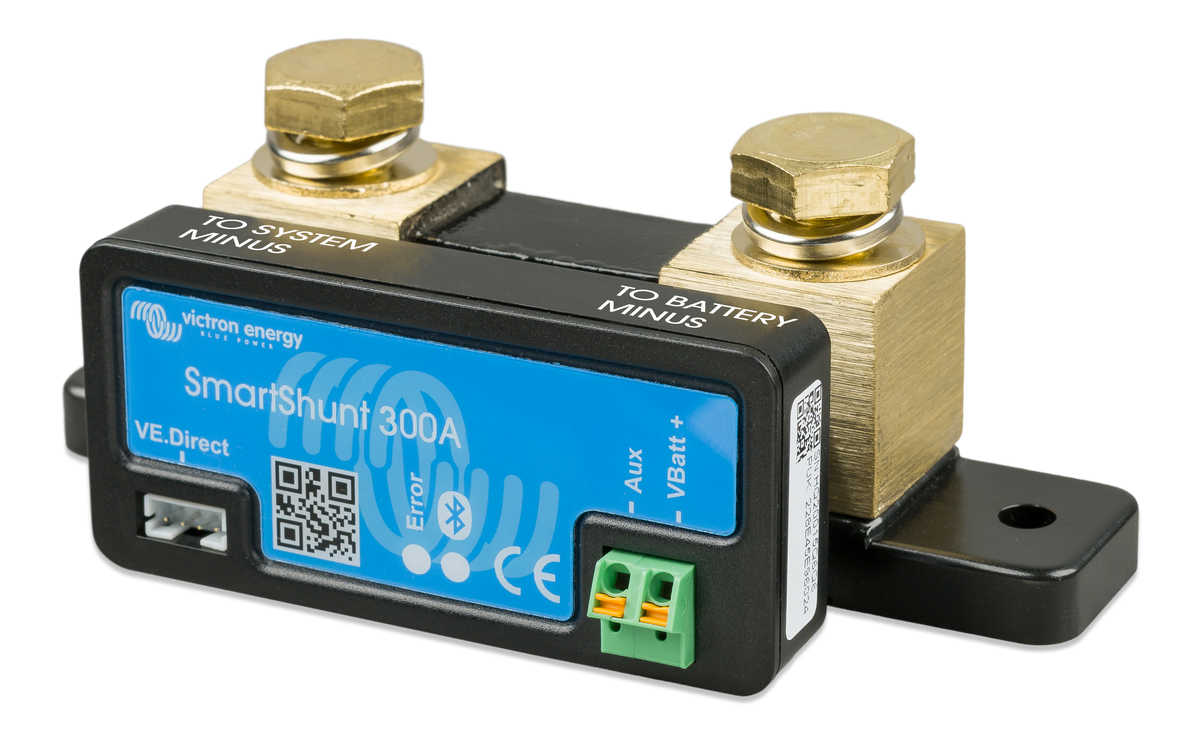

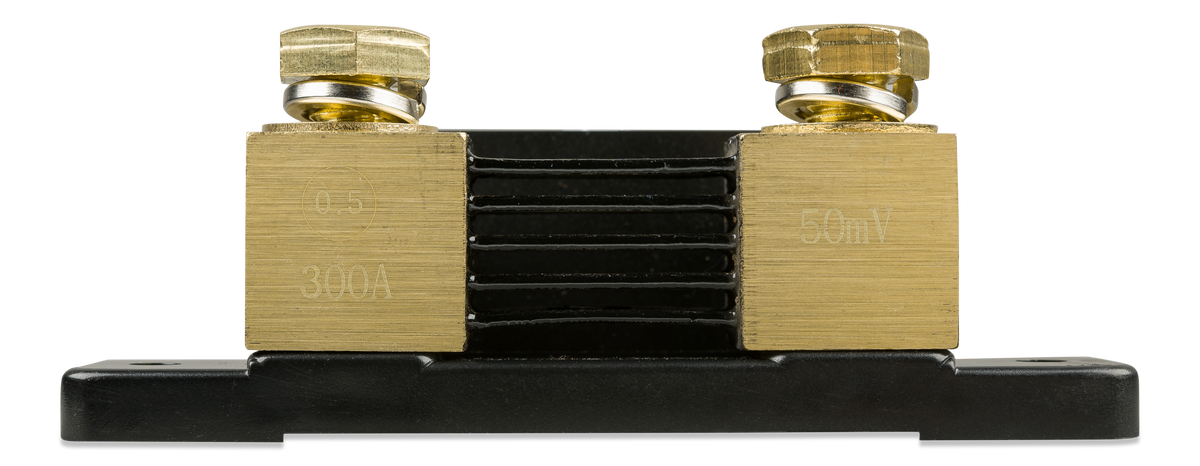

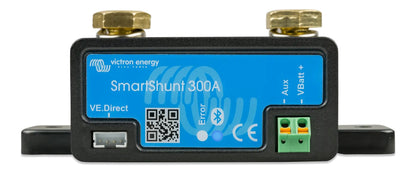

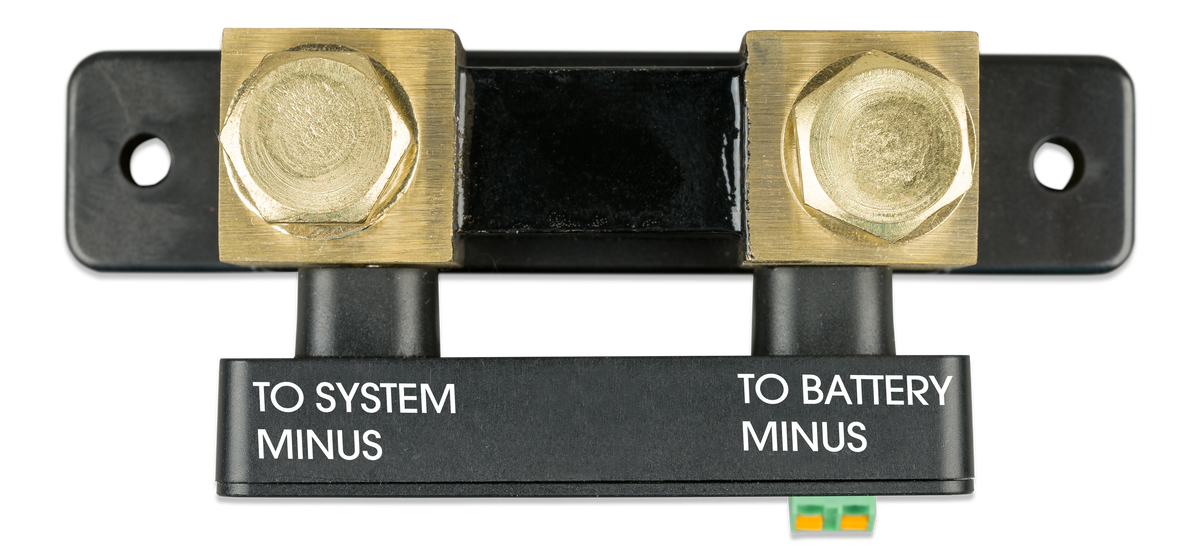

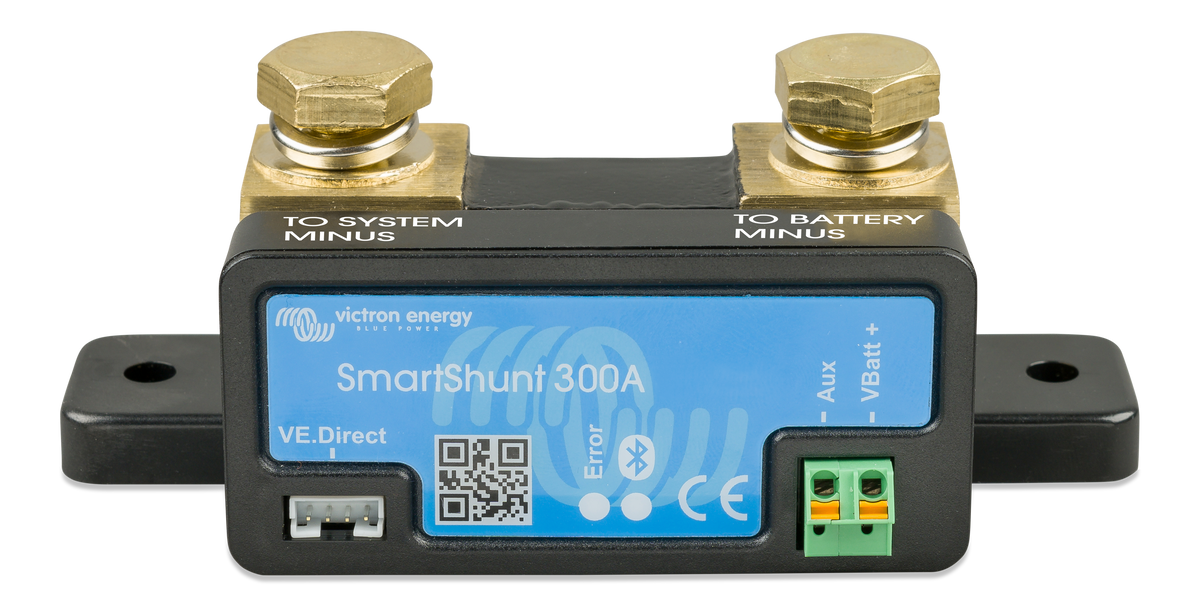

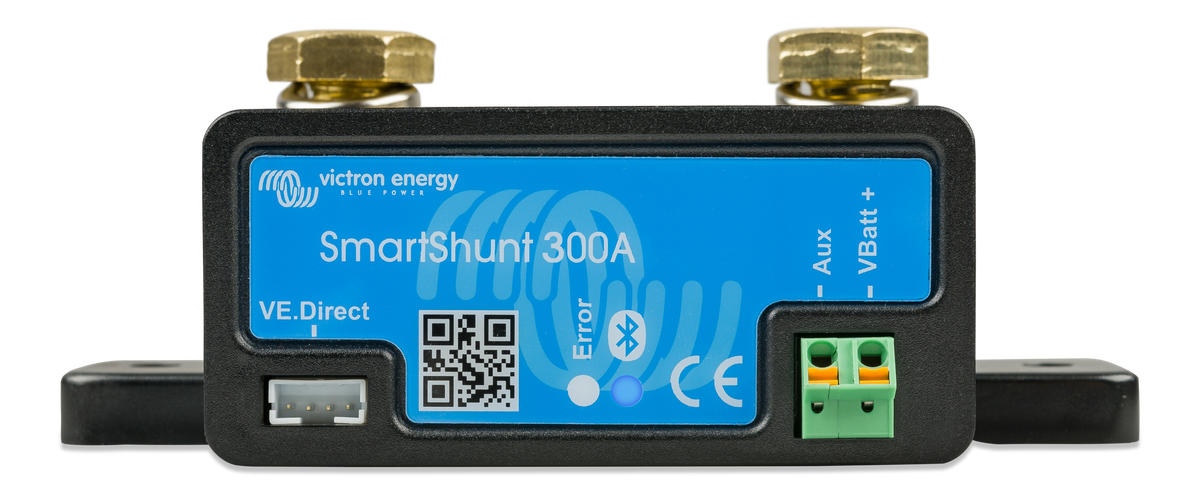

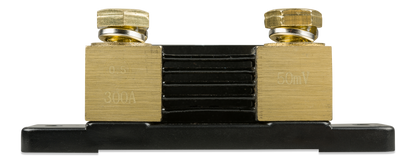

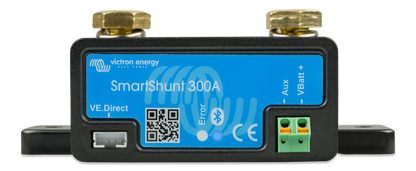

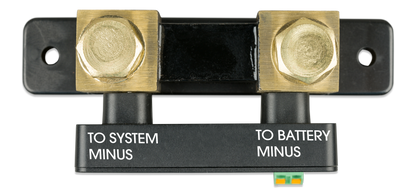

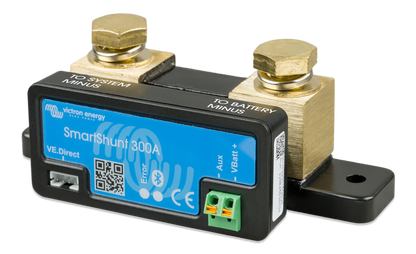

Victron SmartShunt 300A/50mV Battery Monitor — Bluetooth, 6.5–70V (No Display)
Victron SmartShunt 300A/50mV Battery Monitor — Bluetooth, 6.5–70V (No Display)
Couldn't load pickup availability
The Victron SmartShunt 300A is the compact, budget-friendly battery monitor in the SmartShunt family — sized for smaller 12V systems where peak current stays under 300A. Same Victron measurement firmware and same ±0.4% accuracy as the larger shunts, in a smaller, cheaper package. Ideal for van builds, small RVs, day-sailing boats, and modest off-grid installs.
No display — your phone is the screen via Bluetooth and the free VictronConnect app. View real-time state-of-charge, voltage, current, power, time-remaining, and 30 days of historical trend data.
Is 300A enough for my system?
The shunt size needs to handle your peak current — that's typically driven by your inverter size on the discharge side, and your alternator + solar on the charge side.
| Inverter size (12V) | Peak current draw | 300A shunt suitable? |
|---|---|---|
| 1000W | ~83A continuous, ~170A surge | Yes — comfortable headroom |
| 1500W | ~125A continuous, ~250A surge | Yes — close to limit, fine for most use |
| 2000W | ~167A continuous, ~330A surge | Borderline — surges can clip; consider 500A |
| 3000W | ~250A continuous, ~500A surge | No — choose the 500A or 1000A |
Add ~30% headroom for charging + simultaneous loads. If you're unsure, oversize to the SmartShunt 500A — only $15 more and you get peace of mind for future expansion.
Why the SmartShunt 300A
- Same accuracy as the BMV-712 — ±0.4% precision on lithium, AGM, gel, and flooded batteries.
- Bluetooth built-in — pair directly with VictronConnect on iPhone or Android.
- True state-of-charge — counts every amp in and out for fuel-gauge accuracy, not voltage guessing.
- VE.Direct port for Cerbo GX — plug into a Cerbo GX for full system integration and VRM Portal remote monitoring.
- Programmable auxiliary input — temperature, midpoint voltage, or second battery monitoring.
- VE.Smart Networking — shares battery data wirelessly with other Victron devices to coordinate charging.
- Compact install footprint — smaller physical shunt, easier to fit in tight battery compartments.
What's in the box
- SmartShunt 300A / 50mV precision shunt with built-in electronics and Bluetooth
- Battery cable with M10 fuse holder
- UTP cable for auxiliary input
Specifications
| Battery voltage range | 6.5–70 VDC (works on 12V, 24V, 48V systems) |
|---|---|
| Current measurement range | -300 to +300A |
| Shunt rating | 300A / 50mV |
| Accuracy | ±0.4% |
| Resolution | 10 mA / 0.01V |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Direct port | Yes (for Cerbo GX integration) |
| VE.Smart Networking | Yes |
| Auxiliary input | Temperature / midpoint / second battery voltage |
| Display | None — uses your phone via Bluetooth |
| Enclosure rating | IP21 (indoor / dry mounting) |
| Operating temperature | -40°C to +50°C (-40°F to +122°F) |
| Manufacturer SKU | SHU050130050 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Compact van builds — 100–200Ah lithium house bank with a 1000–1500W inverter
- Small RV / teardrop trailer — basic 12V house system, USB-only outlets plus small inverter
- Day-sailing boat — single house battery with electronics and minimal inverter use
- Shed / hobby cabin solar — small 12V off-grid setup with 100–400W of panels
- Trolling motor monitoring — bass boats and small fishing boats
- Truck camper — modest 12V system in a slide-in camper
Which SmartShunt size do I need?
| Model | Max current | Typical use |
|---|---|---|
| SmartShunt 300A | ±300A | Compact 12V — vans, small RVs, small boats |
| SmartShunt 500A | ±500A | Most 12V/24V RV, marine, off-grid (most popular) |
| SmartShunt 1000A | ±1000A | Larger 24V/48V with high-current inverters |
| SmartShunt 2000A | ±2000A | Large 48V off-grid, multi-Quattro, very big banks |
For wet, outdoor, or marine engine room installs, see the SmartShunt 300A IP65 version.
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase sizing consultation — call 346-574-9652 or email support@jonssontech.net with your inverter size, battery capacity, and typical loads and we'll confirm the right shunt before you buy.
