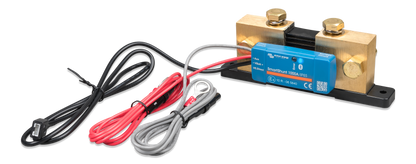

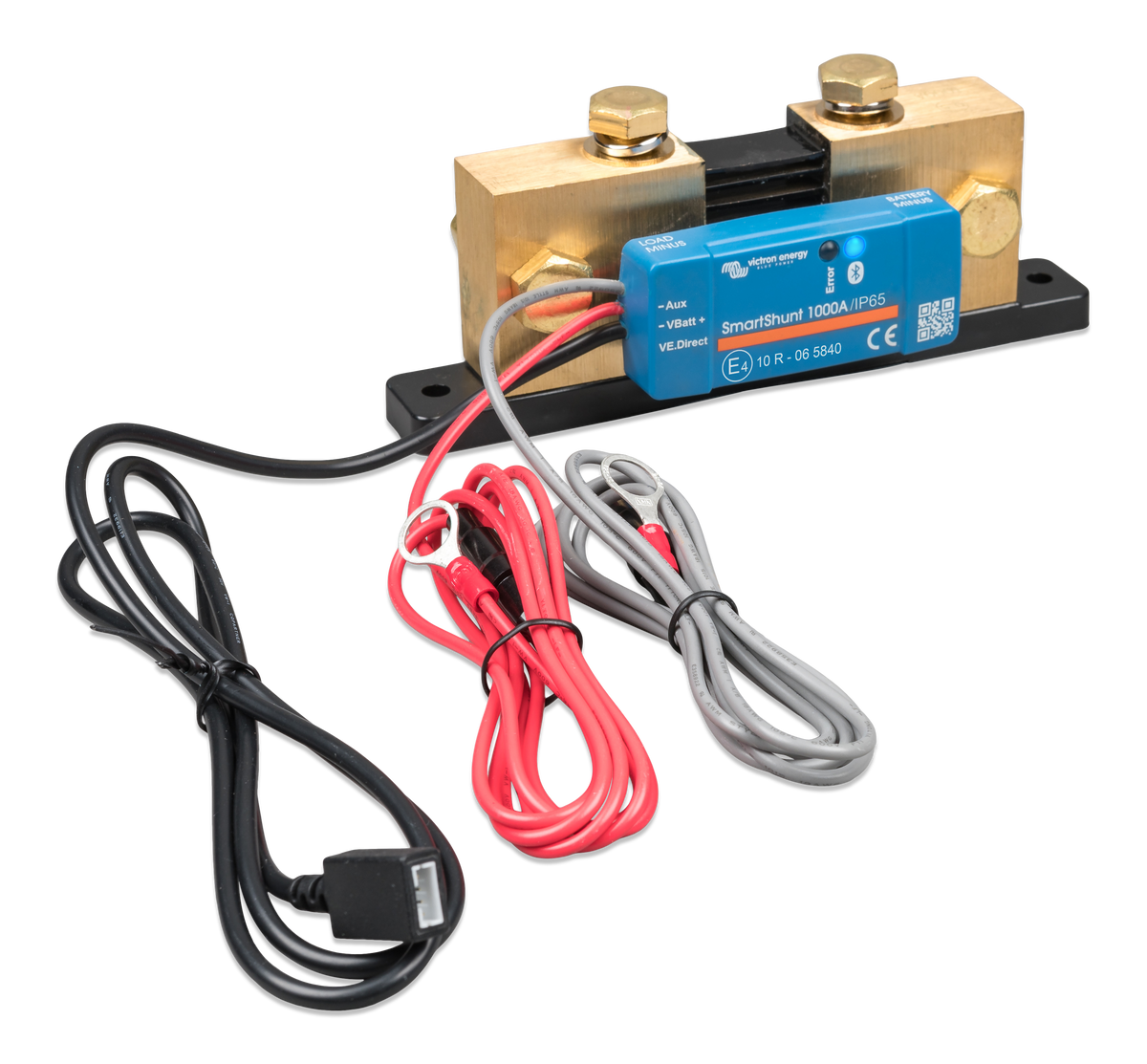

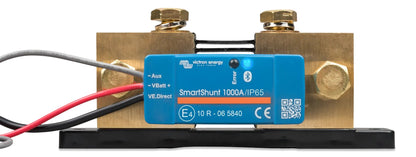

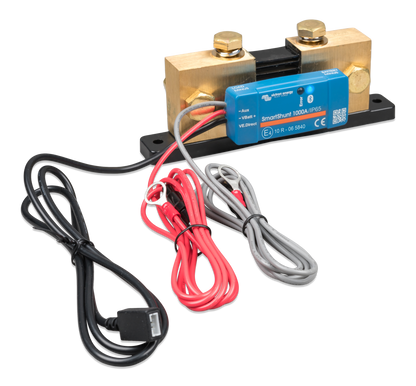

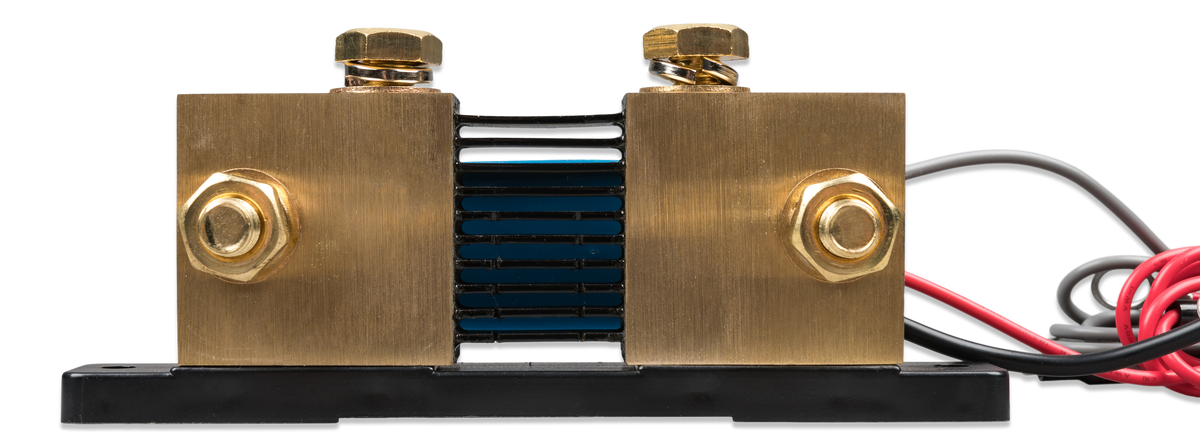

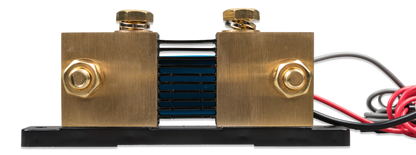

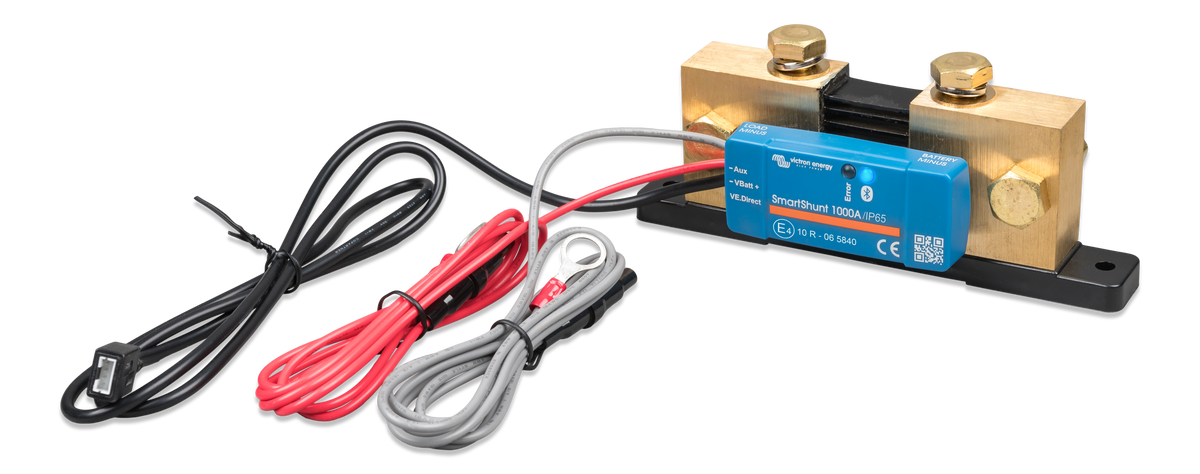

Victron SmartShunt 1000A/50mV IP65 Battery Monitor — Waterproof, Bluetooth, 6.5–70V

The Victron SmartShunt 1000A IP65 combines high-current capacity with a sealed enclosure — sized for 24V and 48V systems with big inverters, in a dust-tight enclosure rated against water spray. Same Victron measurement firmware as the smaller SmartShunts; same 1000A capacity as the standard IP21 version; sealed for marine engine rooms, outdoor solar combiner boxes, and any install where standard electronics can't safely live.

No display — your phone is the screen via Bluetooth and the free VictronConnect app. View real-time state-of-charge, voltage, current, power, time-remaining, and 30 days of historical trend data.

IP65 vs standard SmartShunt 1000A — which one?

For the 1000A model, Victron prices IP65 and IP21 the same. If you have any doubt about the install environment, choose IP65 — there's no cost penalty.

When to choose the 1000A IP65

• Marine 24V or 48V systems — engine room mounting where humidity, salt, and occasional water exposure are unavoidable
• Outdoor ground-mount solar — combiner boxes that aren't always fully sealed; the shunt itself is weather-rated
• Off-grid cabin pump houses — well pumps, irrigation, exterior generator/inverter rooms
• Commercial mobile platforms — surveillance trailers, food trucks with exterior battery compartments
• Industrial / telecom outdoor cabinets — sealed against environmental dust and spray

Why the SmartShunt 1000A IP65

• IP65 sealed enclosure — dust-tight and rated against low-pressure water spray from any direction.
• 2× the current capacity of the 500A — sized for larger 24V/48V systems.
• Same accuracy as the standard 1000A — same Victron precision shunt and same firmware, just sealed.
• Bluetooth built-in — pair directly with VictronConnect on iPhone or Android.
• True state-of-charge — counts every amp in and out for fuel-gauge accuracy on lithium, AGM, and lead-acid banks.
• VE.Direct port for Cerbo GX — plug into a Cerbo GX for full system integration and VRM Portal remote monitoring.
• VE.Smart Networking — shares battery data wirelessly with other Victron devices to coordinate charging.
• Programmable auxiliary input — temperature, midpoint voltage, or second battery monitoring.

What's in the box

• SmartShunt 1000A / 50mV IP65 precision shunt with built-in electronics and Bluetooth
• Battery cable with M10 fuse holder
• UTP cable for auxiliary input

Specifications

Recommended applications

• Marine 24V / 48V — engine room, lazarette, or exterior battery bay
• Off-grid homestead — outdoor inverter/charger building; ground-mount solar combiner
• Commercial work vehicles — surveillance trailers, equipment trucks, food carts
• Industrial backup power — telecom shelters and outdoor cabinets
• Larger lithium house banks — wherever the shunt has to live in a less-than-ideal environment

Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase sizing consultation — call 346-574-9652 or email support@jonssontech.net if you're unsure whether IP65 or standard is right for your install location.
