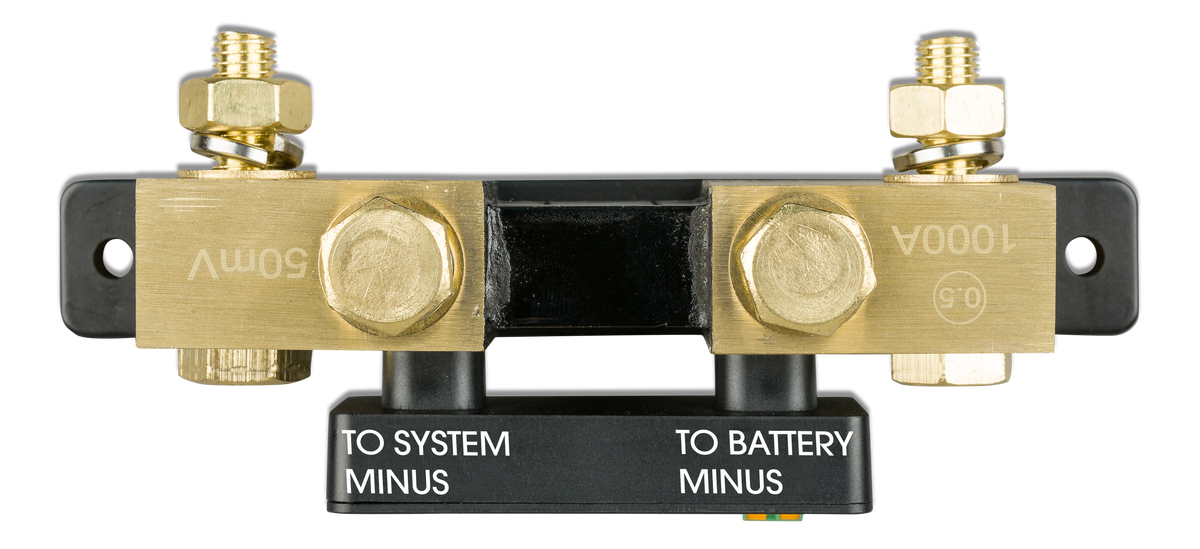

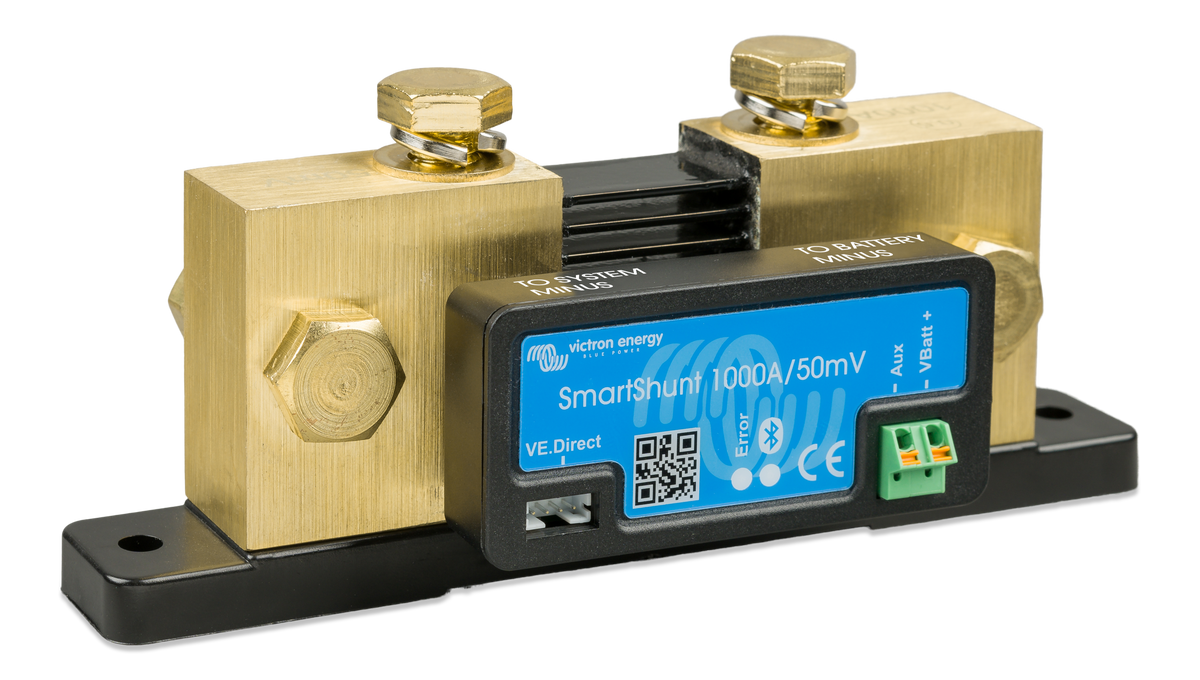

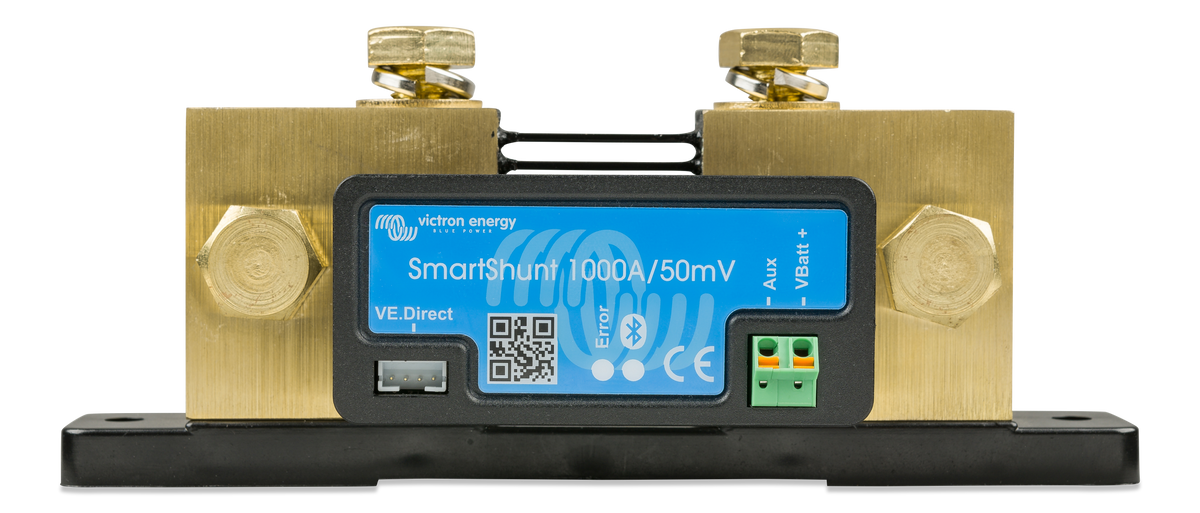

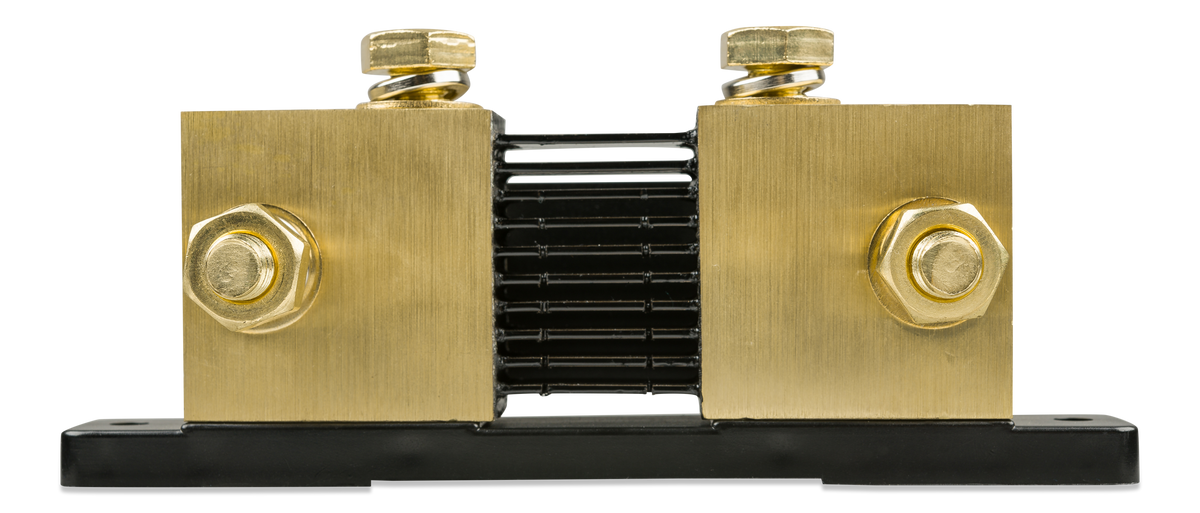

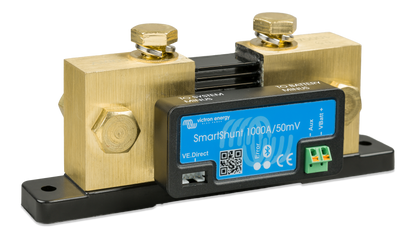

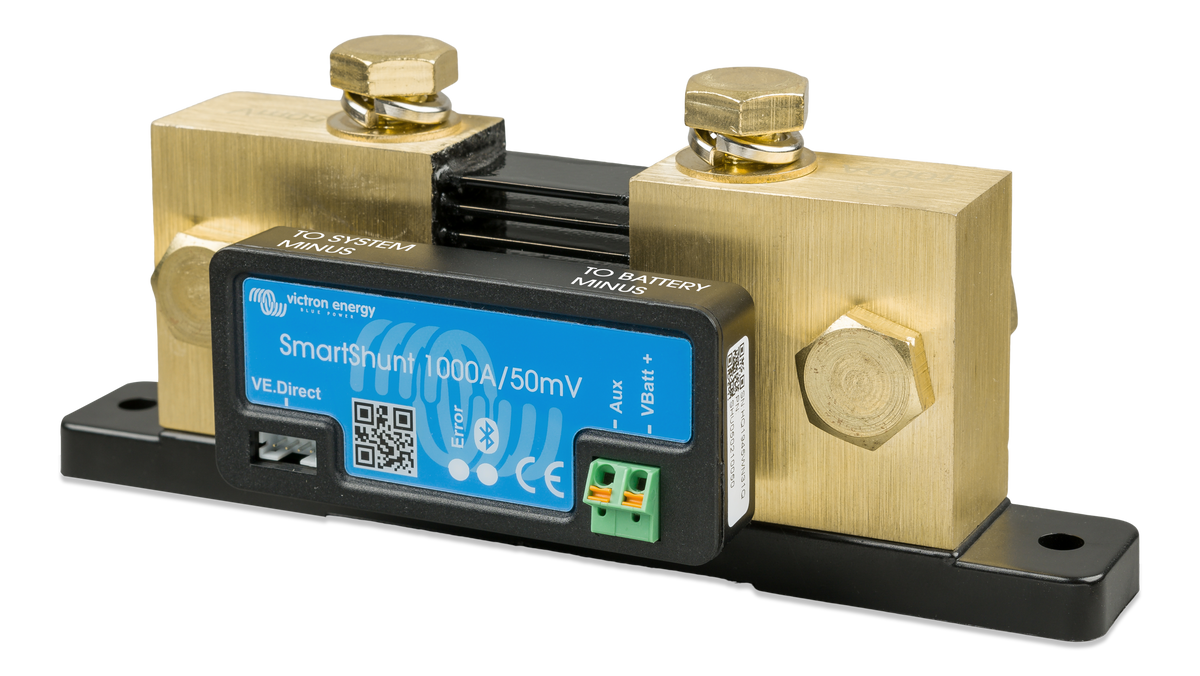

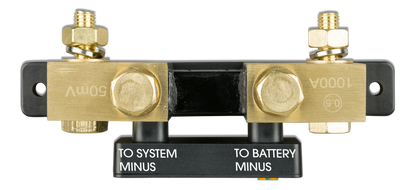

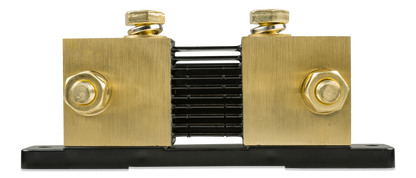

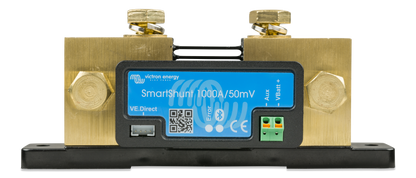

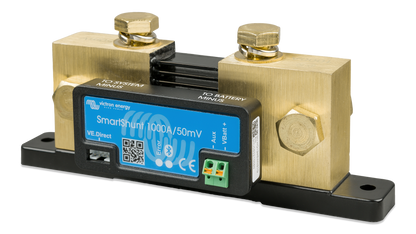

Victron SmartShunt 1000A/50mV Battery Monitor — Bluetooth, 6.5–70V (No Display)

The Victron SmartShunt 1000A is the mid-to-large battery monitor for serious systems — sized for 24V and 48V banks with high-current inverters, big solar arrays, or large lithium house banks where peak current can exceed 500A. Same Victron measurement firmware as the 500A version, with double the current capacity. Works on any 12V, 24V, or 48V system between 6.5V and 70V.

No display — your phone is the screen via Bluetooth and the free VictronConnect app. Real-time state-of-charge, voltage, current, power, time-remaining, and 30 days of historical trend data.

When to choose the 1000A shunt

• 24V systems with 3000W+ inverters — a MultiPlus 24/3000 draws ~155A continuous and ~310A surge. Add solar and DC loads and you'll push past 500A regularly.
• 48V systems with 3000–5000W inverters — moderate current at 48V, but high enough that the 1000A gives proper headroom.
• Larger lithium house banks — 400–600Ah LiFePO4 banks that can dish out big current during peak loads.
• RV / Marine with all-electric galley — induction cooktops, microwaves, electric water heaters all running together.
• Mid-size off-grid cabin — typical 24V cabin with 3kW inverter and 600W+ of solar.

Why the SmartShunt 1000A

• 2× the current capacity of the 500A — same accuracy, same firmware, just a beefier shunt and busbar.
• Bluetooth built-in — pair directly with VictronConnect on iPhone or Android.
• True state-of-charge — counts every amp in and out for fuel-gauge accuracy on lithium, AGM, and lead-acid banks.
• VE.Direct port for Cerbo GX — plug into a Cerbo GX for full system integration and VRM Portal remote monitoring.
• Programmable auxiliary input — temperature, midpoint voltage, or second battery monitoring.
• VE.Smart Networking — shares data wirelessly with other Victron devices to coordinate charging.
• Heavy-duty stud terminals — sized for the larger cable runs that high-current systems require.

What's in the box

• SmartShunt 1000A / 50mV precision shunt with built-in electronics and Bluetooth
• Battery cable with M10 fuse holder
• UTP cable for auxiliary input

Specifications

Recommended applications

• 24V off-grid cabin — typical mid-size build with MultiPlus 24/3000 and 600W+ solar
• 48V backup power — residential UPS, server room battery backup, telecom
• Large RV / Class A — all-electric galleys and bigger 24V inverter setups
• Marine — sailboat with 24V house bank and inverter, larger powerboats
• Commercial mobile — surveillance trailers, food trucks with significant equipment loads

Which SmartShunt size do I need?

For outdoor or wet-location mounting, see the SmartShunt 1000A IP65 version.
