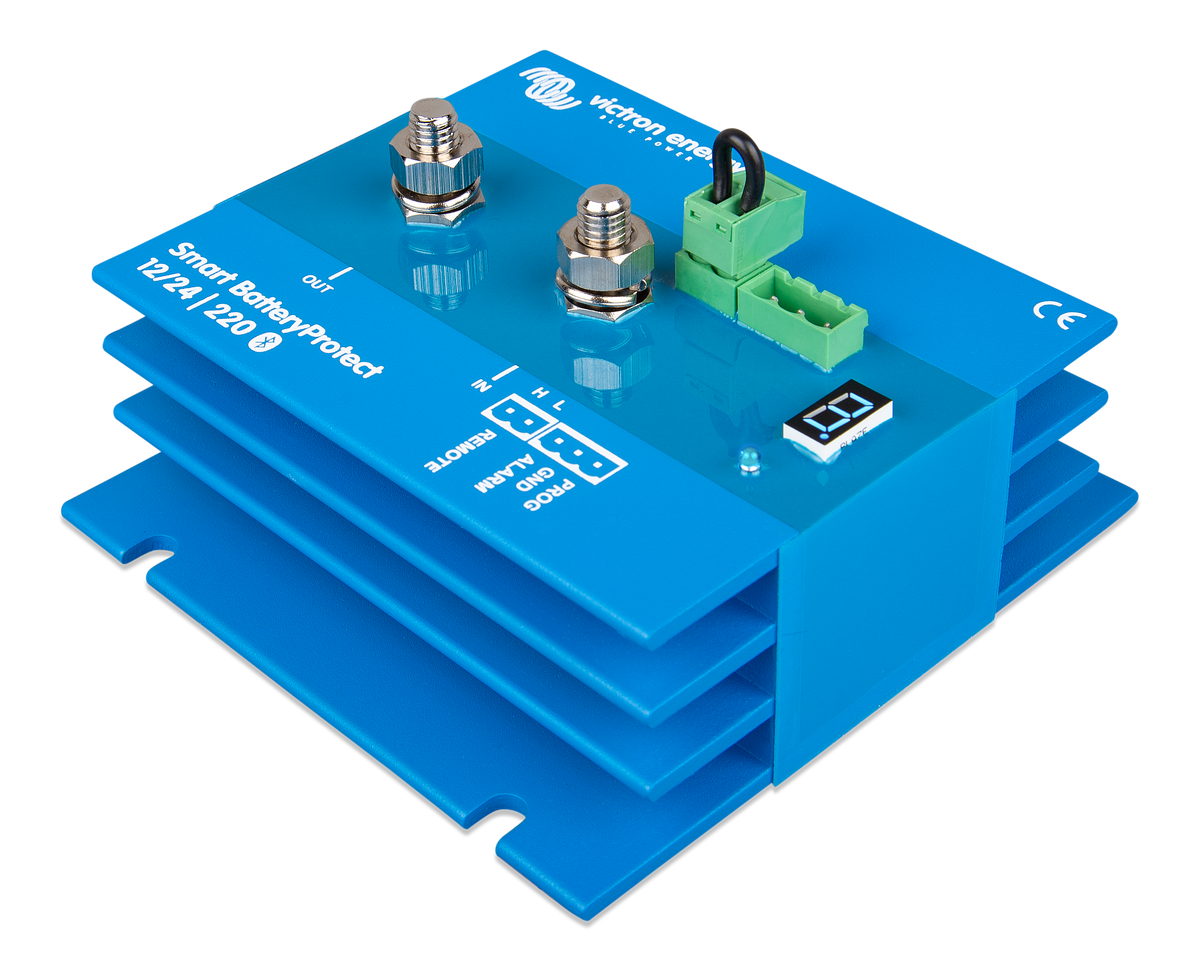

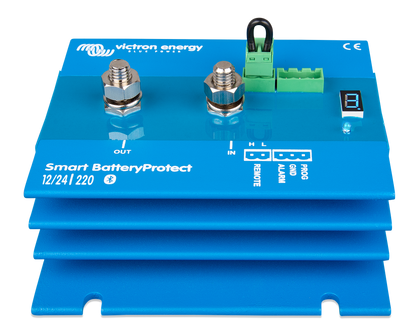

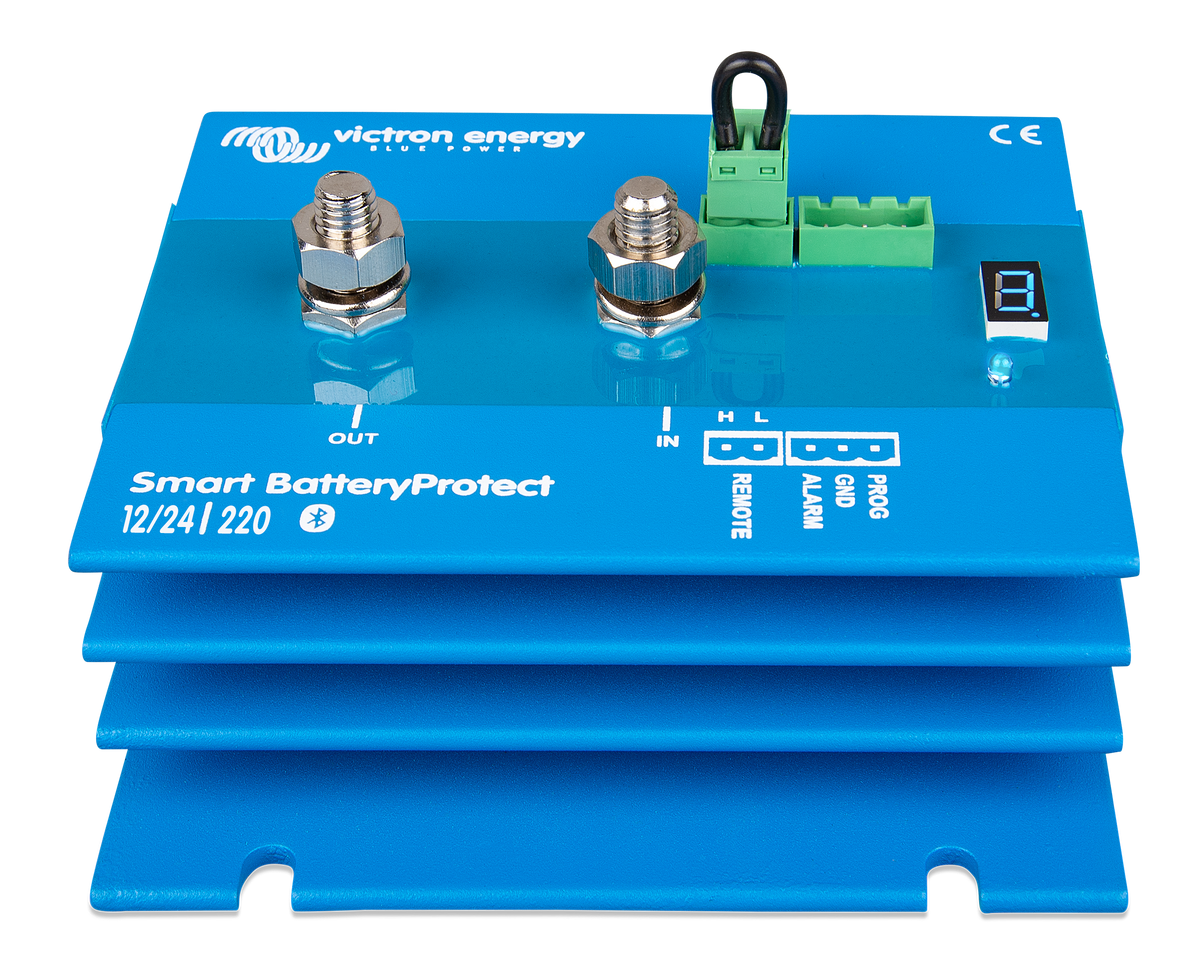

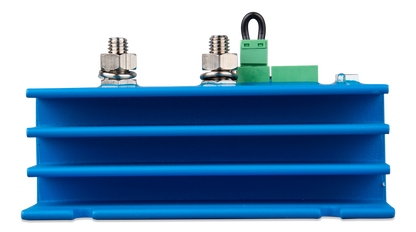

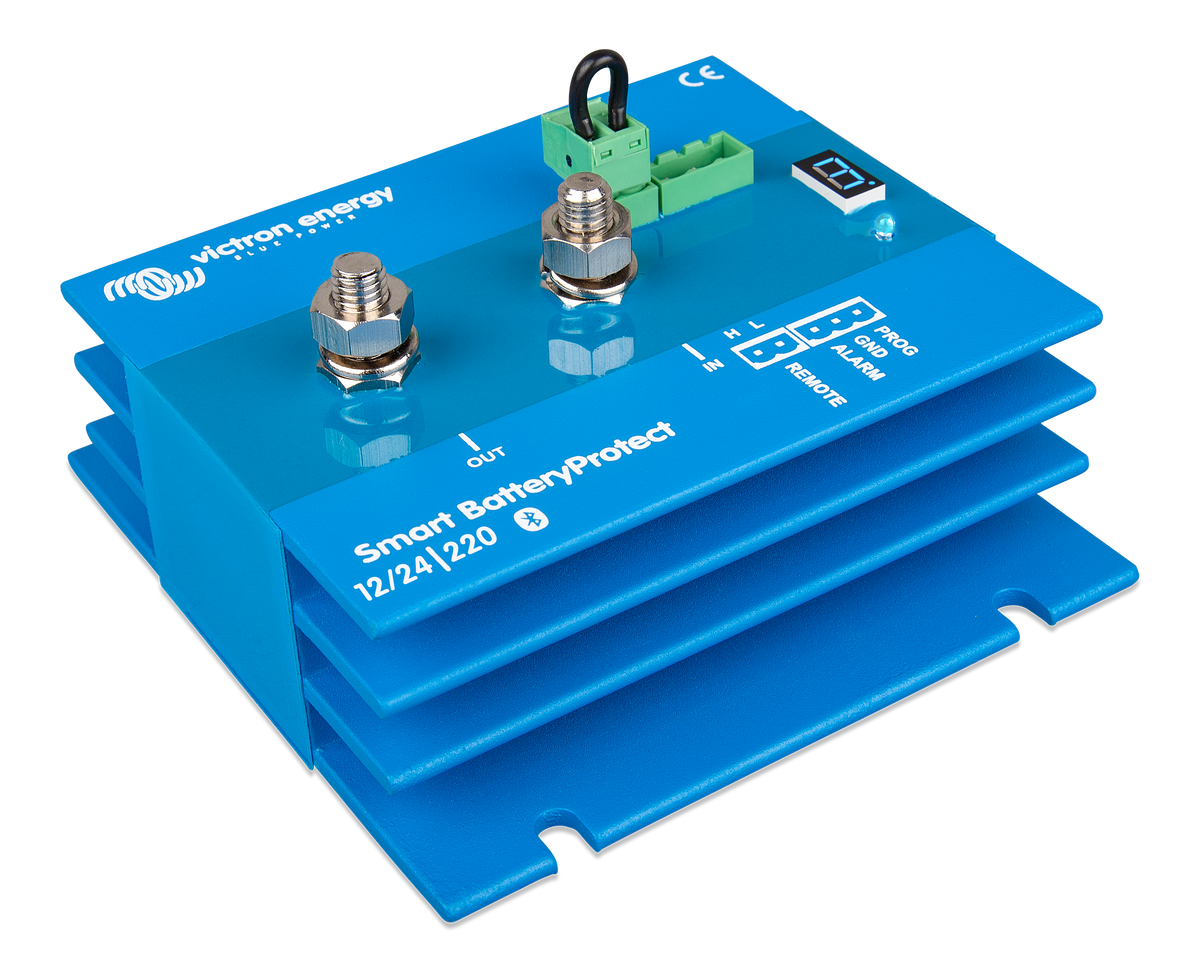

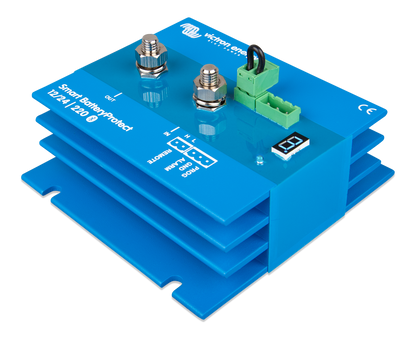

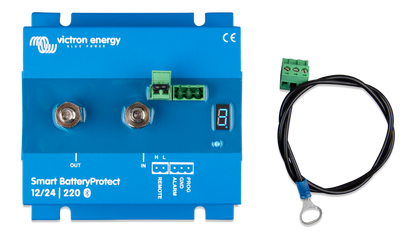

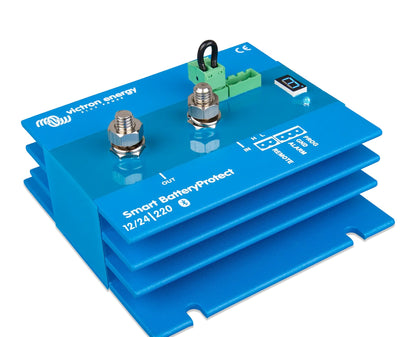

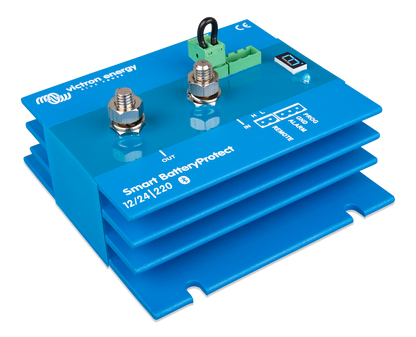

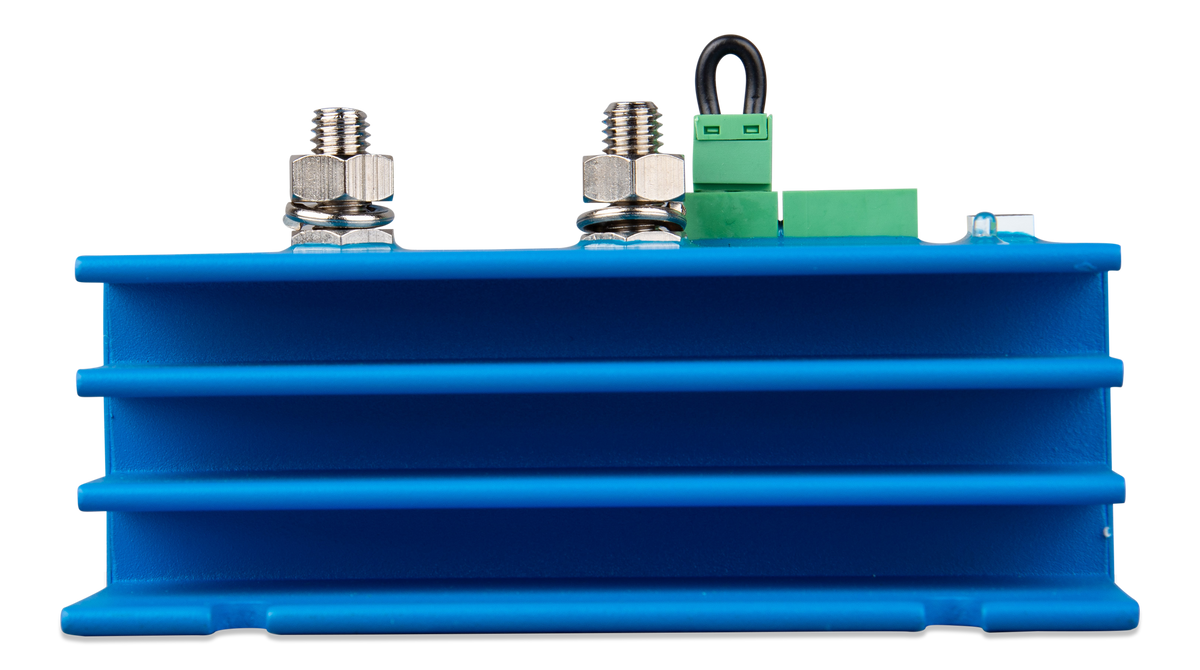

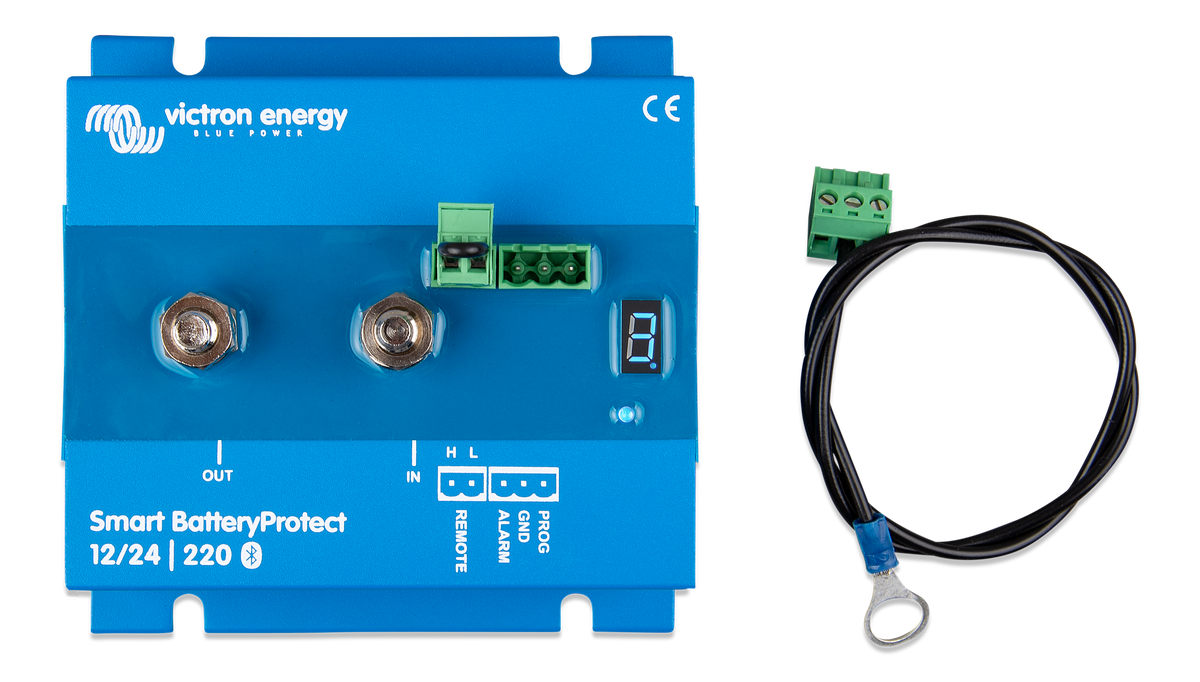

Victron Smart BatteryProtect 12/24V-220A — High-Current Auto Low-Voltage Disconnect with Bluetooth
Victron Smart BatteryProtect 12/24V-220A — High-Current Auto Low-Voltage Disconnect with Bluetooth
Regular price
$105.40
Regular price
Sale price
$105.40
Unit price
/
per
Couldn't load pickup availability
The Victron Smart BatteryProtect 12/24V-220A is the high-current BatteryProtect — 220A load capacity, automatic low-voltage disconnect, built-in Bluetooth. Sized for large 12V inverter circuits (up to 2400W at 12V) and substantial 24V multi-load aggregates.
When you need 220A
The 220A model is sized for circuits where peak current can exceed 100A:
- 2400W 12V inverter — ~200A at full load
- 3000W 12V inverter on intermittent — peak draw protection
- Marine bow thruster circuit — brief high-current bursts
- Multi-load aggregate — inverter + winch + windlass + lights combined
- 24V mid-large inverter — 5000W at 24V = ~210A
Why the Smart BatteryProtect 220A
- 220A load capacity — high-current circuit protection
- Works on 12V or 24V — auto-detects
- Built-in Bluetooth — configure thresholds, view stats, get alerts
- Programmable thresholds — different per battery chemistry
- VE.Smart Networking — takes battery data from SmartShunt for accurate decisions
- Solid-state design — silent, no relay clicking under load
- Heavy-duty terminals — sized for the cable required at 220A (typically 2/0 AWG)
- 5-year warranty
Specifications
| Battery voltage | 12V / 24V (auto-detect) |
|---|---|
| Max continuous load current | 220A |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Smart Networking | Yes |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable thresholds) |
| Disconnect type | Solid-state (silent, no relay) |
| Self-consumption | ~1.5 mA |
| Voltage drop | < 0.1V at full load |
| Operating temperature | -40°C to +60°C |
| Enclosure rating | IP20 (indoor / dry mounting) |
| Manufacturer SKU | BPR122022000 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Large 12V inverter circuit — 2000–3000W inverter protection
- 24V mid-large inverter circuit — up to 5000W
- Marine bow thruster / windlass — high-burst-current protection
- RV with large inverter setup — Sprinter conversion with 2000W+ inverter
- Off-grid cabin combined load — multi-circuit aggregate protection
- Large lithium battery protection — critical for LiFePO4 high-current circuits
BatteryProtect sizing guide
| Model | Load capacity | Best for |
|---|---|---|
| BatteryProtect 65A | 65A | Typical 12V house circuit |
| BatteryProtect 100A | 100A | Larger 12V house, smaller 24V inverter |
| BatteryProtect 220A | 220A | Large 12V inverter, multi-load circuit |
| BatteryProtect 48V-100A | 100A @ 48V | 48V residential ESS, telecom |
