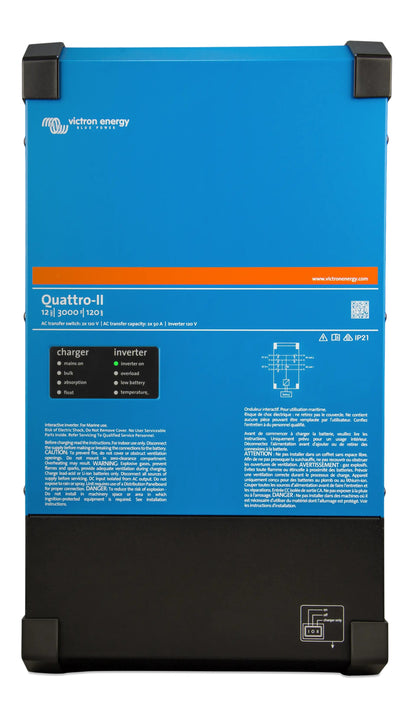

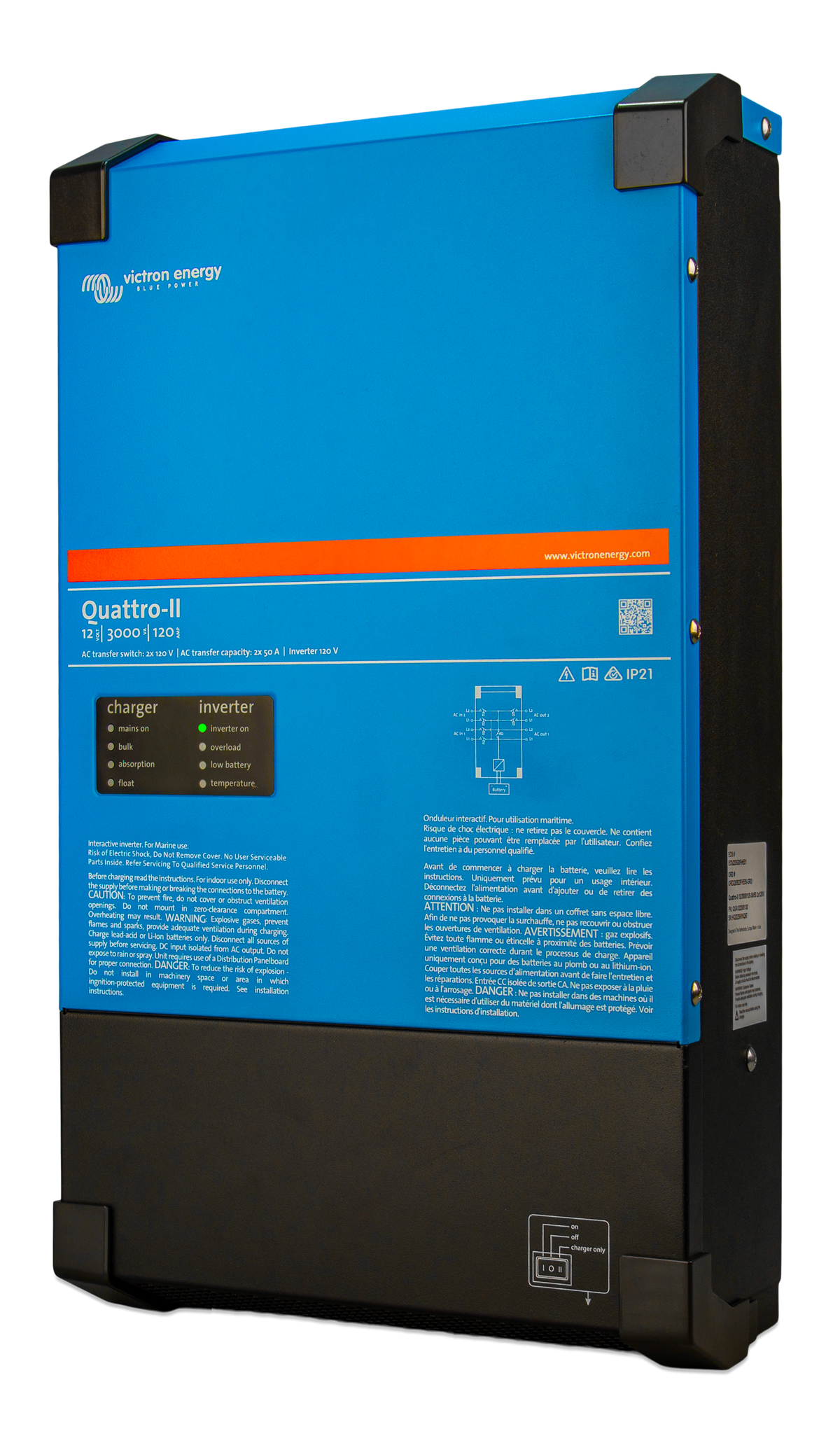

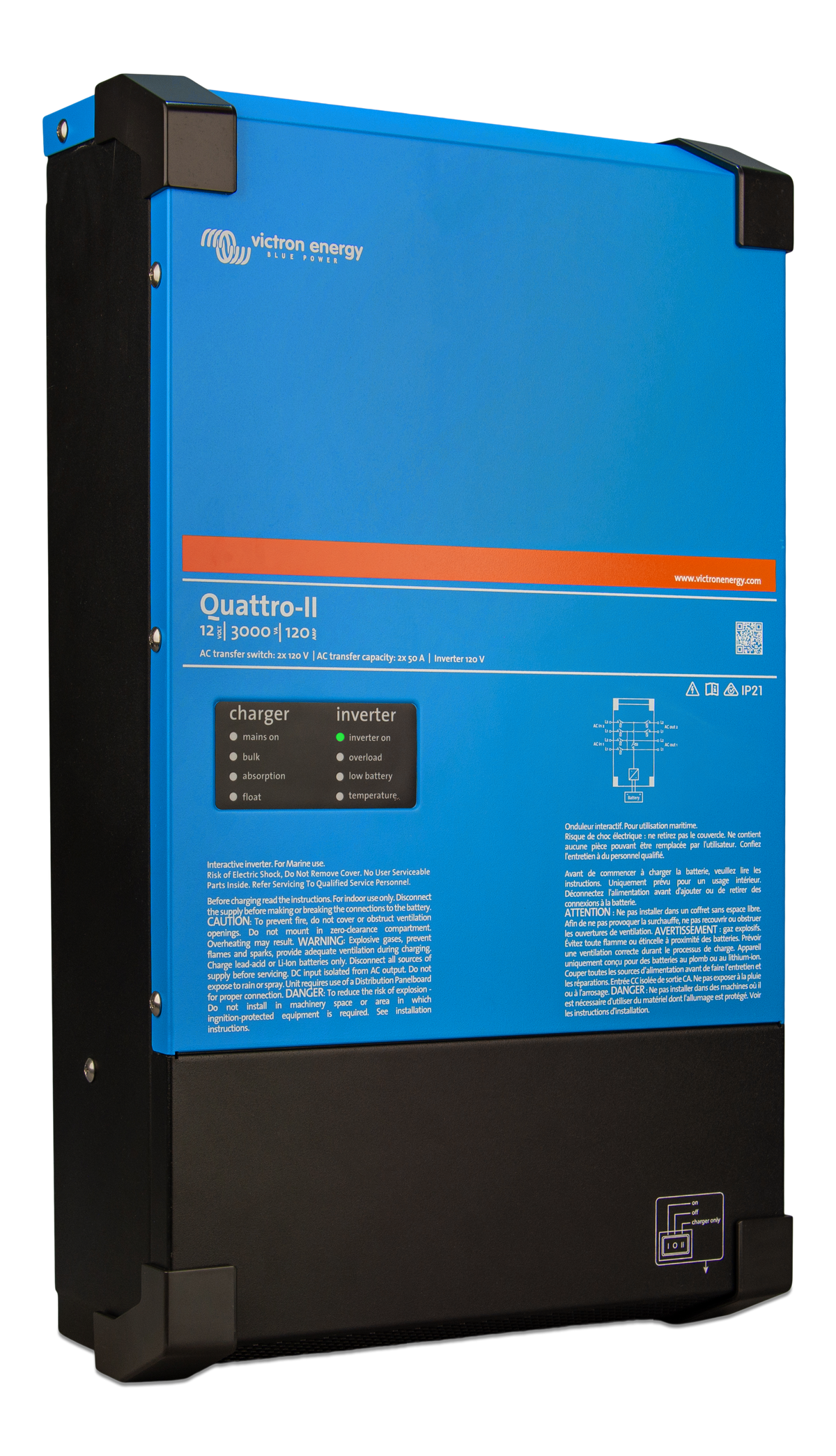

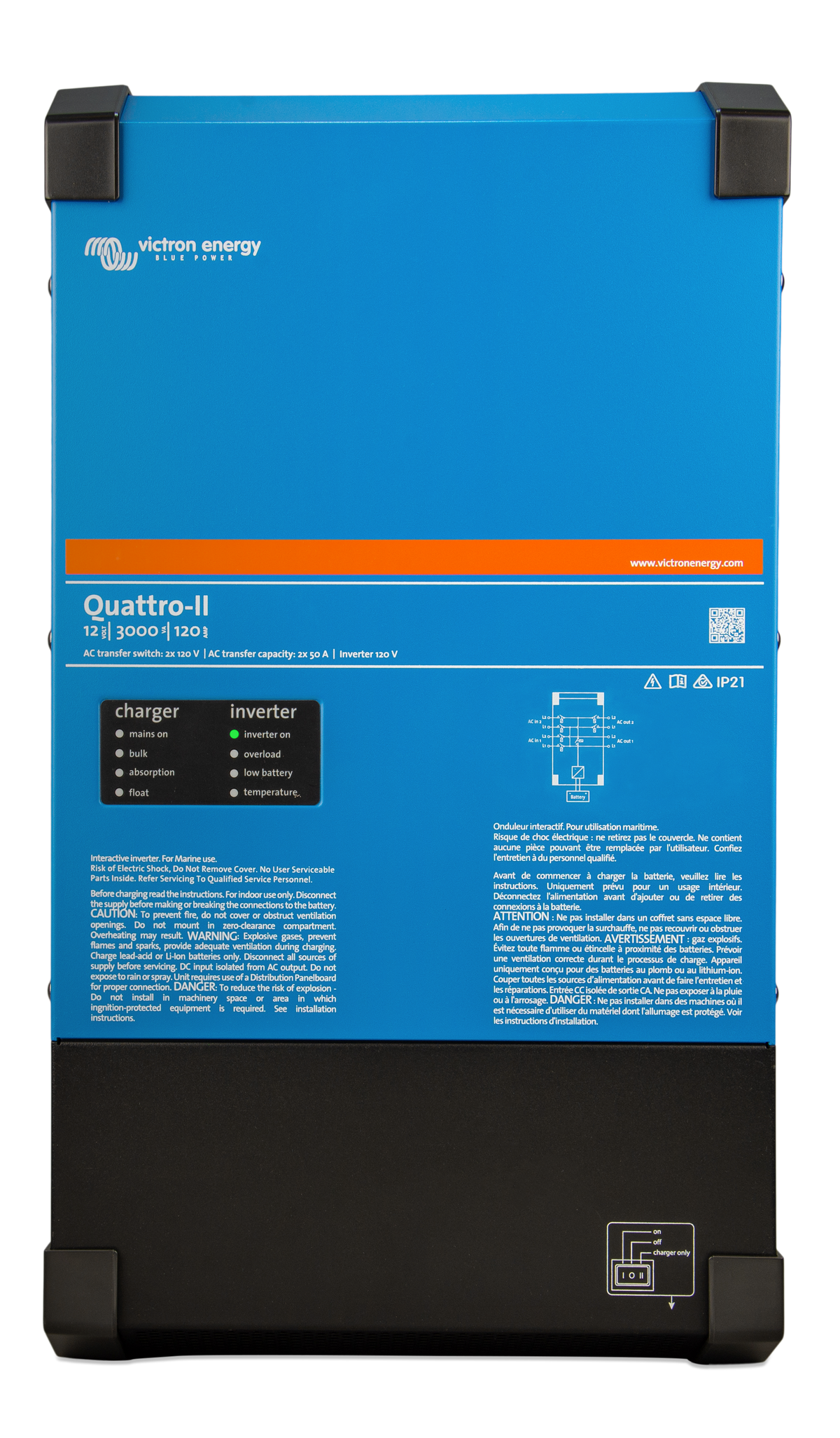

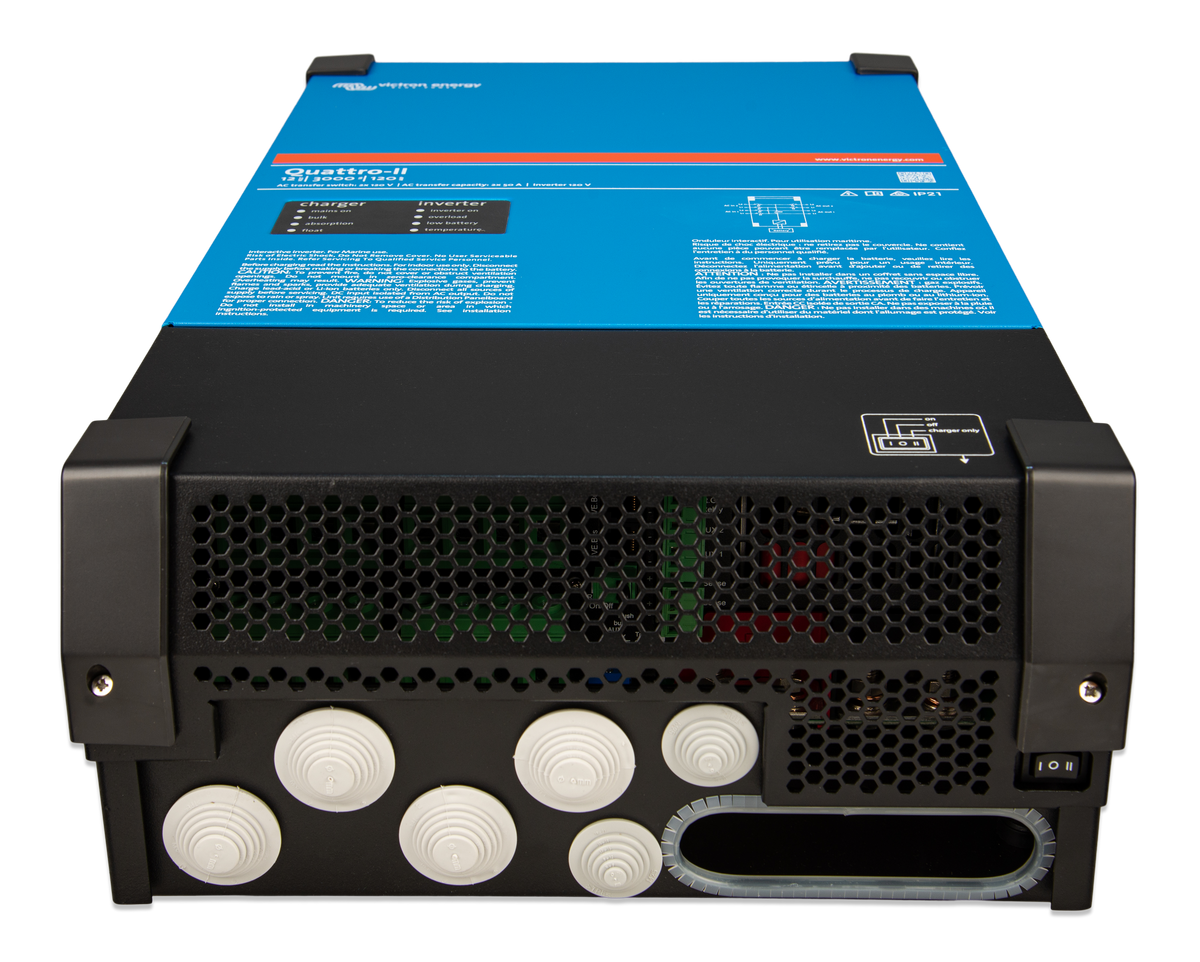

Victron Quattro-II 12/3000/120-50/50 2x120V Inverter/Charger — Dual AC Input, Split-Phase (Shore + Generator)
Victron Quattro-II 12/3000/120-50/50 2x120V Inverter/Charger — Dual AC Input, Split-Phase (Shore + Generator)
Couldn't load pickup availability
The Victron Quattro-II 12/3000/120-50/50 2x120V is a MultiPlus-II with a second AC input — same 3000VA pure sine output, same 120A charger, same split-phase 2x120V output, but with TWO independent AC inputs that the system intelligently switches between. The right pick when you have both shore power AND a generator, or when you want automatic source selection between two power sources.
Why Quattro instead of MultiPlus?
- Two AC inputs — shore power on one input, generator on the other; system auto-selects based on which is available and configured priority
- No external transfer switch needed — the Quattro handles the shore/generator selection internally
- Saves install complexity — one box instead of inverter/charger + external transfer switch
- Programmable priority — prefer shore when available, fall back to generator, or vice versa
- Same MultiPlus-II features — ESS, PowerControl, PowerAssist, VE.Bus networking
Typical setup
The classic Quattro use case: a boat at the dock plugged into shore power, but with an onboard generator. When shore is available, the Quattro uses shore. When the boat leaves the dock, shore disconnects and the Quattro switches to generator without any human intervention. When the generator stops, the Quattro reverts to inverter mode using the battery bank.
What 3000VA powers
- Marine air conditioning (mid-size unit with PowerAssist)
- Galley appliances simultaneously (microwave + coffee maker)
- Mid-size refrigerator + entertainment + lighting
- 240V household equipment (well pump, water heater on intermittent)
- Whole-cabin "normal living" load
- Off-grid cabin essentials including pump and refrigeration
Specifications
| Nominal DC input voltage | 12V (operating range 9.5–17V) |
|---|---|
| Continuous AC output | 2400W (3000VA) |
| Peak AC output | 6000W (short duration) |
| AC output waveform | Pure sine wave |
| AC output voltage | 2x 120V (split-phase 120V/240V) |
| Charger output current | 120A |
| AC transfer switch (input 1) | 50A |
| AC transfer switch (input 2) | 50A |
| PowerControl / PowerAssist | Yes (on both inputs) |
| ESS (grid-tie) capable | Yes |
| Networking | VE.Bus (parallel and 3-phase capable) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Variable-speed temperature-controlled fan |
| Operating temperature | -40°C to +65°C (full power up to 40°C) |
| Manufacturer SKU | QUA122305130 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Yacht / boat with both shore + onboard generator — the classic Quattro use case
- RV with onboard generator — auto-select between shore pedestal and generator
- Off-grid home with backup generator — grid + generator + battery seamless
- Mobile work platform — trailer with both shore connection and generator
- Critical commercial backup — utility + standby generator + battery
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase system design consultation — we'll help you configure the input priorities and battery interaction logic for your specific use case.
