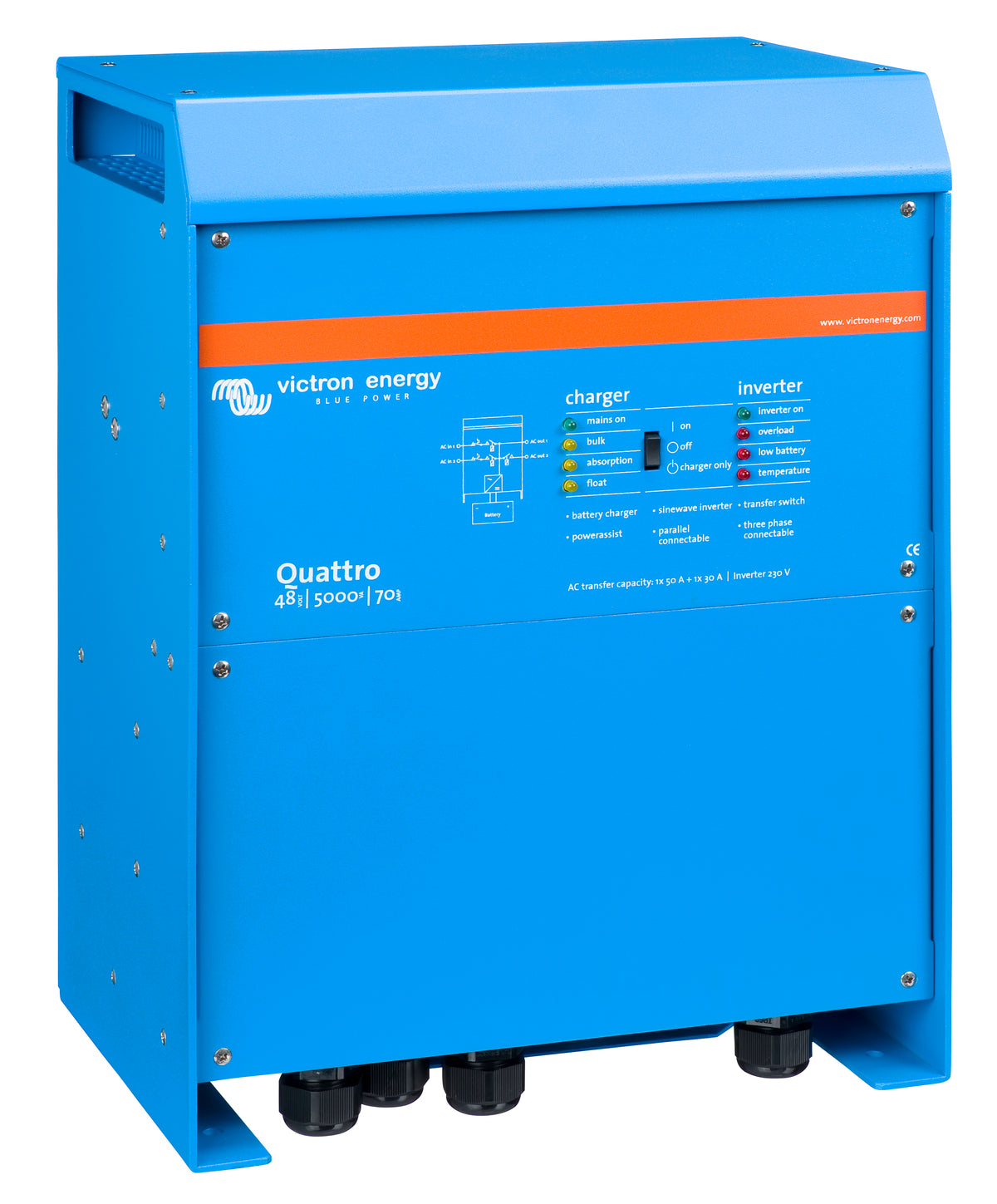

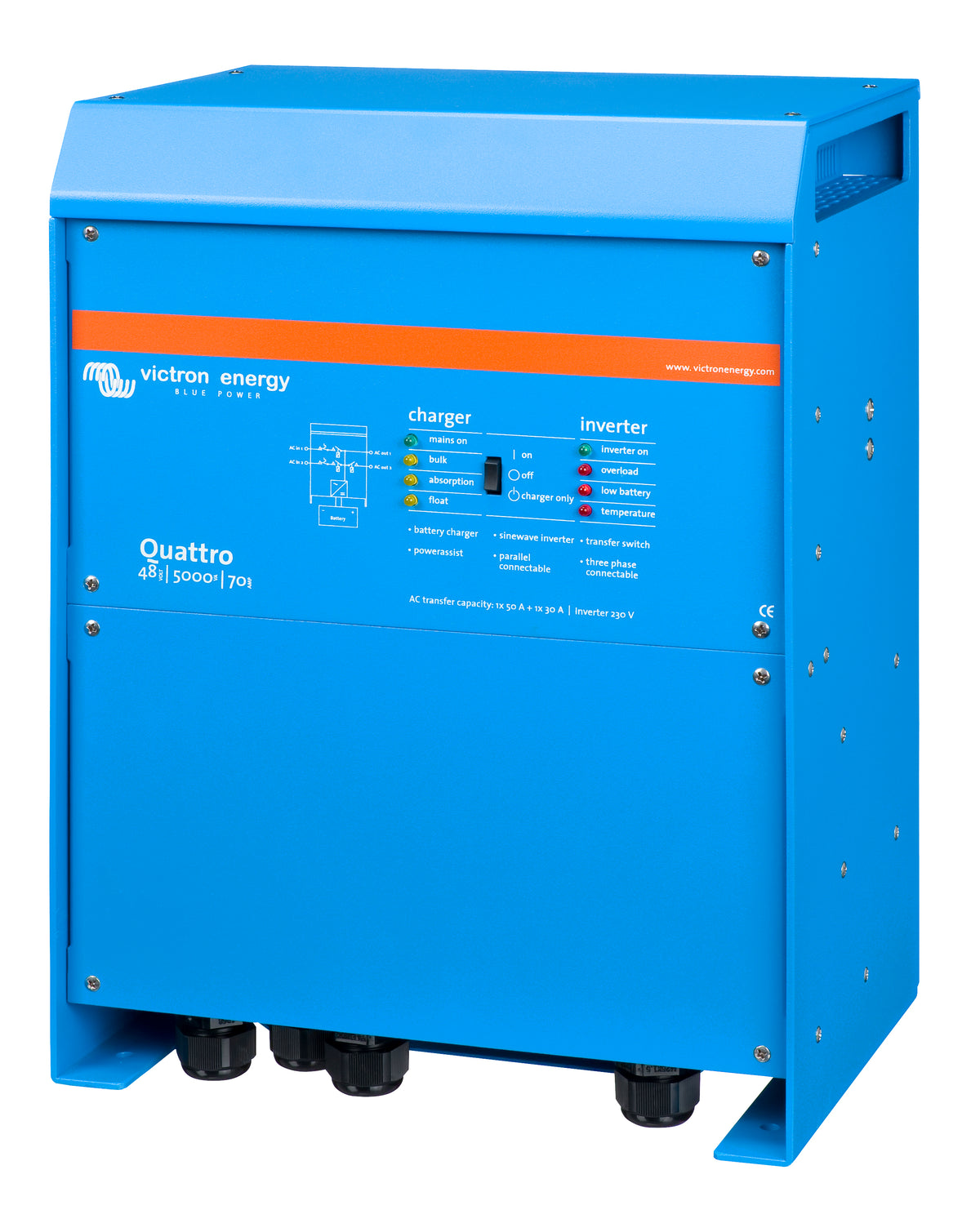

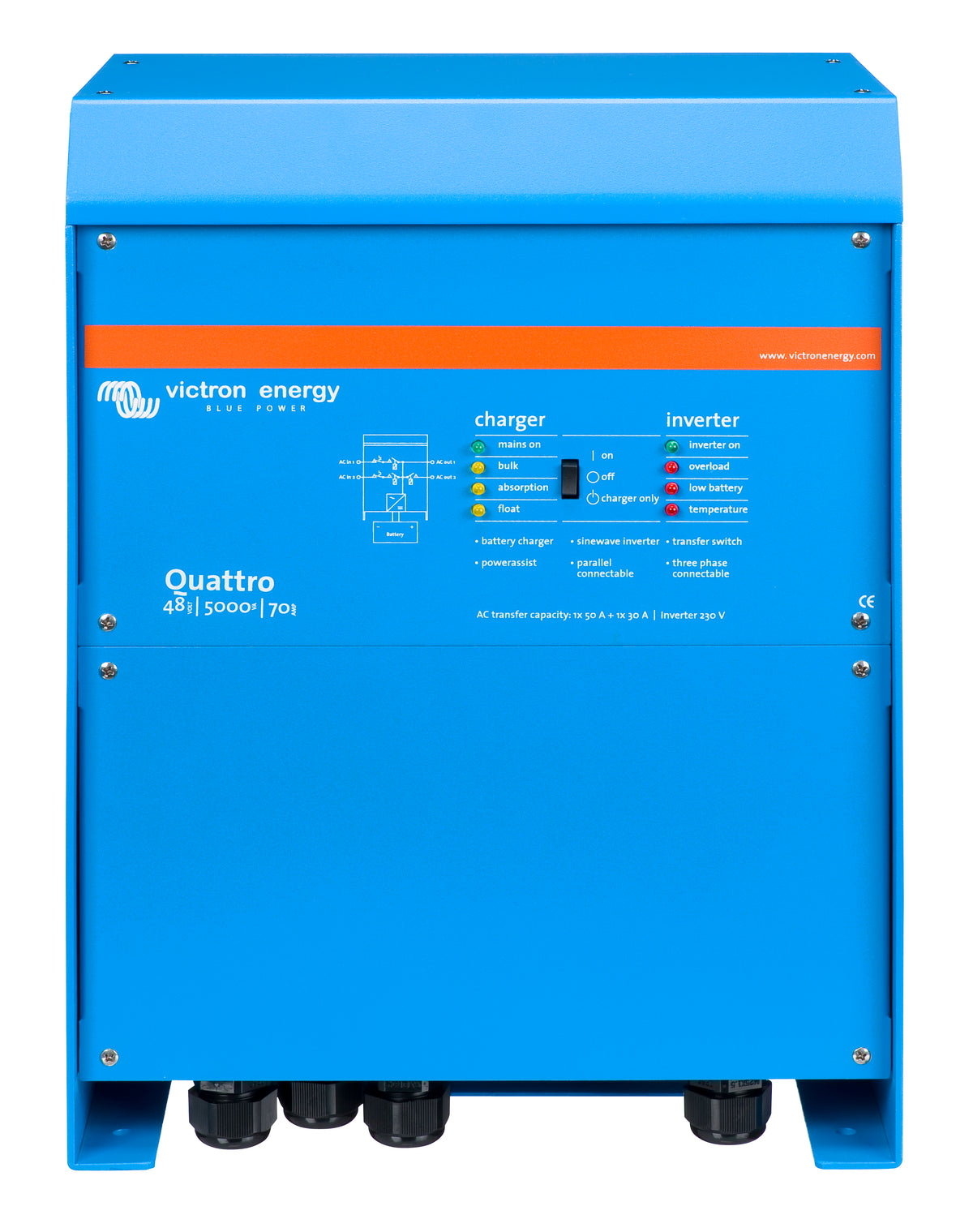

Victron Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger — 48V High-Output Dual AC Input
Victron Quattro 48/5000/70-100/100 120V VE.Bus Inverter/Charger — 48V High-Output Dual AC Input
Couldn't load pickup availability
The Victron Quattro 48/5000/70-100/100 is the high-output 48V Quattro with 100A transfer switches — 5000VA pure sine output (4000W continuous), 70A multi-stage charger, dual AC inputs each rated for 100A. The right pick for substantial 48V off-grid homes with backup generators, larger commercial backup systems, and any install that needs to pass through a full 100A circuit.
Why 100A transfer switches matter
Most MultiPlus and smaller Quattro units have 50A transfer switches — fine for typical RV pedestals and most residential generator subpanels. The 100A transfer switches on this Quattro mean you can pass through a full 100A breaker without the inverter being a bottleneck. Important when you're powering large loads like a heat pump, electric range, well pump, or workshop equipment, and don't want the inverter to limit your overall amperage.
What 5000VA powers
- Whole-home backup including AC: heat pump + fridge + lighting + electronics
- Mid-size home AC unit (single-zone heat pump up to 24,000 BTU)
- Kitchen run during outages: microwave + coffee maker + toaster + fridge
- Workshop with single power tool active (table saw, planer)
- EV charger backup at moderate amperage (~16A Level 2)
- Full small business operation during outages
- Off-grid mid-size home daily living load with growth room
Why the Quattro 48/5000
- 5000VA / 4000W pure sine inverter — high single-unit capacity
- Dual 100A AC inputs — shore/grid + generator with no bottleneck
- 70A multi-stage charger — fast charging from grid or generator
- PowerControl + PowerAssist — boost limited grid/generator for peak loads
- VE.Bus networking — parallel up to 6 units; or 3-phase (3 units)
- Multi-stage adaptive charging — AGM, Gel, Flooded, LiFePO4 with CAN-bus comms
- Built for substantial systems — designed for full-home and commercial use
Specifications
| Nominal DC input voltage | 48V (operating range 38–66V) |
|---|---|
| Continuous AC output | 4000W (5000VA) |
| Peak AC output | 9000W (short duration) |
| AC output waveform | Pure sine wave |
| AC output voltage | 120V single-phase ± 2%, 60Hz ± 0.1% |
| Charger output current | 70A |
| AC transfer switch (input 1) | 100A |
| AC transfer switch (input 2) | 100A |
| PowerControl / PowerAssist | Yes (on both inputs) |
| Networking | VE.Bus (parallel up to 6 units, or 3-phase) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4, plus CAN-bus comms |
| Cooling | Variable-speed temperature-controlled fan |
| Operating temperature | -40°C to +65°C (full power up to 40°C) |
| Manufacturer SKU | QUA485021100 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Substantial off-grid home — 48V system with significant AC needs (heat pump, AC, kitchen)
- Whole-home backup with utility + generator — home with both grid and standby generator
- Mid-size commercial backup — small office, retail, professional services
- Marine megayacht — 48V system with shore + onboard generator
- Off-grid farm / homestead — well pump, refrigeration, workshop tools
- Large telecom remote sites — 48V industry standard with substantial AC
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase system design consultation — for substantial off-grid or backup installs we recommend a full design review. Send us your details to support@jonssontech.net or call 346-574-9652.
