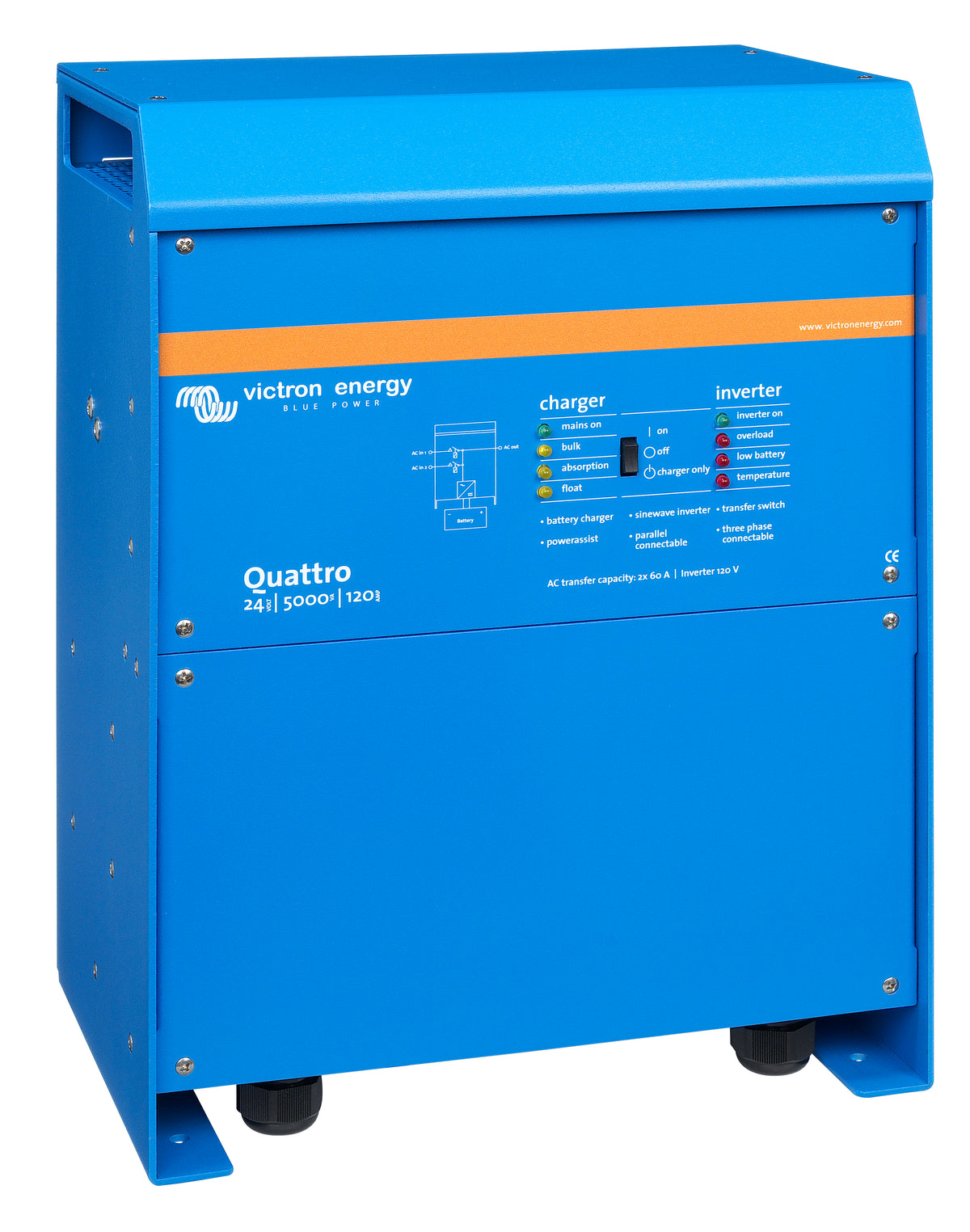

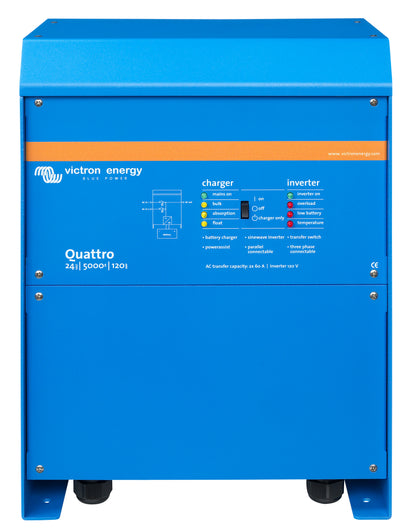

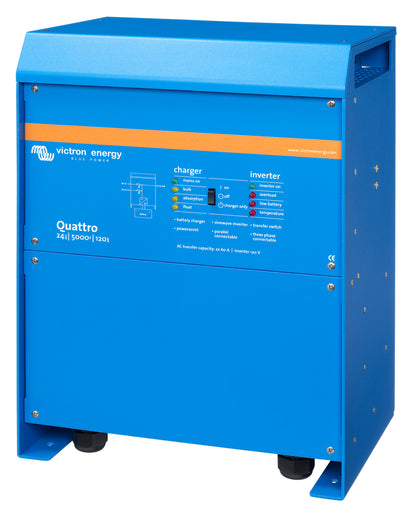

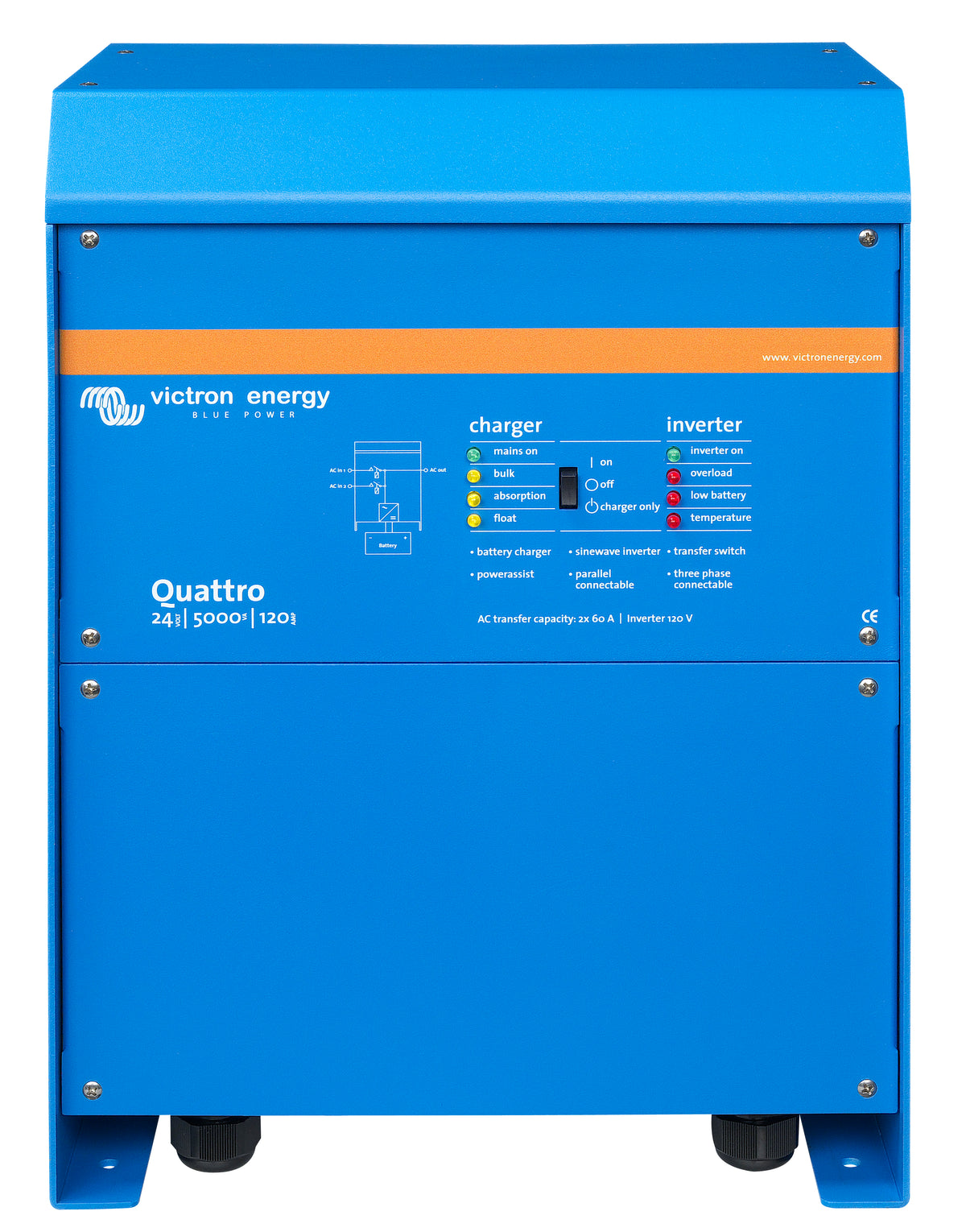

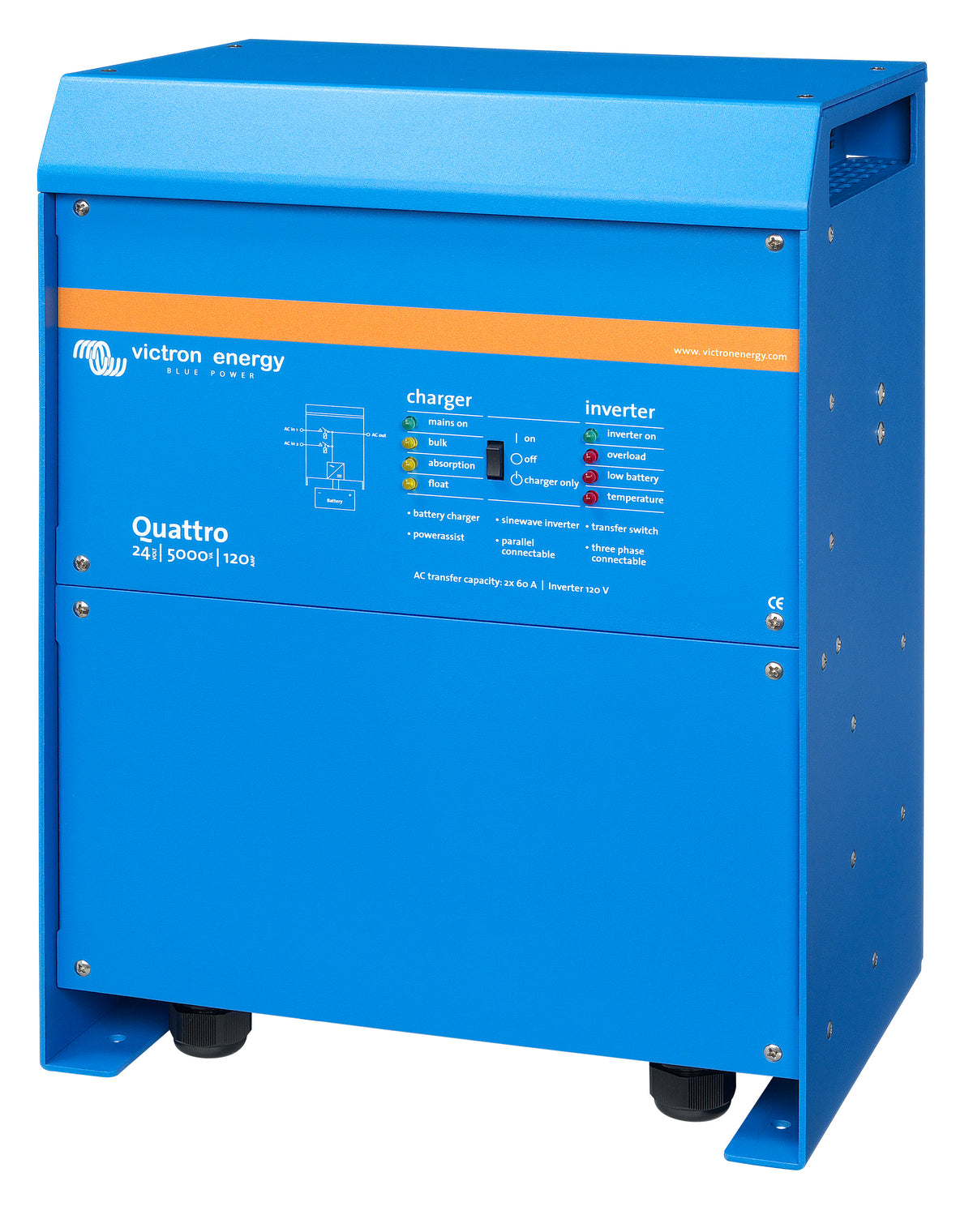

Victron Quattro 24/5000/120-100/100 120V VE.Bus Inverter/Charger — 24V High-Output Dual AC Input
Victron Quattro 24/5000/120-100/100 120V VE.Bus Inverter/Charger — 24V High-Output Dual AC Input
Couldn't load pickup availability
The Victron Quattro 24/5000/120-100/100 120V VE.Bus is the high-output 24V Quattro — 5000VA pure sine output (4000W continuous), 120A multi-stage charger, dual 100A AC inputs. The 24V advantage of half the battery current vs the 12V/5000 makes this an attractive sizing for larger yachts and serious off-grid systems where the 12V wiring would be a constraint.
Why 24V vs 12V at this size
| Quattro 24/5000 (this model) | Quattro 12/5000 | |
|---|---|---|
| Inverter output | 5000VA / 4000W | 5000VA / 4000W |
| Peak battery current | ~250A | ~500A |
| DC cable requirement | 2/0 AWG typical | 4/0 AWG typical |
| Voltage drop concern | Lower | Higher |
| Battery bank typical | 400–800Ah at 24V | 800–1600Ah at 12V |
| Price | $2494.75 | $2984.35 |
The 24V version is generally easier to install and significantly cheaper, but requires committing to a 24V house bank. If you have existing 12V infrastructure (lots of 12V loads, instruments, etc.), the 12V/5000 may still be the right pick.
What 5000VA powers
- Marine AC (mid-size unit) with PowerAssist for startup surge
- Galley appliances + air conditioning + entertainment simultaneously
- 240V household equipment via external autotransformer
- Whole-yacht "unrestricted living" load
- Substantial off-grid cabin with full daily AC needs
- Small commercial backup
Why the Quattro 24/5000
- 5000VA / 4000W pure sine inverter — high single-unit capacity
- 120A multi-stage charger — fast charging of a large 24V bank
- Dual 100A AC inputs — shore + generator with automatic switching
- 24V efficiency — half the current of 12V at the same power; easier wiring, lower cost
- PowerControl + PowerAssist — boost limited shore for peak loads
- VE.Bus networking — parallel up to 6 units
- Generator auto-start compatible — with appropriate hardware
- Multi-stage adaptive charging — AGM, Gel, Flooded, LiFePO4
Specifications
| Nominal DC input voltage | 24V (operating range 19–33V) |
|---|---|
| Continuous AC output | 4000W (5000VA) |
| Peak AC output | 9000W (short duration) |
| AC output waveform | Pure sine wave |
| AC output voltage | 120V ± 2%, 60Hz ± 0.1% |
| Charger output current | 120A |
| AC transfer switch (input 1) | 100A |
| AC transfer switch (input 2) | 100A |
| PowerControl / PowerAssist | Yes (on both inputs) |
| Networking | VE.Bus (parallel up to 6, or 3-phase) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Variable-speed temperature-controlled fan |
| Operating temperature | -40°C to +65°C (full power up to 40°C) |
| Manufacturer SKU | QUA245023110 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Larger sailboat / motor yacht with 24V house bank — substantial AC capability
- Commercial fishing vessel — 24V industry standard
- Off-grid homestead with 24V bank — substantial daily AC
- Mobile commercial — large work platforms, surveillance trailers, mobile labs
- Critical backup for small business — utility + standby generator + 24V battery bank
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase system design consultation — send us your battery bank specs, expected loads, and source configuration to support@jonssontech.net or call 346-574-9652.
