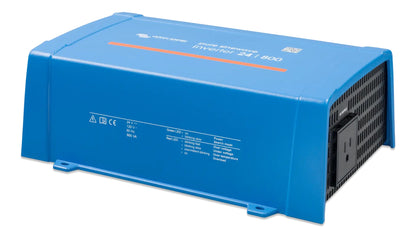

Victron Phoenix Inverter 24/800 120V VE.Direct NEMA 5-15R — 24V 800VA Pure Sine

Victron Phoenix Inverter 24/800 120V VE.Direct NEMA 5-15R — 24V 800VA Pure Sine

$236.30
$236.30
Sale Sold out

The Victron Phoenix Inverter 24/800 120V VE.Direct NEMA 5-15R is the mid-size 24V Phoenix Inverter — 800VA output (650W continuous), 24V input, standard NEMA 5-15R outlet. The right pick for 24V sailboats, off-grid cabins, and commercial mobile platforms needing real AC capability.

What 800VA powers

  • Microwave (modest, 700W) on intermittent
  • Mid-size refrigerator + lighting + electronics
  • Coffee maker on intermittent
  • Small power tools (drill, jigsaw, sander)
  • Home office (multiple monitors + computer + printer)
  • Mid-size entertainment center
  • Mini-fridge + electronics + lighting

Why the Phoenix 24/800 NEMA 5-15R

  • 800VA / 650W pure sine output — real AC capability
  • Standard NEMA 5-15R outlet — plug-and-play for indoor dry locations
  • 24V native — matches 24V house bank, lower current vs 12V
  • VE.Direct port — monitor via Cerbo GX
  • Battery protection — low-voltage shutdown
  • Variable-speed fan — quiet when idle
  • 5-year warranty

Specifications

Nominal DC input voltage 24V (operating range 19–33V)
Continuous AC output 650W (800VA)
Peak AC output 1500W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%
AC outlet NEMA 5-15R (standard household)
VE.Direct port Yes
Cooling Variable-speed fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN241800500
Warranty 5 years (manufacturer)

Recommended applications

  • Sailboat with 24V house bank — mid-size galley appliances and electronics
  • Trawler / motor yacht with 24V system — cabin AC for daily living
  • 24V off-grid cabin — modest AC capability
  • Commercial mobile (24V chassis) — surveillance trailer, work platform
  • Backup for small business (24V bank) — essential electronics

Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse.
