Victron Energy

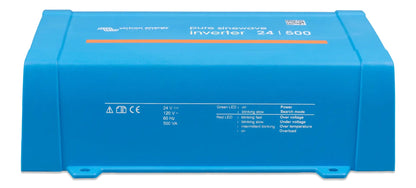

Victron Phoenix Inverter 24/500 120V VE.Direct NEMA GFCI (UL 458) — 24V 500VA Pure Sine

Victron Phoenix Inverter 24/500 120V VE.Direct NEMA GFCI (UL 458) — 24V 500VA Pure Sine

Regular price $158.10
Regular price Sale price $158.10
Sale Sold out
Shipping calculated at checkout.

The Victron Phoenix Inverter 24/500 120V VE.Direct NEMA GFCI is the UL 458 version of the 24V 500VA Phoenix — 500VA output (400W continuous), 24V input, built-in GFCI outlet, tested to UL 458 (marine/mobile standard). The right pick for sailboats with 24V house banks and modest AC needs.

What 500VA powers

  • Mid-size laptop + multiple electronics
  • Phone + tablet + USB device charging
  • LED lighting + small TV (24–32 inch)
  • CPAP machine + reading light
  • Small office (router + modem + monitor + laptop)
  • Small kitchen appliance on intermittent
  • Marine electronics suite

Why the Phoenix 24/500 NEMA GFCI

  • 500VA / 400W pure sine output — clean power for sensitive electronics
  • NEMA GFCI outlet — ground-fault protection for damp/marine locations
  • Tested to UL 458 — the safety standard for marine and mobile inverters
  • 24V native — matches 24V house bank
  • VE.Direct port — monitor via Cerbo GX
  • Battery protection — low-voltage shutdown
  • 5-year warranty

Specifications

Nominal DC input voltage 24V (operating range 19–33V)
Continuous AC output 400W (500VA)
Peak AC output 900W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%

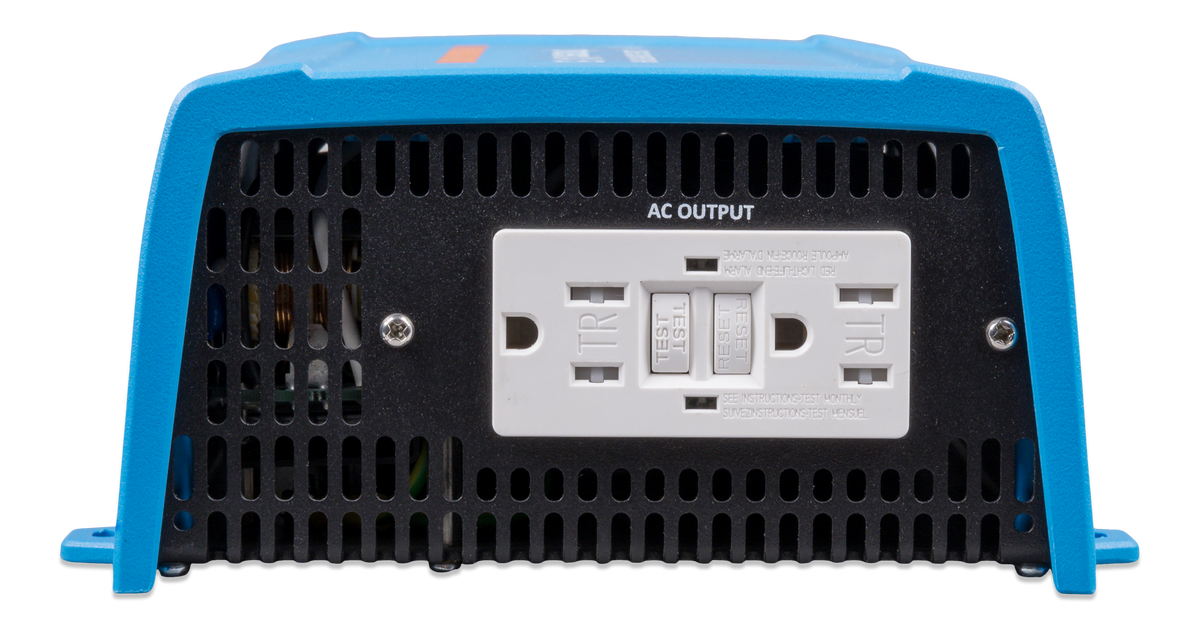

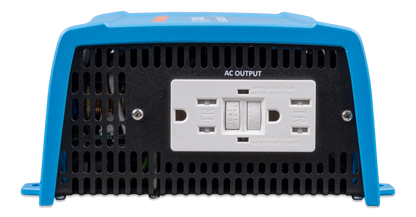

AC outlet NEMA 5-15R with built-in GFCI protection
Standards UL 458 (mobile/marine)
VE.Direct port Yes
Cooling Natural convection / small fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN245010510
Warranty 5 years (manufacturer)

Recommended applications

  • Sailboat with 24V house bank — UL 458 tested, GFCI safety, modest galley AC
  • Trawler / motor yacht — cabin AC for daily living
  • RV bathroom / kitchen circuit (24V chassis) — code-required protection
  • Outdoor mobile commercial (24V) — GFCI-protected outdoor circuit
  • Backup essentials with code compliance — 24V battery bank
