Victron Energy

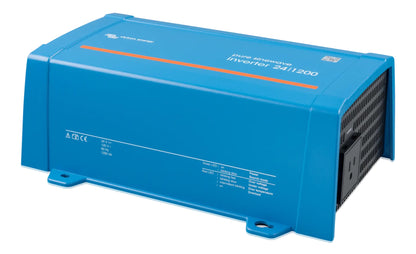

Victron Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R — 24V 1200VA Pure Sine

Victron Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R — 24V 1200VA Pure Sine

$348.50
$348.50
Sale Sold out

The Victron Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R is the mid-size 24V Phoenix Inverter — 1200VA output (1000W continuous), 24V input, standard NEMA 5-15R outlet. The 24V option for sailboats, off-grid cabins, and commercial mobile platforms needing real AC capability.

What 1200VA powers

  • Microwave (1000W) on intermittent
  • Mid-size refrigerator + lighting + electronics simultaneously
  • Coffee maker + toaster (intermittent)
  • Power tools (drill, jigsaw, light circular saw)
  • Full home office + entertainment
  • Small kitchen run on intermittent
  • Sailboat galley with appliances

Why the Phoenix 24/1200 NEMA 5-15R

  • 1200VA / 1000W pure sine output — real AC capability
  • Standard NEMA 5-15R outlet — plug-and-play for indoor dry locations
  • 24V native — matches 24V house bank, lower current vs 12V
  • VE.Direct port — monitor via Cerbo GX
  • Battery protection — low-voltage shutdown
  • Variable-speed fan — quiet when idle
  • 5-year warranty

Specifications

Nominal DC input voltage 24V (operating range 19–33V)
Continuous AC output 1000W (1200VA)
Peak AC output 2400W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%
AC outlet NEMA 5-15R (standard household)
VE.Direct port Yes
Cooling Variable-speed fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN242122500
Warranty 5 years (manufacturer)

Recommended applications

  • Sailboat / motor yacht with 24V house bank — real AC for galley
  • 24V off-grid cabin — daily AC with battery storage
  • Commercial mobile (24V chassis) — work platform with substantial 12V load
  • Backup for small business (24V bank) — essentials + small kitchen
  • Bus / coach (24V chassis) — passenger amenities

Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse.
