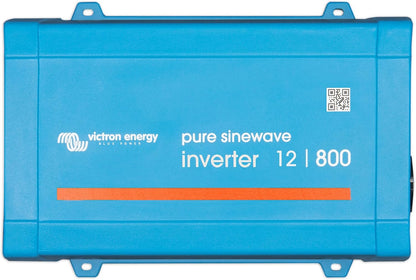

Victron Phoenix Inverter 12/800 120V VE.Direct NEMA 5-15R — 12V 800VA Pure Sine, Standard Outlet

Victron Phoenix Inverter 12/800 120V VE.Direct NEMA 5-15R — 12V 800VA Pure Sine, Standard Outlet

$263.50
$263.50
Sale Sold out

The Victron Phoenix Inverter 12/800 120V VE.Direct NEMA 5-15R is the standard-outlet version of the 800VA Phoenix — 800VA output (650W continuous), 12V input, standard NEMA 5-15R outlet (no GFCI). The lower-cost option when you don't need marine certification.

What 800VA powers

  • Microwave (modest, 700W) on intermittent use
  • Mid-size refrigerator + lighting + electronics
  • Coffee maker on intermittent
  • Small power tools (drill, jigsaw, sander)
  • Home office (multiple monitors + computer + printer + lighting)
  • Mid-size entertainment setup (TV + game console + sound bar)
  • Mini-fridge + electronics + lighting in a small RV

Why the Phoenix 12/800 NEMA 5-15R

  • 800VA / 650W pure sine output — 60% more capacity than the 500VA
  • Standard NEMA 5-15R outlet — plug-and-play indoor use
  • VE.Direct port — system monitoring via Cerbo GX
  • Battery protection — low-voltage shutdown
  • Compact size
  • Variable-speed fan
  • 5-year warranty
  • Lower cost — standard outlet vs GFCI version

Specifications

Nominal DC input voltage 12V (operating range 9.5–17V)
Continuous AC output 650W (800VA)
Peak AC output 1500W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%
AC outlet NEMA 5-15R (standard household)
VE.Direct port Yes
Cooling Variable-speed fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN121800500
Warranty 5 years (manufacturer)

Recommended applications

  • Small RV / pop-up camper — modest AC for daily living
  • Backup essentials — home office during outage
  • Off-grid cabin — lighting + electronics + occasional small appliance
  • Mobile commercial — mid-size service truck
  • Hardwired to existing GFCI circuit — saves cost vs the GFCI version
