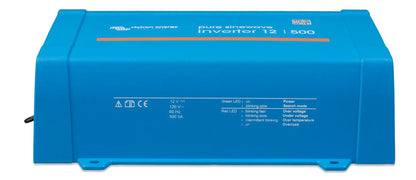

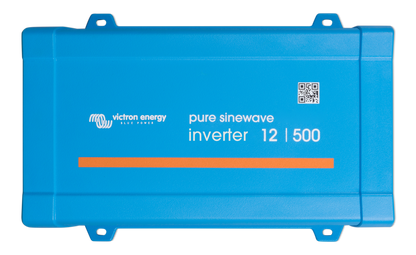

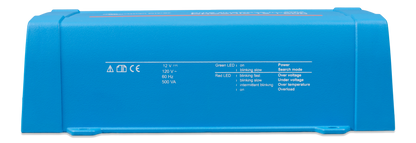

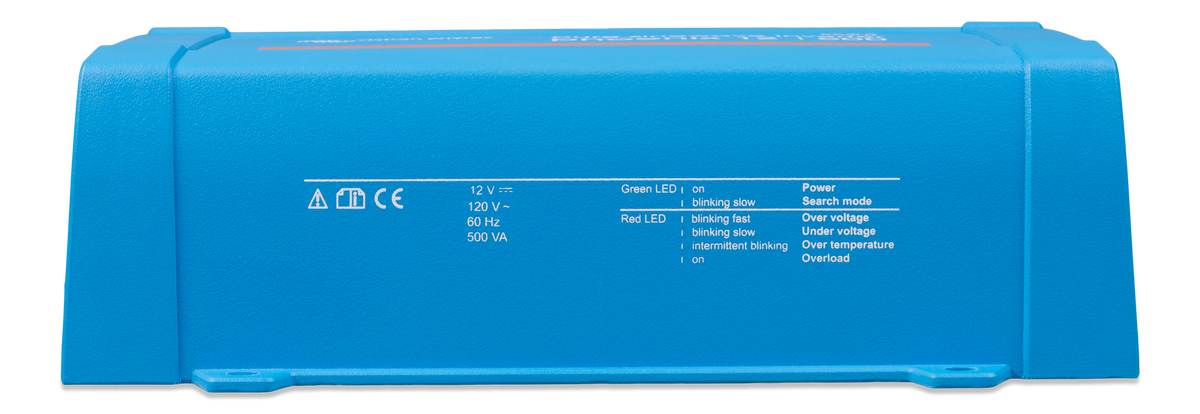

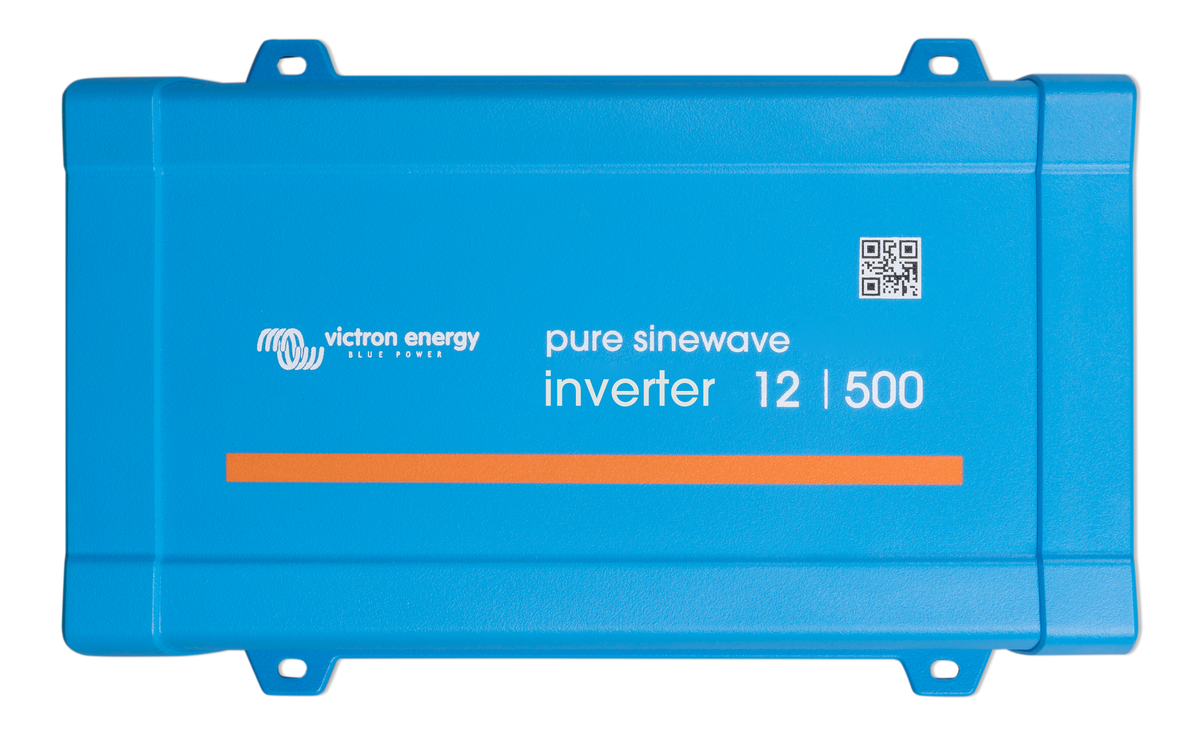

Victron Phoenix Inverter 12/500 120V VE.Direct NEMA GFCI (UL 458) — 500VA Pure Sine

Victron Phoenix Inverter 12/500 120V VE.Direct NEMA GFCI (UL 458) — 500VA Pure Sine

Regular price $150.45
Regular price Sale price $150.45
Sale Sold out
Shipping calculated at checkout.

The Victron Phoenix Inverter 12/500 120V VE.Direct NEMA GFCI is the UL 458 version of the 500VA Phoenix — same 400W continuous pure sine output as the standard NEMA 5-15R version, but with a built-in GFCI-protected outlet and testing to UL 458, the marine and mobile safety standard. The right pick for boats, RVs, exterior locations, or anywhere code requires GFCI protection.

What 500VA powers

  • Mid-size laptop + multiple electronics
  • Phone + tablet + USB device charging
  • LED lighting + small TV (24–32 inch)
  • CPAP machine + reading light
  • Small office (router + modem + monitor + laptop)
  • Small kitchen appliance on intermittent
  • Power tools (drill, small orbital sander)

Why the Phoenix 12/500 NEMA GFCI

  • 500VA / 400W pure sine wave output — clean power for sensitive electronics
  • Built-in NEMA 5-15R GFCI outlet — ground-fault protection for damp locations
  • Tested to UL 458 — the safety standard for marine and mobile inverters
  • Compact size — fits in tight spaces

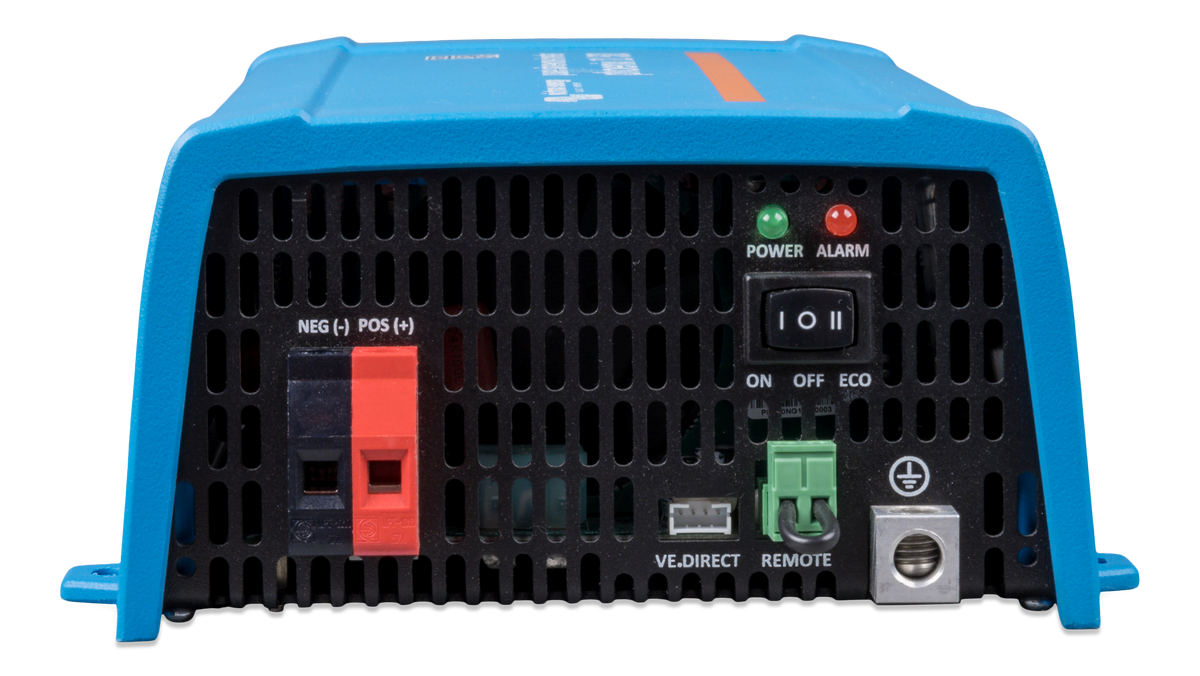

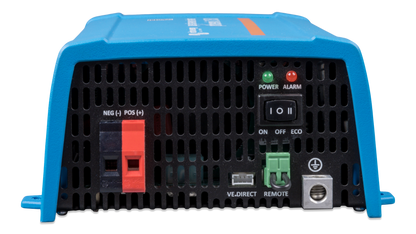

  • VE.Direct port — monitor via Cerbo GX or Bluetooth dongle
  • Battery protection — low-voltage shutdown
  • Quiet operation — small fan only when needed
  • 5-year warranty — Victron build quality

Specifications

Nominal DC input voltage 12V (operating range 9.5–17V)
Continuous AC output 400W (500VA)
Peak AC output 900W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%

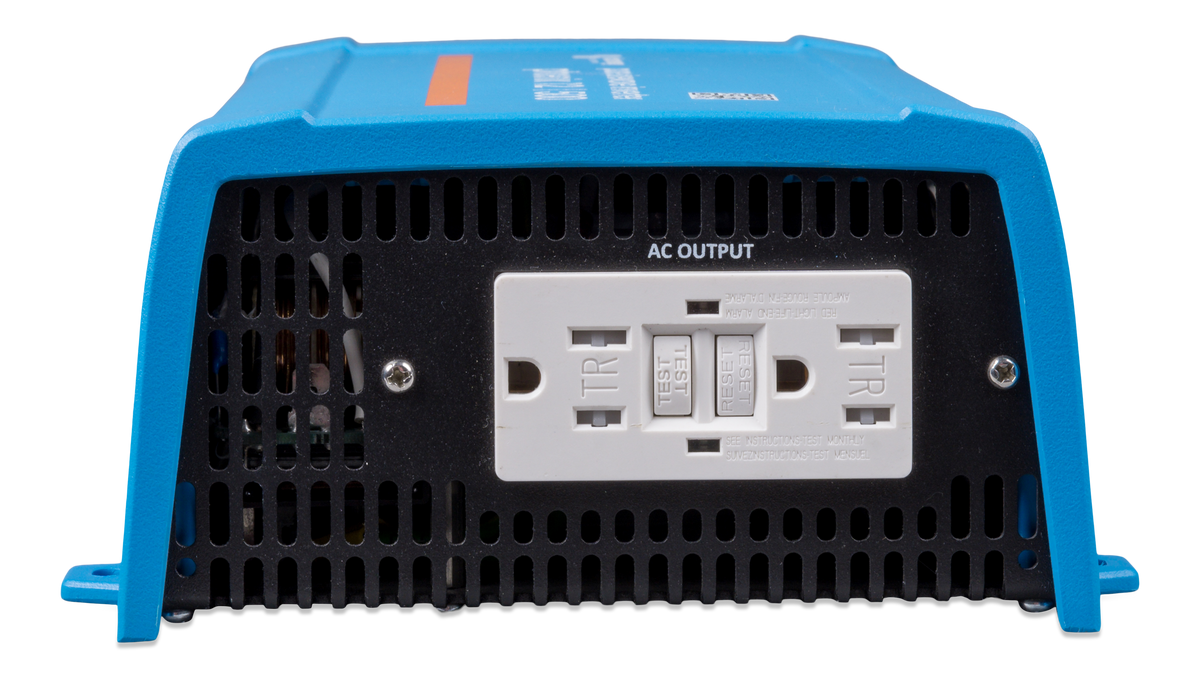

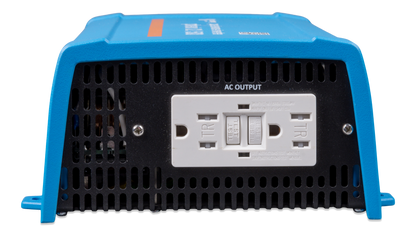

AC outlet NEMA 5-15R with built-in GFCI protection
Standards UL 458 (mobile/marine)
VE.Direct port Yes
Low-voltage shutdown 9.5V (default, adjustable)
Cooling Natural convection / small fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN125010510
Warranty 5 years (manufacturer)

Recommended applications

  • Sailboat / fishing boat — where a UL 458 inverter is specified
  • RV with damp-location AC outlet — GFCI-required circuit
  • Bathroom / kitchen damp location — cabin AC outlet with code-compliant protection
  • Marine engine compartment auxiliary AC — sealed against humidity, with GFCI safety
  • Outdoor mobile commercial — food truck wash station, outdoor surveillance equipment
  • Backup essentials with code compliance — backup for primary GFCI circuit
