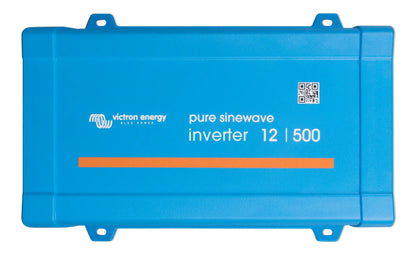

Victron Phoenix Inverter 12/500 120V VE.Direct NEMA 5-15R — 500VA Pure Sine, Compact 12V Inverter

Victron Phoenix Inverter 12/500 120V VE.Direct NEMA 5-15R — 500VA Pure Sine, Compact 12V Inverter

$153.85
$153.85
Sale Sold out

The Victron Phoenix Inverter 12/500 120V VE.Direct NEMA 5-15R is the right-sized step up from the 250VA — 500VA output (400W continuous), 12V input, standard NEMA 5-15R outlet (no GFCI), pure sine wave. The right pick for small RVs, modest backup needs, and any application where you want clean AC but don't need the GFCI-protected outlet.

NEMA 5-15R vs NEMA GFCI — which one?

  • NEMA 5-15R (this model) — standard household-style outlet. Use indoors, in dry locations. Cheaper.
  • NEMA GFCI — outlet with built-in ground-fault protection. Required by code for damp locations (kitchens, bathrooms, exterior). UL 458 certified for marine use.

If you don't know which you need, the GFCI version is safer for almost any install. If you're hardwiring the inverter to an existing GFCI-protected circuit downstream, the 5-15R version saves cost.

What 500VA powers

  • Mid-size laptop + multiple electronics
  • Phone + tablet + USB device charging
  • LED lighting + small TV (24–32 inch)
  • CPAP machine + reading light
  • Small office (router + modem + monitor + laptop)
  • Small kitchen appliance on intermittent (blender, single-cup coffee maker)
  • Power tools (drill, small orbital sander)

Why the Phoenix 12/500 NEMA 5-15R

  • 500VA / 400W pure sine wave output — 2× the capacity of the 250VA
  • Standard NEMA 5-15R outlet — plug-and-play for indoor use
  • Compact size — fits in tight spaces
  • VE.Direct port — monitor via Cerbo GX or Bluetooth dongle
  • Battery protection — low-voltage shutdown
  • Quiet operation — small fan only when needed
  • 5-year warranty — Victron build quality

Specifications

Nominal DC input voltage 12V (operating range 9.5–17V)
Continuous AC output 400W (500VA)
Peak AC output 900W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%
AC outlet NEMA 5-15R (standard household)
VE.Direct port Yes
Low-voltage shutdown 9.5V (default, adjustable)
Cooling Natural convection / small fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN125010500
Warranty 5 years (manufacturer)

Recommended applications

  • Small RV / van — modest indoor AC for laptop, electronics, lighting
  • Backup essentials — home office + small kitchen item during outage
  • Mobile work — small service truck setup
  • Off-grid cabin — basic indoor electronics
  • Hardwired to GFCI-protected downstream circuit — saves cost vs the GFCI version
