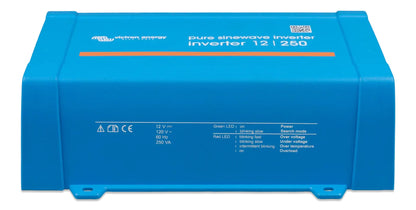

Victron Phoenix Inverter 12/250 120V VE.Direct NEMA 5-15R — 250VA Pure Sine, Standard Outlet

Victron Phoenix Inverter 12/250 120V VE.Direct NEMA 5-15R — 250VA Pure Sine, Standard Outlet

$100.30
$100.30
Sale Sold out

The Victron Phoenix Inverter 12/250 120V VE.Direct NEMA 5-15R is the standard-outlet version of the compact 250VA Phoenix — 250VA output (200W continuous), 12V input, standard NEMA 5-15R outlet (no GFCI). The lower-cost option when you don't need marine certification or GFCI protection.

NEMA 5-15R vs NEMA GFCI — which one?

  • NEMA 5-15R (this model) — standard household-style outlet. Use indoors in dry locations. Lower cost.
  • NEMA GFCI — ground-fault protected outlet, UL 458 marine certified. Required for damp locations, marine.

If you're hardwiring downstream of an existing GFCI-protected circuit, or installing in a dry indoor location, this version saves money. For marine, RV galley, or any damp install, choose the GFCI version.

What 250VA powers

  • Laptop charging
  • Phone + tablet + USB devices via outlet adapter
  • LED lighting
  • Small TV (15–20 inch)
  • CPAP machine
  • Small electronics (router, modem, small printer)
  • Single low-draw appliance

Why the Phoenix 12/250 NEMA 5-15R

  • 250VA / 200W pure sine output — clean power for sensitive electronics
  • Standard NEMA 5-15R outlet — plug-and-play for indoor dry locations
  • Compact size — fits in tight spaces
  • VE.Direct port — monitor via Cerbo GX or Bluetooth dongle
  • Battery protection — low-voltage shutdown
  • Quiet operation
  • 5-year warranty
  • Lower cost — standard outlet vs GFCI

Specifications

Nominal DC input voltage 12V (operating range 9.5–17V)
Continuous AC output 200W (250VA)
Peak AC output 400W (short duration)
AC output waveform Pure sine wave
AC output voltage 120V ± 3%, 60Hz ± 0.1%
AC outlet NEMA 5-15R (standard household)
VE.Direct port Yes
Cooling Natural convection / small fan
Operating temperature -40°C to +50°C (full power up to 25°C)
Manufacturer SKU PIN122510500
Warranty 5 years (manufacturer)

Recommended applications

  • Small van conversion — basic AC for laptop, lighting, electronics
  • Off-grid shed / hobby cabin — minimal AC needs, indoor dry location
  • Mobile work — service truck with single AC charger
  • Backup essentials — small power for router, modem during outage
  • Photography / videography — charge camera batteries in the field
  • Hardwired to existing GFCI circuit — saves cost vs the GFCI version
