Victron Orion IP67 24/12-20A (240W) DC-DC Converter — Waterproof, Sealed (24V → 12V)
Victron Orion IP67 24/12-20A (240W) DC-DC Converter — Waterproof, Sealed (24V → 12V)
Couldn't load pickup availability

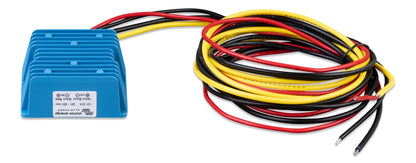

The Victron Orion IP67 24/12-20A is a mid-current, waterproof DC-DC step-down converter — takes 24V input from a heavy-duty truck, marine engine, or commercial chassis and delivers 20A at 12V (240W). The fully-sealed IP67 enclosure means this can mount in engine rooms, under-chassis locations, marine bilges, or any environment standard electronics can't survive.
Important: This is a CONVERTER, not a CHARGER. It provides constant 12V to power 12V loads. For charging a 12V battery from 24V, see the Orion-Tr Smart 24/12 charger series.
What 240W will power
- Multiple 12V accessories simultaneously (lighting + radio + fridge + USB)
- Larger 12V refrigerator with peak draw
- 12V LED light bar (4–7 inch)
- Marine chartplotter + radar combo
- Small 12V air compressor (intermittent use)
- Cab heater fan blower
- Multiple security cameras and DVR
Why the Orion IP67 24/12-20A
- 240W output — 2× the capacity of the 10A version, handles multiple loads
- IP67 fully sealed — dust-tight, immersible to 1 meter for 30 minutes
- Wide input voltage range — handles 24V system fluctuations
- Active output regulation — constant 12V output regardless of input variation
- Built-in protection — reverse polarity, output short-circuit, over-temperature, over-voltage
- Robust industrial-grade hardware — commercial duty cycles
- Compact form — only slightly larger than the 10A version
Specifications
| Input voltage | 24V (operating range 18–35 VDC) |
|---|---|
| Output voltage | 12V (regulated) |
| Rated output current | 20A |
| Rated output power | 240W |
| Type | Constant-voltage converter (not a charger) |
| Enclosure rating | IP67 (fully sealed, immersible) |
| Cooling | Convection (no fan, sealed enclosure) |
| Protection | Reverse polarity, output short-circuit, over-temperature, over-voltage |
| Operating temperature | -40°C to +60°C |
| Manufacturer SKU | ORI241220260 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Class 6–8 truck — cab accessories including small fridge, lighting, comms
- Commercial marine — navigation suite + lighting + accessories from 24V engine system
- Bus / coach — multiple passenger 12V circuits
- Heavy equipment — several 12V add-on devices on a 24V tractor or harvester
- Mobile work platforms — surveillance trailers, food trucks with 12V kitchen accessories
- Engine room / bilge mounting — wet, harsh, vibrating environments
Choosing the right size
| Model | Output | Best for |
|---|---|---|
| Orion IP67 24/12-10A | 10A / 120W | Low-draw single accessory |
| Orion IP67 24/12-20A | 20A / 240W | Multiple accessories |
| Orion 24/12-30 IP20 | 30A / 360W | Indoor mid-load |
| Orion IP67 24/12-100A | 100A / 1200W | High-current systems |
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase consultation — call 346-574-9652 or email support@jonssontech.net with your 12V load list and we'll confirm the right size.
