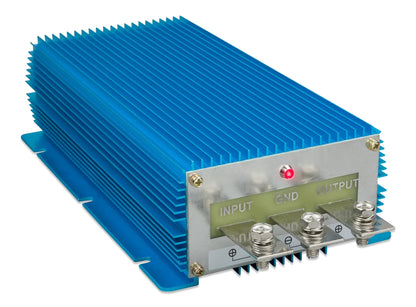

Victron Orion IP67 24/12-100A (1200W) DC-DC Converter — Waterproof, Sealed (24V → 12V Power Supply)
Victron Orion IP67 24/12-100A (1200W) DC-DC Converter — Waterproof, Sealed (24V → 12V Power Supply)
Couldn't load pickup availability
The Victron Orion IP67 24/12-100A is a waterproof, sealed DC-DC step-down converter — takes 24V input from a heavy-duty truck, larger marine engine, or commercial chassis and delivers 100A at 12V (1200W) for powering 12V equipment. The fully-sealed IP67 enclosure means this can mount in engine rooms, under-chassis locations, marine bilges, or any environment standard electronics can't survive.
Important: This is a CONVERTER, not a CHARGER. It provides constant-voltage 12V to power 12V loads (lighting, refrigeration, electronics, pumps, ECUs). For charging a 12V house battery from a 24V alternator (with proper 3-stage adaptive charging), see the Orion XS 1400 (24/12-50A).
Why the Orion IP67 24/12-100A
- 100A at 12V output — the high-current pick for serious 12V load demands on a 24V chassis
- 1200W rated power — powers multiple high-draw 12V devices simultaneously
- IP67 fully sealed — dust-tight, immersible to 1 meter for 30 minutes
- Robust industrial-grade hardware — commercial and marine duty cycles
- Wide input voltage range — handles 24V system fluctuations during engine start and high-charge
- Active output regulation — constant 12V output regardless of input variation
- Built-in protection — reverse polarity, output short-circuit, over-temperature, over-voltage

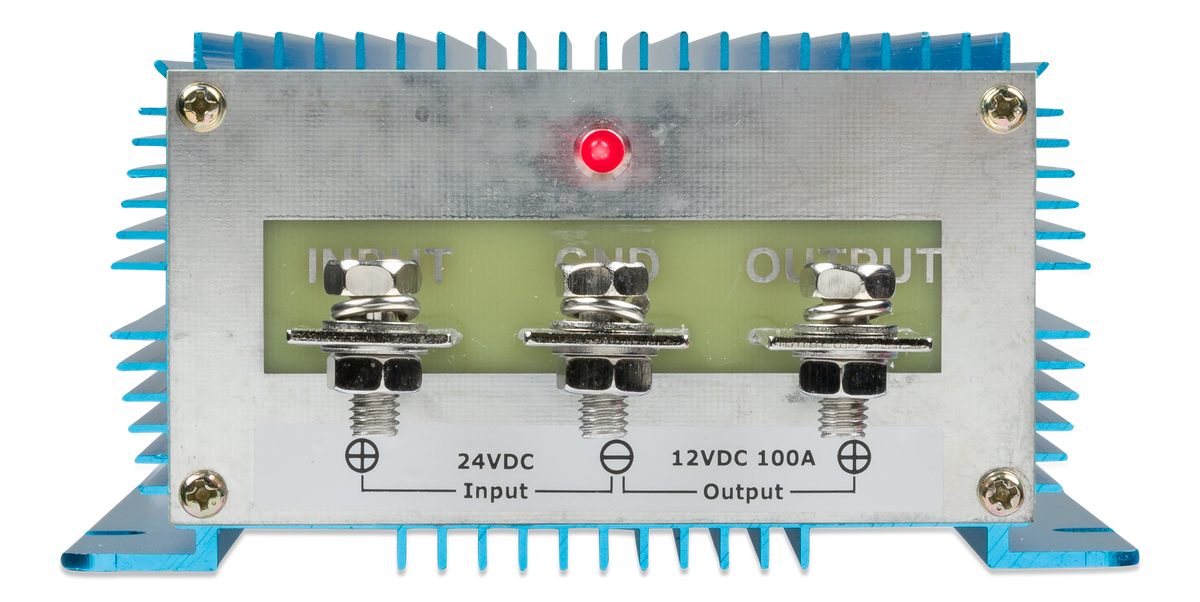

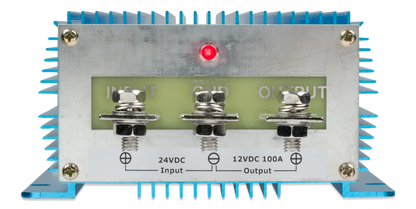

- Heavy gauge cable lugs — sized for the 0/2 AWG cable required at 100A

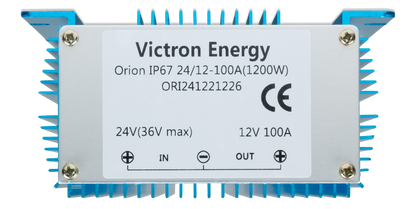

Specifications
| Input voltage | 24V (operating range 18–35 VDC) |
|---|---|
| Output voltage | 12V (regulated) |
| Rated output current | 100A |
| Rated output power | 1200W |
| Type | Constant-voltage converter (not a charger) |
| Enclosure rating | IP67 (fully sealed, immersible) |
| Cooling | Convection (no fan, sealed enclosure) |
| Protection | Reverse polarity, output short-circuit, over-temperature, over-voltage |
| Operating temperature | -40°C to +60°C |
| Manufacturer SKU | ORI241221226 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Class 6–8 commercial trucks — power 12V cab accessories, refrigerated trailer support, sleeper power from the 24V starter system
- Commercial marine — 24V engine system feeding 12V electronics, navigation, lighting
- Bus / coach — 24V chassis with 12V passenger accessories
- Military / specialty vehicles — 24V chassis with civilian 12V add-on equipment
- Heavy equipment — agricultural and construction machinery with 12V auxiliary equipment
- Industrial mobile — surveillance trailers, mobile labs, food trucks built on heavy-duty 24V chassis
- Engine room / bilge mounting — IP67 makes location flexibility a non-issue
Need to charge a 12V battery instead?
If you want to charge a 12V house bank from a 24V alternator (with proper 3-stage battery charging, engine-start detection, and lithium-safe current limiting), the right product is the Orion XS 1400 (24/12-50A) DC-DC battery charger. The IP67 series is voltage conversion only.
