Victron Orion IP67 12/24-50A (1200W) DC-DC Converter — Waterproof, Sealed (12V → 24V Power Supply)
Victron Orion IP67 12/24-50A (1200W) DC-DC Converter — Waterproof, Sealed (12V → 24V Power Supply)
Couldn't load pickup availability

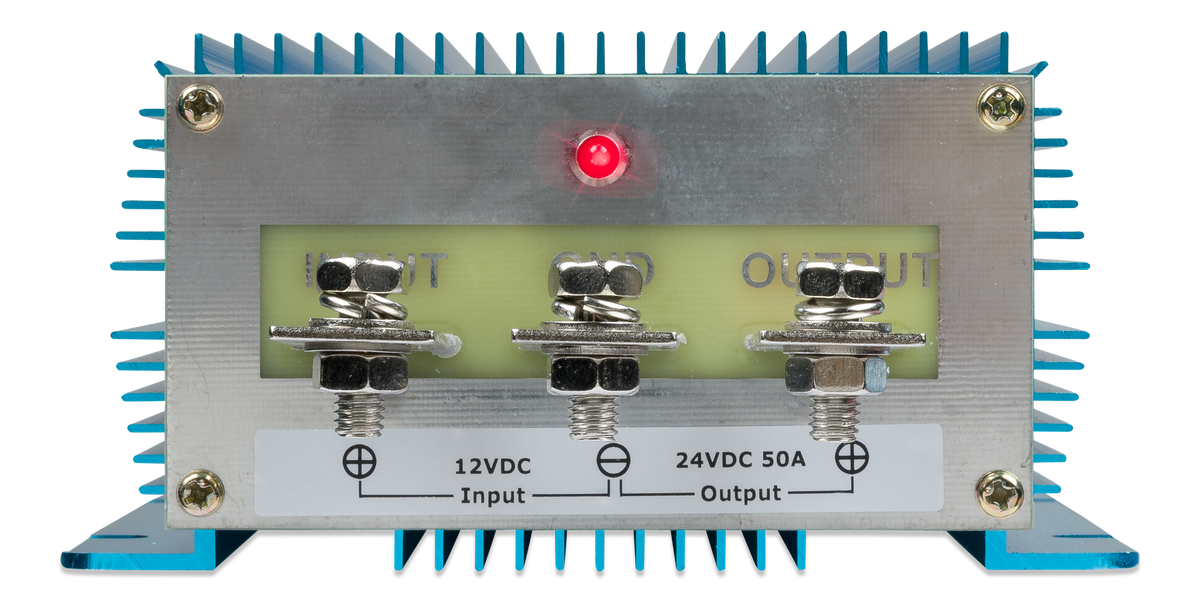

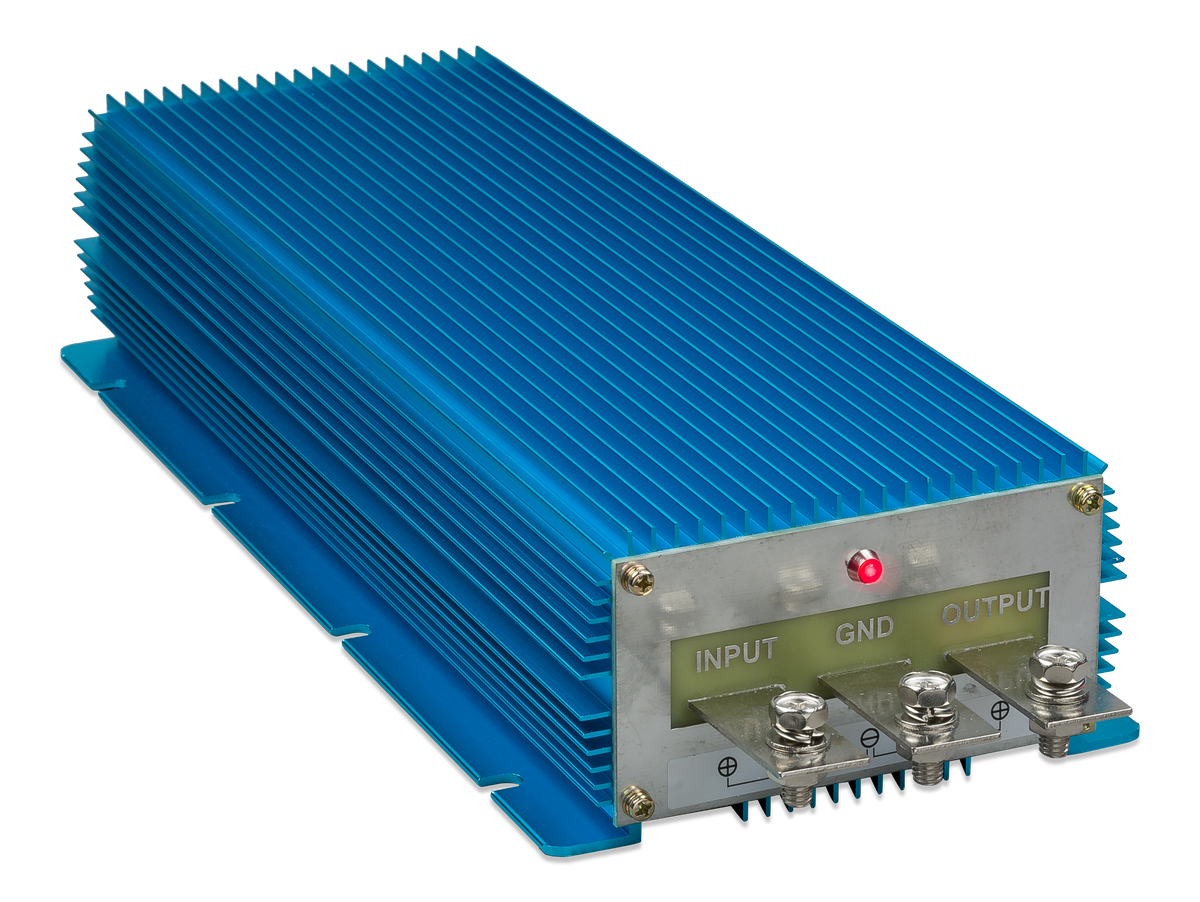

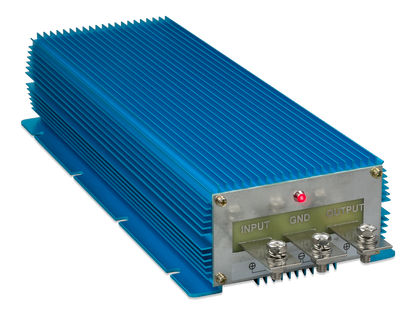

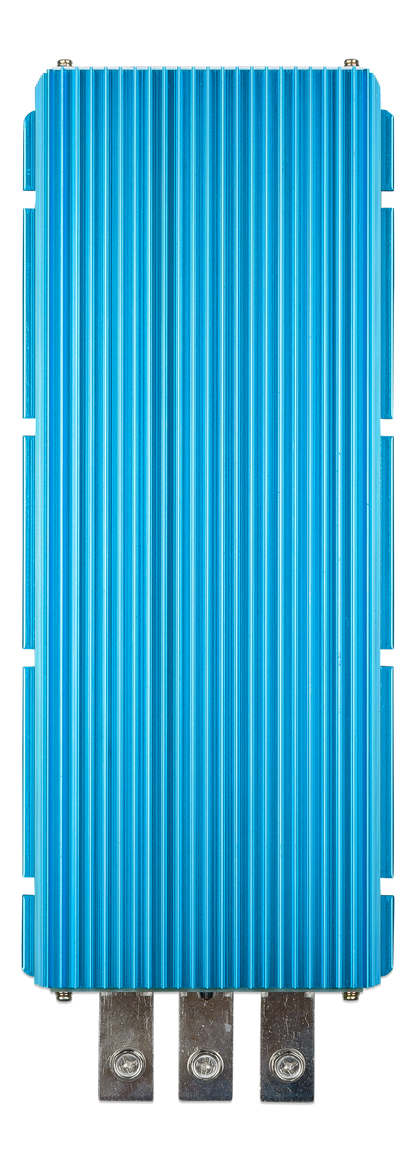

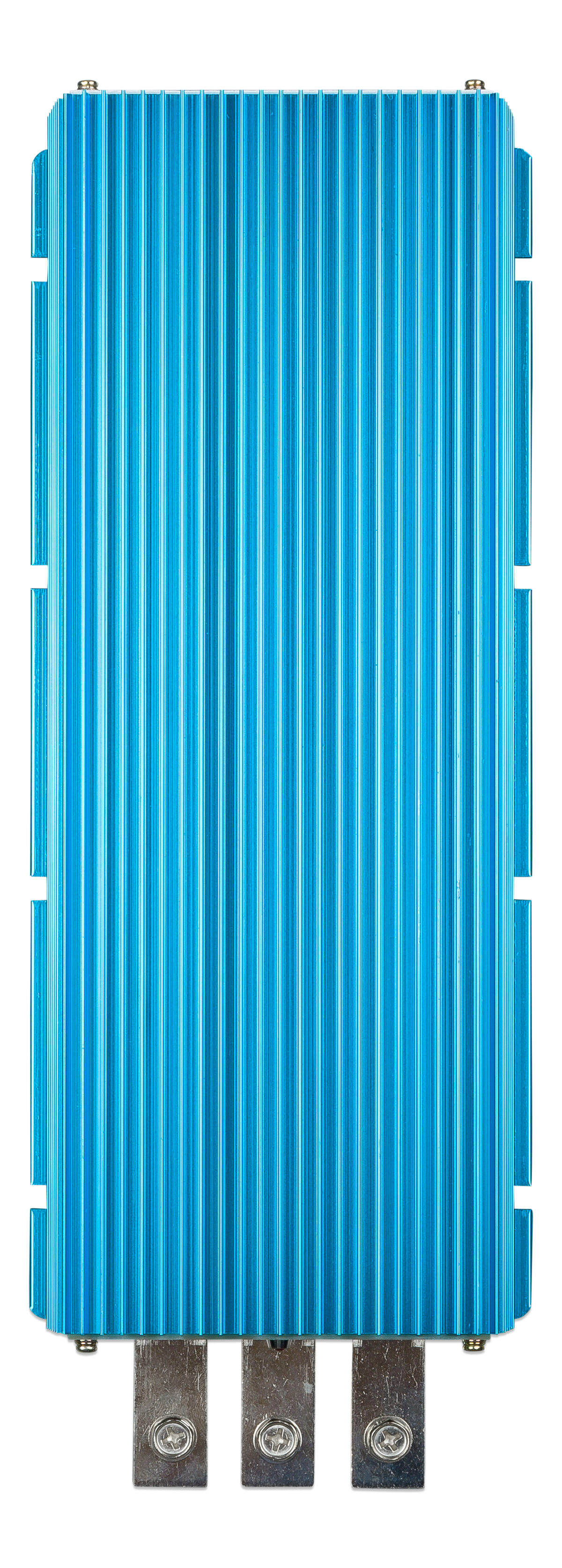

The Victron Orion IP67 12/24-50A is a waterproof, sealed DC-DC step-up converter — takes 12V input from a vehicle or marine system and provides 50A at 24V (1200W) for powering 24V equipment. The fully-sealed IP67 enclosure means this can mount in engine rooms, exposed underhood locations, marine bilges, or any environment where standard electronics would fail.
Important: This is a CONVERTER, not a CHARGER. The Orion IP67 series provides constant-voltage output to power 24V loads (radios, lighting, electronics, pumps, refrigeration). For charging a 24V battery bank from a 12V alternator, you want the Orion-Tr Smart 12/24 series (with adaptive 3-stage charging).
Why the Orion IP67 12/24-50A
- IP67 fully sealed — dust-tight, immersible to 1 meter for 30 minutes. Mount anywhere.
- 1200W output — enough to power multiple 24V devices simultaneously
- 50A at 24V — substantial current for high-draw 24V equipment
- Robust industrial-grade hardware — designed for commercial and marine duty cycles
- Wide input voltage range — handles 12V system voltage fluctuations
- Active output regulation — constant 24V output regardless of input voltage variation
- Built-in protection — reverse polarity, output short-circuit, over-temperature, over-voltage
- Heavy gauge cable lugs — sized for the cable required at 50A

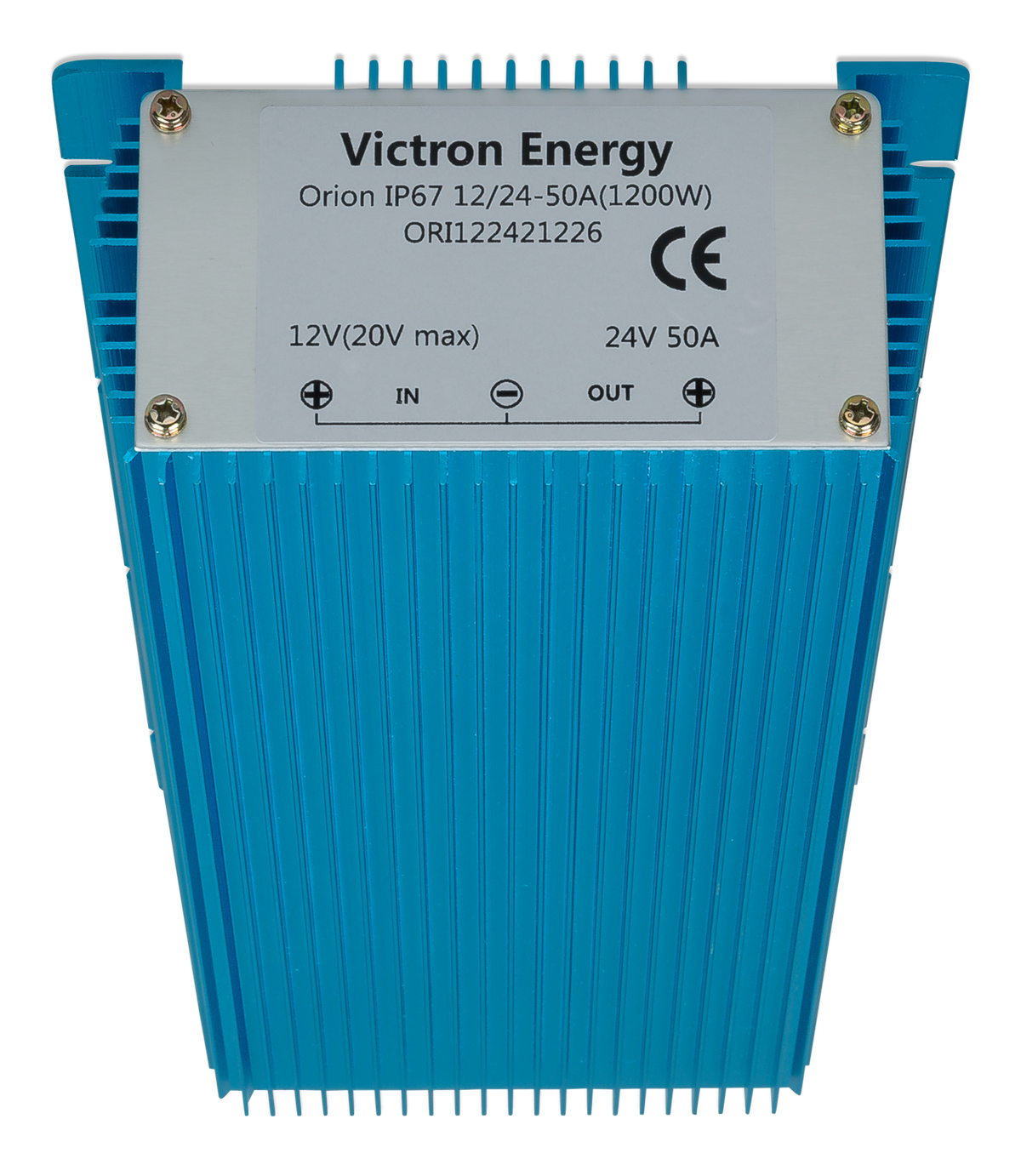

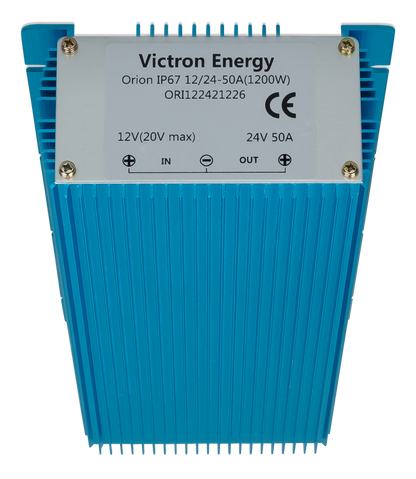

Specifications
| Input voltage | 12V (operating range 9–17 VDC) |
|---|---|
| Output voltage | 24V (regulated) |
| Rated output current | 50A |
| Rated output power | 1200W |
| Type | Constant-voltage converter (not a charger) |
| Enclosure rating | IP67 (fully sealed, immersible) |
| Cooling | Convection (no fan, sealed enclosure) |
| Protection | Reverse polarity, output short-circuit, over-temperature, over-voltage |
| Operating temperature | -40°C to +60°C |
| Manufacturer SKU | ORI122421226 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Marine 12V vessel powering 24V electronics — radar, large chartplotters, autopilot pumps
- Engine room mounting — heat, humidity, occasional water exposure
- Commercial fishing — deck washdown, salt spray, harsh environment
- Off-grid industrial equipment — 24V pumps, lighting, telecom on a 12V battery system
- Mobile work platforms — surveillance trailers, mobile labs with 24V equipment
- Underhood mounting — engine bay vibration and temperature
- Agricultural / heavy equipment — 24V auxiliary equipment on 12V tractor or harvester
Need to charge a 24V battery instead?
If you want to charge a 24V battery bank from a 12V alternator (with proper 3-stage charging), the right product is the Orion-Tr Smart 12/24-15 or 12/24-20. The IP67 series provides voltage conversion only — it doesn't have battery charge profiles or engine-start detection.
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase consultation — call 346-574-9652 or email support@jonssontech.net if you're unsure whether you need a converter or a charger.
