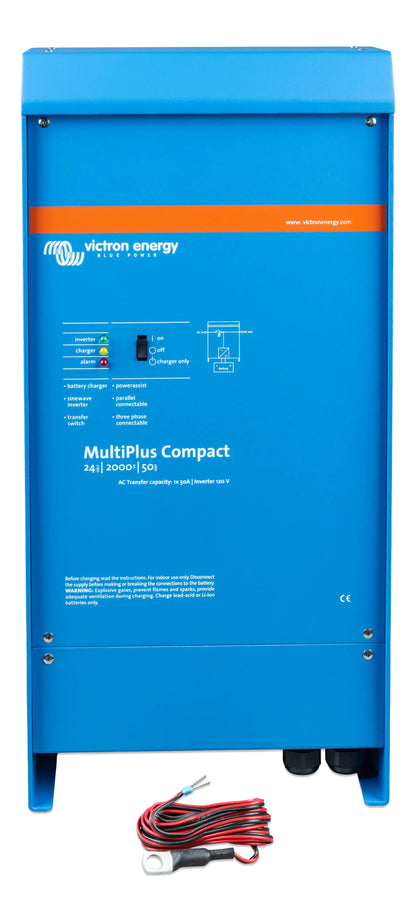

Victron MultiPlus Compact 24/2000/50-50 120V VE.Bus Inverter/Charger (Pre-UL 458)
Victron MultiPlus Compact 24/2000/50-50 120V VE.Bus Inverter/Charger (Pre-UL 458)
Couldn't load pickup availability
The Victron MultiPlus Compact 24/2000/50-50 120V VE.Bus is the space-saving 24V inverter/charger — 2000VA pure sine output (1600W continuous), 50A multi-stage battery charger, 50A AC transfer switch. The Compact enclosure is smaller and lighter than the standard form factor.
Important: This is the pre-UL 458 version (SKU CMP242200100) — functionally identical to the current UL 458-certified version but lacks the certification mark. If your install doesn't require UL 458 certification (most non-commercial RV and off-grid use), this is the same product at a lower price. For UL 458 marine/RV-required installs, see the CMP242200102 version.
Pre-UL 458 vs current UL 458 version
| This product (Pre-UL 458) | UL 458 Version | |
|---|---|---|
| SKU | CMP242200100 | CMP242200102 |
| Inverter output | 2000VA / 1600W | 2000VA / 1600W |
| Charger output | 50A | 50A |
| Hardware | Same internals | Same internals |
| UL 458 marine certification | No | Yes |
| Best for | Off-grid cabin, non-commercial RV, residential backup | Marine installs requiring UL 458, commercial mobile platforms |
What 2000VA powers
Same as the standard 24/2000: marine AC for galley appliances and lighting, microwave + coffee maker, mid-size refrigerator, power tools on intermittent duty, whole-cabin normal living load on a 24V yacht or off-grid setup.
Why the MultiPlus Compact 24/2000/50-50
- 2000VA / 1600W pure sine inverter — substantial AC capability
- 50A multi-stage charger — charges a 400Ah 24V bank in ~10 hours
- 50A AC transfer switch — automatic shore/generator transfer
- PowerControl + PowerAssist — boost limited shore power
- Compact form factor — fits where standard MultiPlus is too big
- VE.Bus networking — system integration with SmartShunt, MPPT, Cerbo GX
- Multi-stage adaptive charging — AGM, Gel, Flooded, LiFePO4 profiles
- Lower price point — the pre-UL 458 version saves money where certification isn't needed
Specifications
| Nominal DC input voltage | 24V (operating range 19–33V) |
|---|---|
| Continuous AC output | 1600W (2000VA) |
| Peak AC output | 4000W (short duration) |
| AC output waveform | Pure sine wave |
| AC output voltage | 120V ± 2%, 60Hz ± 0.1% |
| Charger output current | 50A |
| AC transfer switch | 50A |
| PowerControl / PowerAssist | Yes |
| Networking | VE.Bus (parallel and 3-phase capable) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Cooling | Variable-speed temperature-controlled fan |
| Operating temperature | -40°C to +65°C (full power up to 40°C) |
| Manufacturer SKU | CMP242200100 (pre-UL 458) |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Off-grid cabin — 24V system, no certification requirement
- Residential battery backup — 24V system, off-grid use
- Recreational sailboat (private use) — where USCG / commercial inspection isn't required
- Mobile workshop (private use) — 24V auxiliary power for personal projects
- Industrial backup — telecom and similar 24V system applications
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase consultation — call 346-574-9652 or email support@jonssontech.net if you're not sure whether you need the UL 458 version.
