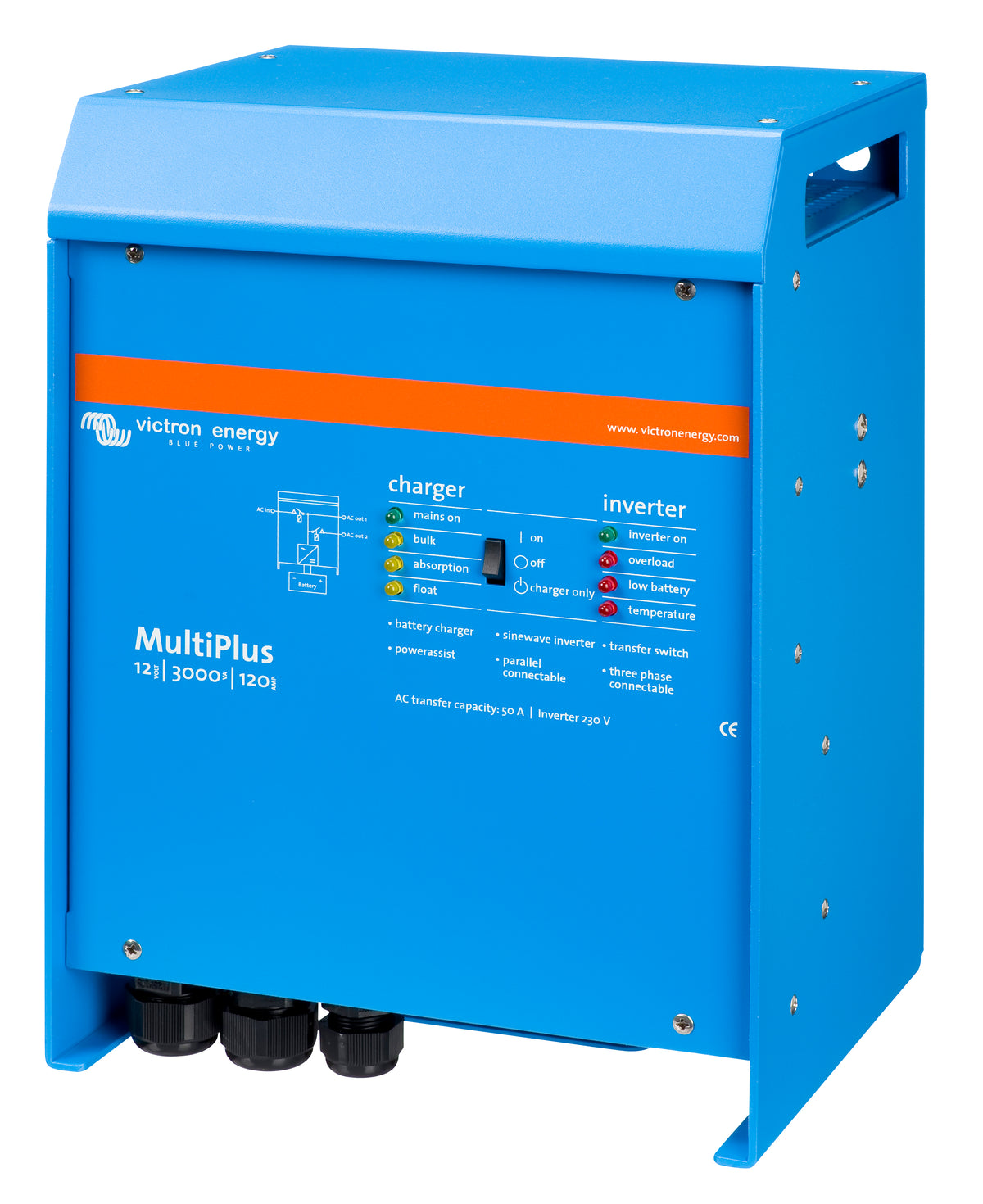

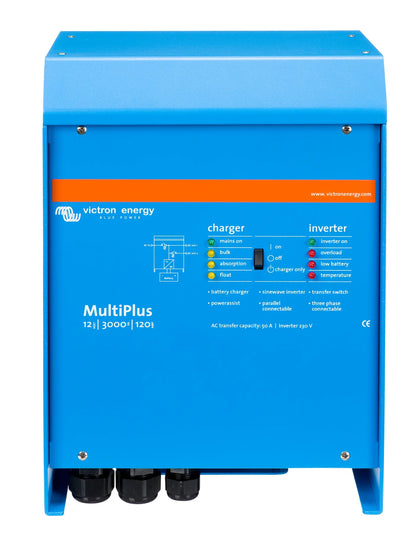

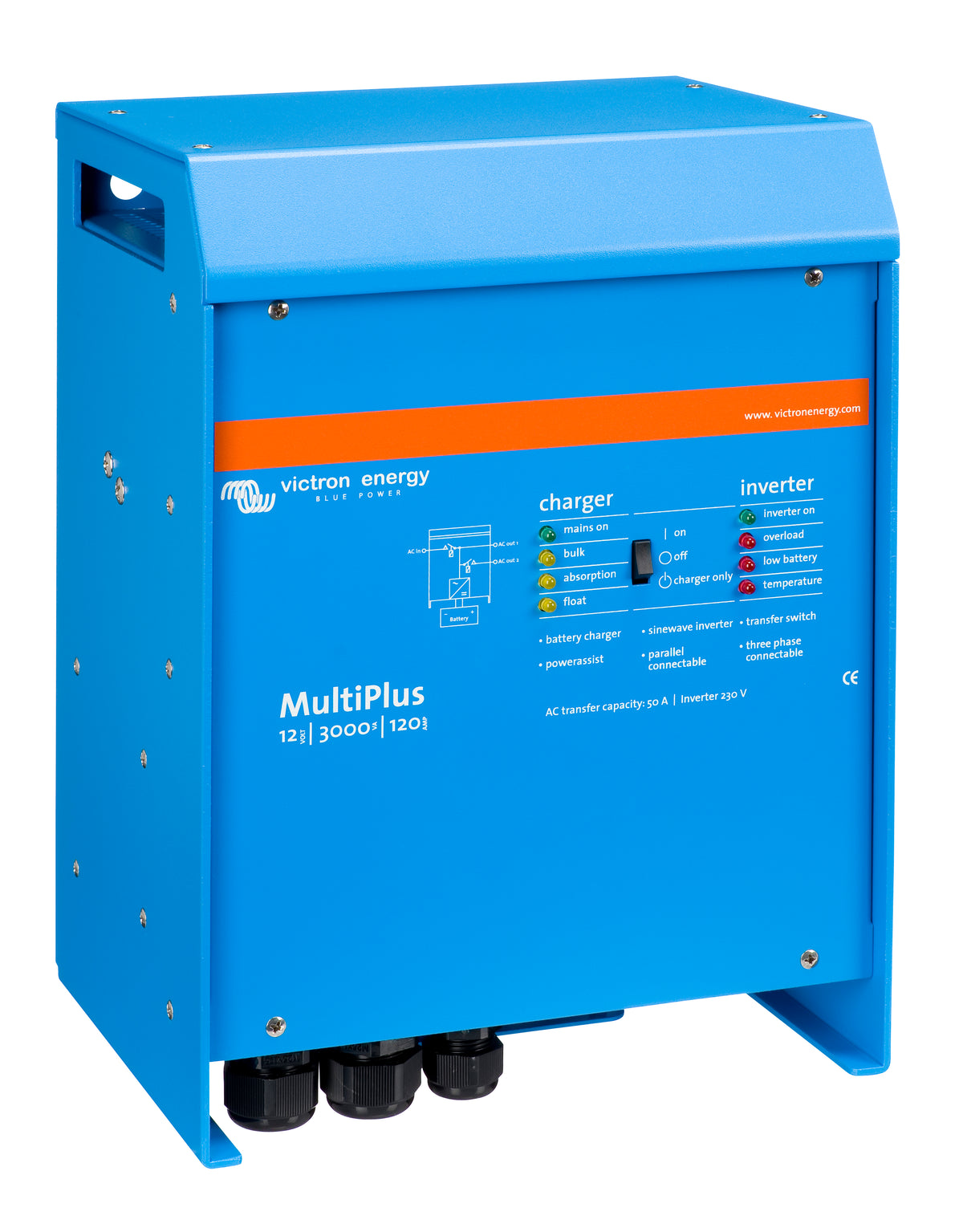

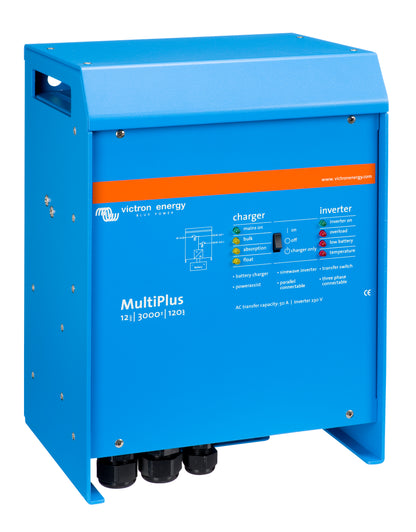

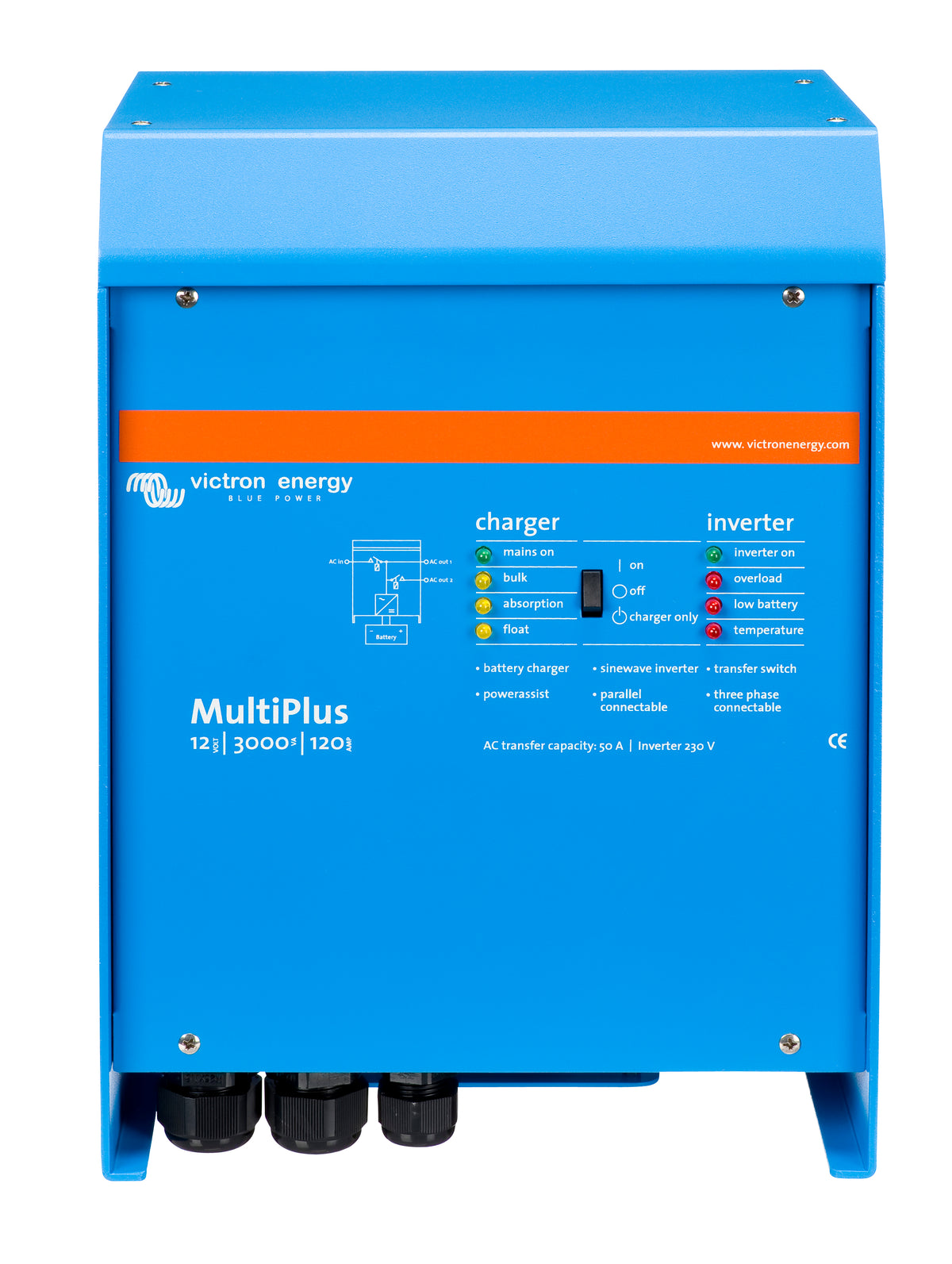

Victron MultiPlus 12/3000/120-50 120V VE.Bus Inverter/Charger — UL 1741 & UL 458 (3000VA Pure Sine, 120A Charger)
Victron MultiPlus 12/3000/120-50 120V VE.Bus Inverter/Charger — UL 1741 & UL 458 (3000VA Pure Sine, 120A Charger)
Couldn't load pickup availability
The Victron MultiPlus 12/3000/120-50 is the workhorse inverter/charger for 12V off-grid and backup-power systems — 3000VA of pure sine wave inverter output (2400W continuous), 120A of multi-stage battery charger, 50A AC transfer switch, and a 16A power assist function that lets your inverter "boost" shore power or generator power for high-draw loads. This is the UL 1741 + UL 458 certified version, suitable for both off-grid AND grid-tie applications.
Why the MultiPlus 12/3000/120-50
- 3000VA / 2400W pure sine inverter — enough for most RV / marine / off-grid AC loads
- 120A multi-stage charger — fast charging when on shore or generator power
- 50A AC pass-through transfer switch — automatically transfers between shore/generator and inverter
- PowerAssist — inverter "boosts" limited shore power (e.g., 16A pedestal) to handle high-draw moments like AC startup, microwave + coffee maker
- PowerControl — dynamically reduces charging current when AC loads spike, preventing nuisance breaker trips
- UL 1741 + UL 458 certified — the only Victron version legal for grid-tied installations in the US, AND certified for mobile/marine use
- VE.Bus networking — parallel or 3-phase capable with additional MultiPlus units; pairs with SmartShunt, MPPT, and Cerbo GX
- Multi-stage adaptive charging — bulk, absorption, float, equalization with profiles for AGM, Gel, Flooded, LiFePO4
- Built-in temperature compensation — with optional remote temp sensor
What it powers
3000VA / 2400W continuous (6000W peak) is enough to run:
- RV air conditioner (one mid-size unit, with PowerAssist help on startup)
- Microwave (1000W typical)
- Coffee maker + toaster
- Mid-size refrigerator + everything else simultaneously
- Power tools (table saw, miter saw on intermittent duty)
- Whole-RV "normal living" load (lights, TV, computers, charging)
- Off-grid cabin essentials (well pump on intermittent, refrigerator, lights, TV, computers)
Specifications
| Nominal DC input voltage | 12V (operating range 9.5–17V) |
|---|---|
| Continuous AC output | 2400W (3000VA) |
| Peak AC output | 6000W (short duration) |
| AC output waveform | Pure sine wave |
| AC output voltage | 120V ± 2%, 60Hz ± 0.1% |
| Charger output current | 120A |
| AC transfer switch | 50A |
| PowerControl / PowerAssist | Yes (16A pedestal boost capability) |
| Standards | UL 1741 (grid-tie capable) + UL 458 (mobile/marine certified) |
| Networking | VE.Bus (parallel and 3-phase capable) |
| Charge algorithm | 4-stage adaptive (bulk, absorption, float, storage) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable via Cerbo GX or VE.Configure) |
| Cooling | Variable-speed temperature-controlled fan |
| Operating temperature | -40°C to +65°C (full power up to 40°C) |
| Dimensions (HxWxD) | 362 x 258 x 218 mm (14.3 x 10.2 x 8.6 in) |
| Weight | ~18 kg (~40 lb) |
| Manufacturer SKU | PMP122301102 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- RV / Class A motorhome — primary inverter/charger for whole-coach AC power
- Off-grid cabin — 12V battery bank with grid-quality AC output
- Marine — sailboats and powerboats with 12V house bank and AC equipment
- Backup power — grid-connected home or business with battery backup (UL 1741 makes this legal)
- Mobile commercial — surveillance trailers, food trucks, mobile workshops
- Tiny home / ADU — off-grid or hybrid grid-tie
MultiPlus vs MultiPlus-II — which one?
The MultiPlus (this product) is the original VE.Bus inverter/charger. The MultiPlus-II is the newer generation with additional features: built-in grounding relay, current sensor for ESS (energy-storage-system) self-consumption mode, and slightly different external dimensions. For most off-grid, RV, and marine applications, the original MultiPlus is equally capable. For grid-tied ESS (selling solar back to the grid, time-shifting), the MultiPlus-II is the right pick.
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase system design consultation — send us your battery bank specs, expected loads, and grid/off-grid intent to support@jonssontech.net or call 346-574-9652.
