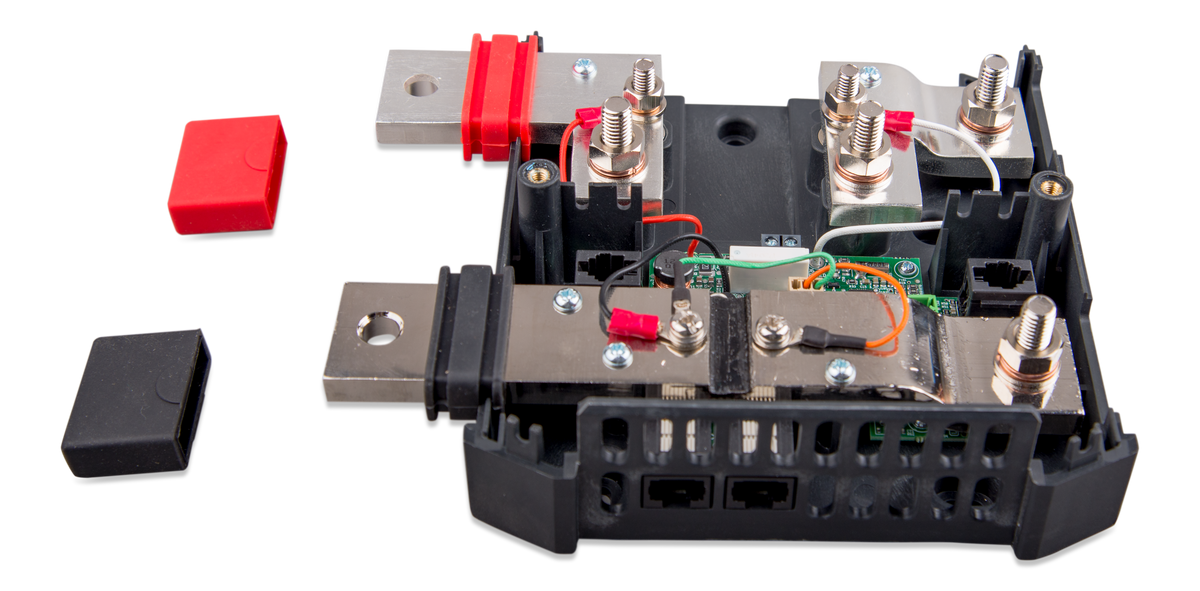

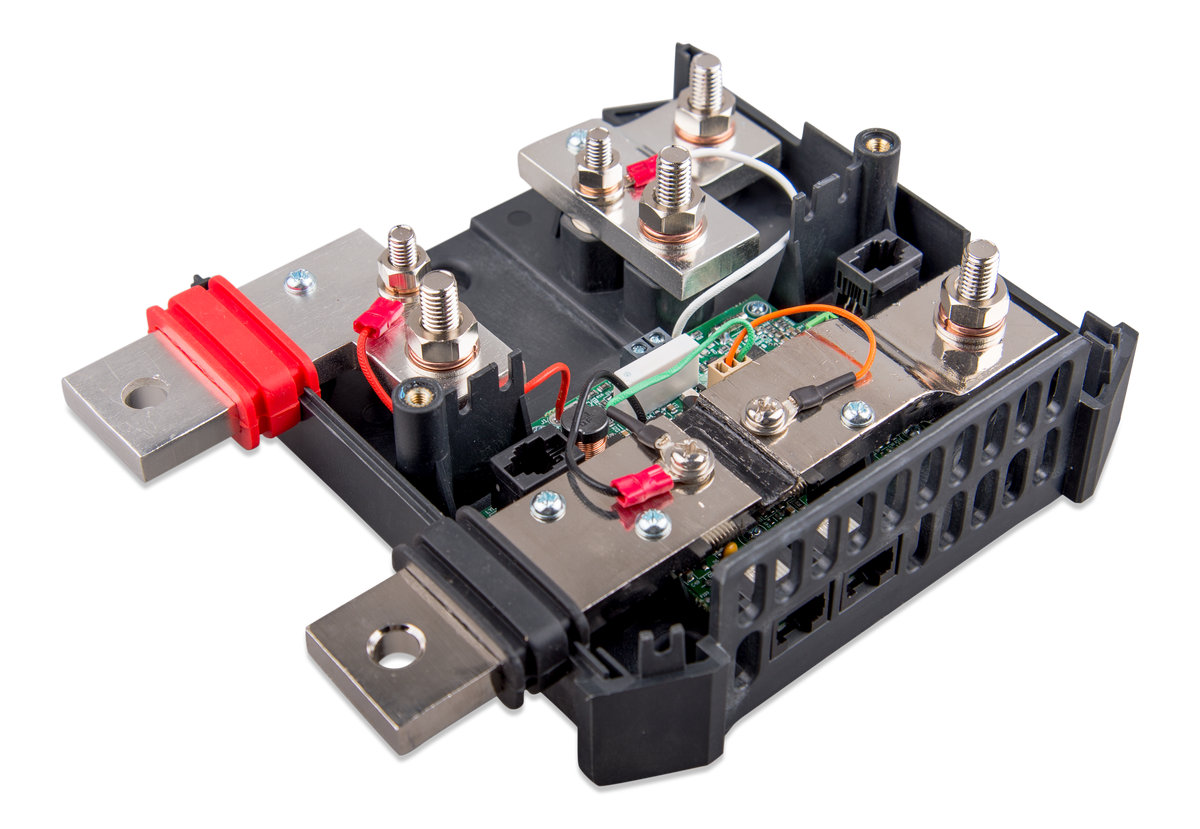

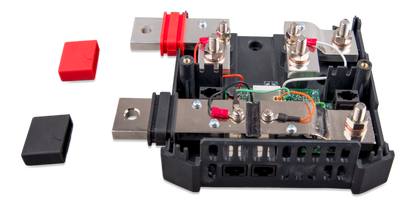

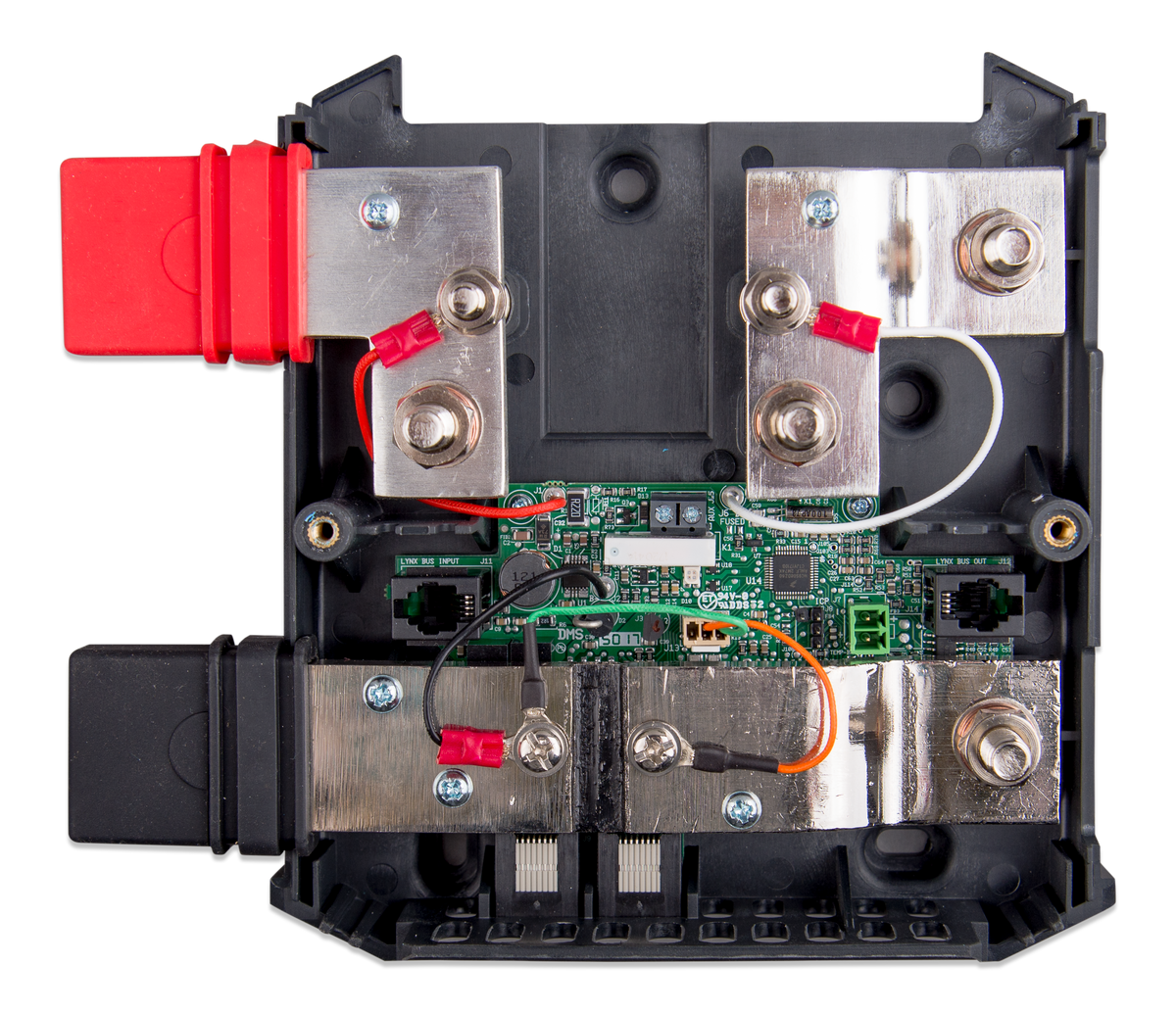

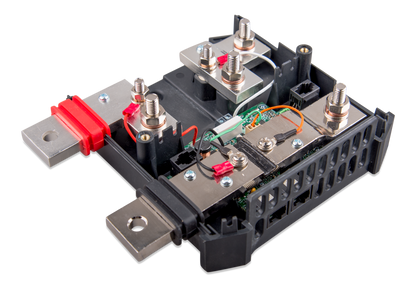

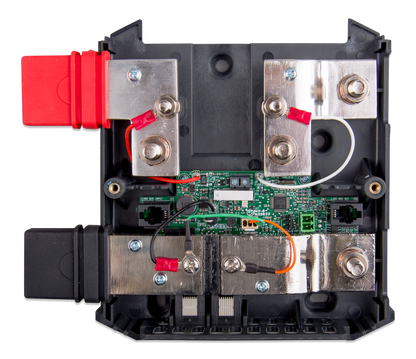

Victron Lynx Shunt VE.Can (M10) — 1000A Whole-System Current Monitoring (Lynx)
Victron Lynx Shunt VE.Can (M10) — 1000A Whole-System Current Monitoring (Lynx)
Couldn't load pickup availability
The Victron Lynx Shunt VE.Can (M10) is a 1000A whole-system current monitor — measures total battery bank current with high precision, includes a built-in MEGA fuse holder for main bank fusing, and connects directly to your Cerbo GX via VE.Can. The right monitor when you've moved to a Lynx-based distribution system and want one integrated measurement point instead of a separate SmartShunt.
This is the M10 version, which is the only one Victron now builds. The M8 / M10 in a Lynx part name refers to the bolts that join one Lynx module to the next along the busbar — not your cable connection. Your cable lugs and the fuse connection are M8 on both versions. But an M10 module will not bolt to an M8 module, so the whole stack — Power In, Distributor, Shunt, BMS — has to match. If you are extending an existing M8 stack, contact us before ordering.
Lynx Shunt vs SmartShunt — which one?
| Lynx Shunt (this product) | SmartShunt | |
|---|---|---|
| Measurement | Same precision (±0.4%) | Same precision (±0.4%) |
| Communication | VE.Can (faster, more bandwidth) | VE.Direct + Bluetooth |
| Main bank fuse | Built-in MEGA fuse holder | Separate fuse required |
| Modular integration | Snaps into Lynx Power In / Distributor (M10) | Standalone unit |
| Phone monitoring | Via Cerbo GX + VRM/VictronConnect | Direct via Bluetooth |
| Best for | Whole-system installs with Lynx distribution | Standalone bank monitoring |
| Price | $391.00 | $100–$226 |
Choose Lynx Shunt if: you're building a Lynx-based distribution system and want integrated measurement + main fuse in one module.
Choose SmartShunt if: you have a single battery bank, no Lynx distribution, and want direct phone monitoring without a Cerbo GX.
Why the Lynx Shunt VE.Can
- 1000A measurement range — sized for whole-system current on large 12V/24V/48V banks

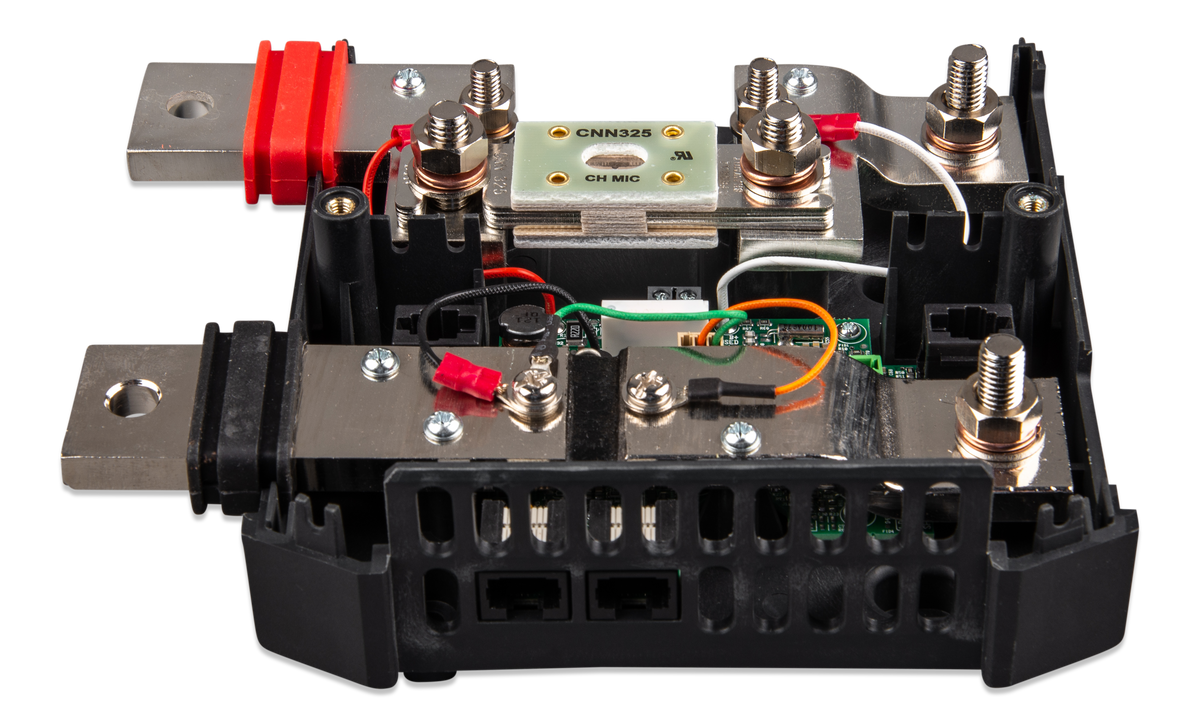

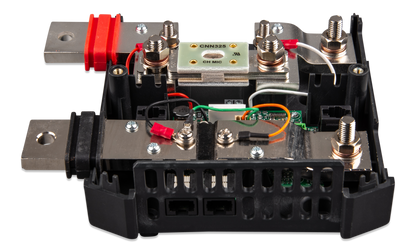

- Built-in MEGA fuse holder — main bank fuse integrated, accepts any MEGA fuse
- ±0.4% measurement accuracy — same as SmartShunt and BMV-712
- VE.Can connection — high-bandwidth direct link to Cerbo GX
- True state-of-charge — counts every amp in and out for fuel-gauge accuracy
- IP22 enclosure — protected against dripping water
- Modular Lynx integration — snaps into M10 Lynx Power In and Distributor
- Auxiliary inputs — temperature, midpoint voltage, or second battery monitoring
- 5-year warranty
Specifications
| Current measurement range | 0–1000A |
|---|---|
| Accuracy | ±0.4% |
| Battery voltage range | 9.5–70V (12V, 24V, 48V systems) |
| Communication | VE.Can |
| Busbar joint size | M10 (cable lugs and fuse connection are M8) |
| Built-in fuse holder | MEGA fuse (fuse sold separately, choose by bank capacity) |
| Auxiliary input | Temperature, midpoint, or second battery voltage |
| Enclosure rating | IP22 (indoor / dripping water resistant) |
| Modular integration | Snaps into M10 Lynx Power In and Lynx Distributor |
| Operating temperature | -40°C to +60°C |
| Manufacturer SKU | LYN040102110 (verify with distributor) |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Large residential ESS — whole-system measurement + main bank fusing in one module
- Marine yacht with Lynx system — organized whole-bank measurement
- Commercial backup power — telecom or small commercial 48V with Lynx distribution
- Larger off-grid homestead — integrated measurement and fuse
- Multi-string parallel banks — measures total current after combining at Lynx Power In
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. MEGA fuse for the main bank sold separately — sizing depends on your bank capacity and maximum continuous current.
