Victron Lynx Power In — DC Busbar with M8 Battery Connections (Lynx System)
Victron Lynx Power In — DC Busbar with M8 Battery Connections (Lynx System)
Couldn't load pickup availability

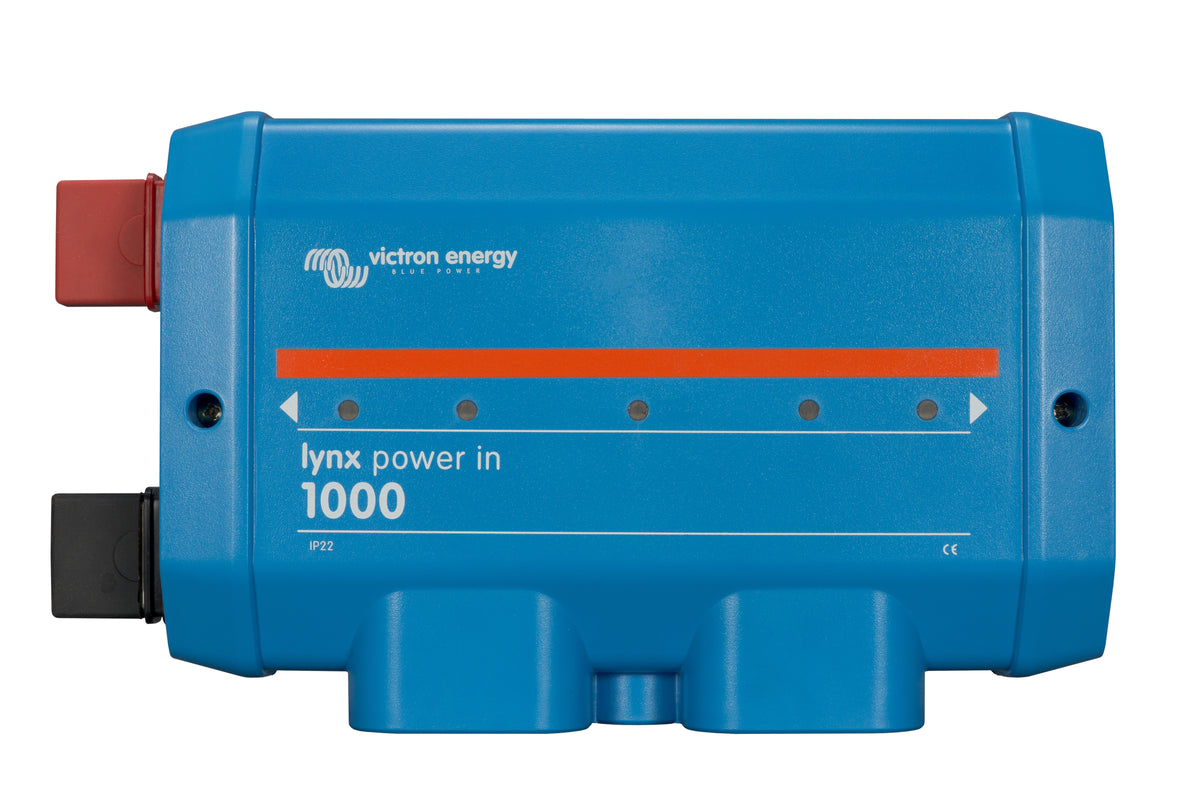

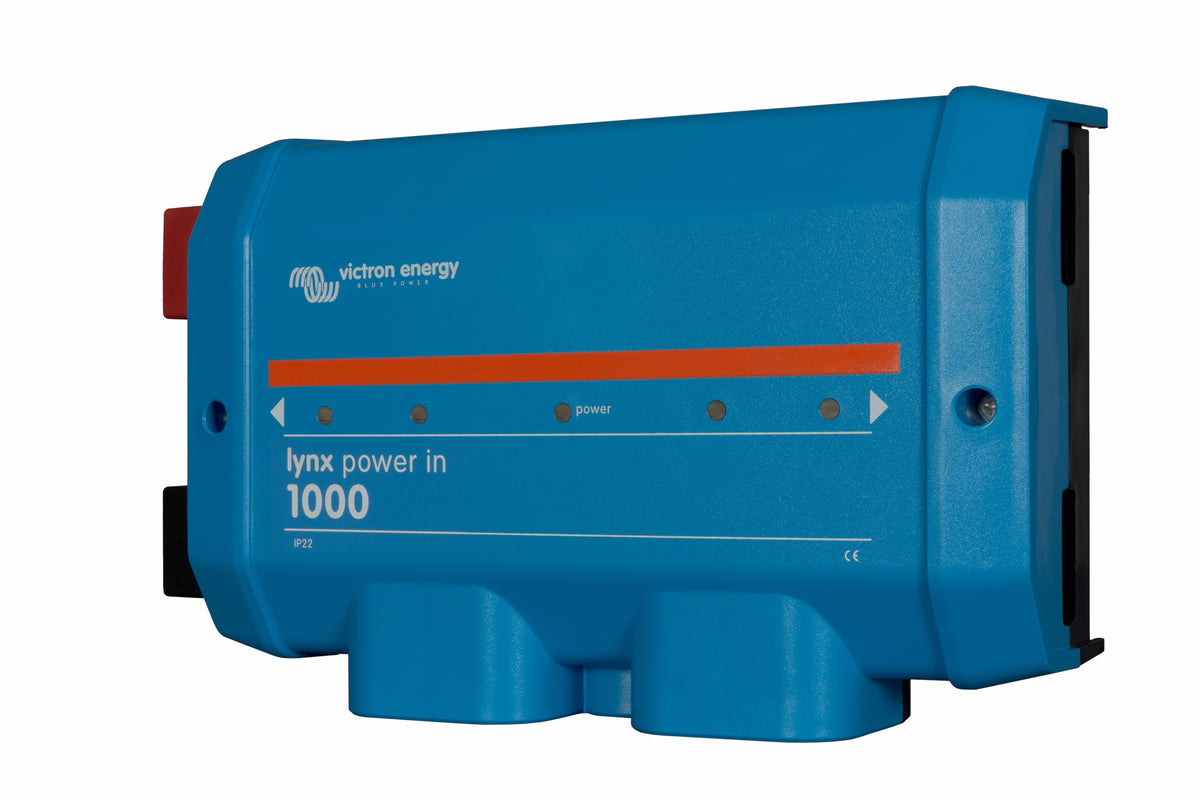

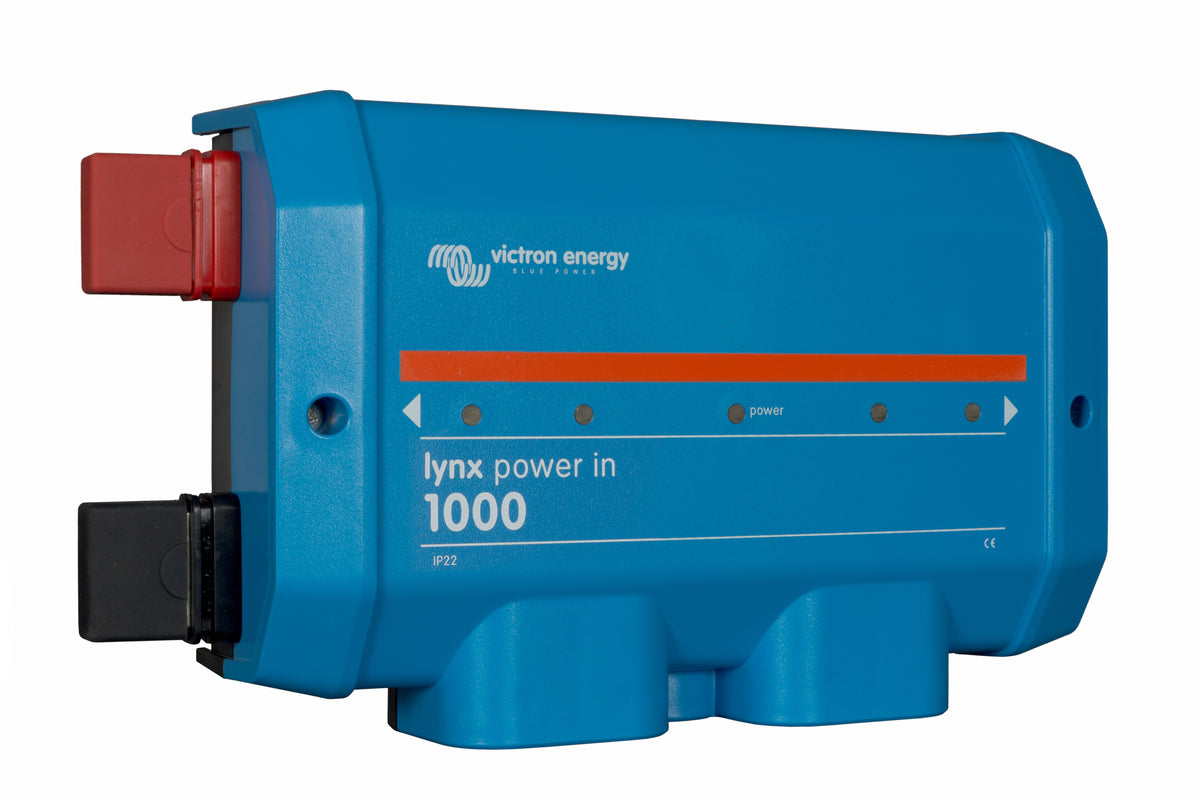

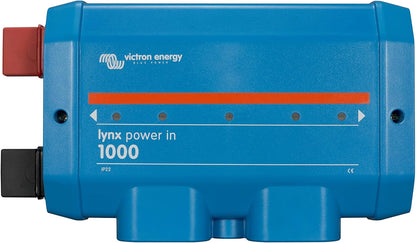

The Victron Lynx Power In is the entry module for Victron's modular DC distribution system — a high-current busbar with M8 bolt connections for joining multiple parallel battery strings into a single distribution point. Pairs with the Lynx Distributor and Lynx Shunt to build clean, professional, fuse-protected battery distribution systems.
What the Lynx System is
Victron's Lynx product family is a modular DC distribution kit. Instead of bolting battery cables and fuses together with whatever connectors you can find, you snap together purpose-built modules:
- Lynx Power In (this product) — entry point where battery strings connect
- Lynx Distributor — fused outputs to inverter, MPPT, DC loads
- Lynx Shunt — system-wide current measurement (replaces SmartShunt for whole-system metering)
- Lynx BMS — battery management for compatible LiFePO4 banks
Modules click together via positive and negative busbars, so installation is clean and inspection-friendly.
Why use a Lynx Power In
- Clean parallel battery string connection — multiple 12V/24V/48V strings combine at a single point
- M8 bolt connections — standardized, secure, code-compliant
- Modular design — snap into Lynx Distributor or Lynx Shunt for clean distribution
- High current rating — designed for whole-bank current up to 1000A
- Inspection-friendly — organized layout simplifies marine/electrical inspection
- Reduces wiring chaos — eliminates ad-hoc battery cable bundles
Specifications

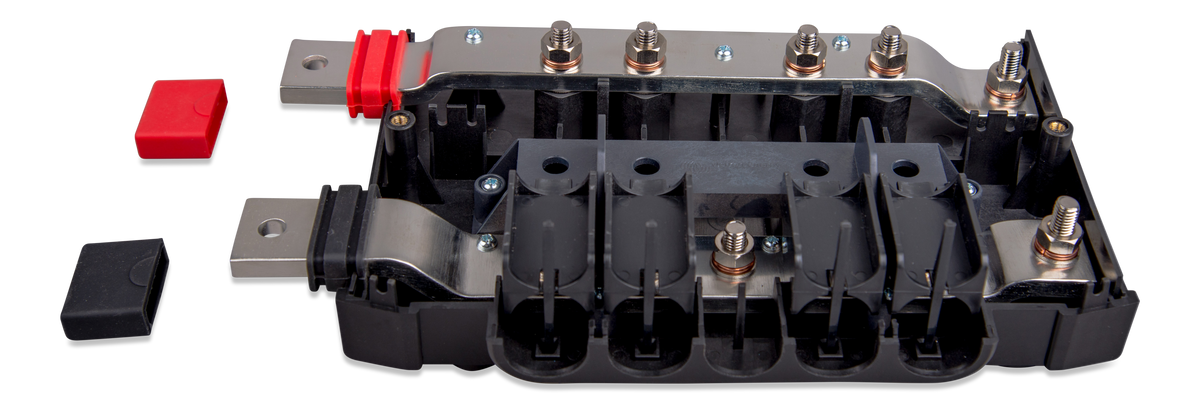

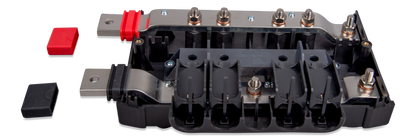

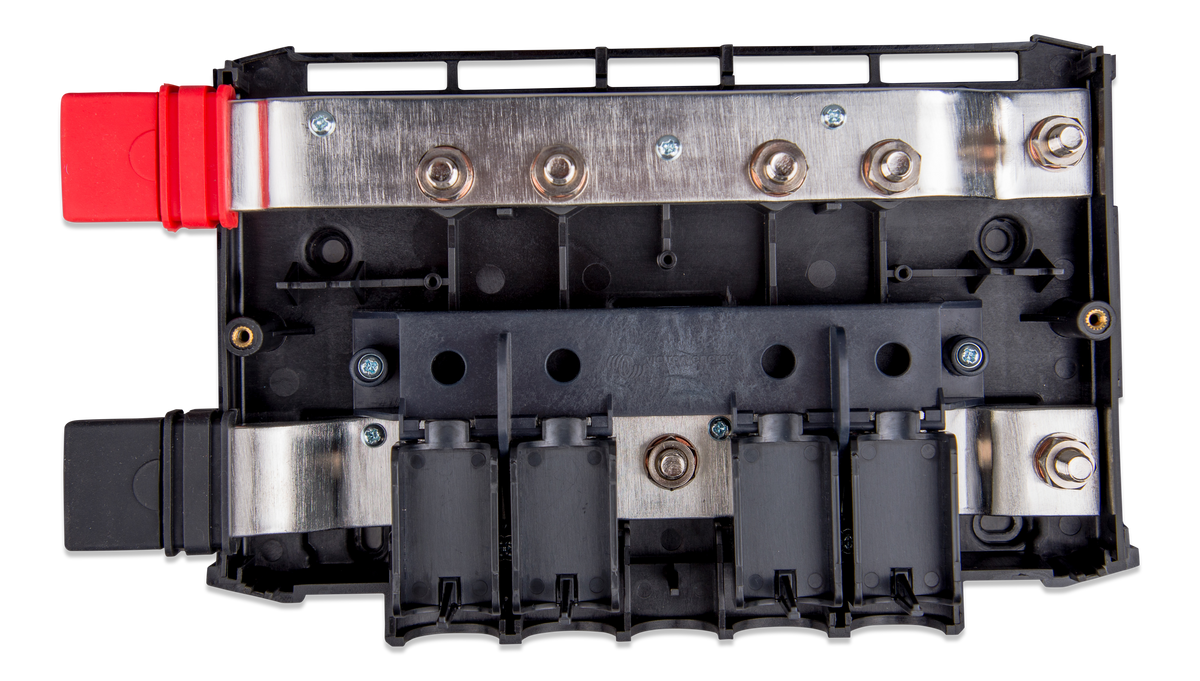

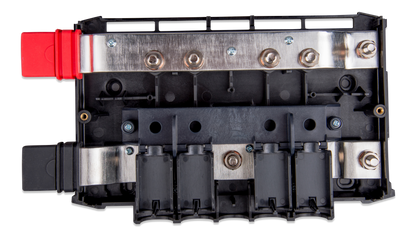

| Connection type | M8 bolts (battery side), modular busbar (system side) |
|---|---|
| Cable diameter capacity | Up to 22 mm via bottom guides; unlimited via side connections |
| System voltage | 12V, 24V, 48V compatible |
| Max continuous current | 1000A (system rating) |
| Compatible with | Lynx Distributor, Lynx Shunt, Lynx BMS |
| Mounting | Wall or panel mountable |
| Material | Robust molded enclosure, high-conductivity busbars |
| Manufacturer SKU | LYN020102000 (verify with distributor) |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Multi-battery-string off-grid systems — 4–8 strings of 48V LiFePO4 combined
- Residential ESS — clean rack-style battery distribution
- Marine multi-bank installs — organized house bank entry
- Commercial backup power — telecom, server, light industrial
- Larger RV with multiple parallel batteries — clean entry-point combiner
- Marine inspection — inspectors love the organized layout
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. The Lynx system is best designed end-to-end — send us your battery bank specs and intended distribution layout to support@jonssontech.net or call 346-574-9652 and we'll help configure all the modules you need.
