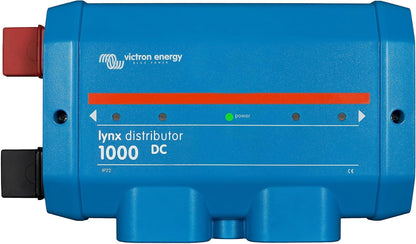

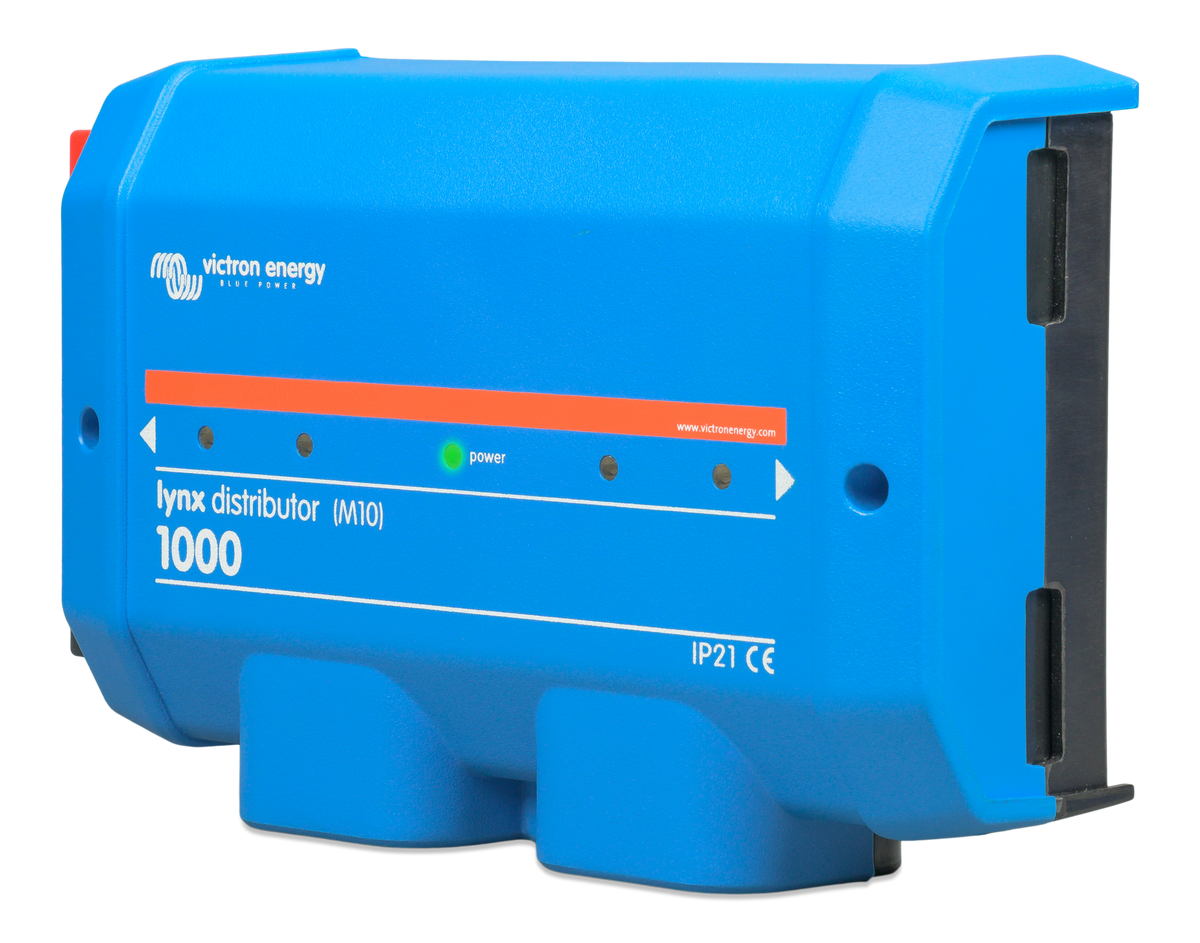

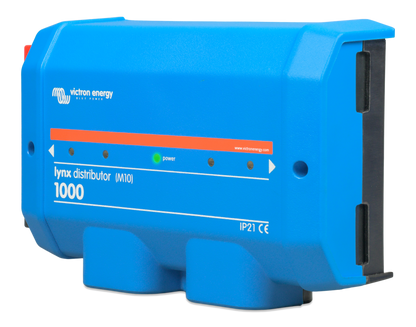

Victron Lynx Distributor M10 — Modular DC Distribution with 4 Fused Outputs (Lynx System)
Victron Lynx Distributor M10 — Modular DC Distribution with 4 Fused Outputs (Lynx System)
Regular price
$211.65
Regular price
Sale price
$211.65
Unit price
/
per
Couldn't load pickup availability
The Victron Lynx Distributor M10 is the distribution module of the Lynx system — four independently fused outputs to power your inverter/charger, MPPT, DC loads, or anything else that draws from the battery. Each output has its own MEGA fuse holder for code-compliant, clean, organized distribution.
What you connect to a Lynx Distributor
- Output 1 — typically the largest, feeds the MultiPlus / Quattro inverter/charger
- Output 2 — SmartSolar MPPT or other large charging source
- Output 3 — DC distribution panel (lights, fridge, pumps)
- Output 4 — auxiliary or future expansion

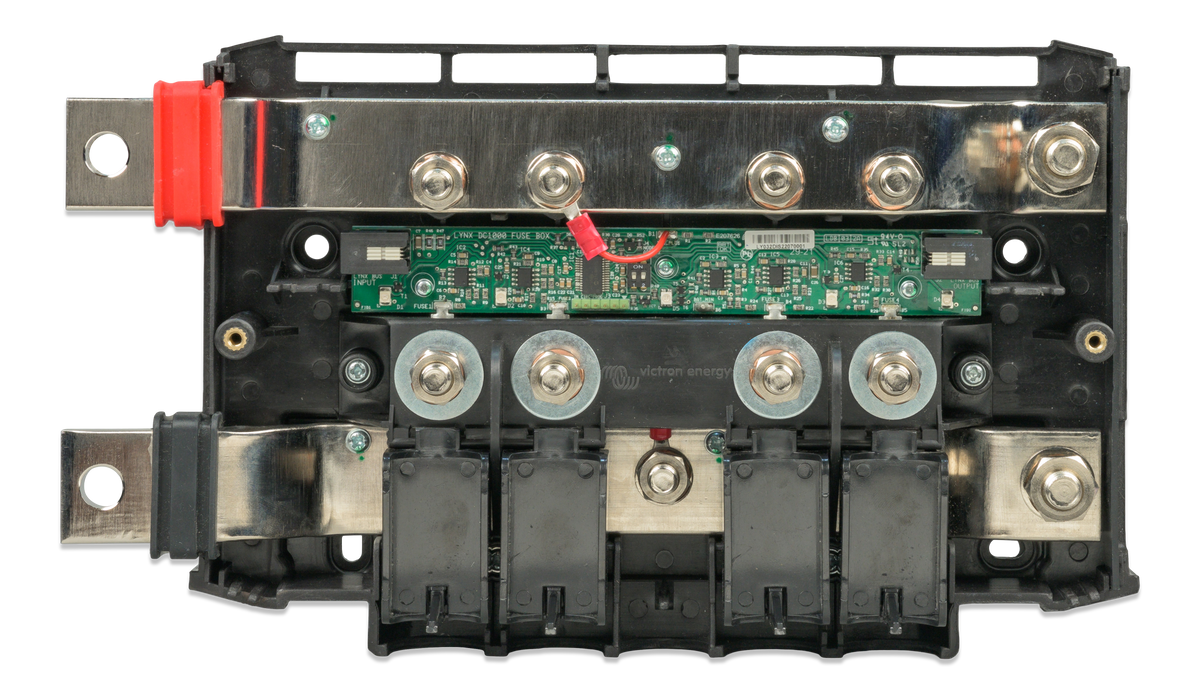

Each output is independently MEGA-fuse protected. If one circuit faults, the others stay live.
Why use a Lynx Distributor
- 4 independent fused outputs — organized, code-compliant distribution
- MEGA fuse holders built in — accept any MEGA fuse 50A–500A
- M10 bolt connections — heavy-duty for high-current cable
- Modular snap-fit — clicks into Lynx Power In or Lynx Shunt
- Inspection-friendly — clean professional layout for marine surveys and electrical inspections
- Reduces wiring chaos — no ad-hoc fuse blocks or distribution boards
- Visible fuse status — quick fault diagnosis
Specifications
| Number of outputs | 4 (independent) |
|---|---|
| Output fuse type | MEGA fuse holder (fuses sold separately) |
| Connection type | M10 bolts on each output, modular busbar on system side |
| System voltage | 12V, 24V, 48V compatible |
| Max continuous current per output | Per fuse rating (up to 500A MEGA) |
| Compatible with | Lynx Power In, Lynx Shunt, Lynx BMS |
| Mounting | Wall or panel mountable |
| Manufacturer SKU | LYN060102010 (verify with distributor) |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Marine main distribution — inverter + MPPT + house panel + bow thruster all fused
- Residential ESS — distribution to MultiPlus-II + MPPT + DC subpanel
- Larger off-grid — multi-load distribution from main bank
- Commercial backup — telecom rack distribution
- Sprinter conversion — clean DC distribution behind the panel
- Marine inspection — inspectors love the clear fuse layout
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. MEGA fuses sold separately — we stock the full range (60A through 500A).
