Victron GX Touch 50 — 5-Inch Waterproof Display for Cerbo GX (Touchscreen)

Victron GX Touch 50 — 5-Inch Waterproof Display for Cerbo GX (Touchscreen)

$220.15
$220.15
Sale Sold out

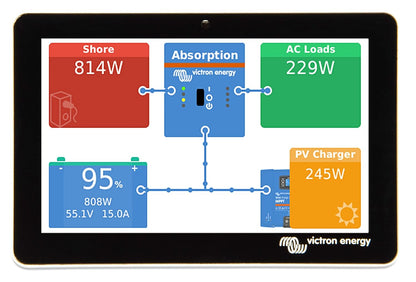

The Victron GX Touch 50 is the 5-inch waterproof touchscreen display designed specifically for the Cerbo GX — plug it into the Cerbo GX with the included HDMI and USB cables and you have a full panel-mountable touchscreen interface for your entire Victron system. No software setup, no networking config, no drivers — just plug and play.

What you can do with the GX Touch 50

  • Monitor battery state-of-charge, voltage, current, time-to-empty in real time
  • Watch solar production from each MPPT
  • See inverter/charger status (charging from shore, inverting, etc.)
  • View tank levels (with GX Tank 140 connected)
  • Check alarms and notifications
  • Configure system settings via touchscreen
  • Access VRM Portal remote monitoring locally
  • View energy flow diagrams (sources → loads → battery)

Why the GX Touch 50

  • 5-inch touchscreen — large enough to read at a glance, small enough to fit in a panel
  • Waterproof front bezel — IP65 from the front when properly panel-mounted
  • Plug-and-play with Cerbo GX — HDMI + USB cables included
  • No external power needed — USB-powered from the Cerbo GX

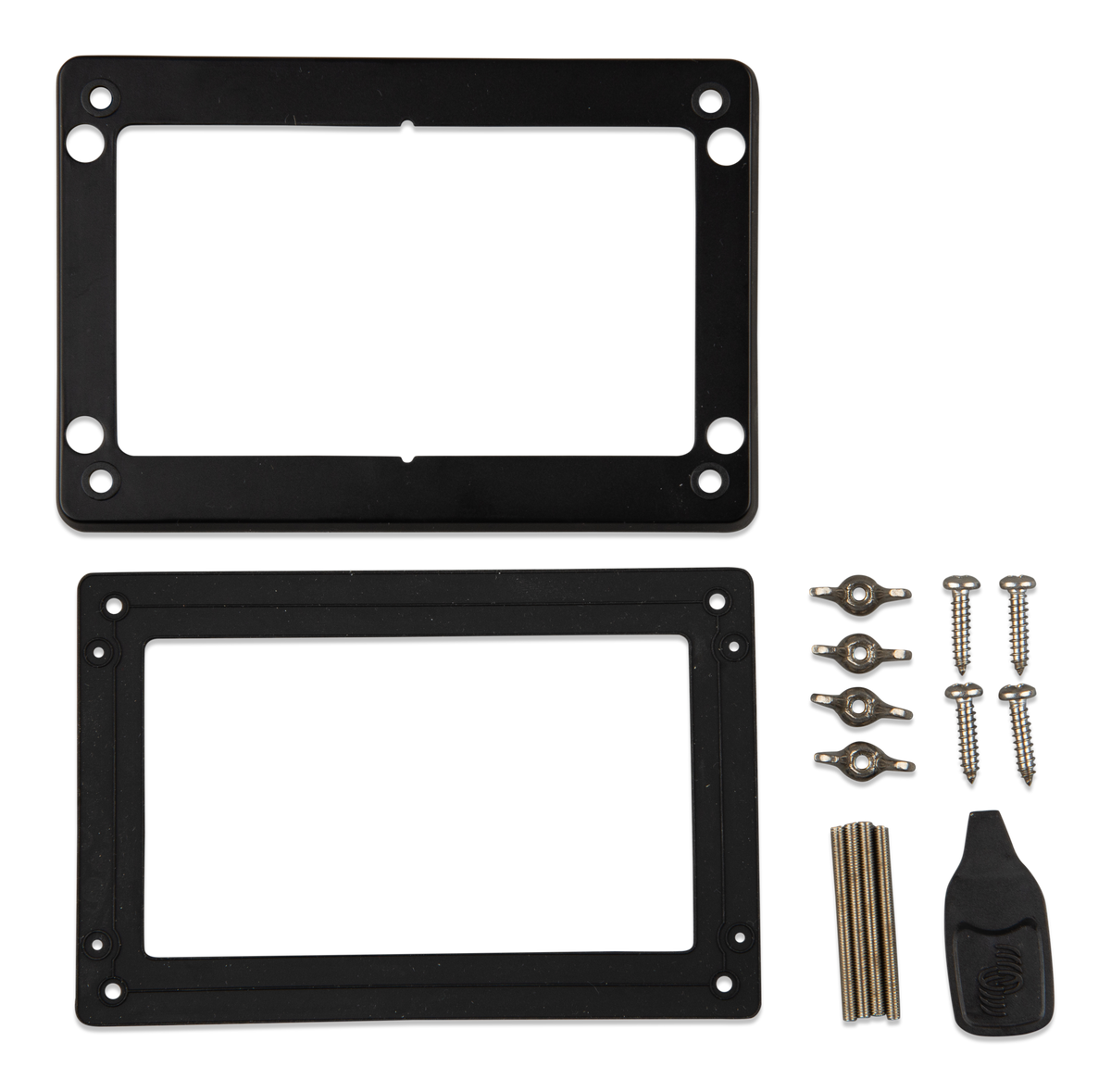

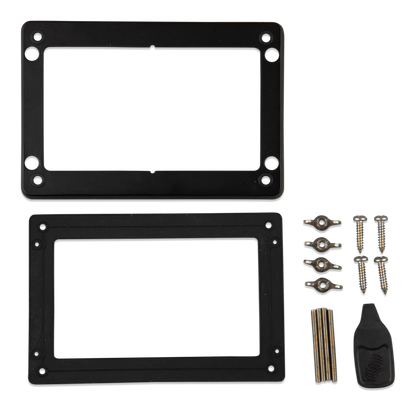

  • Panel or surface mount — included mounting kit supports both
  • Sunlight-readable — wide viewing angle, bright backlight
  • Multi-touch capacitive screen — responsive like a phone, not a resistive screen
  • 5-year warranty

What it requires

The GX Touch 50 is a display only — it doesn't work standalone. You need a Cerbo GX or Cerbo GX MK2 to connect it to. The Cerbo GX is the brain of the Victron system; the GX Touch is the screen for that brain.

Specifications

Display size 5 inch (127 mm)
Resolution 800 × 480 pixels
Touch Multi-touch capacitive
Brightness Sunlight-readable
Front IP rating (panel mounted) IP65
Connection to Cerbo GX HDMI (video) + USB (power and touch)
Cables included 2m HDMI + 2m USB
Compatible with Cerbo GX, Cerbo GX MK2
Power consumption ~5W (USB-powered)
Operating temperature -20°C to +60°C

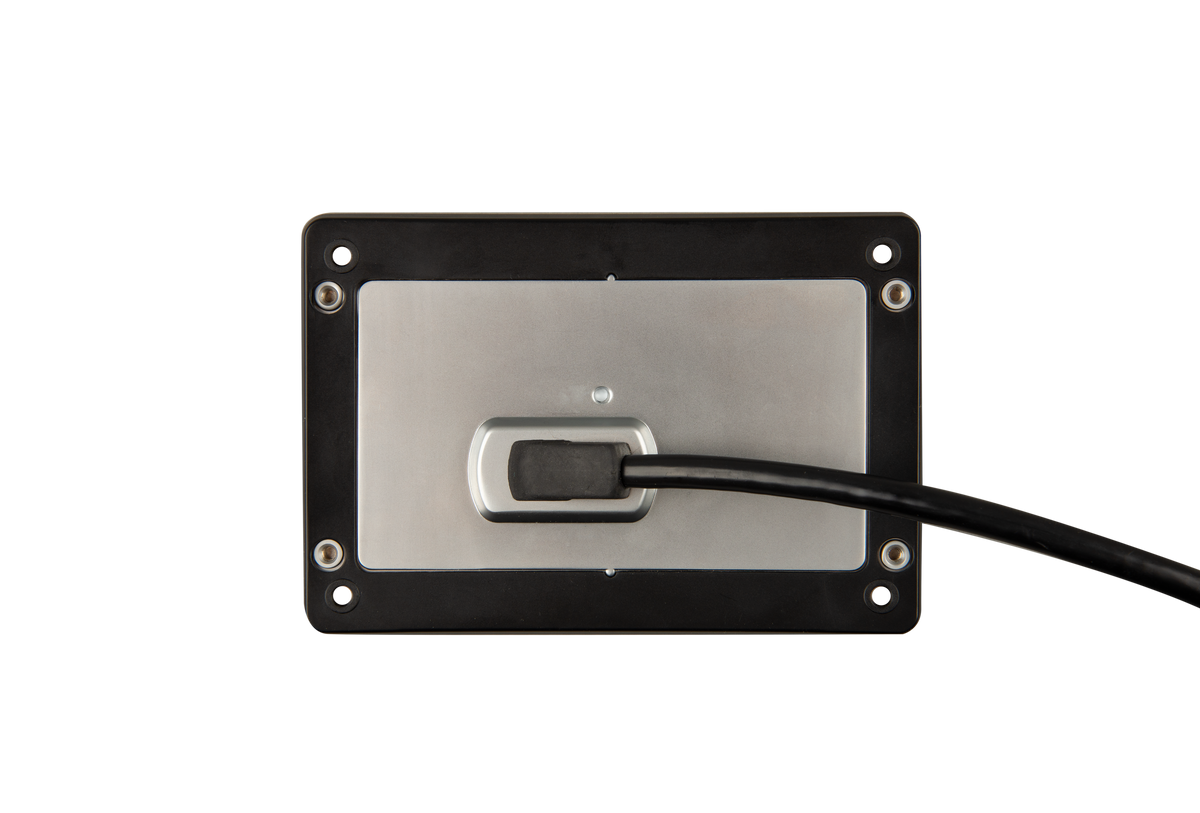

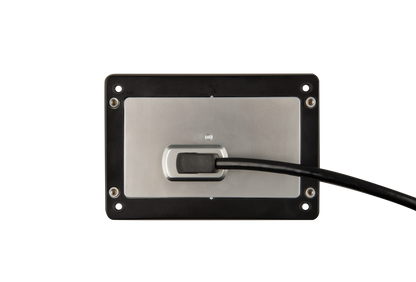

Mounting Panel cutout (front mount) or surface mount (back mount)
Manufacturer SKU BPP900455050
Warranty 5 years (manufacturer)

Recommended applications

  • Marine helm — sailboat or powerboat nav station with full system view
  • RV control panel — single-display for solar + battery + inverter status
  • Off-grid cabin entryway — panel-mounted display showing system status at a glance
  • Commercial mobile — surveillance trailer with operator-visible display
  • Engine room / mechanical room — IP65 front face survives the environment
  • Workshop / mechanical bench — dedicated display for the Victron install

Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse.
