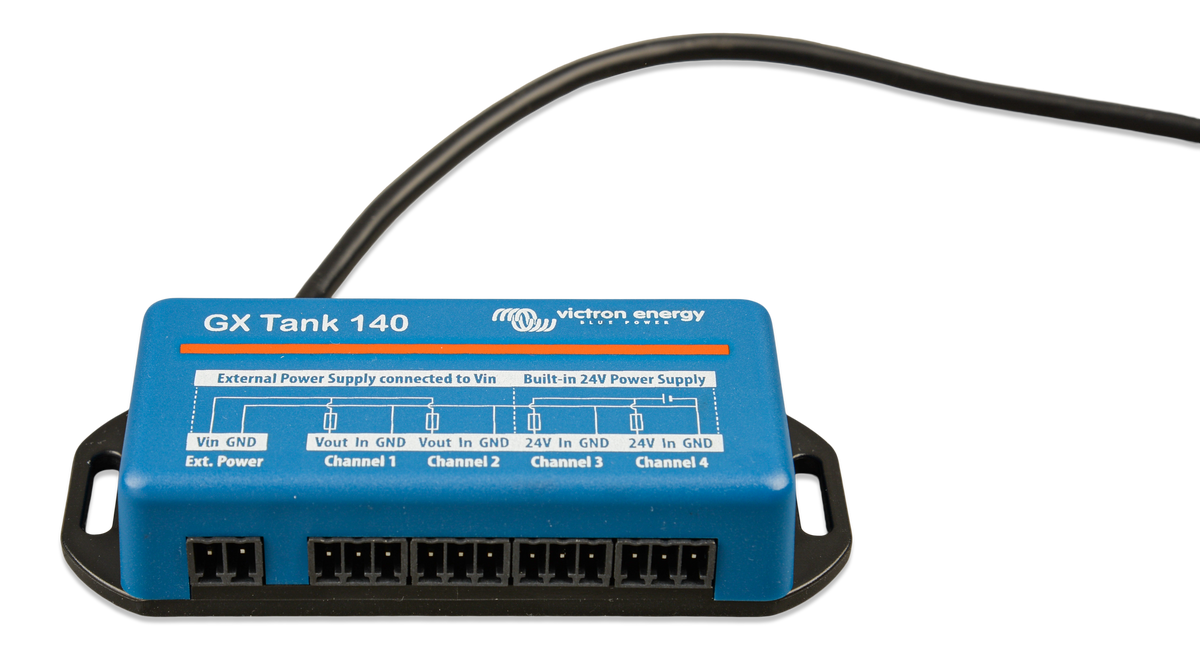

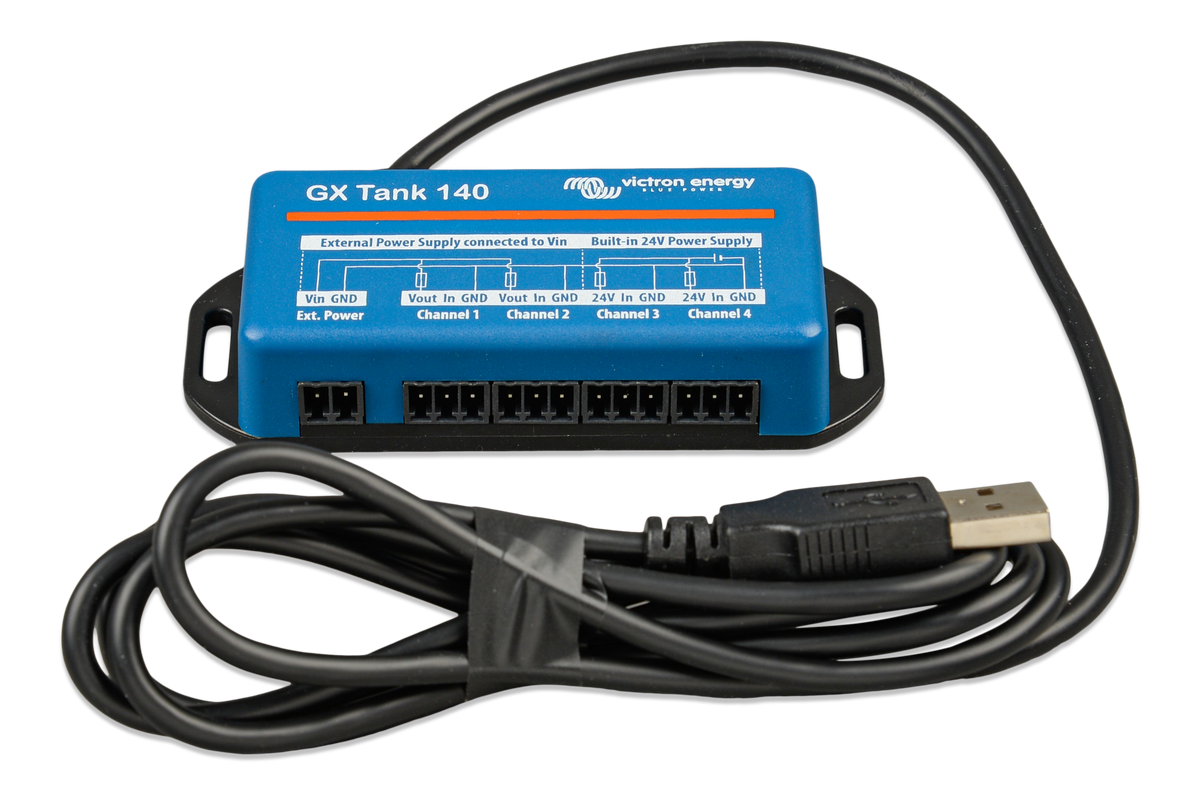

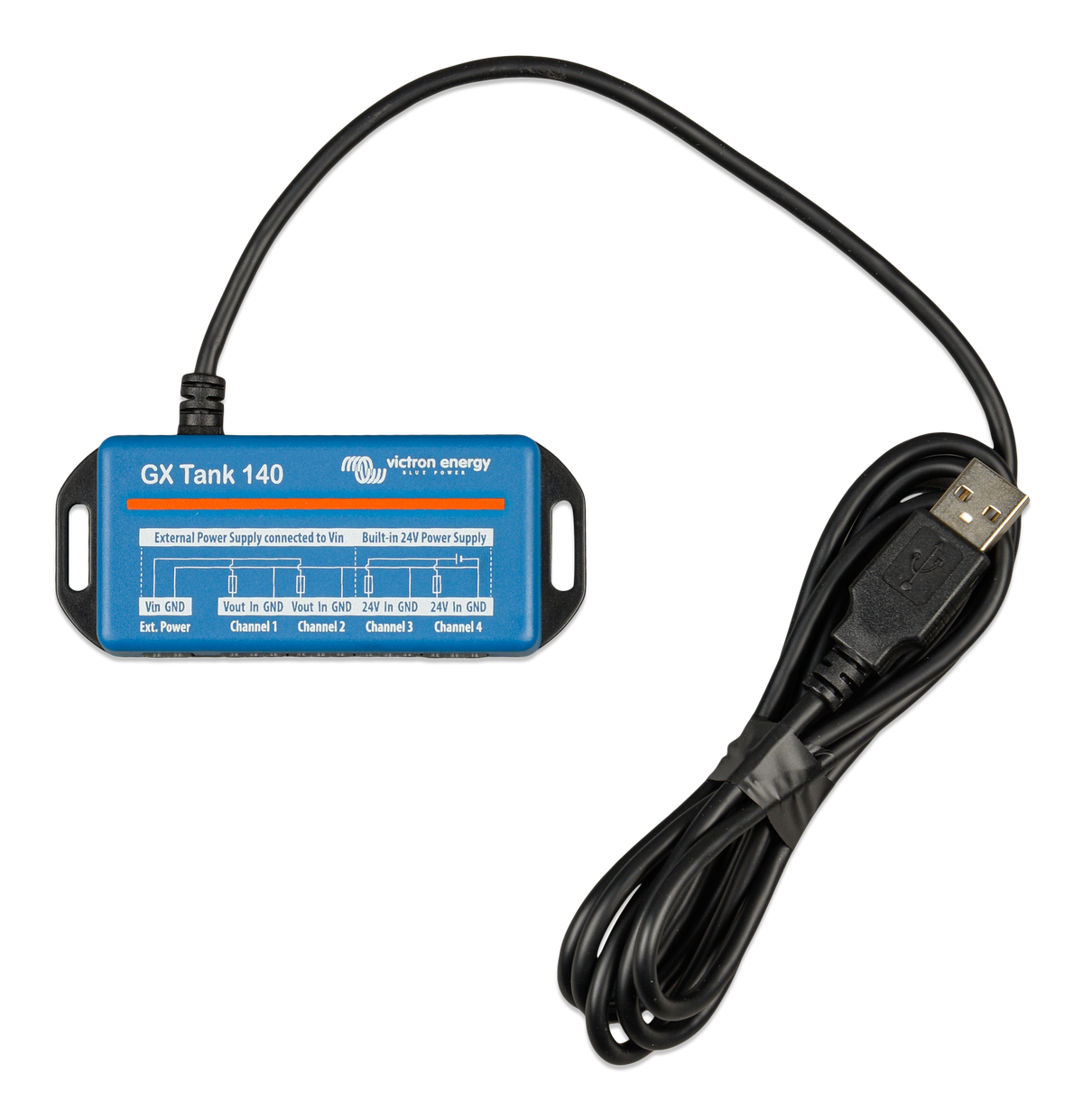

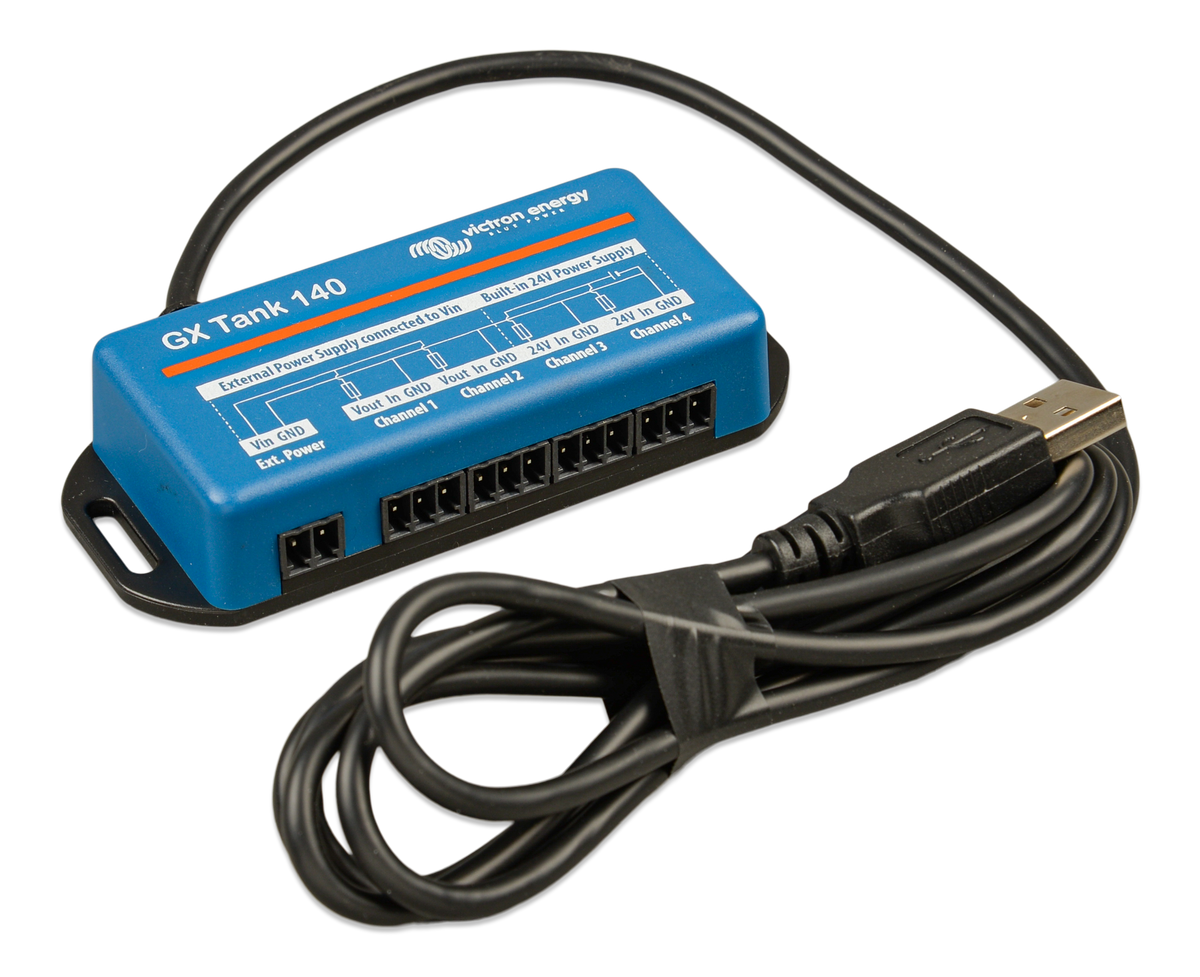

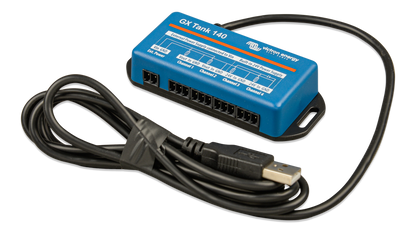

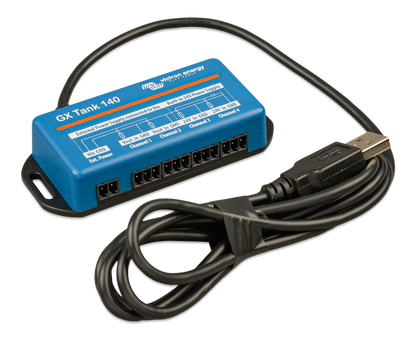

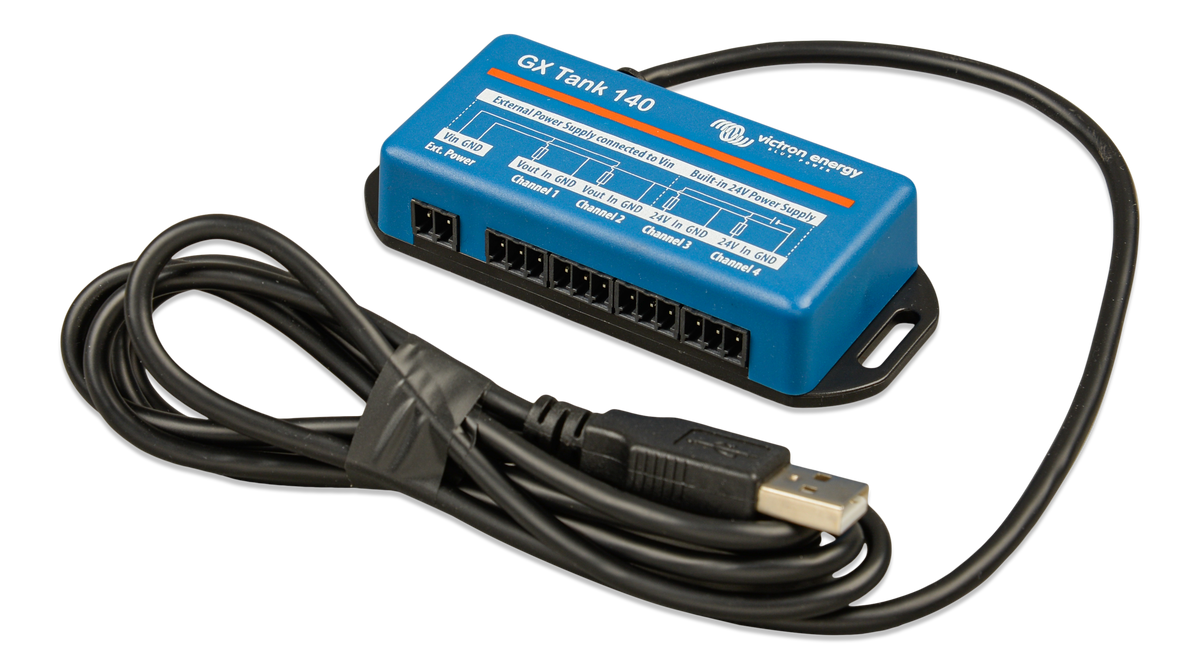

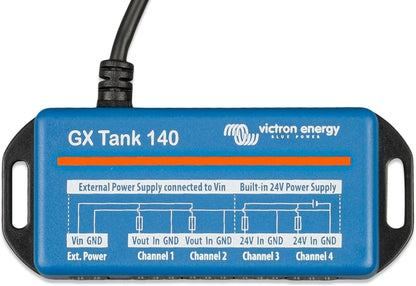

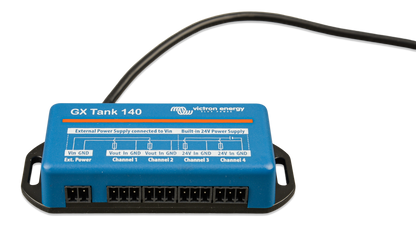

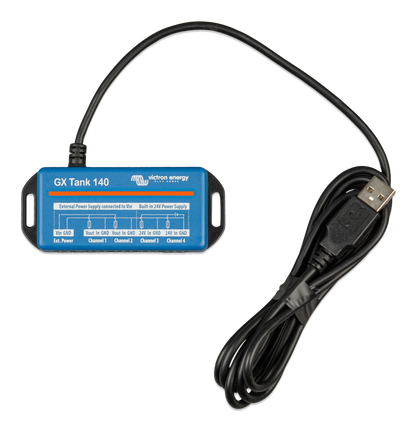

Victron GX Tank 140 — 4-Channel Tank Level Sensor Interface for Cerbo GX
Victron GX Tank 140 — 4-Channel Tank Level Sensor Interface for Cerbo GX
Couldn't load pickup availability
The Victron GX Tank 140 turns your Cerbo GX into a complete tank monitoring system — connect up to four tank level senders (fresh water, gray water, black water, fuel, propane, etc.) and view them live in the VictronConnect app, on a GX Touch display, or remotely via VRM Portal.
Works with industry-standard 4–20 mA current senders and 0–10 V voltage senders from manufacturers like Wema, KUS, Centroid, and Gobius. Two channels also provide 24V sender power so you don't need an external power supply for most installs.
Why the GX Tank 140
- Four independent channels — fresh, gray, black, and fuel on a single device. Each channel is independently configurable.
- Two sender types supported — 4–20 mA (industry standard for marine and RV) and 0–10 V (some industrial and older senders).
- Built-in 24V sender power — channels 1 and 2 power the sender directly. Channels 3 and 4 use an external supply via the included power-in terminal with fused outputs.
- Adjustable scaling — upper and lower limits configurable per channel for senders that only output partial scale (e.g., 0.5–4.5 V).
- Reading damping — averages readings over 1–60 seconds to eliminate slosh-induced jitter on moving vehicles or boats.
- Sender fault detection — raises an alarm in VRM/VictronConnect when a sender reads out of range (broken wire, failed sensor, short).
- VRM Portal integration — tank levels appear on your remote dashboard alongside battery and solar data.
What's in the box
- GX Tank 140 module
- VE.Can to RJ45 connection cable
- Pluggable terminal connectors
- Mounting hardware
Specifications
| Tank channels | 4 (independently configurable) |
|---|---|
| Compatible sender types | 4–20 mA (current loop), 0–10 V (voltage) |
| Sender power (channels 1 & 2) | 24V provided by device |
| Sender power (channels 3 & 4) | External 24V required (power-in terminal with fused outputs) |
| Connection to GX device | USB or VE.Can |
| Compatible GX devices | Cerbo GX, Cerbo-S GX, Cerbo GX MK2, Color Control GX, Venus GX, Ekrano GX |
| Scaling | Adjustable upper and lower limit per channel |
| Damping | Configurable 1–60 seconds |
| Alarm | Yes, on out-of-range sender reading |
| Power consumption | ~50 mA at 12V (sender dependent) |
| Enclosure | Wall or panel mountable |
| Operating temperature | -20°C to +50°C (-4°F to +122°F) |
| Manufacturer SKU | BPP920140100 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- RV / Motorhome — fresh water, gray, black, and propane tanks all on a single Cerbo GX dashboard
- Marine — fuel tank(s), fresh water, holding tank, hydraulic reservoir
- Off-grid cabin — water cistern, septic, propane, diesel for backup generator
- Tiny home / van conversion — fresh and gray water levels visible from your phone or wall display
- Commercial fleet — fuel monitoring on multiple service vehicles via VRM
Need a different sender type?
The GX Tank 140 handles 4–20 mA and 0–10 V senders, which covers most modern marine and RV equipment. If you have resistive senders (typical of older boats — 10–180 Ω or 240–33 Ω), you'll need either a resistive-to-voltage converter or a different interface. Call us before you buy and we'll confirm compatibility with your existing sender.
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase compatibility check — call 346-574-9652 or email support@jonssontech.net with your sender model numbers and we'll verify before you order.
