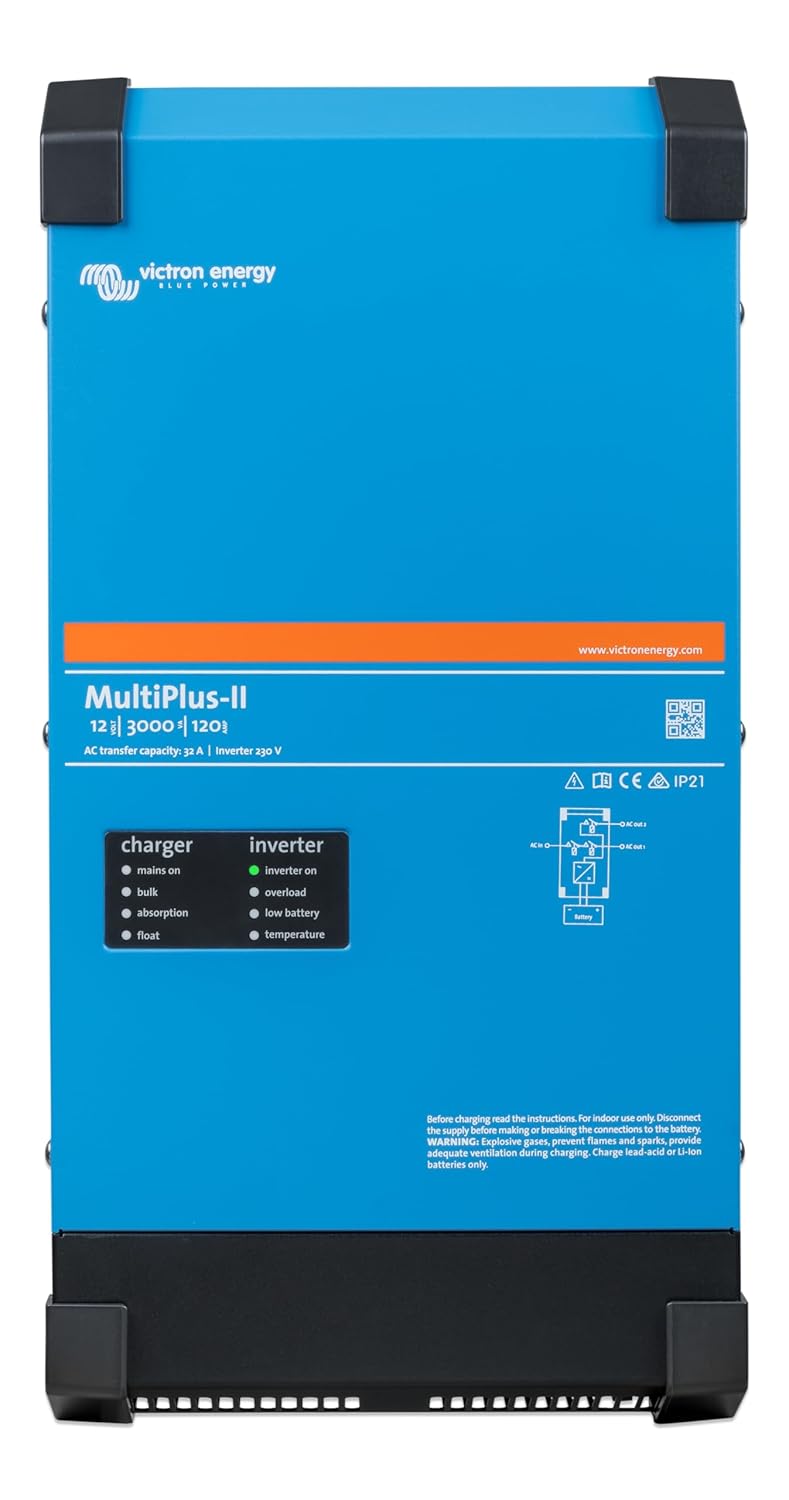

Victron MultiPlus-II 12/3000/120-50 120V Inverter/Charger — Pure Sine Wave, 120A Charger (12V)
Victron MultiPlus-II 12/3000/120-50 120V Inverter/Charger — Pure Sine Wave, 120A Charger (12V)
Couldn't load pickup availability
The Victron MultiPlus-II 12/3000/120-50 120V is the go-to 12V inverter/charger for RVs, vans, boats, and off-grid cabins — 3000VA of pure sine wave output, a powerful 120A multi-stage battery charger, and a 50A transfer switch in one unit. It combines the features of the MultiPlus and MultiGrid lines, with an external current transformer option for PowerControl/PowerAssist with external current sensing (max. 32A) and built-in anti-islanding.
Key features
- PowerAssist — prevents overload of a limited AC source such as a generator or shore power connection by adding inverter power when loads peak.
- Uninterrupted power — if grid, shore, or generator power fails, the inverter takes over the connected loads within 20 milliseconds.
- Scalable — up to 6 units in parallel for higher output; three units can be configured for three-phase output.
- VE.Bus — integrates with Cerbo GX for full remote monitoring via Victron VRM.
- 120A adaptive charger — charges lithium (LiFePO4), AGM, gel, and flooded banks with configurable charge profiles via VictronConnect.
Specifications
| Model | MultiPlus-II 12/3000/120-50 120V |
| Battery voltage | 12V (DC input range 9.3–17V) |
| Continuous output | 3000VA / 2400W at 25°C |
| Peak power | 5500W |
| AC output | 120VAC, 60Hz, pure sine wave |
| Battery charger | 120A, adaptive multi-stage |
| Transfer switch | 50A |
| Max efficiency | 93% |
| Zero-load power | 20W (11W in AES mode) |
| Communication | VE.Bus |
| Dimensions (H×W×D) | 506 × 275 × 147 mm (19.9 × 10.8 × 5.8 in) |
| Weight | 19 kg (41 lb) |
Why buy from Jonsson Tech
We're an authorized Victron Energy distributor in Houston, Texas. Every order ships nationwide within 5 days and includes free system design help — send us your battery bank, panel array, and load list and we'll confirm this is the right unit before you buy. Questions? Call 346-574-9652.
