Victron Cerbo GX MK2 — Communication & Monitoring Center for Victron Systems

Victron Cerbo GX MK2 — Communication & Monitoring Center for Victron Systems

Regular price $272.85
Regular price Sale price $272.85
Sale Sold out
Shipping calculated at checkout.

The Victron Cerbo GX MK2 is the brain of any serious Victron system — a centralized communication hub that connects all your Victron devices (MultiPlus, Quattro, SmartSolar MPPT, SmartShunt, BMV, BatteryProtect, etc.), aggregates their data, and exposes it via the VRM (Victron Remote Monitoring) portal, VictronConnect app, and optional GX Touch displays. The single piece that turns a collection of Victron devices into a coordinated system.

The MK2 supersedes the original Cerbo GX and is a drop-in replacement. Same enclosure, mounting and software, with hardware fixes to the ports: both VE.Can ports now work fully (VE.Can 1 is galvanically isolated), all three USB ports are usable, and the digital inputs support pulse counting. Victron no longer builds the original, so this is the current part.

Need more processing power? For heavy Node-RED or Signal K use, or systems with more than 15 VE.Direct devices, see the Cerbo GX MK3 — same ports, with a processor three to four times faster. For most RV, van, boat and cabin systems, the MK2 is all you need.

What the Cerbo GX MK2 does for you

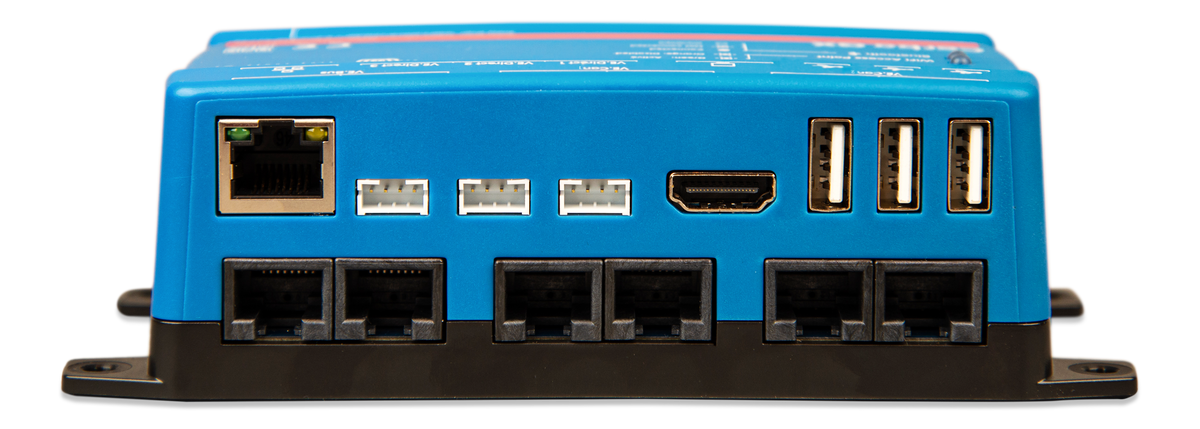

  • Connects everything — VE.Bus inverter/chargers, VE.Direct devices (MPPTs, SmartShunt, BMV), VE.Can devices (large MPPTs, RS series), USB peripherals
  • VRM Portal access — monitor your system from anywhere in the world via Victron's cloud portal
  • Push notifications — alarms for low battery, high temperature, grid loss, etc.
  • Historical data — stores months of solar production, battery cycles, AC consumption
  • Generator auto-start — with appropriate hardware, automate generator runs based on SoC
  • ESS mode — enables grid-tied energy storage system features on MultiPlus-II
  • 3rd-party integration — NMEA 2000 for marine plotters, ModBus for industrial
  • Tank monitoring — 4 built-in resistive tank inputs, more with the GX Tank 140 (sold separately)
  • Temperature sensors — multiple battery temperature monitoring
  • GX Touch ready — plug in a GX Touch 50 or 70 for local display
  • Two working VE.Can ports — run a Lynx Smart BMS or CAN battery on one network and RV-C or NMEA 2000 on the other

Upgrading from an original Cerbo GX

If you already run an original Cerbo GX it will keep working and keep receiving firmware for some time yet — there is no need to replace a healthy unit. When you do replace it, the MK2 drops straight in: unplug the cables, mount the new unit, plug them back in, and restore your VRM site. Your historical VRM data stays with the site, not the hardware.

What's in the box

  • Cerbo GX MK2 unit
  • Power cable (with screw terminals)
  • Mounting brackets
  • Quick-start guide

Note: GX Touch display, VE.Direct cables, and Ethernet cable sold separately as needed.

Specifications

Power supply input 8–70 VDC (use battery bank or auxiliary 12V supply)
Self-consumption 2.8 W at 12 V (without GX Touch)
Processor Allwinner A20, 2 × Cortex-A7 @ 1.2 GHz, 1 GB DDR3
Connectivity Wi-Fi, Ethernet, Bluetooth
VE.Direct ports 3 (up to 15 VE.Direct devices in total)
VE.Can ports 2 (VE.Can 1 galvanically isolated)
VE.Bus ports 1 (for MultiPlus/Quattro)
USB ports 3 host ports (for GX Tank 140, GPS, etc.)
Tank inputs 4 resistive (0–5V/4–20mA via GX Tank 140)
Temperature inputs 4
Digital inputs 4 (with pulse counting)
Relay outputs 2 (for generator start, alarm horn, etc.)
HDMI out Yes (for GX Touch display)
Operating temperature -20°C to +50°C
Mounting Wall mount, or DIN rail with the DIN35 adapter
Manufacturer SKU BPP900450110 (also sold as BPP900451100 — identical unit, different factory)
Warranty 5 years (manufacturer)

Recommended applications

  • Residential solar + battery system — the standard choice for most installs
  • RV / motorhome — central monitoring of all Victron devices in the coach
  • Marine yacht / sailboat — helm + nav station integration via NMEA 2000
  • Off-grid cabin — remote monitoring via VRM Portal from anywhere
  • Backup power for small business — alerts and historical data on the battery system
  • Small commercial telecom — remote monitoring of 48V system
