Victron Energy

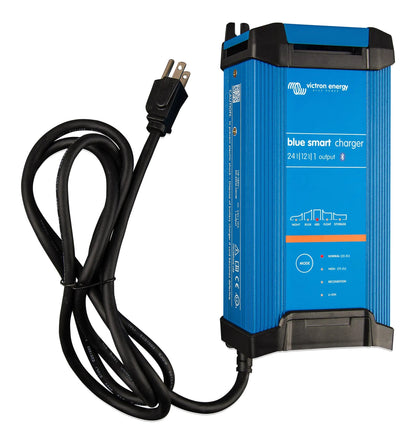

Victron Blue Smart IP22 Charger 24/12 (1 Output) — 120V NEMA 5-15, 24V Bluetooth Smart Charger
Victron Blue Smart IP22 Charger 24/12 (1 Output) — 120V NEMA 5-15, 24V Bluetooth Smart Charger
Regular price
$179.35
Regular price
Sale price
$179.35
Unit price
/
per
Couldn't load pickup availability
The Victron Blue Smart IP22 Charger 24/12 (1 Output) is the compact 24V version of the IP22 charger family — 12A multi-stage charging for 24V battery banks, built-in Bluetooth, single isolated output. The right pick for 24V sailboats and 24V off-grid systems with smaller battery banks (50–150Ah at 24V).
What 12A charges (at 24V)
- 100Ah AGM/lead-acid 24V bank — ~8 hours from depleted to full
- 150Ah AGM/lead-acid 24V bank — ~12 hours from depleted
- 200Ah LiFePO4 24V bank — ~17 hours (gentle charging extends cycle life)
- Maintenance / storage — perfect for keeping any 24V bank topped off
Why 24V vs 12V chargers?
If your battery bank is 24V (typical on sailboats, larger marine, commercial mobile platforms), you need a 24V charger. A 12V charger won't work for a 24V bank — the output voltage is too low. Choose this 24V/12A charger for smaller 24V banks; step up to the 24/16 for mid-size banks.
Why the Blue Smart IP22 24/12
- 24V multi-stage adaptive charging — 7-step algorithm tuned for 24V banks
- Built-in Bluetooth — monitor from your phone via VictronConnect
- Universal battery compatibility — AGM, Gel, Flooded, LiFePO4 (12.8V x 2 = 25.6V LiFePO4)
- Automatic battery detection
- Power supply mode — 27.6V constant output when not charging
- VE.Smart Networking
- NEMA 5-15 cord included
- 5-year warranty
Specifications
| AC input voltage | 120V ± 10%, 50/60Hz |
|---|---|
| AC input cord | NEMA 5-15 (included) |
| Charge output current | 12A |
| Number of outputs | 1 (single output) |
| Battery voltage | 24V |
| Charge algorithm | 7-stage adaptive |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable) |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Smart Networking | Yes |
| Power supply mode | Yes (27.6V constant output) |
| Temperature compensation | Yes (built-in sensor) |
| Enclosure rating | IP22 (indoor / dry mounting) |
| Cooling | Variable-speed fan |
| Operating temperature | -30°C to +50°C (full power up to 30°C) |
| Manufacturer SKU | BPC241245102 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Small sailboat with 24V house bank — dock-side charging
- 24V off-grid backup — small system shore/generator charging
- Commercial 24V (small) — surveillance trailer, small work platform
- Storage / maintenance — keep 24V bank topped between uses
- Heavy-duty truck (24V chassis) auxiliary battery — shop charging
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse.
