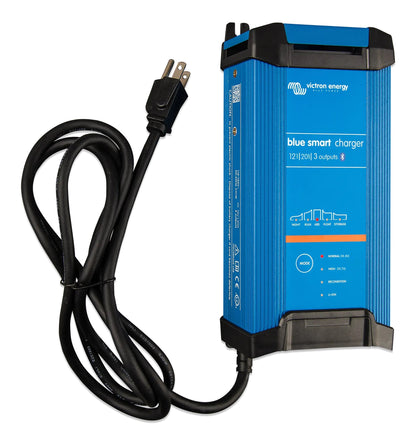

Victron Blue Smart IP22 Charger 12/20 (3 Outputs) — 120V NEMA 5-15, Bluetooth Marine Charger
Victron Blue Smart IP22 Charger 12/20 (3 Outputs) — 120V NEMA 5-15, Bluetooth Marine Charger
Regular price
$197.20
Regular price
Sale price
$197.20
Unit price
/
per
Couldn't load pickup availability
The Victron Blue Smart IP22 Charger 12/20 (3 Outputs) is the 3-output version of the 20A IP22 smart battery charger — 20A multi-stage charging across three independent isolated outputs for charging three separate 12V battery banks simultaneously. The right pick for larger marine installs with multiple banks.
The 3-output advantage
Most cruising boats have multiple battery banks:
- Output 1 — main house bank (largest, typically AGM or LiFePO4)
- Output 2 — engine starter battery (AGM or flooded)
- Output 3 — bow thruster, windlass, or generator starter
Each output is isolated — a discharged house bank can't drain a charged starter. The charger distributes the 20A total dynamically based on which output needs current.
3 Output vs 1 Output — which one?
| 3 Output (this model) | 1 Output | |
|---|---|---|
| SKU | BPC122046102 | BPC122045102 |
| Charging outputs | 3 (isolated, simultaneous) | 1 (single bank) |
| Best for | Boats with multiple banks | RV, cabin, single-bank installs |
| Price | $197.20 | $175.95 |
Why the Blue Smart IP22 12/20 (3 Outputs)
- 3 isolated outputs — simultaneous charging of multiple banks
- 20A total charge current — distributed dynamically based on demand
- Multi-stage adaptive charging — 7-step independent on each output
- Different battery chemistry per output — e.g., AGM starter + LiFePO4 house
- Bluetooth monitoring — see all 3 outputs in VictronConnect
- VE.Smart Networking — coordinates with SmartShunt and SmartSolar
- NEMA 5-15 cord included
- 5-year warranty
Specifications
| AC input voltage | 120V ± 10%, 50/60Hz |
|---|---|
| AC input cord | NEMA 5-15 (included) |
| Charge output current (total) | 20A |
| Number of outputs | 3 (isolated) |
| Battery voltage | 12V |
| Charge algorithm | 7-stage adaptive (independent per output) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable per output) |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Smart Networking | Yes |
| Enclosure rating | IP22 (indoor / dry mounting) |
| Cooling | Variable-speed fan |
| Operating temperature | -30°C to +50°C (full power up to 30°C) |
| Manufacturer SKU | BPC122046102 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Cruising sailboat / motor yacht — multiple banks need simultaneous charging at the dock
- Trawler with generator starter — keep all 3 banks topped while plugged in
- Marine commercial — charter boats with redundant starting systems
- RV with chassis + house + slide — separate banks managed simultaneously
- Hybrid powerboat — separate banks for propulsion and house
