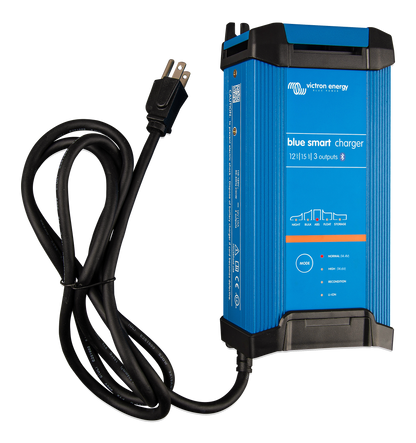

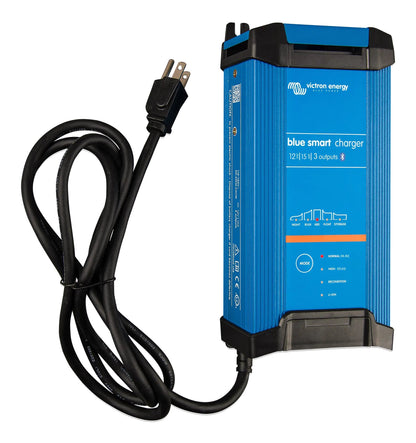

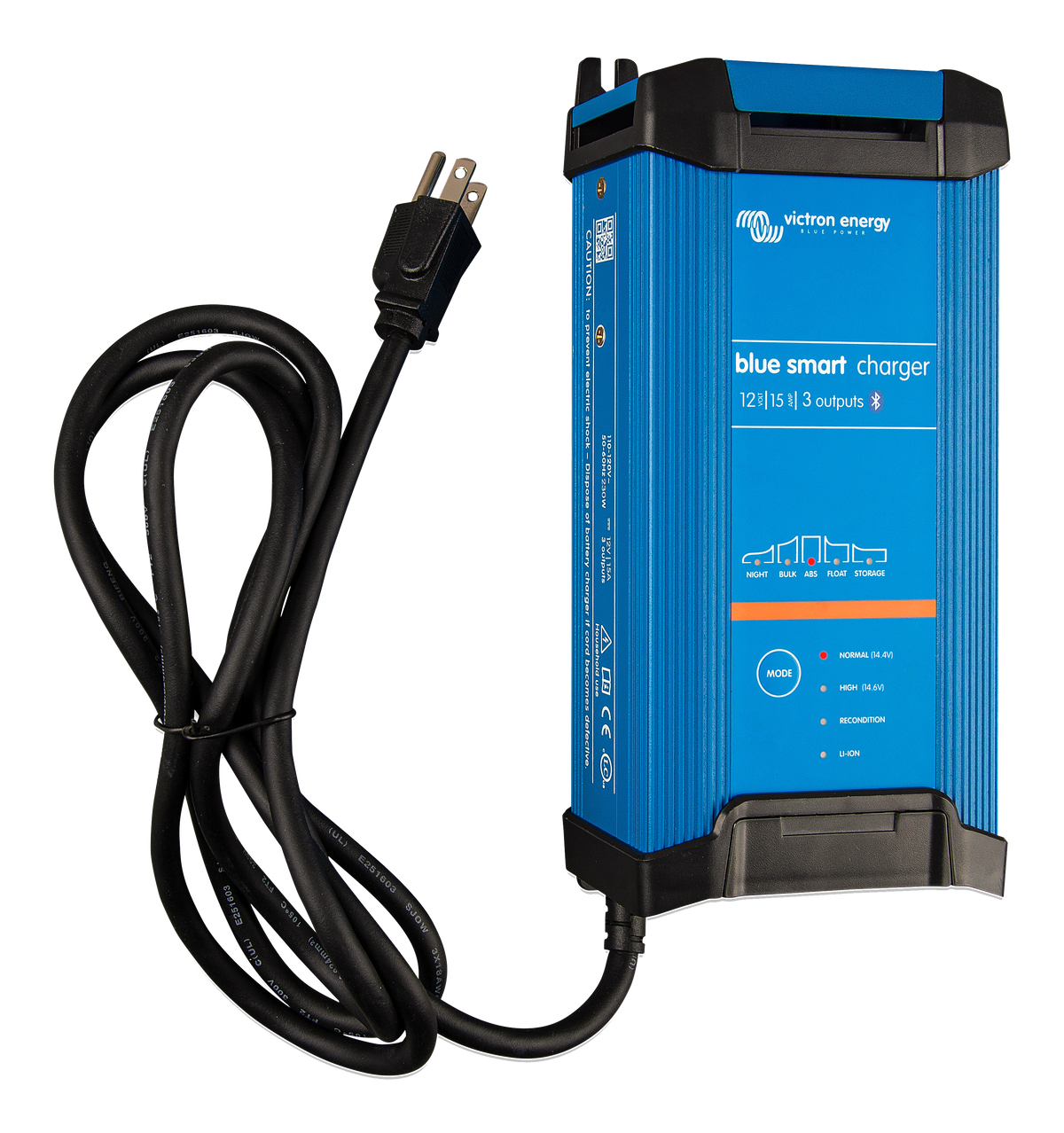

Victron Blue Smart IP22 Charger 12/15 (3 Outputs) — 120V NEMA 5-15, Bluetooth Marine Charger
Victron Blue Smart IP22 Charger 12/15 (3 Outputs) — 120V NEMA 5-15, Bluetooth Marine Charger
Couldn't load pickup availability
The Victron Blue Smart IP22 Charger 12/15 (3 Outputs) is the 3-output version of the popular IP22 smart battery charger — same 15A multi-stage charging as the single-output version, but with three independent isolated outputs that can charge three separate 12V battery banks simultaneously. Designed specifically for marine and multi-bank installs.
The 3-output advantage
Most boats have multiple battery banks that all need charging when at the dock:
- Output 1 — main house bank (largest)
- Output 2 — starter battery (smaller, AGM/lead-acid)
- Output 3 — bow thruster or windlass bank (or generator starter)
Each output is isolated from the others — a deeply discharged house bank won't pull current from a charged starter battery. Total charge current of 15A is distributed across the active outputs based on demand.
3 Output vs 1 Output — which one?
| 3 Output (this model) | 1 Output | |
|---|---|---|
| SKU | BPC121546102 | BPC121545102 |
| Charging outputs | 3 (isolated, simultaneous) | 1 (single bank) |
| Best for | Boats with house + starter + thruster banks | Single-bank RV, cabin, or boat |
| Price | $169.15 | $146.20 |
Why the Blue Smart IP22 12/15 (3 Outputs)
- 3 isolated outputs — charge house, starter, and thruster banks at the same time
- 15A total charge current — distributed dynamically across outputs based on demand
- Multi-stage adaptive charging — 7-step charging on each output independently
- Built-in Bluetooth — monitor all 3 outputs from your phone via VictronConnect
- Universal battery compatibility — AGM, Gel, Flooded, LiFePO4 (different chemistries per output OK)
- VE.Smart Networking — shares data with SmartShunt and SmartSolar
- NEMA 5-15 cord included
- 5-year warranty
Specifications
| AC input voltage | 120V ± 10%, 50/60Hz |
|---|---|
| AC input cord | NEMA 5-15 (included) |
| Charge output current (total) | 15A |
| Number of outputs | 3 (isolated) |
| Battery voltage | 12V |
| Charge algorithm | 7-stage adaptive (independent per output) |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable per output) |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Smart Networking | Yes |
| Power supply mode | Yes |
| Enclosure rating | IP22 (indoor / dry mounting) |
| Cooling | Variable-speed fan |
| Operating temperature | -30°C to +50°C (full power up to 30°C) |
| Manufacturer SKU | BPC121546102 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Sailboat / motor yacht with multiple banks — house + starter + thruster
- Trawler with separate generator starter — charge generator battery while at dock
- Marine commercial — charter boats with redundant starting systems
- RV with starter + house separation — keep chassis battery topped while plugged in
- Hybrid boat (electric + gas) — separate banks for propulsion and house
