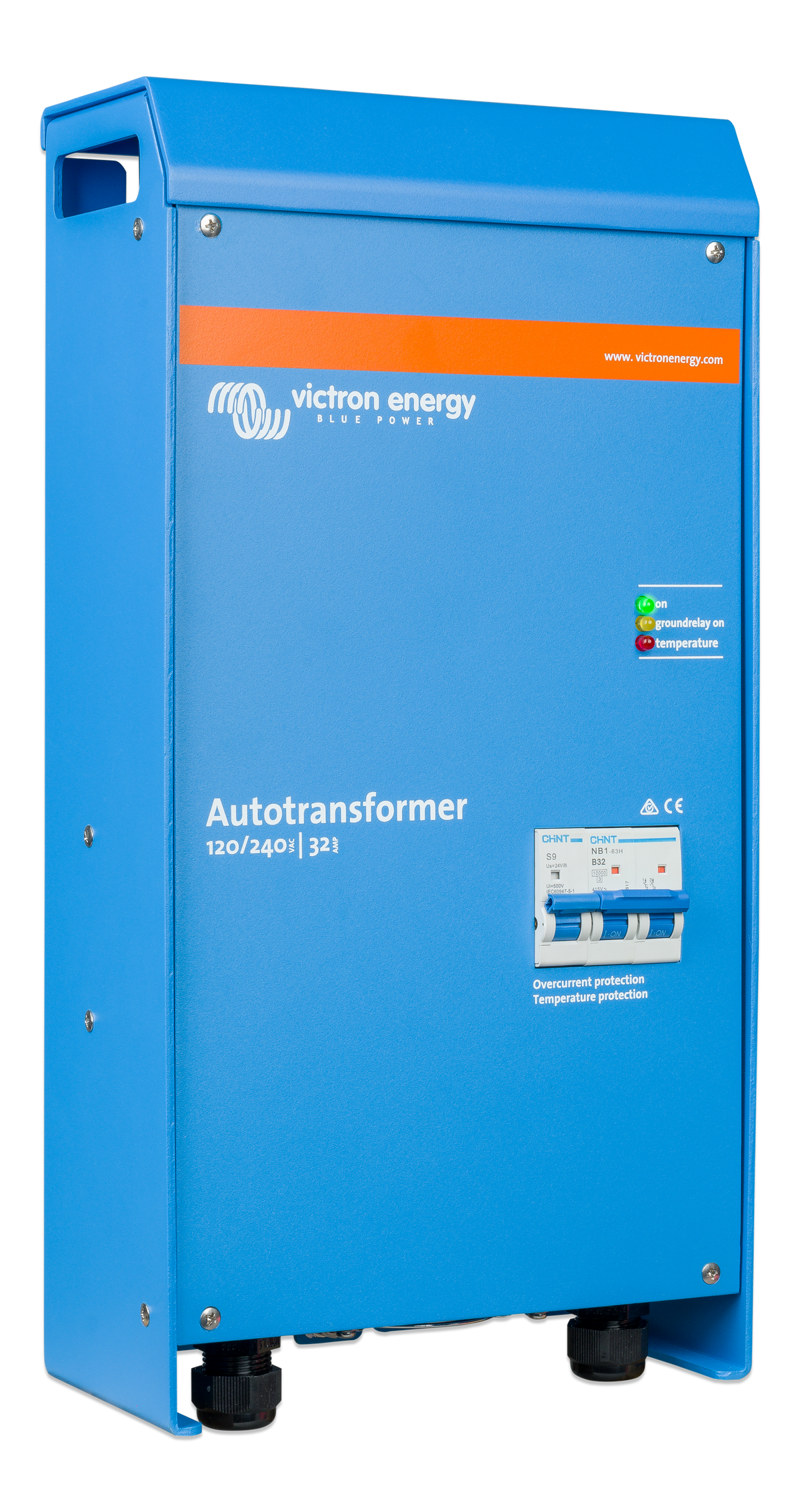

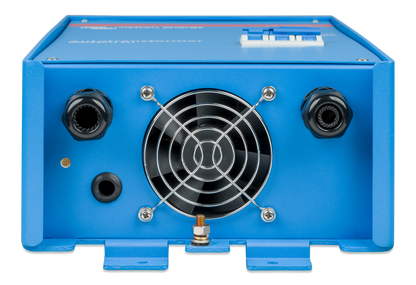

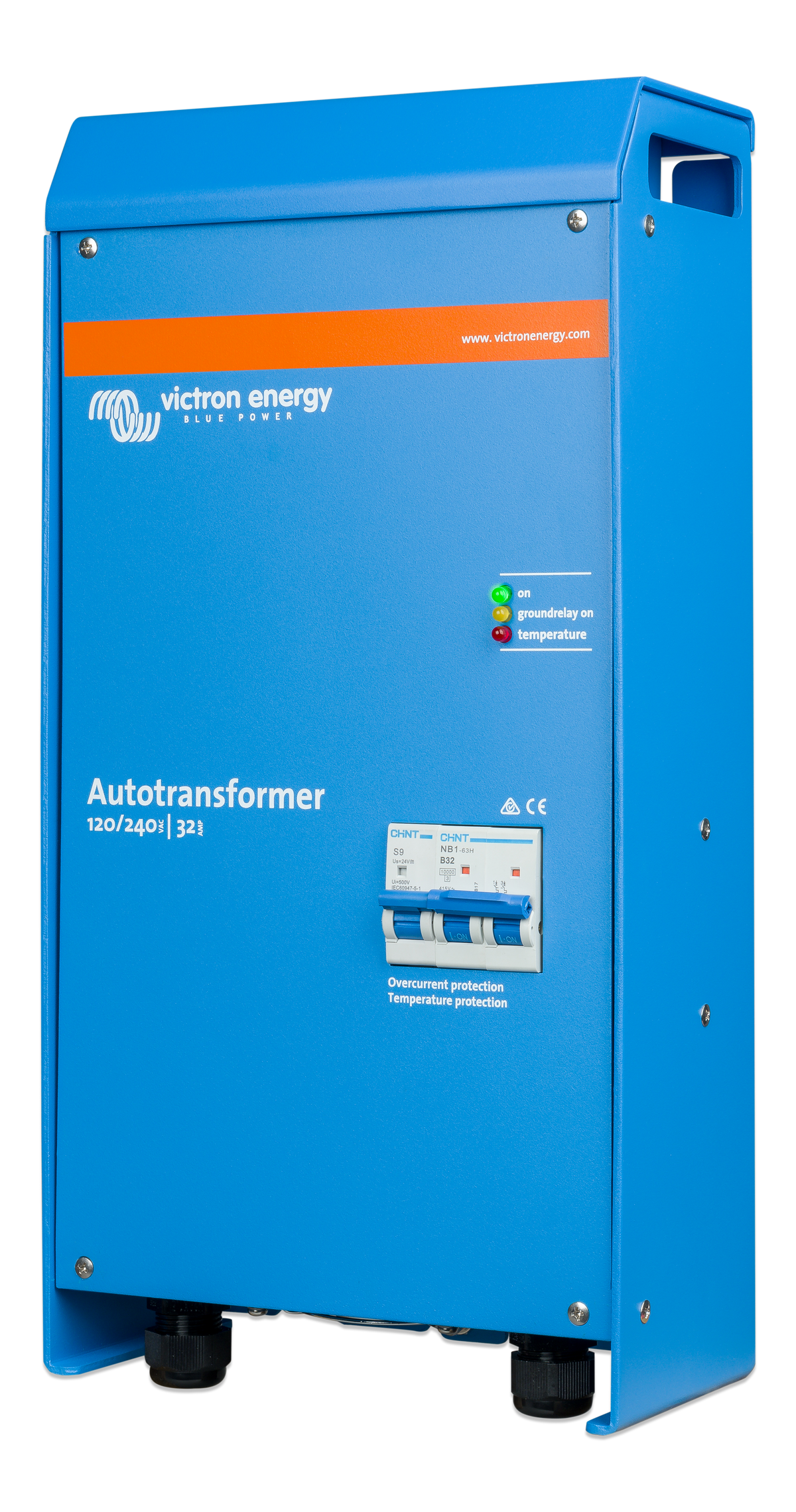

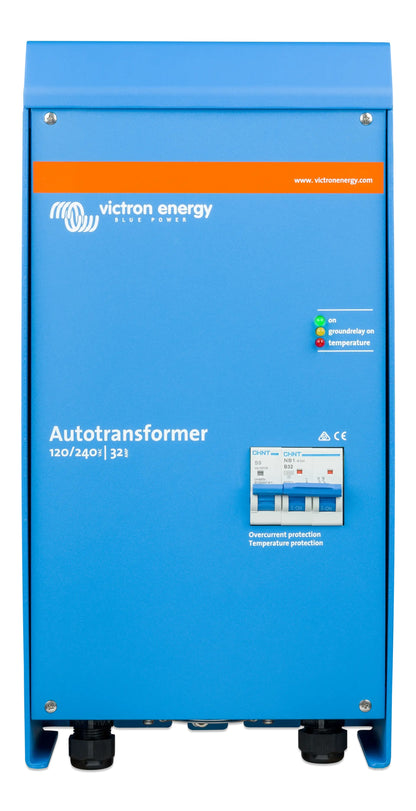

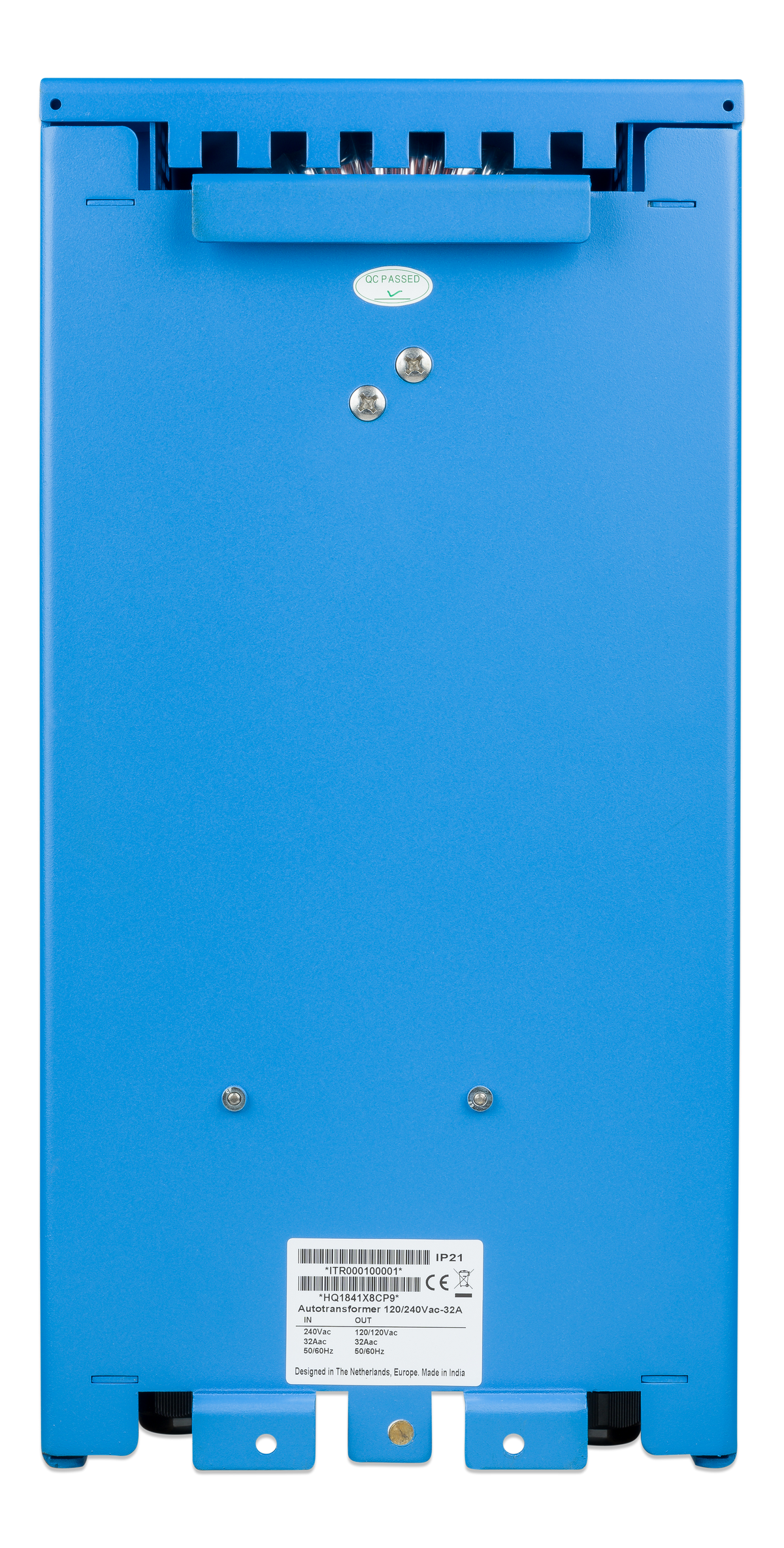

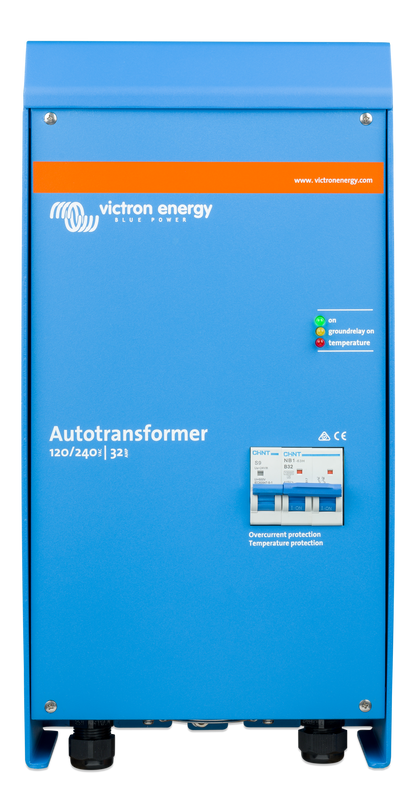

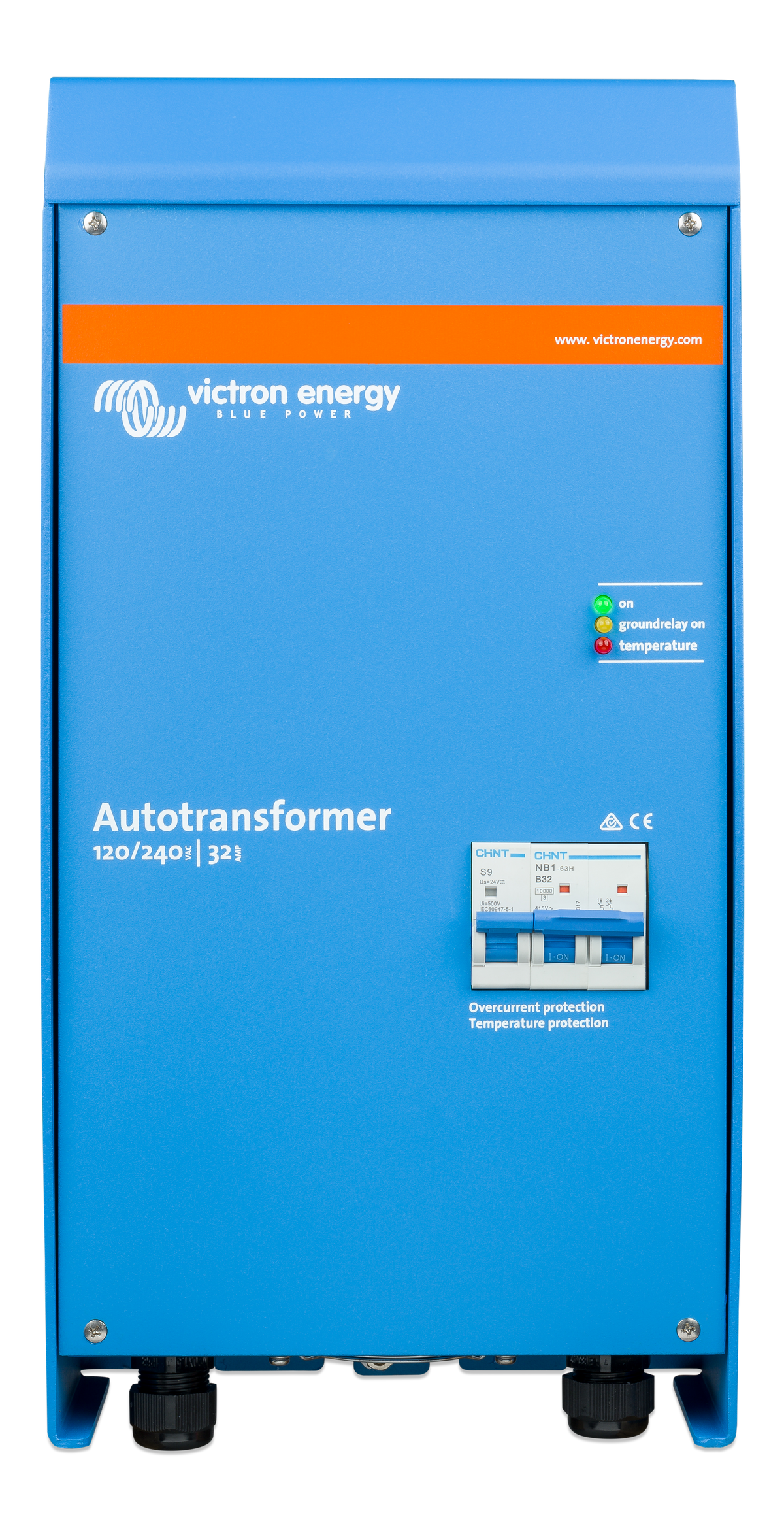

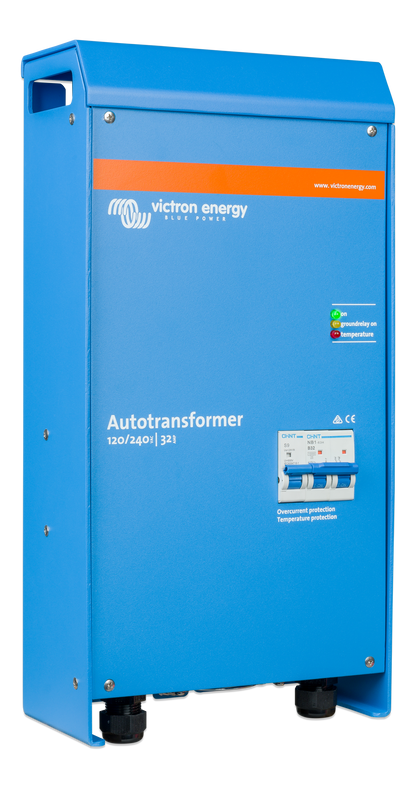

Victron Autotransformer 120/240V-32A — Convert Single 120V to Split-Phase 120/240V
Victron Autotransformer 120/240V-32A — Convert Single 120V to Split-Phase 120/240V
Couldn't load pickup availability
The Victron Autotransformer 120/240V-32A converts a single-phase 120V source into balanced split-phase 120V/240V — useful when your MultiPlus inverter outputs single-phase 120V but you have a 240V appliance (well pump, water heater, dryer) or a 50A split-phase shore power connection that needs to be balanced. Also balances loads between two 120V legs to prevent neutral current overload.
What it does
- Splits 120V to 120/240V — take a single 120V output and create a center-tapped 240V output
- Balances split-phase loads — evens out current between two 120V legs
- Boost or buck 120V — configurable to step up undervoltage or step down overvoltage
- Eliminates the need for a 2x120V MultiPlus-II — use a single-phase MultiPlus 12/2000 with an autotransformer instead of upgrading to the more expensive split-phase MultiPlus-II
When you need a 120/240V autotransformer
- RV with 50A shore power but single-phase MultiPlus — distribute 50A shore between two 120V legs
- Off-grid home with 240V well pump — power a 240V pump from a single-phase inverter
- Marine 240V appliances — dryer, water heater, AC unit on a single-phase inverter
- Voltage stabilization — boost weak shore power up to proper 120V
- Unbalanced load correction — prevent one 120V leg from overheating
Specifications
| Input voltage | 120V (single-phase) |
|---|---|
| Output voltage | 120V / 240V (split-phase) |
| Continuous current rating | 32A per 120V leg |
| Maximum 240V load | 32A |
| Voltage adjustment | ±10% boost/buck (configurable) |
| Cooling | Passive convection |
| Operating temperature | -20°C to +50°C |
| Mounting | Wall or floor mount |
| Manufacturer SKU | ITR000100001 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- 30A or 50A RV with single-phase MultiPlus — use single-phase inverter + autotransformer instead of MultiPlus-II split-phase
- Off-grid home with 240V well pump — critical for irrigation, water supply
- Off-grid cabin with 240V water heater
- Marine with 240V galley equipment — induction cooktop, washer/dryer
- Voltage boost — long shore power cable runs with voltage drop
- Backup power with mixed 120V / 240V loads
Need more capacity?
For higher-current applications (50A+ continuous), see the Autotransformer 120/240V-100A. For lower-current applications, this 32A version handles up to ~7600W of split-phase load.
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase consultation — send us your inverter type and intended 240V loads to support@jonssontech.net or call 346-574-9652 and we'll confirm sizing.
