Victron Energy

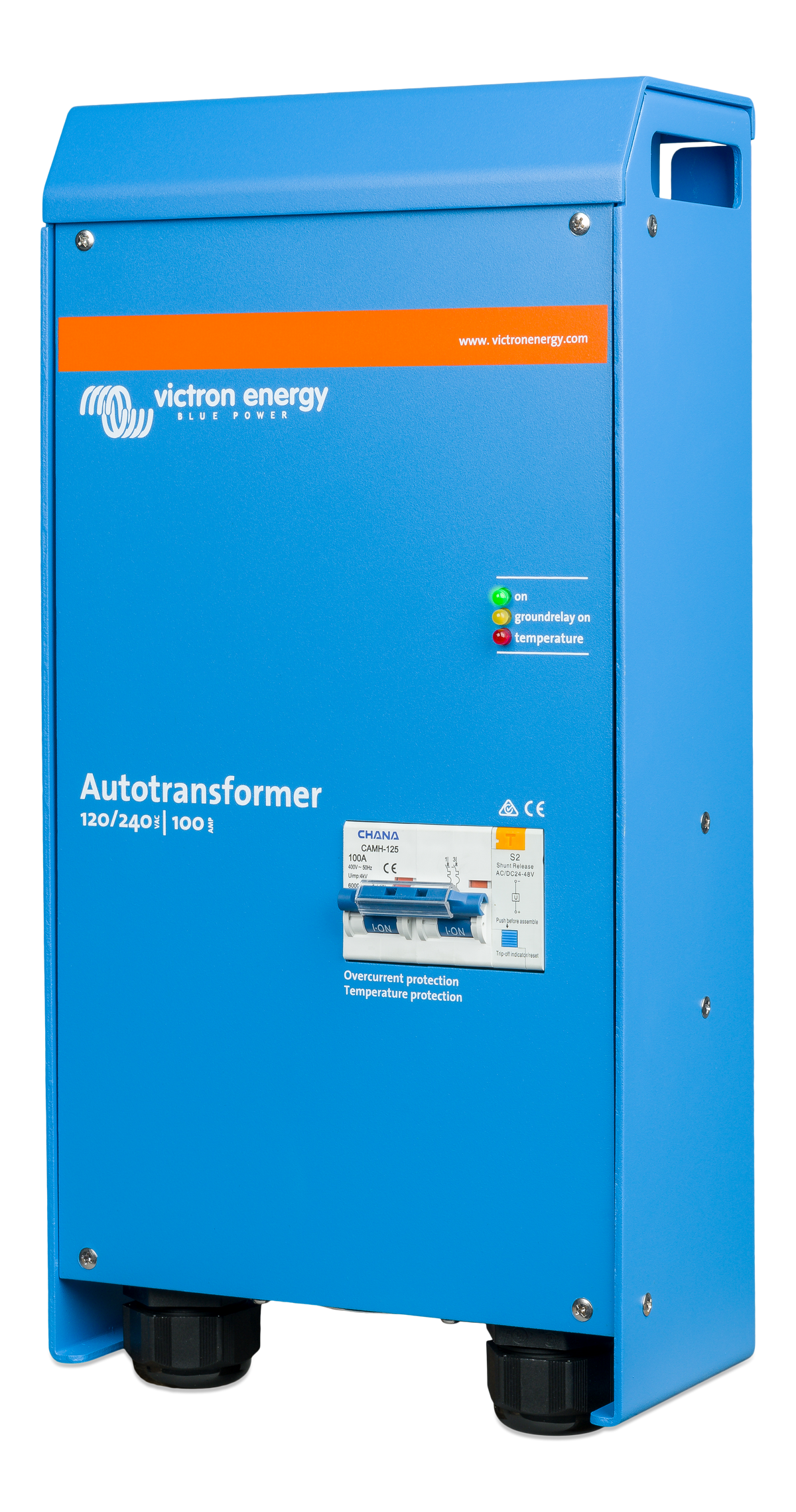

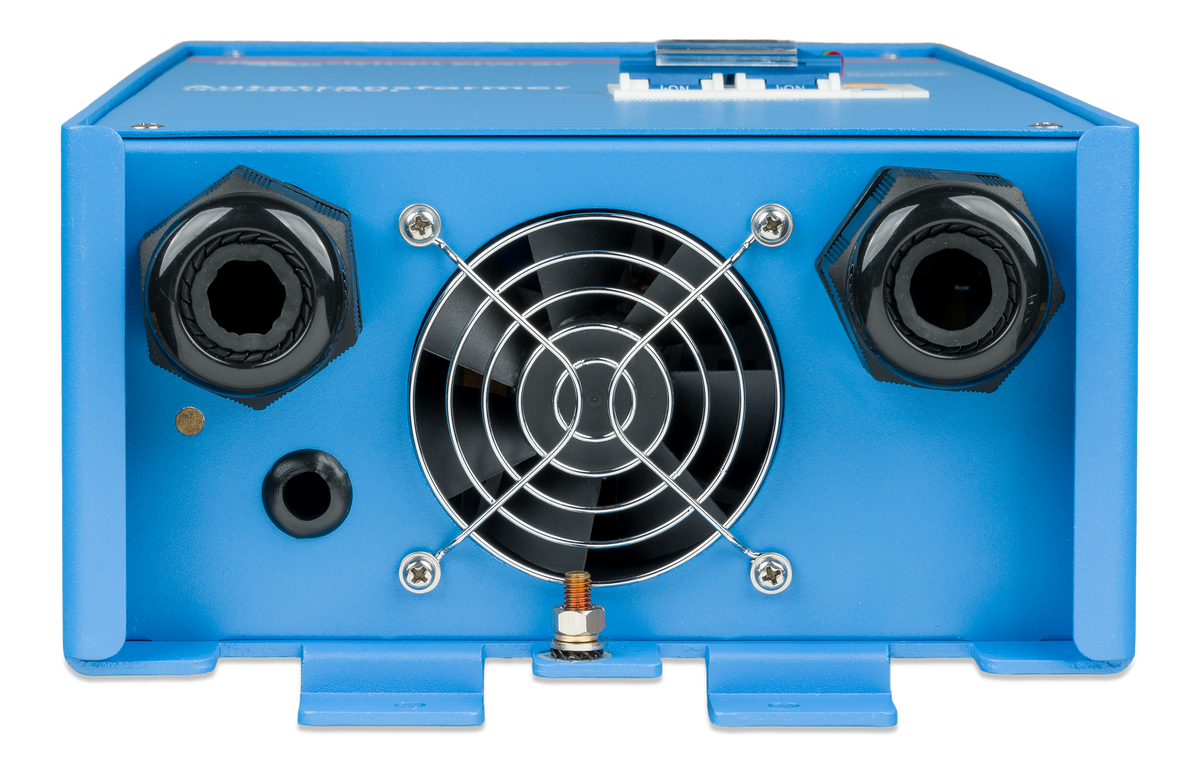

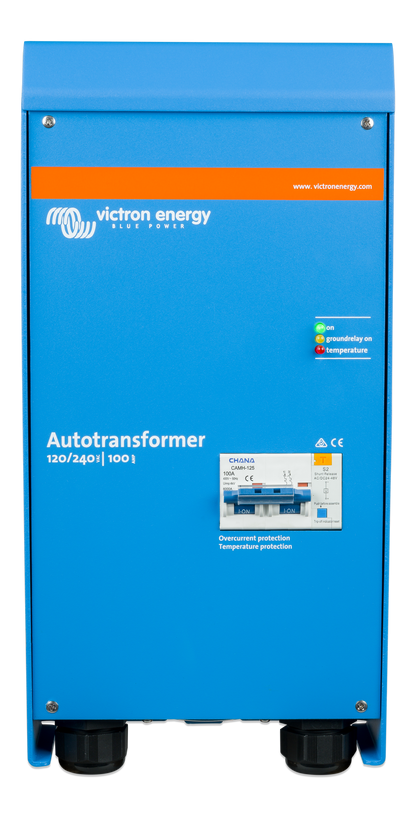

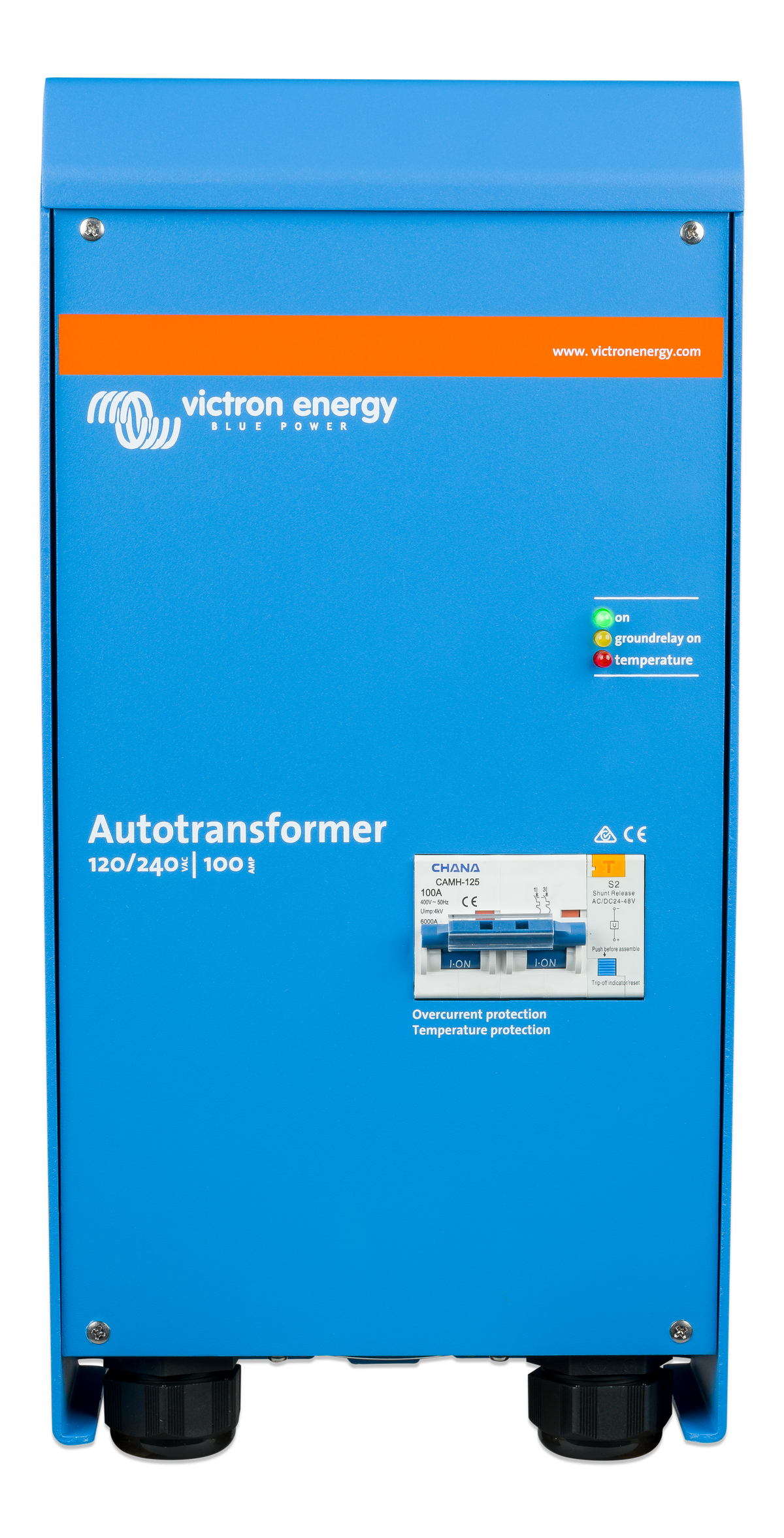

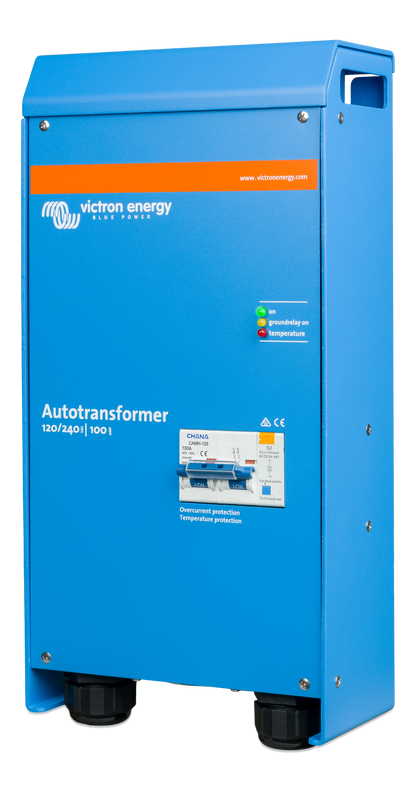

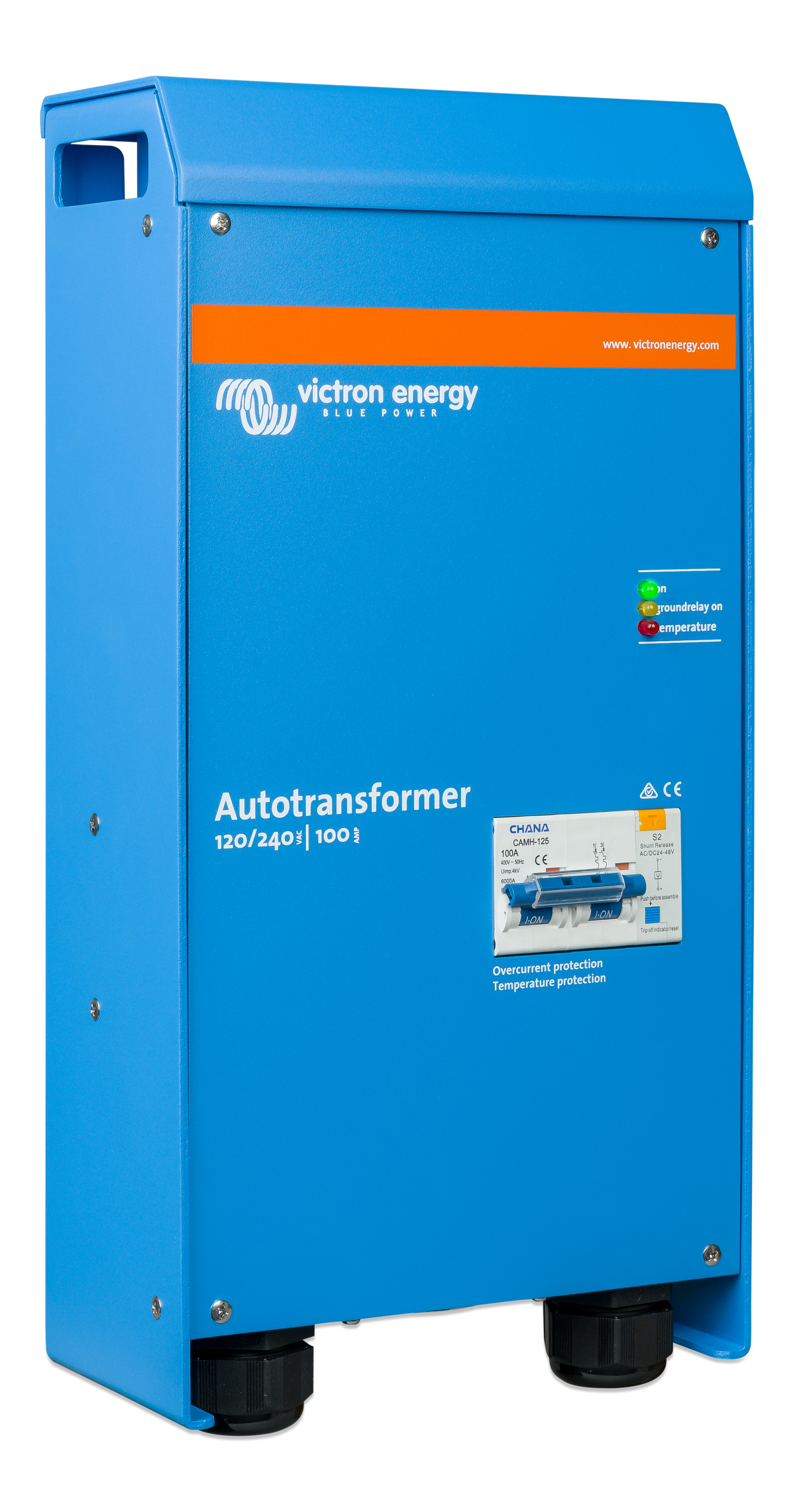

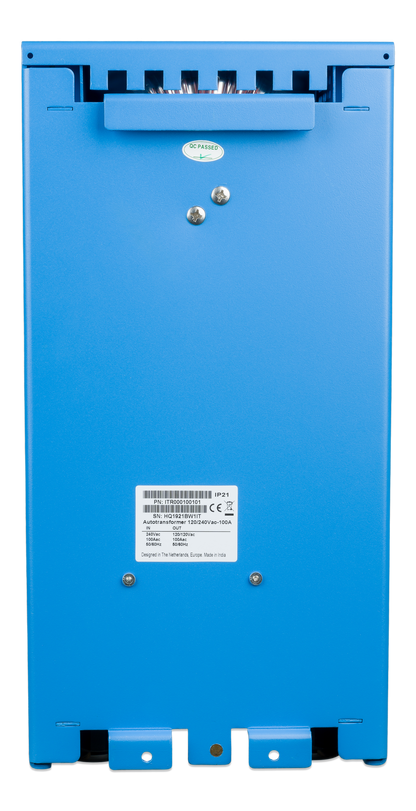

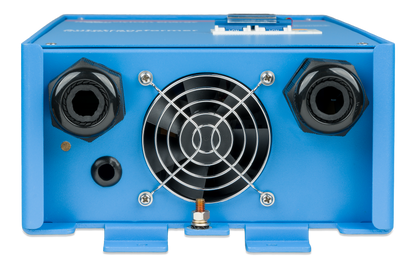

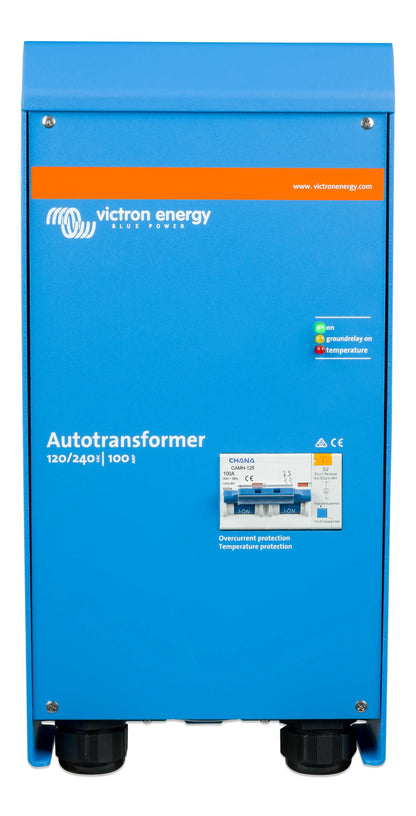

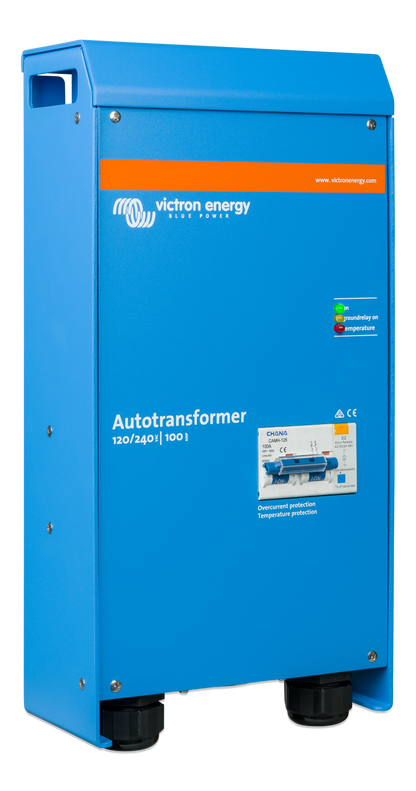

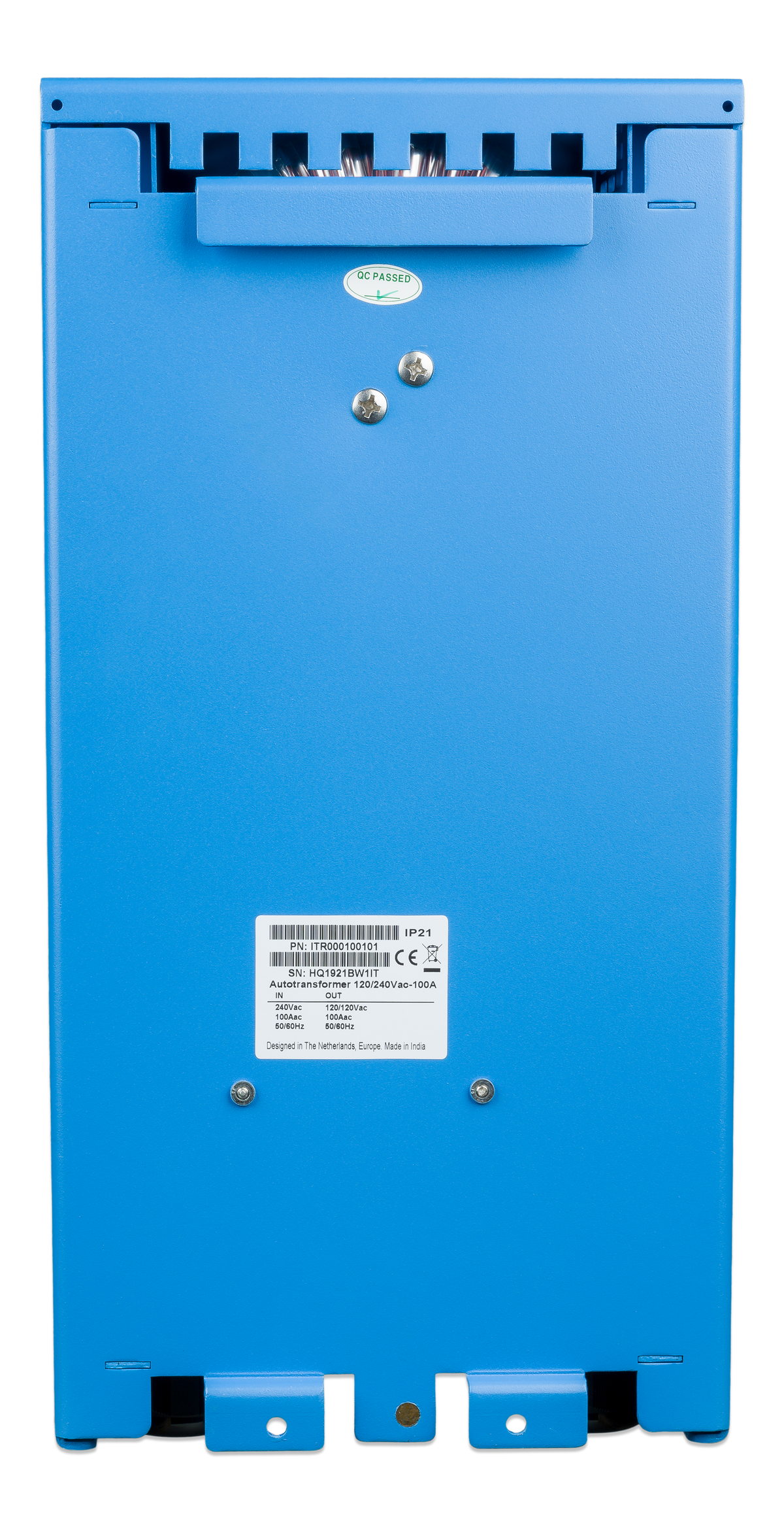

Victron Autotransformer 120/240V-100A — High-Current Split-Phase Converter (Whole-Home)
Victron Autotransformer 120/240V-100A — High-Current Split-Phase Converter (Whole-Home)
Regular price
$509.15
Regular price
Sale price
$509.15
Unit price
/
per
Couldn't load pickup availability
The Victron Autotransformer 120/240V-100A is the high-current version of the 120/240V autotransformer — 100A per 120V leg (24kVA total split-phase capacity). Sized for whole-home applications, large RVs with 50A service, and commercial backup installs where you need split-phase output from a single-phase inverter source.
What it does
Same functions as the 32A model, but at 3× the capacity:
- Splits 120V to 120/240V — whole-home capable
- Balances split-phase loads — 100A per leg means no leg overload
- Boost or buck 120V — ±10% voltage adjustment
- Use with parallel MultiPlus — enables 2× MultiPlus 12/3000 parallel to feed a 50A split-phase load
When you need 100A
- Whole-home backup — entire residential 100A service from a single-phase inverter
- Large 50A RV — distribute full 50A shore between both 120V legs
- Commercial backup — office or retail with 100A service
- Off-grid home with electric heat or AC — 240V heat pump or central AC
- Off-grid home with multiple 240V appliances — well pump + dryer + range + water heater
- EV charger backup — 240V Level 2 charging from a single-phase battery system
Specifications
| Input voltage | 120V (single-phase) |
|---|---|
| Output voltage | 120V / 240V (split-phase) |
| Continuous current rating | 100A per 120V leg |
| Maximum 240V load | 100A |
| Total capacity | ~24 kVA split-phase |
| Voltage adjustment | ±10% boost/buck (configurable) |
| Cooling | Passive convection |
| Operating temperature | -20°C to +50°C |
| Mounting | Wall or floor mount |
| Manufacturer SKU | ITR040020041 (verify with distributor) |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Whole-home off-grid — single-phase inverter feeding split-phase residential
- Whole-home backup with parallel MultiPlus — 2× or 3× MultiPlus in parallel feeding split-phase
- Large RV (50A) with single-phase inverter — substantial cost savings vs MultiPlus-II split-phase
- Large marine yacht — substantial 240V load capability
- Commercial / professional backup — small office/retail full-service backup
- Off-grid homestead with EV — Level 2 charging from battery
Every Jonsson Tech order ships within 5 days nationwide from our Houston, Texas warehouse. Free pre-purchase consultation — send us your inverter setup and intended 240V loads.
