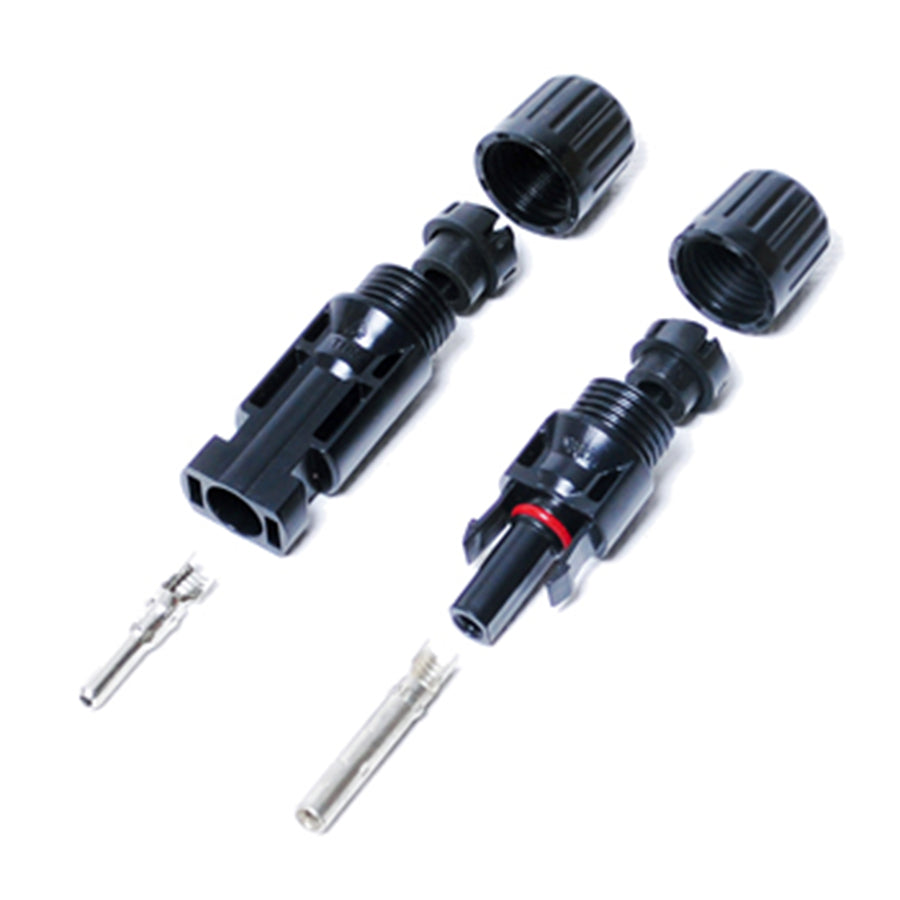

MC4 Connector Pair — Male + Female, Solar PV (IP68, 1500V)

One matched male + female MC4 connector pair, crimped and assembled to your cable.

A single pair terminates both ends of one solar cable run — male on one end, female on the other — which is the standard arrangement for a PV extension lead.

Specifications

• Rating: 1500V DC, 30A
• Ingress protection: IP68 when mated
• Contact: Tin-plated copper, crimped with a proper MC4 die
• Cable compatibility: 10 AWG solar PV wire
• Temperature range: −40°C to +90°C

Fitted, not bagged

We crimp and torque the connectors onto your cut cable before it ships, then check each one for pull-out. You receive a finished lead ready to plug into your array.

This item is added automatically when you select a connector option on a cut-to-length solar cable product.
