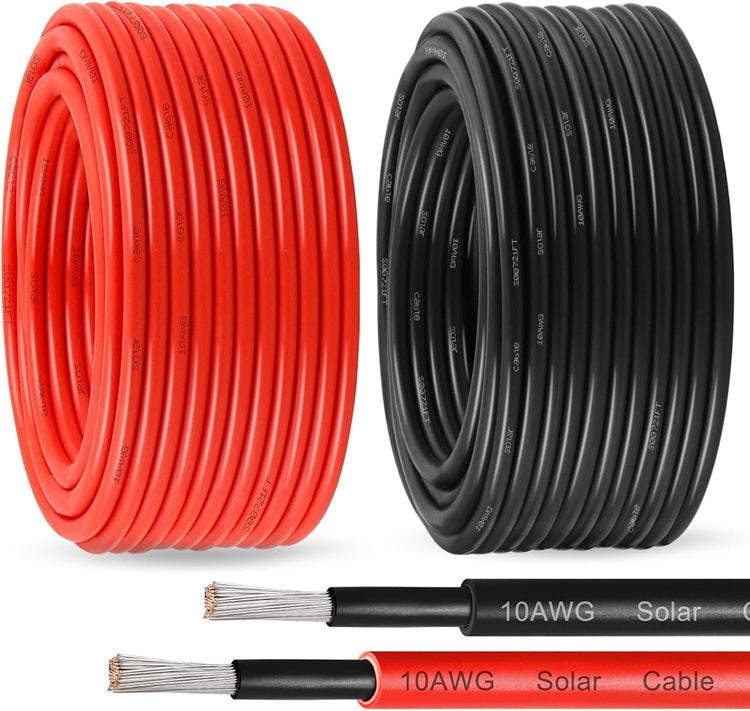

10 AWG Solar PV Cable — UL Rated — Cut to Length

UL-rated 10 AWG photovoltaic wire — cut to your exact length, down to the inch.

Use the length selector above to enter the run you need in feet and inches. Price is calculated per foot and prorated to the inch, so you pay only for what you order — no rounding up, no minimum spool.

Specifications

• Gauge: 10 AWG
• Type: PV Wire, UL 4703 listed
• Voltage rating: 2000V DC
• Conductor: Stranded tinned copper
• Insulation: Cross-linked polyethylene (XLPE), sunlight resistant
• Temperature range: −40°C to +90°C wet, +150°C dry
• Rated for: Direct sunlight exposure, outdoor and rooftop array wiring
• Colours: Red (positive) and Black (negative)

Cutting and minimums

• Minimum order: 6 inches
• Cut to the inch — order 24 ft 8 in if that's what the roof run needs
• Supplied as a single unbroken run unless you order multiple separate pieces

Need MC4 connectors?

Add a male + female MC4 pair using the connector option in the length selector. One pair terminates both ends of a run — we crimp, torque and pull-test each one before shipping, so you get a finished lead ready to plug into your array.

Note: cut cable is made to order and is non-returnable. Please double-check your measurements before ordering.
