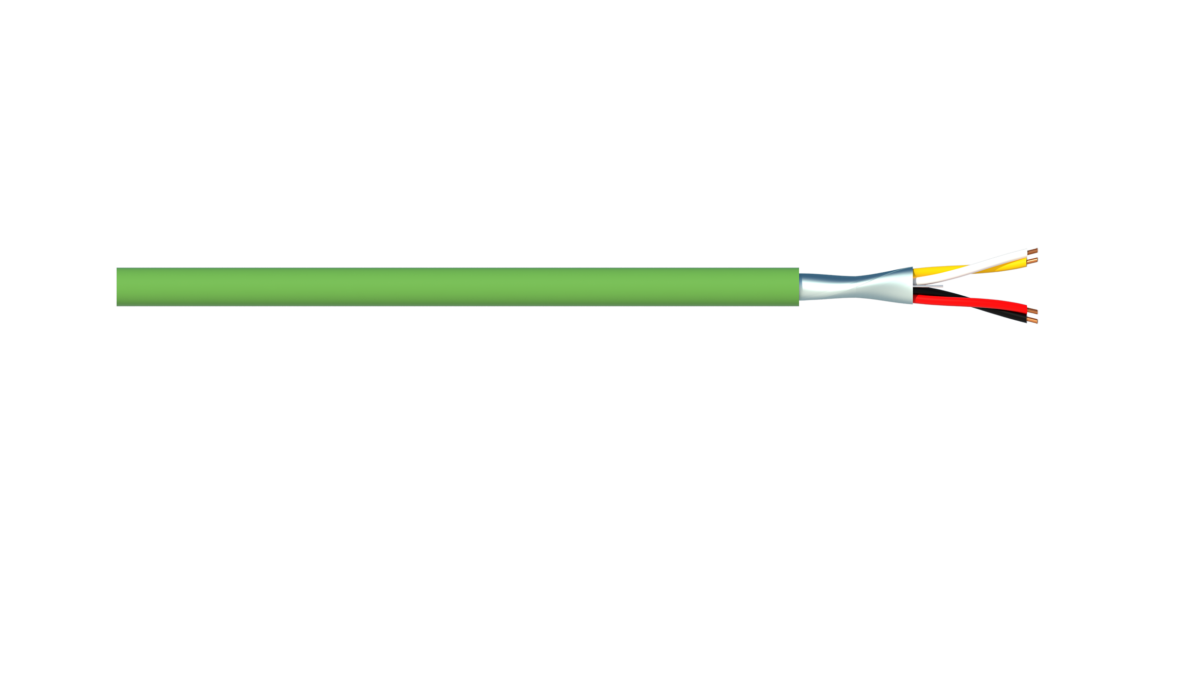

EIB-BUS / KNX Cable 2×2×0.80mm LSZH — Shielded Twisted Pair, Made in Italy, Sold Per Foot (Green)

Italian-made EIB-BUS cable from Italcond: two twisted pairs of 0.80mm solid copper under a green low-smoke zero-halogen (LSZH) jacket. It is the standard two-pair bus cable for KNX/EIB building automation, used for lighting, HVAC, shading and energy-management control. It is cut to the length you need.

Specifications

• Construction: 2 × 2 × 0.80mm (two twisted pairs)
• Conductor: solid bare copper, 0.80mm diameter (about 0.5mm², close to 20 AWG)
• Pair colors: pair 1 red/black (bus), pair 2 white/yellow (spare or auxiliary)
• Screen: aluminium/polyester foil with drain wire
• Jacket: LSZH (low smoke, zero halogen), green
• Manufacturer: Italcond
• Origin: Made in Italy

How to order

The price is per foot. Enter the number of feet as the quantity. For example, a quantity of 50 gets you one continuous 50 ft length.

Great for

• KNX / EIB bus lines in home and building automation
• Low-voltage control and signalling runs where a low-smoke, halogen-free jacket is preferred

Need a full reel or help planning a bus layout? Contact Jonsson Tech.
