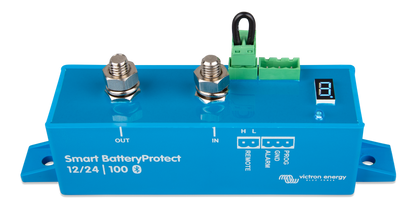

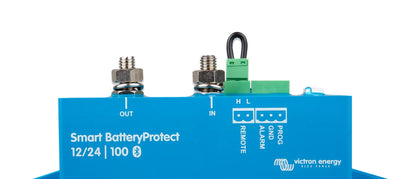

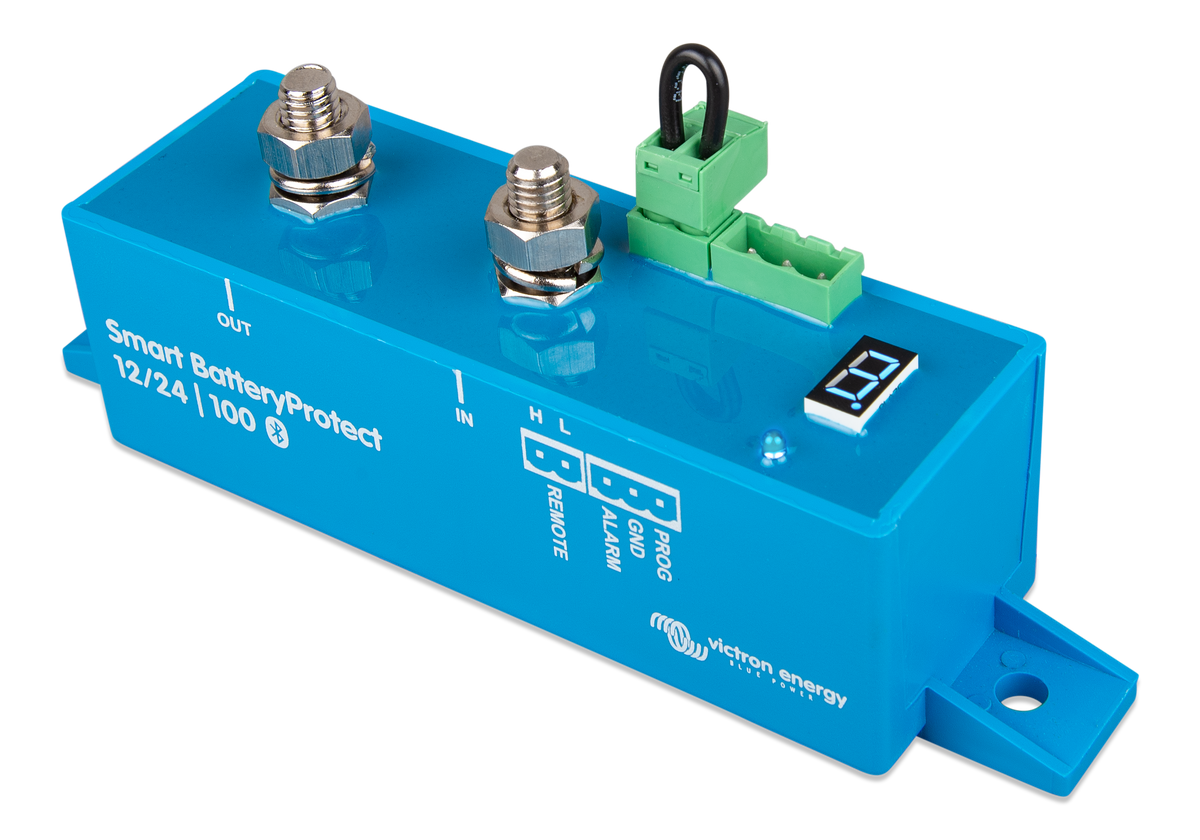

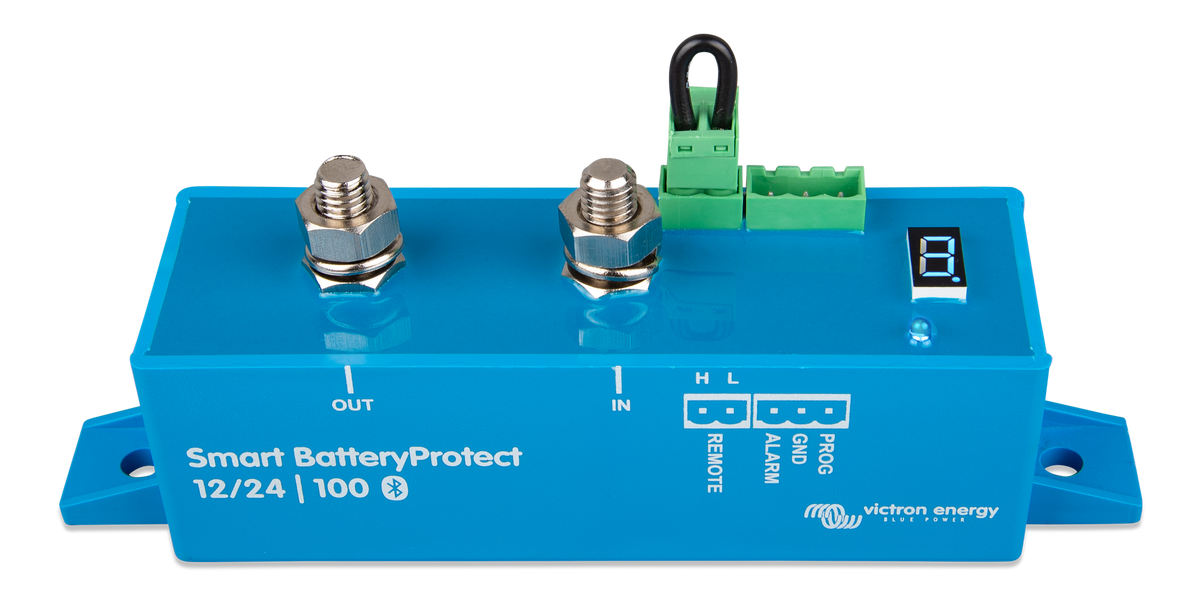

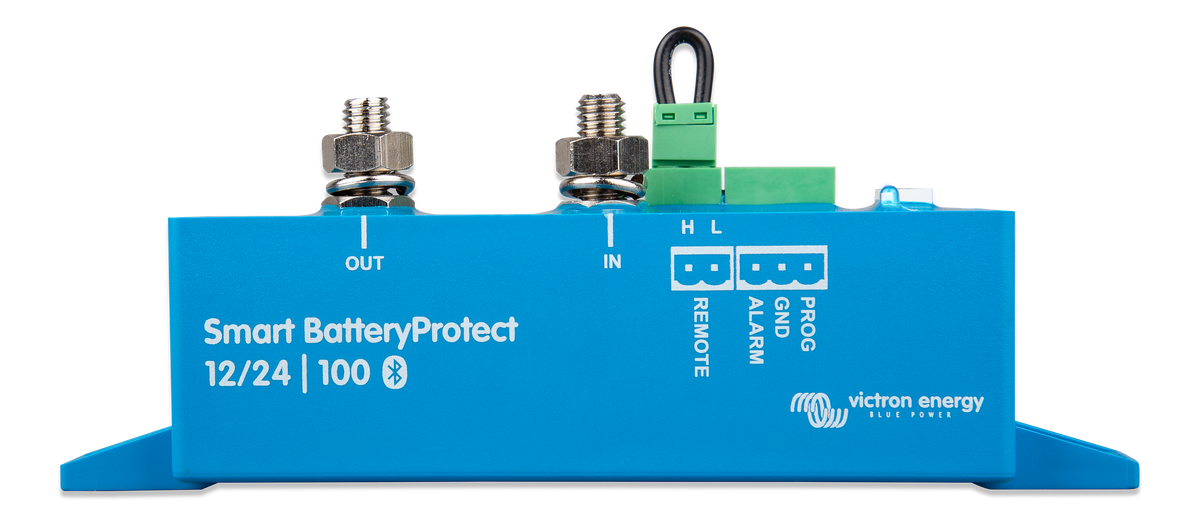

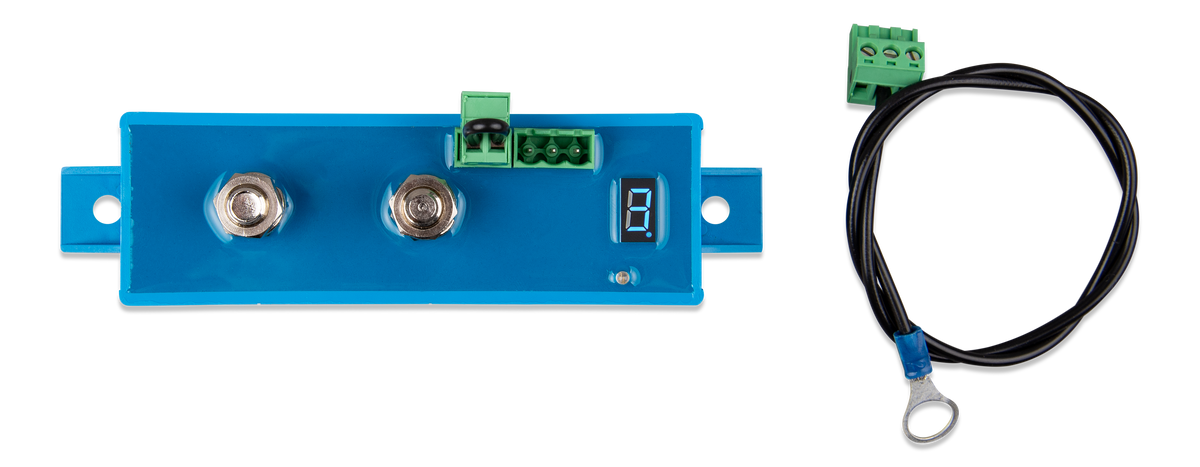

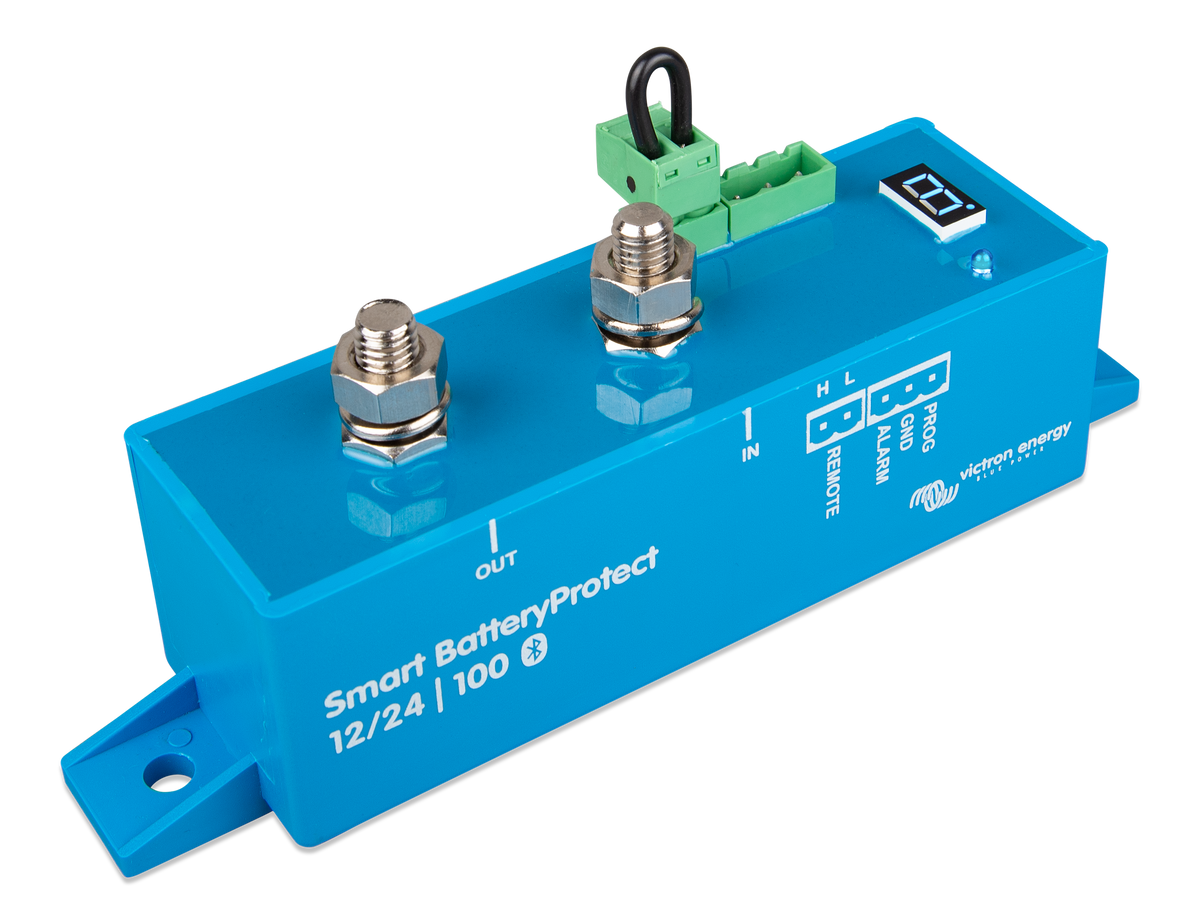

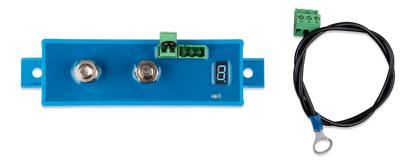

Victron Smart BatteryProtect 12/24V-100A — Auto Low-Voltage Disconnect with Bluetooth
Victron Smart BatteryProtect 12/24V-100A — Auto Low-Voltage Disconnect with Bluetooth
Couldn't load pickup availability

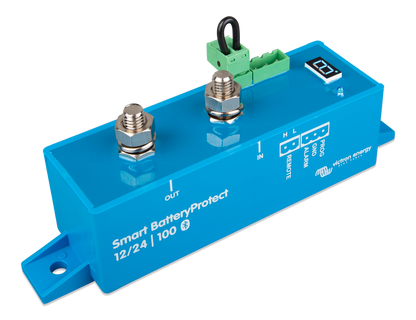

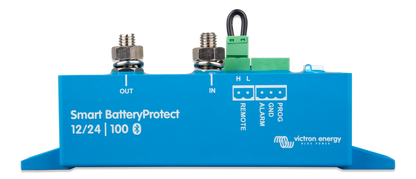

The Victron Smart BatteryProtect 12/24V-100A is the mid-size version of the BatteryProtect family — 100A load capacity, automatic low-voltage disconnect, built-in Bluetooth. Sized for larger 12V house circuits, 24V mid-size inverter circuits, or anywhere you need more than the 65A model can handle.
Why you need a BatteryProtect
Deep-discharging a battery is the #1 cause of premature failure. AGM, gel, and lead-acid batteries are damaged by repeated discharges below 50%; LiFePO4 batteries have a strict low-voltage cutoff that, if exceeded, can permanently disable the BMS.
A BatteryProtect automatically disconnects loads before damage occurs — with configurable thresholds, programmable delays, and Bluetooth alerts.
Why the Smart BatteryProtect 100A
- 100A load capacity — sized for larger 12V circuits or 24V mid-size inverters
- Works on 12V or 24V — auto-detects
- Built-in Bluetooth — configure thresholds, view stats, get alerts via VictronConnect
- Programmable thresholds — different for each battery chemistry
- VE.Smart Networking — takes battery data directly from SmartShunt for accurate decision-making
- Solid-state design — no relay, no current limit, no failure mode at full load
- Compact — fits in standard wiring spaces
- 5-year warranty
Specifications
| Battery voltage | 12V / 24V (auto-detect) |
|---|---|
| Max continuous load current | 100A |
| Bluetooth | Built-in (VictronConnect app) |
| VE.Smart Networking | Yes |
| Battery chemistry | AGM, Gel, Flooded, LiFePO4 (configurable thresholds) |
| Disconnect type | Solid-state (silent, no relay) |
| Self-consumption | ~1.5 mA |
| Voltage drop | < 0.1V at full load |
| Operating temperature | -40°C to +60°C |
| Enclosure rating | IP20 (indoor / dry mounting) |
| Manufacturer SKU | BPR110022000 |
| Warranty | 5 years (manufacturer) |
Recommended applications
- Larger RV house circuit — fridge + lights + fans + entertainment combined load
- Marine multi-load circuit — cabin lighting + fridge + audio + nav electronics
- Smaller 12V inverter circuit — 1000W inverter protection
- 24V mid-size inverter — 2400W inverter circuit at 24V
- Off-grid cabin combined load — multiple circuit aggregate
- Lithium battery protection — critical for LiFePO4 banks
BatteryProtect sizing guide
| Model | Load capacity | Best for |
|---|---|---|
| BatteryProtect 65A | 65A | Typical 12V house circuit |
| BatteryProtect 100A | 100A | Larger 12V house, smaller 24V inverter circuit |
| BatteryProtect 220A | 220A | Large 12V inverter, multi-load circuit |
| BatteryProtect 48V-100A | 100A @ 48V | 48V residential ESS, telecom |
