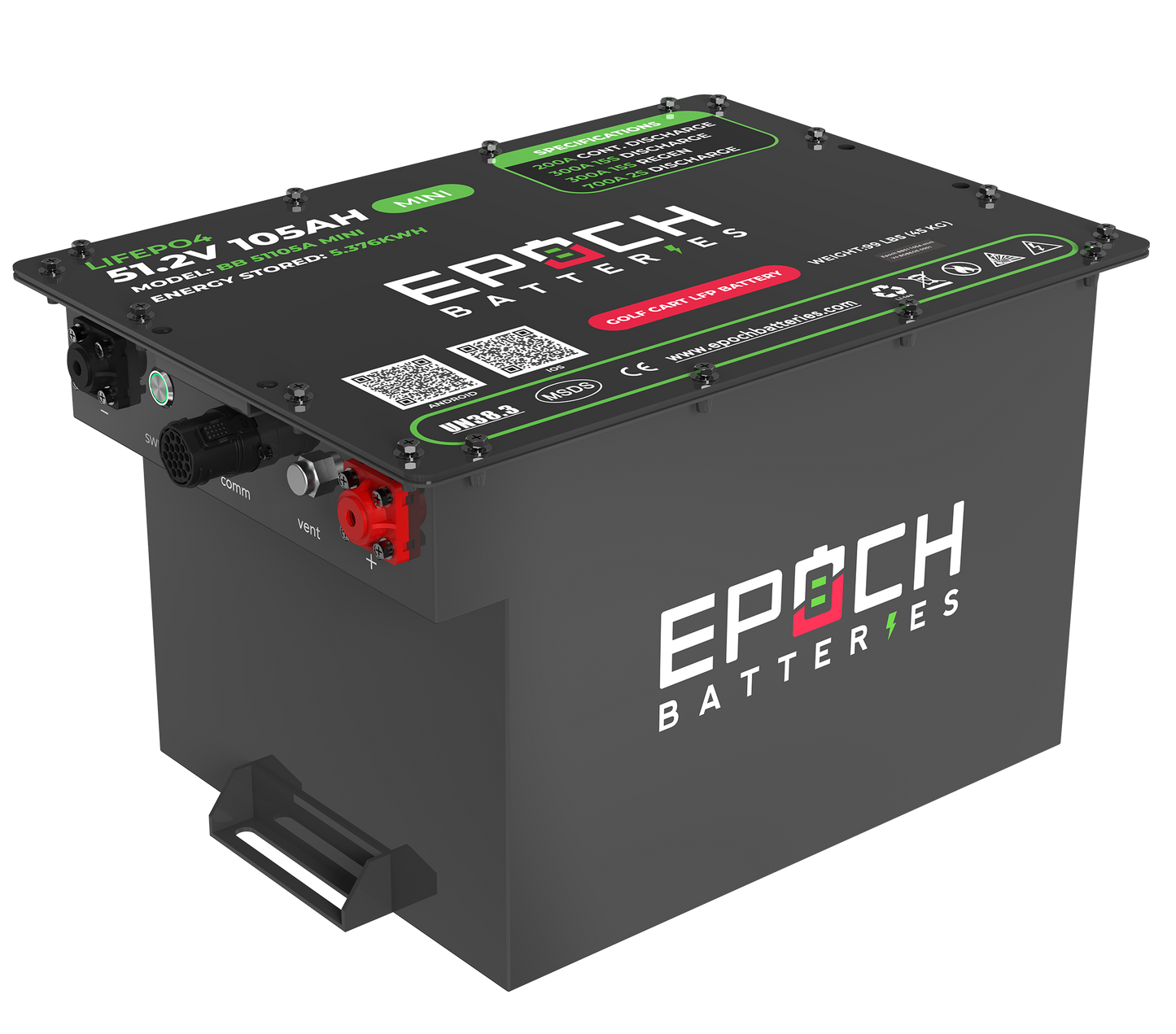

• Epoch BB51105A MINI 48V 105Ah golf cart battery complete kit
1 1

Epoch Batteries

(PRE-ORDER) 48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit SKU: BB51105A_MINI-kit-1

(PRE-ORDER) 48V 105Ah MINI - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit SKU: BB51105A_MINI-kit-1

$2,069.10
$2,069.10
Sale Sold out
Shipping calculated at checkout.

The Epoch BB51105A_MINI LiMax Series complete kit is a compact-footprint 48V 105Ah (5.376kWh) LiFePO4 golf cart conversion — built for lifted carts, steep hills, and upgraded aftermarket motor controllers.

  • 200A continuous / 700A peak (2s) discharge
  • Maintenance-free, compact footprint vs. standard 105Ah kit
  • Bluetooth app monitoring

Kit includes:

  • 48V 105Ah lithium battery
  • 48V 15A waterproof onboard charger
  • 12V step-down converter for accessories
  • Dash-mounted battery gauge with harness
  • Cart-specific mounting brackets
Nominal voltage 51.2V (40-58.4V range)
Capacity 105Ah (5.376kWh)
Chemistry LiFePO4 (lithium iron phosphate)
Weight 99 lbs
Dimensions 15.8" L x 11.1" W x 10.9" H
Waterproofing IP67
Cycle life 3,500+
Warranty 11 years
SKU BB51105A_MINI-kit-1

Pre-order — contact us for current ETA.

Jonsson Tech is an authorized Epoch Batteries dealer in Houston, Texas. Free system design help with every order — call 346-574-9652.

View full details
