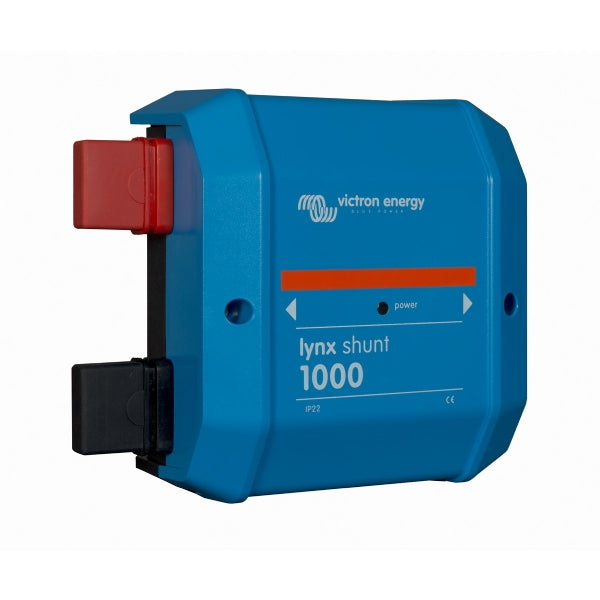

Victron Energy Lynx Shunt IP22 VE.Can 1000Amp
Victron Energy Lynx Shunt IP22 VE.Can 1000Amp
Regular price
$355.30
Regular price
Sale price
$355.30
Unit price
/
per
Couldn't load pickup availability
Busbar integrated battery monitoring
The Victron Energy Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It is part of the Lynx Distribution system.
The Lynx Distributor has a power LED.
The Lynx Shunt VE.Can can communicate via VE.Can with an GX device.
The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, these are used when connecting to a GX device.
The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately.
| Model | Lynx Shunt VE.Can |
| POWER | |
| Supply voltage range | 9 - 70 Vdc |
| Supported system voltages 48V | 12, 24 or |
| Reverse polarity protection | No |
| Current rating | 1000Adc continuous |
| Power consumption | 60mA @ 12V 33mA @ 24V 20mA @ 48V |
| Potential free alarm contact | 3A, 30Vdc, 250Vac |
| CONNECTIONS | |
| Busbar | M8 |
| Fuse | M8 |
| VE.Can | RJ45 and RJ45 terminator |
| Power supply connection to Lynx Distributor |
RJ10 (a RJ10 cable ships with each Lynx Distributor) |
| Temperature sensor | Screw terminal |
| Relay | Screw terminal |
| PHYSICAL | |
| Enclosure material | ABS |
| Enclosure dimensions (h x w x d) | 190 x 180 x 80 mm |
| Unit weight | 1.4 kg |
| Busbar material | Tinned copper |
| Busbar dimensions (hxw) | 8 x 30 mm |
| ENVIRONMENTAL | |
| Operating temperature range | -40°C to +60° |
| Storage temperature range | -40°C to +60° |
| Humidity | Max. 95% (non-condensing) |
| Protection class | IP22 |
